Why Does a 24V Brushed Air Pump Stall When Voltage Is Reduced?

Your device stalls when you try to slow it down, ruining its function. You lowered the voltage, but now the pump chokes under load, causing frustrating failures.

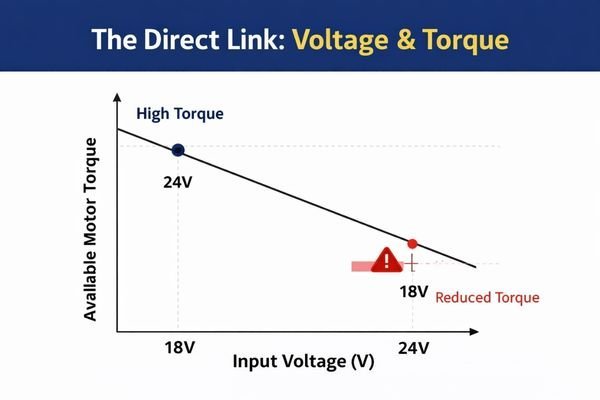

A 24V brushed motor's torque is directly proportional to its voltage. Reducing voltage starves the motor of the power needed to overcome system backpressure and internal friction. This causes it to stall, especially during startup or under load.

As a micro pump project manager with over nine years of experience, I've seen this exact issue become a last-minute crisis for many design teams. The failure isn't random; it's a predictable result of misunderstanding basic DC motor physics. Let's break down this problem systematically to understand the cause and the correct engineering solutions.

What Is the Stalling Problem of Micro Air Pumps in Small Appliance Systems?

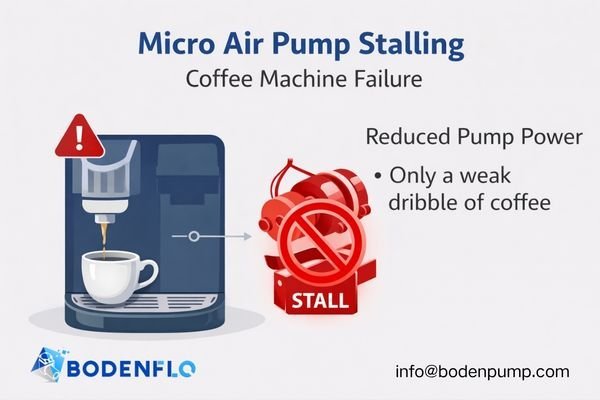

Your premium coffee machine pump stalls mid-cycle. It ran quietly at a lower voltage in the lab, but now it fails in the final product, rendering it useless.

The stalling problem in small appliances is a critical mismatch between the motor's now-reduced torque and the system's high backpressure. Lowering voltage weakens the pump, making it unable to push against the real-world resistance found in compact systems.

In my experience, this failure is predictable in systems that generate significant resistance, or what we engineers call "backpressure¹." This is the load the pump must work against. I often see this design flaw when initial testing doesn't match the final application. The testing process goes wrong in a very predictable way.

The Flawed Testing-to-Application Workflow

Stage	Action & Observation	Flawed Conclusion
1. Bench Testing	The pump outlet is open to the air (zero load). The engineer reduces voltage, and the motor successfully slows down.	"Voltage reduction is a valid and simple method for speed control."
2. Final Integration	The pump is installed in a coffee machine. It now must force water through fine coffee grounds, creating high backpressure.	"The pump is defective." (The real problem was the flawed test.)

This disconnect is common in high-load scenarios like:

• Espresso Machines: Forcing hot water through a tightly packed bed of coffee.
• Beverage Dispensers: Pushing viscous liquids like juice or beer through narrow tubing.
• Medical Nebulizers: Atomizing liquid medicine into a fine mist through a tiny nozzle.

Why Does Reducing Voltage Cause Pump Stall Under Load Conditions?

The pump works perfectly on the test bench, then fails completely with a small voltage change. The physics seem simple, but the result is catastrophic. Why does this happen?

Stalling occurs because reducing voltage triggers a direct cause-and-effect chain of electrical and mechanical failure. Less voltage means less power, which means the motor physically cannot overcome the system's load. It is a predictable failure sequence.

The root cause can be traced through a clear and unavoidable chain of physical laws. Many engineers overlook these fundamentals when designing control systems. When you reduce the voltage, you initiate a failure cascade.

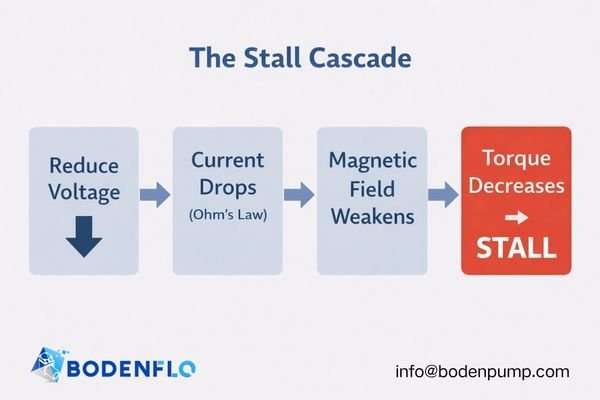

The Stall Cascade: A Step-by-Step Breakdown

1. Action: The designer lowers the input voltage from the rated 24V to a lower level, such as 18V, to achieve a slower speed.
2. Electrical Effect: According to Ohm's Law (V=I×R)², for a motor with a fixed internal resistance (R), reducing the voltage (V) directly causes a proportional drop in the current (I).
3. Magnetic Effect: The torque of a DC motor is generated by an internal magnetic field. The strength of this field is directly proportional to the current. Less current means a weaker magnetic field.
4. Mechanical Effect: A weaker magnetic field results in less rotational force, or torque. The motor becomes physically weaker.
5. Result (Stall): The motor stalls the instant the required torque from the system's load (backpressure + friction) exceeds the available torque the motor can produce at that reduced voltage.

What Is the Most Common Design Mistake in Pump Speed Control?

Your team used a simple voltage regulator to control pump speed. It was a cheap and easy solution, but now it's causing product failures and project delays.

The most common design mistake is using analog voltage reduction for speed control while ignoring load-dependent torque. This approach prioritizes circuit simplicity over system reliability and almost always leads to stalling under real-world conditions.

I have seen this mistake many times. The design process that leads to this error is almost always the same. It is a critical oversight born from incomplete testing.

The Anatomy of a Common Design Failure

Design Stage	The Thought Process	The Critical Error
1. The Goal	"I need to make the pump run slower to reduce noise or flow rate."	A reasonable goal with an oversimplified approach.

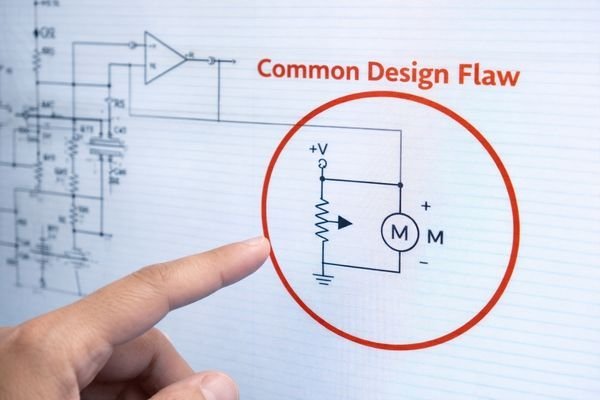

2. The Solution	"I will add a simple potentiometer or a linear voltage regulator to the circuit. It's cheap and easy."	Simplicity is chosen over robustness. The impact on torque is completely ignored.
3. The Test	"I'll test it on my lab bench with the pump's outlet open to the air. It works perfectly! The speed changes smoothly."	This is the fatal mistake. The test does not replicate the final product's actual load conditions (backpressure).
4. The Consequence	The design is approved. The product ships with a built-in failure mode. Customers report that the device stalls during normal use.	The project now faces costly returns, warranty claims, and a loss of brand reputation.

How Can You Safely Control Pump Speed Without Losing Torque?

You need precise and reliable speed control, but you cannot risk the pump stalling. How can you adjust pump speed while ensuring it always has the strength to handle the load?

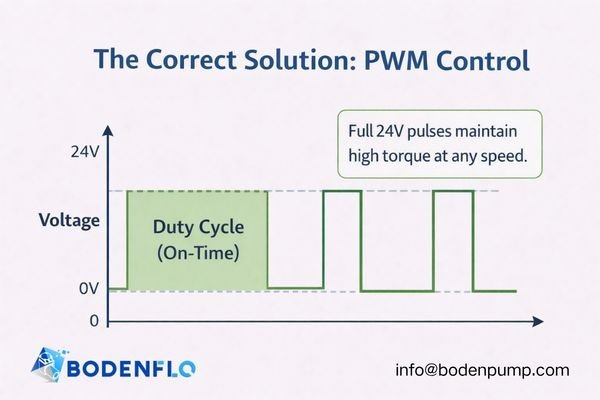

The correct engineering solution is Pulse Width Modulation (PWM). PWM controls speed by switching the motor's full voltage on and off rapidly. Because the motor receives full-voltage pulses, it maintains high torque availability at all speeds.

The engineering behind PWM is both simple and effective. Instead of providing a weak, steady voltage, PWM acts like a super-fast switch. It decouples speed control from torque delivery.

Comparing Control Methods

Feature	Flawed Method: Voltage Reduction	Correct Method: PWM Control3
Input Signal	A steady, lower DC voltage (e.g., 18V).	A digital signal of rapid "on/off" pulses at full voltage (24V).
Speed Control	Speed is proportional to the voltage level.	Speed is proportional to the "duty cycle" (the % of "on" time).
Torque Delivery	Torque is severely reduced. The motor is physically weaker.	High torque is maintained. During every "on" pulse, the motor has access to its full-rated torque.
Outcome Under Load	High risk of stalling. The weak motor cannot overcome system backpressure.	Reliable operation. The high-torque pulses easily push through system resistance at any speed.

PWM gives you precise speed control without sacrificing the power needed to prevent stalls. It is the industry-standard-best practice for a reason.

When Should You Select a Higher Torque Pump for Your System?

You have implemented PWM control correctly, but the pump still struggles or stalls when running at low speeds against a high load. What is the next logical step?

If a pump stalls even with proper PWM control, it indicates the pump's motor is fundamentally undersized for the application's demands. The solution is no longer about electronics; it is about selecting a pump with a higher base torque.

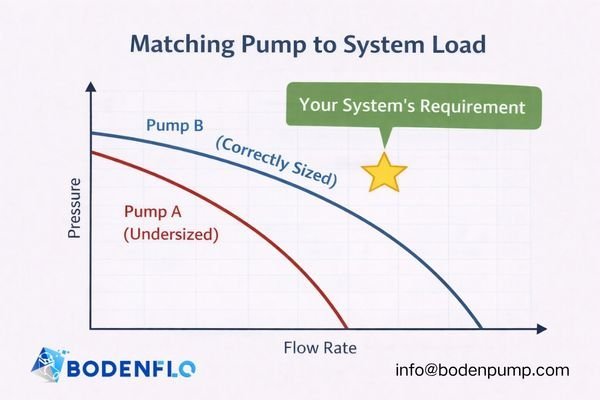

As an OEM partner, my job is to help teams match the pump to the system. The issue has now shifted from a control problem⁴ to a hardware selection problem. Every pump has a performance curve that defines its limits. Trying to operate a pump outside of this curve will always lead to failure, no matter how sophisticated your control circuit is.

Here is a troubleshooting guide to make the right decision:

Observed Symptom	Root Cause Analysis	Correct Engineering Solution
The pump stalls when you lower the voltage, but works at its rated 24V.	Control Method Failure. Reduced voltage is killing the motor's torque.	Implement PWM control at the pump's full rated voltage (24V).
The pump stalls at low PWM duty cycles (e.g., below 40%) when facing high backpressure.	Hardware Mismatch. The motor's inherent torque, even at full voltage, is too low for the load at that low speed.	Do not increase the PWM duty cycle. This defeats the purpose of speed control. Instead, select a pump model with a higher maximum pressure/torque rating.

Which Micro Air Pump Is Best for High Backpressure and Load Conditions?

You need a robust pump for your high-pressure system. Which model offers the best combination of torque, reliability, and performance to prevent stalling and ensure consistent operation?

For high-load applications like coffee machines or industrial systems, the BODENFLO BD-07A-M is the superior choice. Its powerful 48W motor provides the high torque needed to overcome significant backpressure without faltering.

In many OEM designs, we start with a standard model and often find that a higher-torque motor⁵ is necessary once the system's true load is measured. The BD-07A-M was specifically engineered for these demanding scenarios. Choosing the right pump is about matching its capabilities to your specific load requirements.

Pump Selection Guide: Moderate vs. High Load

Parameter	BODENFLO BD-03A	BODENFLO BD-07A-M	Key Takeaway
Motor Power	9W	48W	The BD-07A-M has over 5x the power, translating directly to higher available torque.
Max Pressure	3.5 bar	6.5 bar	The BD-07A-M is built to handle nearly double the backpressure.
Max Flow	6 L/min	35 L/min	Offers higher performance headroom for demanding applications.
Ideal Application	Compact devices, portable analyzers, systems with moderate load.	Espresso machines, beverage dispensers, industrial systems under heavy, continuous load.	Use the BD-03A for efficiency and size; use the BD-07A-M for raw power and torque.

Conclusion

Do not use voltage reduction for speed control under load. Use PWM, and select a pump with enough baseline torque to comfortably exceed your system's maximum load requirements.

Getting these fundamentals right is what separates a prototype from a successful product. Matching the right control strategy with the right hardware is key.

For OEM/ODM projects or to discuss your specific application, contact us: info@bodenpump.com

---
