What Are the Advantages of a 24V Micro Compressor with 6-Bar Startup Capability in System Integration?

Struggling with bulky, complex pneumatic systems? You add bleed valves and air tanks to make weak pumps work, increasing cost, size, and failure points, complicating your design unnecessarily.

A 24V micro compressor that can cold start against 6 bar of backpressure simplifies your entire system. It allows you to remove redundant components like relief valves and buffer tanks. This leads to massive miniaturization, lower costs, higher reliability, and faster pressure response.

As a project manager at BODENFLO, I often see designs compromised by the limitations of the pump. Engineers add complex workarounds to compensate for a pump's inability to start under load. But what if the pump itself was smart enough and strong enough to eliminate that complexity? Let's explore how a high-load startup compressor completely changes the rules of pneumatic system design.

What Does True "6-Bar Cold Start" Really Mean?

You see a pump advertised with 7-bar max pressure, but this spec is misleading. When the pump can't restart against residual pressure, it causes system failures and design headaches.

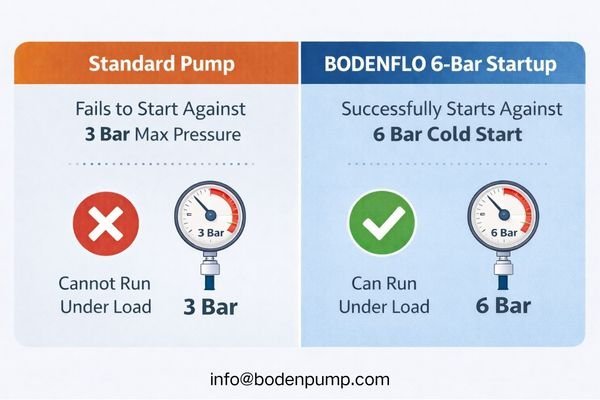

True "6-bar cold start" capability means the motor can reliably generate enough torque to begin operation against a static, 6-bar (87 PSI) resistive load. A pump that only reaches 7 bar maximum pressure often cannot restart under a much lower backpressure.

The underlying physics involves the motor's stall torque¹ and a purpose-built design. Here's what makes it possible:

• Overcoming the Load: A 6-bar load exerts a significant, constant force on the diaphragm. The motor must generate a starting torque that exceeds this pneumatic resistance and its own internal friction.
• Specialized Motor Design²: Standard motors are optimized for running efficiency, not peak starting torque. True high-load startup pumps like the BODENFLO BD-08A-S use motors with specialized windings designed to deliver massive torque from a dead stop.
• Reinforced Drivetrain: The immense force of a high-pressure start requires a robust drivetrain. This includes stronger bearings and connecting rods engineered to handle the inrush current and reactionary forces without damage or wear.

This is a fundamental design philosophy that separates a true industrial compressor from a generic air pump.

Advantage 1: How Can You Decouple the System and Eliminate Redundancy?

Conventional pumps force you into complex circuits with bleed valves. This add-on engineering increases assembly time, introduces potential leak points, and bloats your bill of materials (BOM) cost.

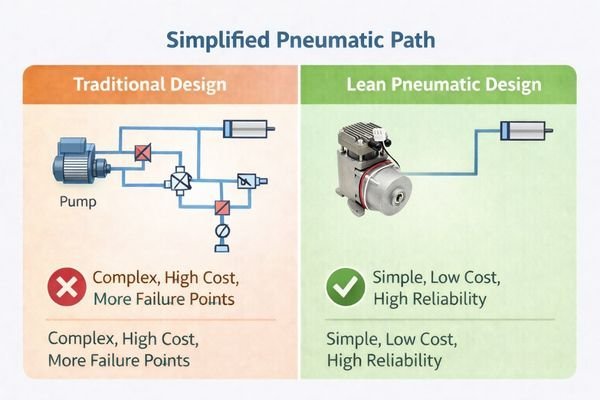

A compressor with 6-bar startup capability makes unloading valves, T-junctions, and extra control circuits obsolete. This enables a direct "Pump-to-Device" connection, a core principle of Lean Pneumatic Design.

By applying system reliability principles, you can see the direct benefits of this simplification:

• Fewer Failure Points: Every component (solenoid valves, fittings) is a potential point of failure or leakage. Removing them fundamentally increases the system's Mean Time Between Failures (MTBF)³.
• Reduced Complexity: A simpler pneumatic path reduces procurement workload, minimizes assembly errors, and simplifies control logic.
• Lower Total Cost⁴: While the pump may be a premium component, the total system cost drops by eliminating valves, tubing, fittings, and the labor required to assemble them.

Feature	Traditional System	6-Bar Startup System
Key Components	Pump, Solenoid Valve, T-Junction, Check Valve	Pump, Check Valve
System Reliability	Lower (more failure points)	Higher (fewer components)
Assembly Time	High	Low
BOM Cost	High	Low
Control Logic	Complex (sequenced)	Simple (Direct On/Off)

This isn't just about cost-cutting; it's about designing a more elegant and robust machine from the ground up.

Advantage 2: How Do You Achieve Extreme Miniaturization?

Your portable or compact devices have strict space constraints. Air tanks and their associated plumbing are often the bulkiest parts, hindering true miniaturization and increasing weight.

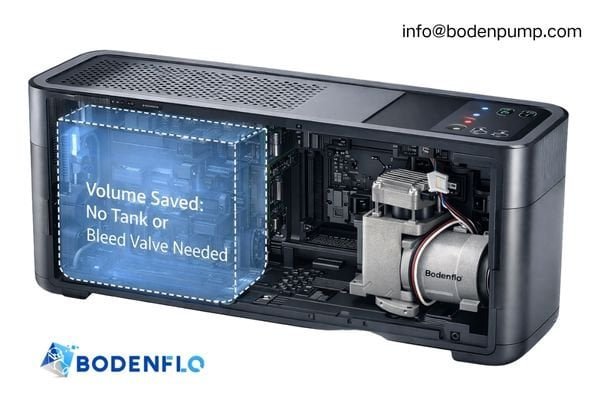

Relying on a pump that can restart under high pressure completely eliminates the need for a buffer air tank. This shifts the system to an "Instant On-Demand Supply" model, which can reduce the pneumatic system's volume by 30-50%.

This design shift improves a key metric: power density⁵ (performance per unit volume). Here’s how:

• Eliminate the Buffer: An air tank's purpose is to store energy to compensate for a weak pump. A high-load startup pump provides this energy on demand, making the tank obsolete.
• Save Critical Space: Removing the tank, solenoid valve, and extra tubing directly saves a significant amount of volume, which is vital for handheld and portable equipment.
• Reduce Thermal Load: Eliminating a continuously powered solenoid bleed valve reduces the overall heat generated inside a compact, often sealed, enclosure. This can simplify or even remove the need for fans or large heat sinks.

⭐ Featured Example: Bodenflo BD-08AB-S⁶ All-Aluminum High-Pressure Micro Compressor

Specification	Value	Benefit for Integration
Model	BD-08AB-S6	Industrial-Grade All-Aluminum High-Pressure Compressor
Voltage	24V	Compatible with standard industrial power systems
Max Flow	40 L/min	Rapid pressure delivery for dynamic applications
Max Pressure	7 bar	High-pressure capability for demanding tasks
Max Startup Pressure	6 bar	Key enabler for lean design without valves or tanks
Construction	Full Aluminum Alloy	Superior mechanical strength and heat dissipation
Dimension	100 x 67.4 x 97 mm	Compact footprint for high-density systems
Weight	690g	High power-to-weight ratio for portable designs

This data shows how specific engineering choices result in a component that enables, rather than constrains, compact system design.

Advantage 3: How Can You Achieve Millisecond Pressure Response?

Tank-based systems suffer from pressure lag and a wide, imprecise pressure band (hysteresis). They are slow to react, and the purge noise from bleed valves is unacceptable in many environments.

A direct-drive system with a strong, responsive pump enables a high-precision closed-loop control system. It can instantly detect a pressure drop and restart immediately to maintain a precise setpoint.

This moves your design from a simple to a sophisticated control system.

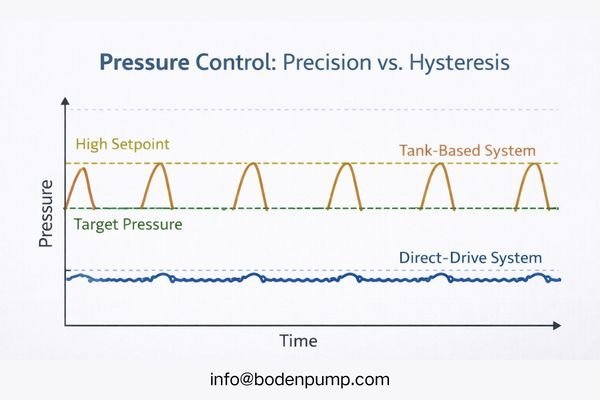

• Old Method (Tank-Based): This is a "bang-bang" control system. It operates between two wide setpoints (e.g., turn on at 4 bar, turn off at 6 bar). It's simple but very imprecise and slow.
• New Method (Direct-Drive): Paired with a pressure sensor, this creates a closed-loop system⁷. It allows for advanced PID control algorithms⁸ to hold a pressure setpoint with extreme accuracy.
• Instant Response: The pump's ability to start under load is the key. It can turn on the instant the pressure drops, eliminating the lag inherent in tank-based systems.
• Silent Operation: This method eliminates the loud "pssshh" sound of a bleed valve purging air, improving the user experience and making the device suitable for quieter environments.

Advantage 4: How Do You Ensure High Reliability and Heat Management?

Starting a motor against 87 PSI is a violent event that generates immense heat and mechanical shock. Plastic components and standard bearings will fail quickly under such repetitive load cycles.

An all-aluminum construction is crucial for long-term reliability. It provides both the mechanical strength to withstand shock and the thermal conductivity to manage heat.

Let's break down the material science and engineering benefits:

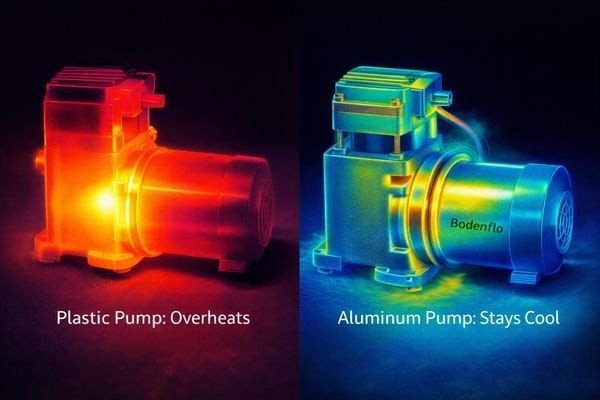

• Superior Heat Dissipation⁹: Aluminum is roughly 1000 times more thermally conductive than ABS plastic. It acts as a built-in heat sink, actively pulling heat away from the motor windings and diaphragm, preventing thermal degradation and extending component life.
• Mechanical Strength¹⁰: During a high-pressure start, the entire pump body is subjected to stress. An all-aluminum structure, like that in the BD-08A-S, resists flexing and fatigue that would cause plastic parts to crack over time.
• Reinforced Drivetrain: The bearings and connecting rod are specifically designed to absorb the mechanical shock of high-torque startups, preventing premature wear and catastrophic failure.

This robust construction is not an option; it's a requirement for a pump designed to perform reliably under these conditions.

What Are the Real-World Application Scenarios?

You're designing advanced automated equipment that needs high pressure in a compact, responsive, and reliable package. A generic pump forces you to compromise on your design goals.

A high-load startup compressor is a key enabler for modern precision robotics and automated industrial equipment where performance cannot be sacrificed for size.

From my experience helping OEM teams, here are two areas where this technology is a game-changer:

• Precision Pneumatic Actuators: In industrial automation, speed and repeatability are everything. An on-demand pump allows for faster, more precise robotic movements with no lag waiting for a tank to recharge. Its small size allows it to be mounted directly on a robotic arm, improving response time even further.
• High-Pressure Spraying Equipment: For automated coating or dispensing, consistent pressure is critical for a uniform finish. A direct-drive system can hold a rock-solid pressure setpoint. The ability to start and stop instantly is crucial for sharp patterns, preventing the drips and overspray common with tank-based systems.

Conclusion: Embrace Lean Pneumatic Design

A 24V micro compressor with 6-bar startup capability is the foundation of Lean Pneumatic Design. It empowers engineers to build lighter, simpler, stronger, and more responsive automated systems. Don't design around a pump's weakness; choose a component that elevates your design.

For OEM/ODM projects or to discuss how this technology can transform your specific application, contact us at info@bodenpump.com.

---
