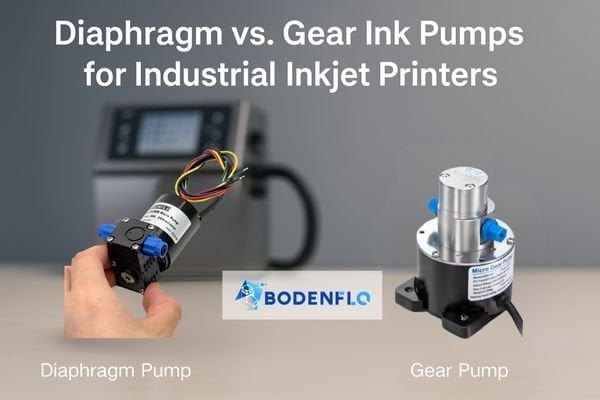

What Is the Best Ink Pump for Industrial Inkjet Printers — Diaphragm or Gear Pump?

Choosing the wrong ink pump for your industrial inkjet printer can lead to costly print defects, frequent downtime, and wasted ink. This critical decision between a diaphragm and gear pump feels like a high-stakes choice with little clear guidance.

The best ink pump is application-specific: Diaphragm pumps excel with low-viscosity, chemically sensitive inks used in CIJ systems, while gear pumps are often better for high-viscosity fluids. Understanding your ink chemistry, pressure, and flow requirements is key to making the right choice.

As a project manager at BODENFLO, I’ve had countless conversations with OEM engineers about this very topic. The "diaphragm vs. gear" debate isn’t about finding a single winner; it’s about matching the right technology to a specific fluidic system. An ink delivery system is a delicate ecosystem. The pump is its heart, and its choice has cascading effects on everything from print quality to long-term reliability. Let’s dissect the technical details to help you select the ideal pump for your next industrial inkjet project.

Why Do Industrial Inkjet Printers Require a High-Precision Ink Pump?

You’ve designed a state-of-the-art printhead, but inconsistent ink delivery is causing streaking and voids. This undermines your printer’s performance and leads to customer complaints about print quality.

A high-precision ink pump is essential for maintaining stable pressure and consistent flow. This stability ensures uniform droplet formation, prevents nozzle clogging, and is fundamental to achieving high-resolution, repeatable prints in any industrial inkjet system.

The Foundation of Print Quality

The magic of industrial inkjet printing happens at the micro-level, where thousands of tiny droplets are precisely ejected per second. This process is incredibly sensitive to the conditions within the ink supply line.

• Stable Ink Pressure for CIJ and TIJ¹: In Continuous Inkjet (CIJ), stable pressure ensures a consistent stream of ink for droplet charging and deflection. In Thermal Inkjet (TIJ), it guarantees the chamber refills reliably after each firing. Pressure fluctuations can cause droplet velocity errors, leading to inaccurate placement.

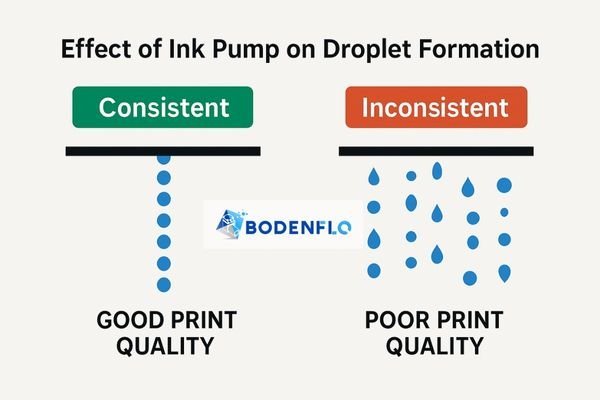

• Consistent Flow and Droplet Formation²: The pump’s flow consistency directly impacts droplet volume. Inconsistent flow leads to "satellite" droplets or variations in dot size, resulting in grainy images and poor color density.

• Avoiding Nozzle Clogging and Ink Starvation: A reliable pump maintains a slight positive pressure at the printhead (meniscus control), preventing air from being ingested and nozzles from drying out. It also ensures the printhead is never "starved" for ink during high-speed printing, which would cause visible banding in the output.

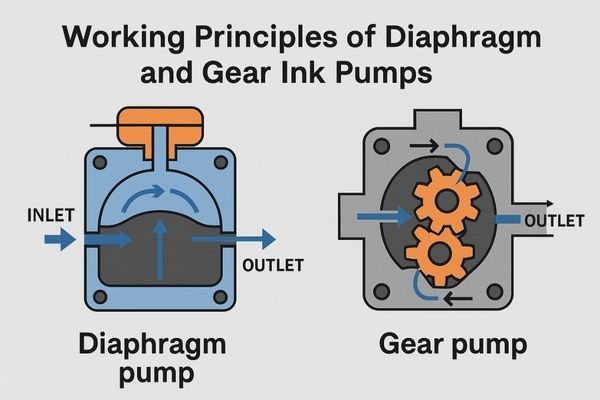

What Are the Working Principles of Diaphragm Pumps and Gear Pumps in Inkjet Applications?

You know diaphragm and gear pumps move liquid differently, but you’re unsure how this impacts your ink. Choosing the wrong mechanism could shear your ink or create pulsations that ruin print quality.

A diaphragm pump uses a reciprocating membrane to move fluid gently, while a gear pump uses tightly meshing gears for continuous, positive displacement. These different mechanisms result in distinct flow behaviors, chemical compatibility, and shear characteristics.

Two Different Methods of Fluid Delivery

Understanding how each pump works is key to predicting its behavior with your ink.

How Does a Diaphragm Pump Move Ink?

A diaphragm pump uses a flexible membrane (diaphragm) that is moved back and forth by an eccentric cam. As the diaphragm moves back, it creates a vacuum, drawing ink in through an inlet check valve. As it moves forward, it pressurizes the ink, pushing it out through an outlet check valve. It’s a gentle, oscillating motion.

How Does a Gear Pump Deliver Continuous Ink Flow?

A gear pump traps fluid in the spaces between the teeth of two meshing gears. As the gears rotate, they transport the ink from the inlet to the outlet port. Because the gears have a tight tolerance with the housing, the fluid is positively displaced, resulting in a continuous, non-pulsating flow that is directly proportional to the motor’s speed.

Why Do These Two Pump Types Produce Different Flow and Pressure Behaviors?

The diaphragm pump’s reciprocating nature inherently creates small pulsations, though modern designs with multiple heads significantly minimize this. It excels at generating stable pressure at lower flow rates. In contrast, the gear pump’s rotary motion produces a virtually pulse-free flow, but the shearing action between the gear teeth and housing can be aggressive for some sensitive ink chemistries.

How Do Diaphragm Pumps Perform in Industrial Inkjet Printers?

You need a pump that can handle aggressive solvent inks without degrading. You also require gentle handling to prevent your ink from shearing or changing viscosity, which could affect print performance.

Diaphragm pumps are excellent for industrial inkjet printers using low-to-medium viscosity inks. Their key advantages are superior chemical compatibility, gentle fluid handling, and stable pressure control, making them ideal for many CIJ systems.

Advantages and Limitations of Diaphragm Pumps

From my experience, engineers often select diaphragm pumps for the following reasons.

What Advantages Do Diaphragm Pumps Offer for CIJ/TIJ Ink Systems?

• Chemical Compatibility³: The wetted path is typically limited to the pump head and the diaphragm/valves. By selecting inert materials like PPS, EPDM, FKM, or FFKM, these pumps can handle aggressive solvents like MEK, acetone, and alcohols without corrosion or degradation. This is a huge advantage for solvent-based CIJ inks.
• Gentle Handling: The low-shear nature of diaphragm pumps is perfect for sensitive ink formulations, including those with pigments that can be damaged by mechanical stress.
• Stable Flow at Low Pressure: They are masters of providing stable, controlled pressure in the low-bar range (e.g., 0.1–0.5 bar), which is often all that is needed for meniscus control and ink supply in CIJ systems.
• Self-Priming: They can pull a vacuum to prime themselves, which simplifies system startup and recovery after maintenance.

What Limitations Should Engineers Consider When Using Diaphragm Pumps?

• Pressure Limits: They are generally not suited for applications requiring high continuous pressure (e.g., above 3-4 bar).
• Pulsation Management⁴: While advanced multi-head designs greatly reduce pulsation, some minimal flow variation is inherent. In ultra-sensitive systems, a small accumulator or damper may be needed.
• Diaphragm Wear: The diaphragm is a flexible component that will eventually wear out. However, a high-quality diaphragm in a well-designed pump can achieve a lifetime of many thousands of hours, and it’s often a field-replaceable part.

How Do Gear Pumps Perform in Industrial Inkjet Printers?

You are working with a highly viscous UV-curable ink or a system that requires a high flow rate. You need a pump that can deliver constant, high pressure without faltering.

Gear pumps are favored in inkjet systems that require high, continuous pressure and flow, especially with high-viscosity inks. Their positive displacement design provides a pulse-free output, ideal for demanding applications.

When Power and Consistency are Paramount

Gear pumps are the workhorses for specific, demanding inkjet applications.

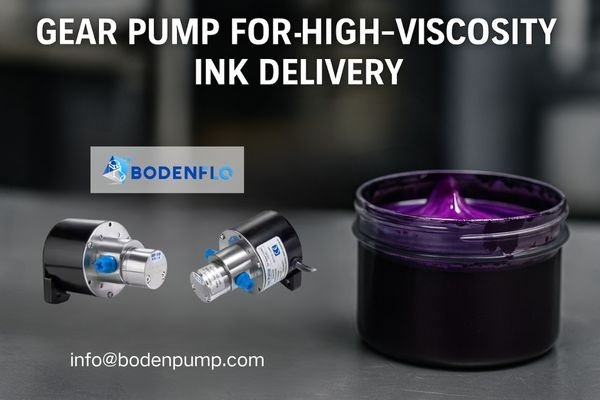

Why Are Gear Pumps Favored for High-Viscosity and High-Flow Ink Delivery?

Their strength lies in their ability to move thick fluids. The gears can generate the high torque needed to pump viscous UV inks, adhesives, or coatings that a diaphragm pump would struggle with. Their output is directly proportional to speed, making them highly controllable for metering and high-volume delivery, often required in large-format or single-pass industrial printing.

What Limitations Do Gear Pumps Have When Used With Sensitive Ink Formulations?

• Ink Shear: The primary concern is the high shear stress generated between the gear teeth and the pump housing. This can break down polymers in the ink, permanently altering its viscosity and ruining its jetting performance.
• Bubble Generation: The mechanism can sometimes introduce or whip air into the ink, leading to bubbles that cause nozzle dropouts.
• Wear from Abrasives: If the ink contains abrasive pigments (like TiO2 in white ink), it can rapidly wear down the gears and housing, reducing pump efficiency and contaminating the ink with metal particles.

Under What Conditions Should You Choose a Diaphragm Pump for an Inkjet Printer?

You’re faced with an array of inks and system requirements. You need a clear checklist to help you decide if a diaphragm pump is the right path for your specific inkjet printer design.

Choose a diaphragm pump when your application involves solvent-based inks, requires gentle handling with low shear, operates at low pressure, and prioritizes long-term serviceability and chemical resistance over high flow rates.

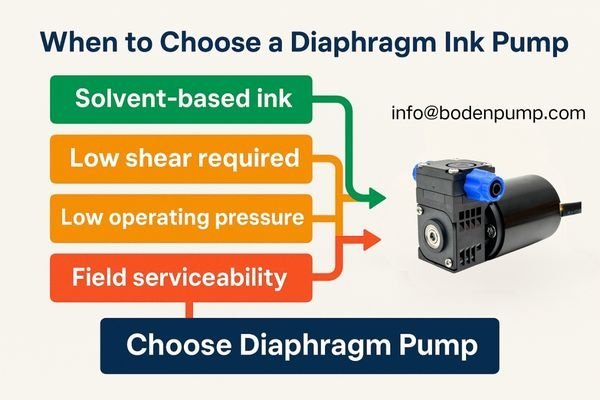

A Diaphragm Pump Is Often the Best Choice When:

In my projects, the indicators for a diaphragm pump are clear. It is the preferred solution if your system meets several of these criteria:

• Ink Chemistry: The ink is solvent-based (MEK, ethanol, etc.) or contains sensitive additives. The ability to customize a diaphragm pump with highly inert materials (PPS, FFKM) is a key advantage.
• Pulsation Control: Your system requires very stable pressure for meniscus control. Modern multi-head diaphragm pumps from BODENFLO provide extremely low pulsation, making them suitable for direct connection to the printhead’s ink supply.
• Working Pressure: The required continuous operating pressure is relatively low, typically in the 0.1 to 0.5 bar range.
• Maintenance⁵: You want a pump where wear components (diaphragms, valves) can be serviced in the field, potentially lowering the long-term total cost of ownership compared to replacing an entire sealed gear pump.

When Is a Gear Pump the Better Choice for Inkjet Printers?

Your application demands performance beyond the typical range of a diaphragm pump. You need to know the specific conditions where a gear pump’s unique capabilities make it the superior choice.

Opt for a gear pump when your ink has high viscosity, your system requires flow rates consistently above 300-500 mL/min, or when you need to maintain continuous operating pressures above 1-2 bar.

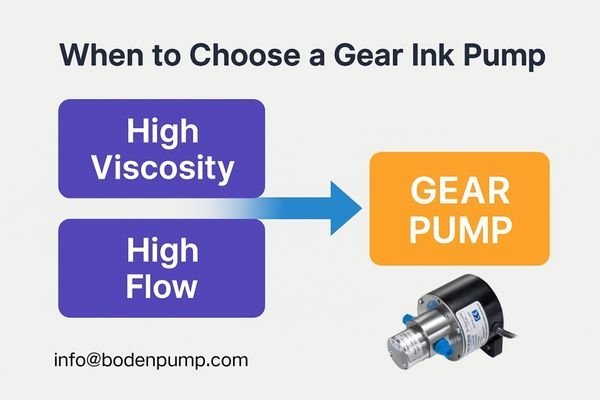

A Gear Pump Is the Go-To Solution When:

The decision leans toward a gear pump when the application is defined by power and volume. Consider a gear pump if:

• Viscosity and Flow: The ink is thick and viscous (e.g., some UV-curable inks or coatings) or the system architecture requires high flow rates for recirculation or to supply multiple printheads.
• Continuous High Pressure: The application demands steady, non-pulsating pressure above the typical comfort zone of a diaphragm pump (e.g., >1 bar continuous).
• Constant Displacement: Your system design relies on a true positive displacement pump where flow is strictly a function of motor speed, which is crucial for certain metering applications.

However, always validate that your ink can withstand the shear forces generated by a gear pump before committing to this technology.

How Do You Select the Right Pump Based on Ink Type, Pressure, and Flow Requirements?

You’re ready to make a choice, but need to match it to your specific system—CIJ or TIJ. You need to translate your ink chemistry, pressure needs, and flow rates into a definitive pump selection.

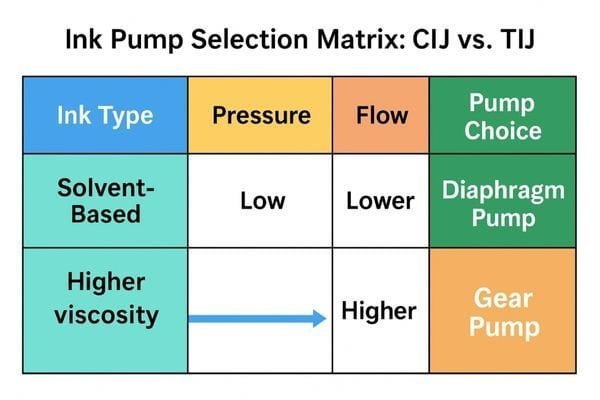

The selection process is a technical matrix. For low-viscosity, solvent-based CIJ inks needing low pressure, a diaphragm pump is ideal. For higher viscosity or higher flow TIJ/CIJ systems, a gear pump might be necessary if the ink can tolerate it.

Matching the Pump to the System

Let’s break this down into a practical selection guide based on common inkjet technologies.

What Ink Chemistries Require Special Material Compatibility?

• MEK & Solvents: Requires highly resistant materials like PPS, FKM, and ideally FFKM for long life. Diaphragm pumps are easily customized for this.
• UV Inks: Can be aggressive to some plastics and elastomers. Viscosity is also a major factor.
• Water-Based Inks: Generally less demanding, but additives and pigments can still require careful material selection. EPDM is often a good choice.

What Pressure and Flow Conditions Define the Best Pump Choice for CIJ?

CIJ systems typically use low-viscosity (~1-5 cP) solvent inks. They require a very stable, low-pressure supply (often <0.5 bar) to the printhead and a second, higher-flow pump for gutter return/recirculation.

• Ink Supply Pump: A low-pulsation diaphragm pump is almost always the best choice here due to its chemical compatibility and gentle pressure control.
• Gutter/Return Pump: Another diaphragm pump is often used for its self-priming and solvent-handling capabilities.

What Pressure and Flow Conditions Define the Best Pump Choice for TIJ?

TIJ systems often use water-based inks but can use solvents or UV inks. They typically feature a gravity-fed or low-pressure (e.g., <0.2 bar) supply to maintain the meniscus.

• For low-viscosity inks: A small, low-pulsation diaphragm pump is an excellent fit.
• For high-flow recirculation or high-viscosity UV inks: A gear pump might be considered, but only if ink shear is not a concern.

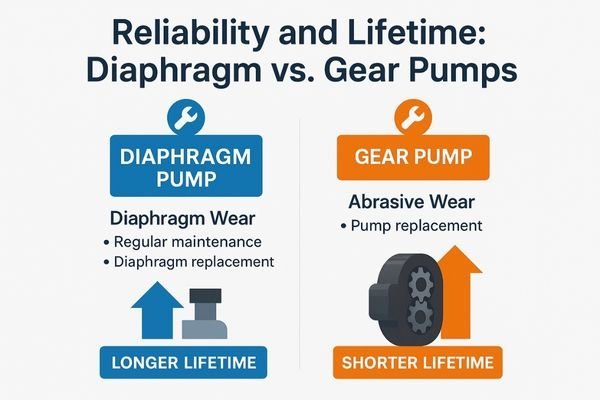

How Do Reliability, Lifetime, and Maintenance Compare Between Diaphragm and Gear Pumps?

You’re calculating the Total Cost of Ownership (TCO). A cheap pump that fails early is more expensive than a reliable one, so you need to understand how each pump type ages and fails.

Diaphragm pumps typically fail predictably due to diaphragm/valve wear and are often field-serviceable. Gear pumps can have a very long life but may fail catastrophically and unserviceably from abrasive wear or contamination, posing a higher ink contamination risk.

Planning for the Long Term

The initial pump cost is only one part of the equation.

• Wear Mechanisms: A gear pump’s primary wear point is the interface between the gear teeth and the housing. Abrasive particles in the ink can accelerate this wear dramatically. A diaphragm pump’s wear is concentrated on the flexible diaphragm and check valves, which are designed for millions of cycles.
• Ink Contamination Risk: When a gear pump wears, it can shed microscopic metal particles into your expensive ink, potentially leading to nozzle clogs and printhead damage. A diaphragm pump, with its metal-free wetted path, poses virtually zero risk of this type of contamination.
• Pump Lifetime and TCO: A high-quality diaphragm pump motor and diaphragm (like those in our BD-05TF series) are engineered for thousands of hours of life. When it does fail, replacing the head or diaphragm is often a low-cost, simple procedure. A failed gear pump almost always requires a full, more expensive replacement. This serviceability can significantly lower the long-term operating cost of a diaphragm pump.

What Are the Total Cost and Integration Factors Engineers Should Consider?

You’ve nearly made a pump choice, but now you have to integrate it. You need to consider its physical footprint, noise level, power draw, and how it will interface with your control system.

Beyond the unit price, engineers must consider the "system cost." This includes the need for external dampers, mounting hardware, noise insulation, and power supply complexity, all of which vary significantly between pump types.

The System-Level View

As a project manager, I always advise clients to look beyond the pump’s spec sheet.

How Do Installation Requirements Differ?

Diaphragm pumps often require flexible mounting solutions to isolate vibration. Gear pumps, while generally smoother, may require more rigid mounting to handle their higher torque.

How Do Pulsation, Sound, and Power Consumption Affect Machine Design?

• Pulsation: A gear pump is naturally low-pulse. A diaphragm pump may require a miniature pulsation damper in the most critical applications, which adds cost and complexity. However, BODENFLO’s advanced multi-head pumps often eliminate this need.
• Sound: Diaphragm pumps can have a characteristic ticking sound, which may require acoustic insulation in office-friendly equipment. Gear pumps tend to produce a higher-frequency whine.
• Power: The power draw for each pump will vary based on pressure and flow. BLDC motor options for both pump types offer excellent efficiency and controllability.

What Customization Options Do OEMs Usually Request?

For ink pumps, customization is key. Common requests include specific elastomer materials (FKM, FFKM) for the diaphragm/valves, optimized motor windings for a specific voltage/speed, and custom port configurations or mounting brackets for easier integration.

So, Which Inkjet Pumps Is Ultimately Better for Industrial Inkjet Printers?

You’ve absorbed a lot of technical detail. Now it’s time for the final verdict: which pump should you choose for your industrial inkjet printer?

There is no single "best" inkjet pump. The ideal choice is a technical compromise determined by your specific application. The "better" pump is the one that best matches your ink chemistry, viscosity, pressure, and duty cycle.

It’s All About the Application

The final decision comes down to a few key principles we’ve discussed:

• Why CIJ⁶ often leans toward diaphragm pumps: CIJ almost always uses low-viscosity, aggressive solvent inks that need gentle handling at low, stable pressure. This is the perfect use case for a chemically-resistant diaphragm pump.
• Why some applications benefit from gear pumps: When you need to move a high-viscosity UV ink at high pressure for a large single-pass system, a gear pump is often the only tool for the job.
• The "Best Pump" Equation: The optimal choice is always a function of: Ink Chemistry + Viscosity + Required Pressure + Required Flow. Get these four parameters right, and your choice becomes clear.

How Can BODENFLO Help OEMs Select or Customize the Ideal Inkjet printer Pump?

You understand the theory but need a partner to help you select and validate the perfect inket printer pump. You need access to expert advice, customizable options, and reliable samples for prototyping.

BODENFLO acts as a collaborative partner for OEMs. We help you navigate the selection process, offer deep customization on materials and performance, and provide samples and engineering support to ensure success from prototyping to production.

Your Partner in Fluidic Design

We don’t just sell pumps; we help you solve fluidic challenges.

Which BODENFLO Diaphragm Pumps Are Suitable for Ink Delivery?

Our BD-05TF series is specifically designed for these demanding applications. It features a chemically resistant PPS head and can be configured with EPDM, FKM, or FFKM diaphragms to handle virtually any ink. Its multi-head design provides extremely low pulsation, making it a drop-in solution for many CIJ and TIJ systems.

What Custom Engineering Support Is Available for Ink Formulation Compatibility?

Our engineering team can work with you to select the absolute best elastomer and head materials based on your ink’s safety data sheet (MSDS) and your internal testing. We can provide pumps with different material compositions for you to validate.

How Do We Support CIJ/TIJ Integrators With Testing, Sampling, and Prototyping?

I personally oversee many of these projects. We provide samples quickly so your team can begin bench testing. We offer our expertise to help you interpret results, and if needed, we can create custom motor profiles or mounting solutions to ensure our pump integrates seamlessly into your printer design. Our goal is to make the validation process as smooth and efficient as possible.

Conclusion

Choosing the right inkjet pump is a critical design decision. Diaphragm pumps offer unmatched chemical compatibility and gentle handling for CIJ, while gear pumps provide power for high-viscosity applications.
