Have you ever installed a fixed gas monitor, only to face inaccurate readings, short pump life, or integration problems? I’ve seen this happen far too often, especially when the wrong micro gas sampling pump is chosen. At BODENFLO, we work closely with OEMs developing industrial safety systems, and I’ve learned that choosing the right pump makes all the difference in long-term reliability.
The best micro gas sampling pump for fixed gas monitors must offer stable flow, long life, and compatibility with corrosive or reactive gases. Pumps like our BD-05T067L and BD-05TVB-S deliver the performance needed for continuous-duty wall-mounted detectors.
If you’re building or sourcing parts for industrial safety systems, keep reading. I’ll share what to look for in a pump—and how to avoid costly mistakes.
Why Do Fixed Gas Monitors Need Micro Sampling Pumps?
Fixed gas monitors often rely on a continuous or intermittent stream of air from the environment to detect hazardous gases1. But passive diffusion isn’t enough when you need fast response times or want to draw samples from specific points.
That’s where micro sampling pumps2 come in.
They actively draw air through a filter and into the sensing chamber, ensuring consistent and accurate readings. Whether monitoring for VOCs, CO, H₂S, or ammonia, flow rate consistency3 is critical for detection precision.

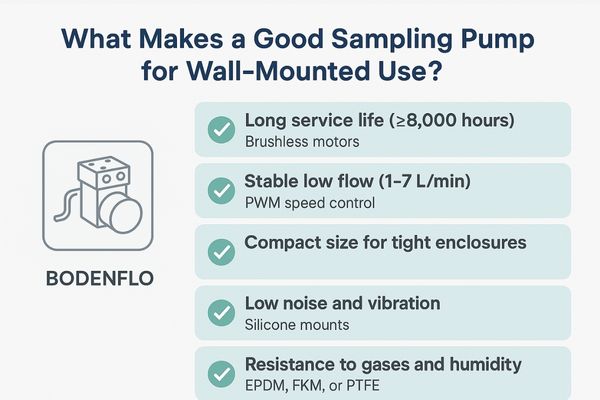

What Makes A Good Sampling Pump For Wall-Mounted Use?
A good micro gas sampling pump for wall-mounted systems needs to meet several key performance and durability standards. These devices often run 24/7, so the pump must be built for continuous operation, chemical exposure, and compact installation.
✅ Long service life (≥8,000 hours)
Fixed monitors demand pumps that can run continuously for years. Brushless motors are preferred for 8,000–10,000 hour lifespans with minimal maintenance.
✅ Stable low flow (1-7 L/min)
Sampling must stay accurate at low, steady flow rates. Pumps with PWM speed control ensure consistent vacuum even under variable backpressure.
✅ Compact size for tight enclosures
The pump should be small and easy to mount inside narrow housings. Models like BD-05T02500B are made for space-constrained gas monitors.
✅ Low noise and vibration
Wall-mounted units in offices or labs need silent operation. Silicone mounts and brushless motors help reduce noise and mechanical vibration.
✅ Resistance to gases and humidity
Choose pumps with EPDM, FKM, or PTFE components to handle solvents, vapors, and moist air without damaging internal parts.
Brushless vs Brushed Motor: Which Lasts Longer?
In fixed monitors, maintenance is rare and expensive. That’s why we usually recommend brushless DC motors for long-life operation.
Here’s a quick comparison:
| Motor Type | Typical Lifespan | Noise | Maintenance |
|---|---|---|---|
| Brushed | 1,500–3,000 hrs | Lower | Wears out brushes |
| Brushless DC | 8,000–10,000 hrs | Lower | Virtually maintenance-free |
Unless cost is the top constraint, brushless pumps like our BD-05T067L will always outperform brushed options in wall-mount gas detectors.
Gas Compatibility: What Materials Should You Choose?
The chemical properties of the gas you're monitoring determine which diaphragm and valve materials are appropriate. Choosing the wrong material can lead to premature wear, reduced accuracy, or even total pump failure over time. Here's how to make the right choice based on your gas type:
✅ EPDM (Ethylene Propylene Diene Monomer)
EPDM is a versatile material that performs well with neutral gases such as ambient air, carbon monoxide (CO), and carbon dioxide (CO₂). It resists ozone and aging, making it ideal for general-purpose indoor or industrial monitoring where gas exposure is moderate and non-corrosive.
✅ FKM (Fluoroelastomer / Viton®)
FKM offers higher chemical resistance4 than EPDM, especially against oil vapors, VOCs (volatile organic compounds5), and sulfur-containing gases like SO₂. It's perfect for environmental and industrial gas monitors exposed to solvents, petrochemicals, or combustion byproducts.
✅ PTFE (Polytetrafluoroethylene)
PTFE is the most chemically inert option. It’s highly resistant to aggressive gases such as ammonia (NH₃), chlorine, or formaldehyde. Use it when monitoring corrosive or reactive gases to ensure maximum safety and long pump life, especially in laboratory or chemical processing applications.
Which BODENFLO Models Are Best for Fixed Gas Monitor Integration?
We’ve developed several micro diaphragm pumps that are ideal for fixed gas detection applications. Here’s a breakdown of three top models:
| Model | Flow Rate | Vacuum | Motor Type | Lifetime | Features |
|---|---|---|---|---|---|
| BD-05T02500B | 0.5 L/min | -45 kPa | Brushless | 8,000 hrs | Ultra-small, PWM controllable |
| BD-05TVB-S | 4.6 L/min | -70 kPa | Brushless | 10,000 hrs | Quiet, stable, compact |
| BD-05T067L | 7.0 L/min | -85 kPa | BLDC | 8,000 hrs | High flow, high vacuum |
BD-05T067L is our most popular for wall-mount analyzers due to its low noise, moderate size, and long life. For multi-channel systems or gas cabinets, BD-05TVB delivers additional vacuum headroom with compact dual-head design.

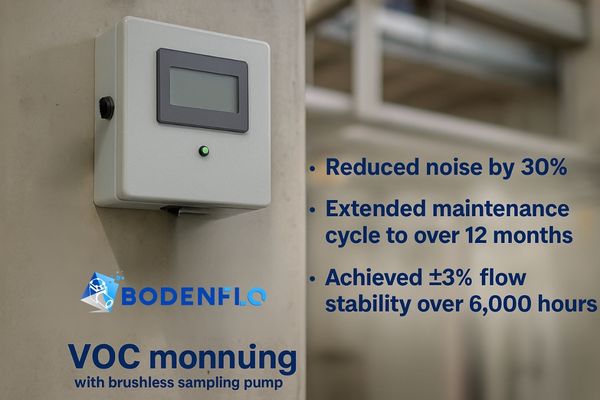

Real-World Case: VOC Sampling in Industrial Plant Monitoring
In 2023, a European OEM producing fixed VOC gas monitors faced problems with their original pump—noise and flow instability were causing signal drift.
They switched to our BD-05T067L brushless pump.
Result?
- ✅ Reduced noise by 30%
- ✅ Extended maintenance cycle to over 12 months
- ✅ Achieved ±3% flow stability over 6,000 hours
This upgrade allowed them to pass CE calibration for VOCs in industrial facilities across Germany and France.
Integration Tips for Fixed Systems
Here’s what I recommend to ensure pump performance in wall-mounted gas monitors:
- 🔧 Use vibration isolators or silicone mounts to reduce noise.
- 🌡️ Don’t install pumps near heat sources—ambient temps above 45°C shorten lifespan.
- 🧪 Always use an inline PTFE filter upstream to protect the diaphragm from dust and aerosols.
- 🔌 Utilize PWM control to fine-tune flow rate (especially for low-flow analyzers).
- 🔄 Design for serviceability—make the pump accessible for filter changes or replacement.
Final Thoughts
Choosing a micro gas sampling pump for fixed gas monitors is not about flowrate alone. It’s about total lifecycle reliability, gas compatibility, and seamless integration. If you’re unsure which pump to use for your application, just send us your specs. We’ll help you match the right model.
📩 Reach out to info@bodenpump.com and request a free technical recommendation.
-
