What Is the Best Pump for Chemical Dispensing Systems?

Choosing the wrong pump for your chemical dispenser can cause leaks, inaccurate doses, and catastrophic system failure. This not only wastes expensive chemicals but can also damage equipment and create serious safety hazards.

The best pump is a tailored choice based on your specific needs. Understanding chemical compatibility, accuracy requirements, and system design will guide you to the perfect solution for your application.

As a project manager, I've worked closely with countless engineering teams designing chemical dispensing systems for everything from medical analyzers to industrial cleaning. A common thread I've seen is that selecting the pump is the most critical decision they make. Choosing a pump from a catalog based on a single specification, like flow rate, almost always leads to problems. The "best" pump isn't a single model number; it's the result of a careful process of matching the pump's characteristics to the specific demands of the chemical and the system. Let's break down that process.

What Defines a Chemical Dispensing System?

You need to move a specific chemical from a container to a target. Simply pouring it is uncontrolled, wasteful, and often dangerous, especially with aggressive chemicals.

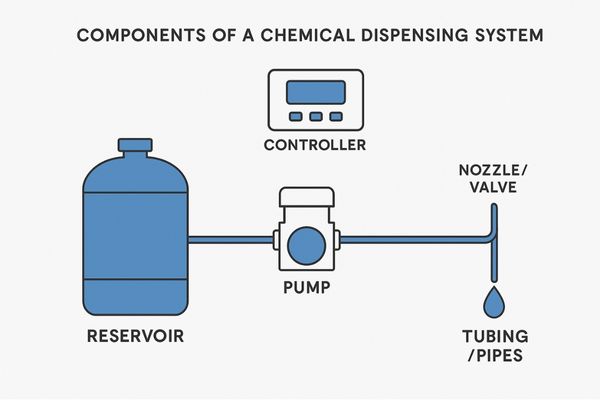

A chemical dispensing system is an automated setup designed to accurately transfer a precise volume of liquid. The pump is the core component that drives the fluid and determines the system's precision.

At its heart, a dispensing system¹ provides control. Its job is to deliver the right amount of liquid, at the right time, every time. I've seen these systems in many forms, from a medical analyzer that doses tiny microliters of reagent onto a test slide to an industrial system that injects cleaning agents into a water line. While the applications vary, the core components are always similar.

In this entire chain, the pump² is the most active and critical part. Its performance in terms of flow rate, pressure, and reliability dictates the success of the entire system.

What Are the Main Types of Pumps Used in Chemical Dispensing?

You know you need a pump for your system. But the market is flooded with different technologies like centrifugal, gear, and piston pumps, making the choice overwhelming and confusing.

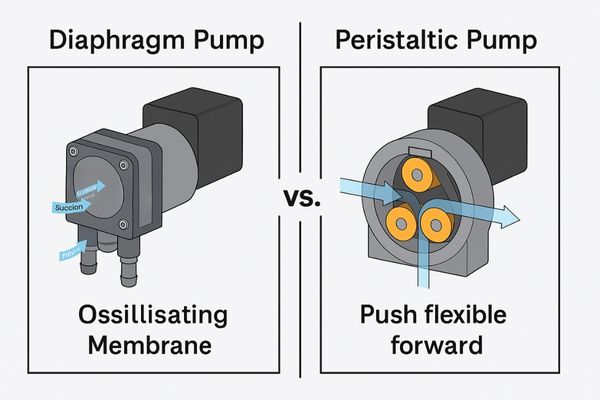

For most precision dispensing applications, the choice narrows to two main types: diaphragm pumps and peristaltic pumps. Each offers distinct advantages depending on the specific requirements of the chemical and the system.

In my projects, the conversation almost always focuses on these two technologies because they excel at moving smaller volumes of fluid with high precision. Choosing between them is one of the first major decisions in the design process.

The choice is a trade-off. If you need high pressure and maximum long-term durability, a diaphragm pump is often the answer. If you need to handle delicate fluids or require fast, easy clean-up between different chemicals (by just changing the tube), a peristaltic pump is superior.

Why Is Chemical Compatibility the Most Critical Factor?

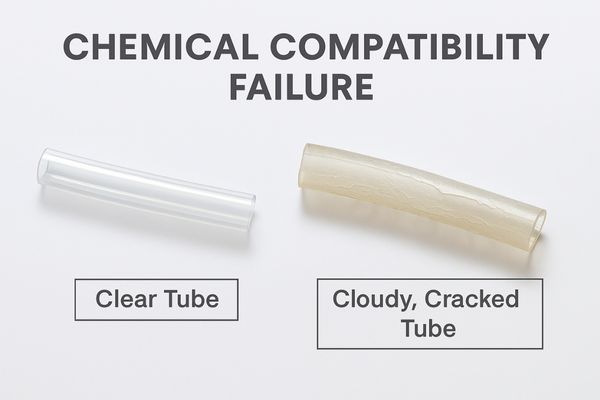

Your new dispensing system works perfectly during tests with water. But when you introduce the actual chemical—a strong solvent—the tubing gets cloudy, the seals swell, and the pump fails within days.

Chemical compatibility is the single most important factor because the pump's materials must resist being chemically attacked. A material mismatch will lead to leaks, pump failure, inaccurate dosing, and significant safety risks.

I cannot stress this enough: check for chemical compatibility³ before you even think about flow rate or pressure. The "wetted parts"—any component the chemical touches—must be completely inert to that chemical. For a diaphragm pump, this means the diaphragm itself and the valve materials. A failure here isn't just a breakdown; it's a potential disaster, especially if the chemical is hazardous.

Common Material Choices

• EPDM: A great general-purpose elastomer. It has excellent resistance to water, steam, alcohols, and many mild acids and bases. However, it is not suitable for petroleum-based oils or solvents.
• FKM (Viton®): This is the go-to choice for applications involving oils, fuels, and many aggressive solvents. It has a broad range of chemical resistance and performs well at high temperatures.
• PTFE (Teflon®): For the most aggressive chemicals like strong acids and bases, PTFE is often the only choice. It is almost universally inert.
  Before finalizing any pump, I always insist that my clients consult a chemical compatibility chart to cross-reference their chemical with our available materials. It is a non-negotiable first step.

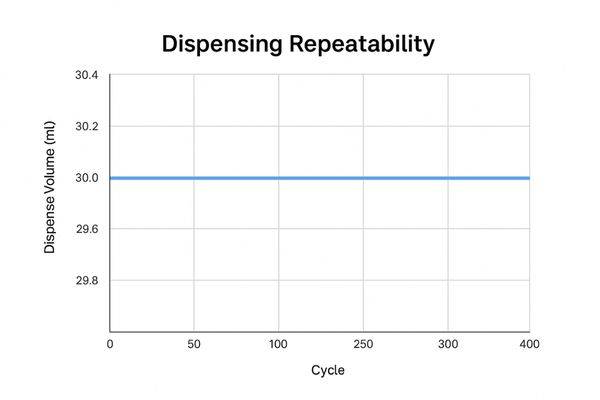

How Do You Ensure Dispensing Accuracy and Repeatability?

Your dispensing system is running, but the volume it delivers varies with each cycle. This lack of precision ruins your chemical processes, wastes expensive reagents, and makes your results unreliable.

To ensure accuracy, you need a stable pump and precise control. Using a high-quality brushless motor allows for exact speed regulation, which translates directly to a consistent and repeatable flow rate for every dose.

Accuracy in dispensing really means two things: getting the volume right, and getting it right every single time. This is called repeatability. Several pump features contribute to this.

1. Motor Control

The motor is the driver of consistency. A brushless DC motor is far superior to a standard brush motor for dispensing. It allows for precise RPM control, meaning you can dial in the exact speed needed for your target flow rate. Its long lifespan (10,000+ hours) also means this performance won't degrade over time.

2. Stable Flow

The flow from the pump must be as smooth as possible. Pulsations can cause inaccurate dosing, especially for small volumes. While diaphragm pumps naturally have some pulsation, this can be significantly smoothed out by using a dual-head pump design, where the two heads work out of phase to cancel out pulses.

3. System Calibration

A great pump is only part of the solution. The entire system must be calibrated. This involves running the pump and measuring the actual output, then adjusting the pump's run time or speed in the controller to perfectly match the desired dose volume. A stable pump makes this calibration process easy and reliable.

What System Factors Influence Pump Selection?

You've selected a pump that looks perfect on the datasheet. But after installing it in your machine, the flow rate is much lower than expected, and it struggles to deliver the chemical.

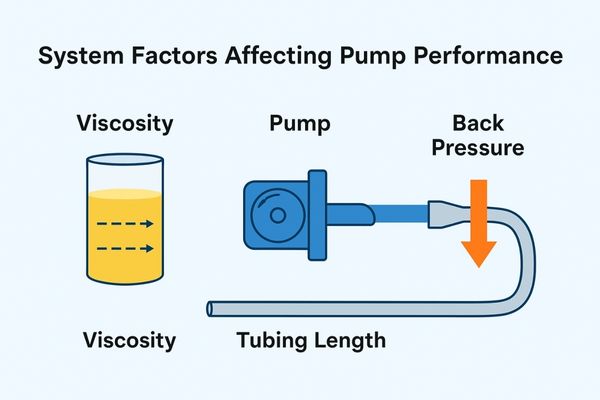

A pump's performance is always affected by the system it's in. Factors like fluid viscosity, back pressure, and tubing dimensions must be considered to choose a pump that is powerful enough for the real-world application.

The performance numbers you see on a pump's specification sheet are measured under ideal, zero-resistance conditions. Your system will always have resistance. As a project manager, I always have my clients walk me through their entire fluid path to identify potential challenges.

• Fluid Viscosity⁴: This is a measure of a liquid's thickness. Pumping honey is much harder than pumping water. Higher viscosity fluids require a pump with more torque and power to maintain the desired flow rate.
• Back Pressure⁵: This is any resistance the pump has to push against. A narrow dispensing nozzle, an in-line filter, or pushing fluid up a tall column all create back pressure. You must choose a pump with a maximum pressure rating higher than your system's total back pressure.
• Tubing and Suction Lift: Long and narrow tubes create more friction and resistance than short, wide tubes. Furthermore, if the pump has to pull the chemical upwards from a container placed below it (suction lift), it needs a strong vacuum capability. We must account for all these factors to avoid under-specifying the pump.

How Does BODENFLO Help You Choose the Right Dispensing Pump?

You've read the theory, but you're still facing a complex matrix of chemicals, flow rates, and system variables. Applying all this knowledge to select one specific pump from hundreds of options is a daunting and risky task.

BODENFLO simplifies this process by acting as your expert consultant. We go beyond the catalog to help you analyze your application, select the right materials, and validate the perfect pump for your system's needs.

Our mission is to ensure our customers succeed. To show you what this looks like in practice, let me share a recent case.

Case Study: High-Corrosion Detergent Dispensing

A client in Europe approached us for an industrial dispensing system. The challenge was the liquid: a detergent containing Sodium Hydroxide and Sodium Hypochlorite, both highly corrosive. Our first step was a deep dive into chemical compatibility. We selected a robust material configuration: a PPS pump head, FKM valves, and a PTFE diaphragm. This combination provides excellent resistance to the harsh chemicals. Next, we discussed their flow rate needs and presented them with four tailored options from our high-flow micro diaphragm pump line, giving them the flexibility to choose based on their specific system requirements. The client was very satisfied with this consultative approach and the robust solutions provided.

This process ensures you don't just get a pump, you get a validated, reliable solution for your specific application, all backed by our ISO 9001:2015 quality guarantee.

Conclusion

The best chemical dispensing pump is never a one-size-fits-all solution. It is a carefully engineered choice, tailored to your specific application by balancing chemical compatibility, accuracy, and system design to ensure safety, precision, and reliability.

At BODENFLO, we help you make the right choice with expert guidance and proven solutions. Contact us today at 📧 info@bodenpump.com to discuss your requirements and get the best pump for your chemical dispensing system.
