Brushed or Brushless DC Pump: Is the Real Cost in the Motor or the System?

You're stuck choosing between a seemingly cheap brushed DC pump and a more expensive brushless one. You worry the brushed pump will fail early, but the cost of the brushless option and its electronics is threatening your product budget.

The choice isn't about the motor alone but the total system cost. A brushed pump requires simple, cheap electronics, lowering system cost. A brushless pump needs a complex, expensive driver and firmware, increasing system cost. The best choice depends on your system's budget and performance needs.

I see engineering teams make the same mistake all the time. They get fixated on the "long life" of a brushless motor and select it for a product that will only be used for a few minutes a day. They spend thousands on complex driver boards and firmware development, blowing their budget. In reality, a simple, cost-effective brushed pump would have outlasted the product's useful life anyway. The key is to stop looking at the pump as a component and start looking at it as part of a system with its own unique cost and reliability requirements.

Why Is a Brushed Pump a Low-Cost Solution for the Entire System?

Your project has a tight budget and a simple on/off requirement. A sophisticated brushless pump seems like expensive overkill, adding cost and complexity you don't need.

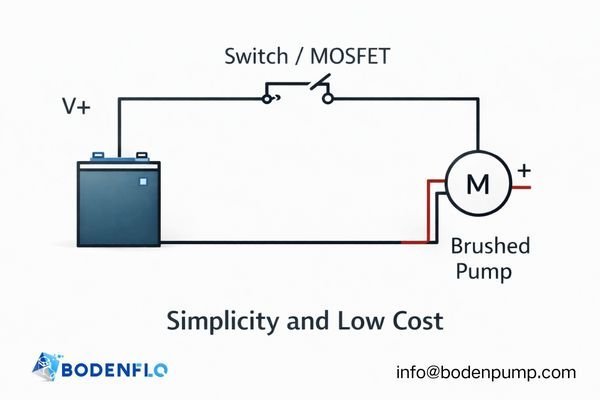

A brushed DC pump is a low-system-cost solution because it requires minimal and inexpensive external electronics. Its simple two-wire design can be driven by a basic switch or a single transistor, dramatically reducing PCB complexity, component count, and software development time.

The beauty of the brushed DC pump is its simplicity, and that simplicity extends directly to your balance of materials (BOM) and engineering effort. To make a brushed pump run, you don't need specialized integrated circuits or complex algorithms.

The Low-Cost Ecosystem of a Brushed Pump

The pump itself is just one part of the cost equation. The real savings come from the supporting electronics, or lack thereof.

• Driver Circuit: A brushed motor can be turned on and off with a simple mechanical relay or a single, low-cost MOSFET. This is a component that costs pennies.
• PCB Design: The layout is trivial. You just need two traces from the driver to the pump connector. There are no sensitive control lines to route.
• Firmware: For a basic on/off application, zero firmware is required. There is no code to write, debug, or maintain.

This makes the brushed pump the undisputed king for simple, cost-sensitive applications where a lifespan of 1,000 to 3,000 hours is more than sufficient.

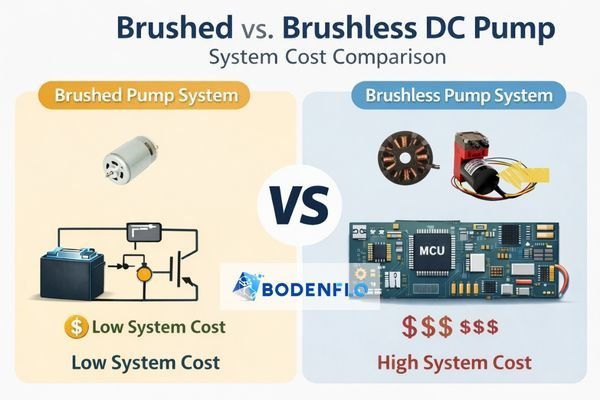

System Aspect	Brushed DC Pump System	Brushless DC Pump System
Driver Component	Single MOSFET or Relay	Specialized Controller IC
Component Count	Very Low (1-2)	High (10+)
Firmware Effort	None to Minimal	Significant
Total System Cost	Low	High

Why Does a Brushless Pump Increase Total System Cost?

You want the long life of a brushless pump, but your project manager is questioning the high cost of the driver board and the extra firmware development time.

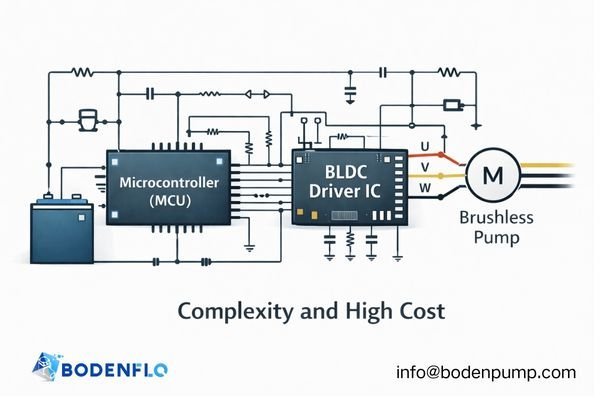

A brushless DC (BLDC) pump intrinsically costs more at the system level because it cannot run on its own. It requires a dedicated, complex electronic controller to energize its motor windings in a specific sequence, adding significant cost through specialized ICs, multiple support components, and software development.

In my 7 years in this industry, I've seen many projects get into budget trouble by underestimating the "hidden" costs of a brushless system. The price of the pump is just the beginning. The motor has no brushes, so the "smarts" that were once mechanical must be recreated in silicon and software. This electronic commutation is not a trivial task.

Your engineering team must design, build, and program a small computer just to make the pump spin. This involves a specialized BLDC controller IC¹, a host of external resistors and capacitors for timing, and multiple MOSFETs within the driver. Every one of these components adds cost, takes up precious PCB space, and requires engineering time to integrate and debug.

When Do the Long-Term Costs Make Brushless the Cheaper Option?

Your product needs to run continuously for years in a remote location where servicing is impossible. A cheap brushed pump seems risky, as a failure could be catastrophic.

For applications requiring very long life or 24/7 operation, a brushless pump is often cheaper in the long run. Its lack of brushes eliminates the primary wear component, leading to lifespans of 10,000 hours or more and avoiding costly service calls or product recalls.

The decision calculus flips entirely when you shift from intermittent use to continuous operation. I worked with a client developing a medical device that had to run non-stop for the duration of a multi-day procedure. For them, pump failure was not an option.

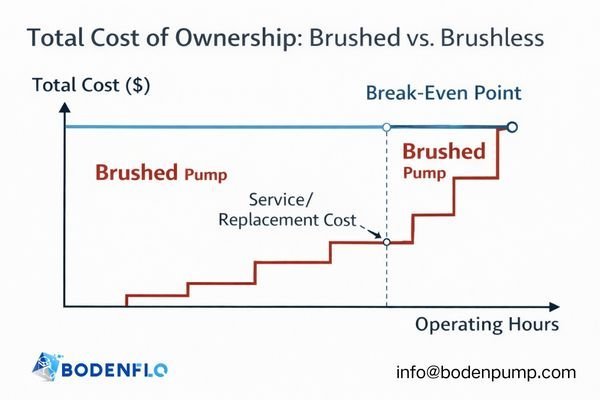

Calculating the Total Cost of Ownership (TCO)²

The initial system cost of their brushless pump³ and controller was about $50 higher than a brushed equivalent. However, a brushed pump would need to be replaced at least twice during the product's intended
lifespan.

• Cost of a Service Call: $200 (technician time + travel)
• Cost of Replacement Pump: $15
• Total Replacement Cost (per incident): $215

One single service event would cost more than four times the initial price difference. For applications like gas analyzers, environmental monitors, or critical medical equipment, the initial investment in a brushless system is an insurance policy against much higher future costs. The reliability of the brushless motor becomes the dominant factor in its total cost.

When Does System Performance Demand a Brushless Pump?

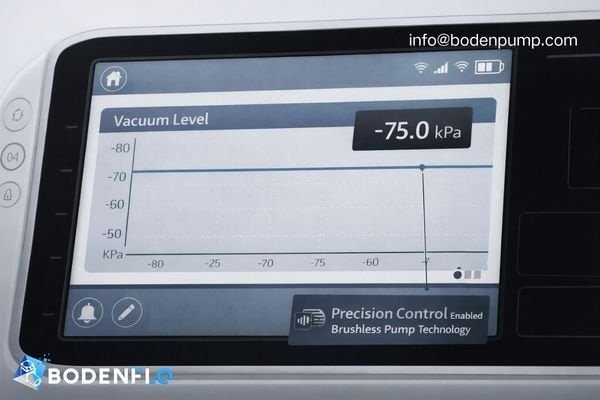

Your application requires precise flow control to deliver an exact amount of fluid or maintain a stable vacuum level. A simple on/off brushed pump just isn't accurate enough.

If your system requires precise speed control, feedback, or high efficiency, a brushless DC pump is the only viable choice. Its electronic controller enables sophisticated control strategies like PWM speed adjustment and closed-loop feedback, which are impossible with a simple brushed motor.

Performance requirements can make the cost discussion secondary. If the system must perform a certain way, you choose the technology that enables it. I've consulted on many laboratory and medical instrument projects where the core function depended on the pump's controllability. For example, a diagnostic machine might need to pull a precise sample volume, which requires the pump to run at an exact speed for an exact amount of time.

This is where the brushless pump's electronic brain becomes a powerful feature:

• PWM Speed Control⁴: The controller can interpret a simple PWM signal from a microcontroller to adjust the pump's speed from 10% to 100% of its range, allowing for dynamic changes in flow or pressure.
• FG Speed Feedback⁵: Many brushless pumps include a Frequency Generator (FG) wire that outputs a pulse train corresponding to the motor's speed. This allows the system to create a closed-loop controller, ensuring the pump maintains a target speed even if the load changes.

For these applications, the brushless pump isn't a "premium" choice; it's the only choice.

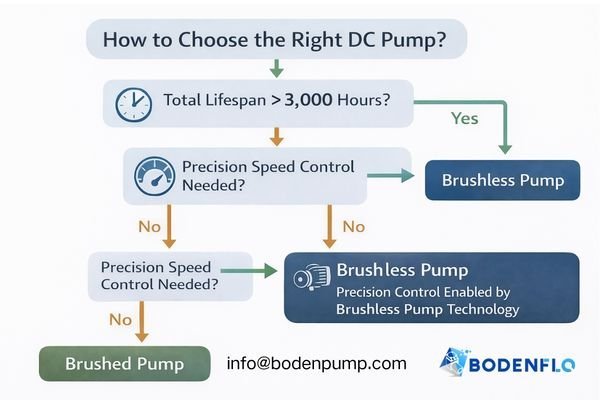

How Do You Choose the Right Pump for Your System?

You've seen the trade-offs, but you're still unsure. How do you make a final, justifiable decision for your specific project that balances cost, life, and performance?

The right choice comes from asking system-level questions, not motor-level questions. By analyzing your product's actual usage pattern, lifespan requirements, and performance needs, you can use a simple decision framework to select the most cost-effective pump technology.

As an engineer, I always guide my clients through a pragmatic checklist. Forget the marketing hype and focus on the real-world facts of your project. Ask yourself these three questions in order:

1. What is the Total Required Lifespan⁶?

   • Under 3,000 hours: A brushed DC pump is almost always the most cost-effective choice. Its lifespan is sufficient, and the system cost is minimal.
   • Over 3,000 hours (especially continuous use): A brushless DC pump is a necessary investment. The initial cost is higher, but the long-term reliability justifies it.

2. Does the System Require Precision Control?

   • No (Simple On/Off): If a brushed pump meets your life requirement, its simplicity is a major advantage.
   • Yes (Variable Speed or Closed-Loop): You must use a brushless pump. Its electronic control is a core system requirement.

3. What is your BOM/System Cost Target⁷?

   • If you've determined a brushed pump meets your life and control needs, it will always be the lowest system cost.
   • If you require a brushless pump for life or control, its higher system cost must be factored into your product's budget from day one.

This framework removes emotion and focuses on matching the right technology to the specific job, ensuring you don't over-engineer or under-deliver.

Conclusion

The brushed vs. brushless debate is not about which motor is inherently better—it’s about which system-level solution is right for your product.

When you evaluate actual operating hours, duty cycle, control requirements, and total system cost, the correct choice becomes clear and defensible. Avoid over-engineering where simplicity is enough, and invest in complexity only when long-term reliability or precision control truly demands it.
