How Can Diaphragm Vacuum Pump Selection Optimize Your Vacuum Lifters Cycle Times?

Struggling with slow vacuum lifter cycles? Your pump selection might be the hidden bottleneck. Getting this choice right can transform your operations, making them significantly quicker and more efficient, but how do you ensure it's the perfect match?

Choosing the right diaphragm vacuum pump optimizes vacuum lifter cycle times by precisely matching flow rates, ensuring efficient power consumption, and providing suitable pressure levels tailored to your specific application needs, crucially considering ambient temperature impacts.

To truly make the best choice, you need to look beyond just the basic numbers on a datasheet. It’s essential to evaluate the pump's capacity not just in ideal conditions, but also its compatibility with your entire system and, very importantly, the local environmental conditions. I've seen firsthand how factors like temperature, especially in colder parts of Europe and Russia, can dramatically affect a pump's performance. With an accurate and holistic selection process, you can achieve substantial improvements in your cycle times and overall productivity.

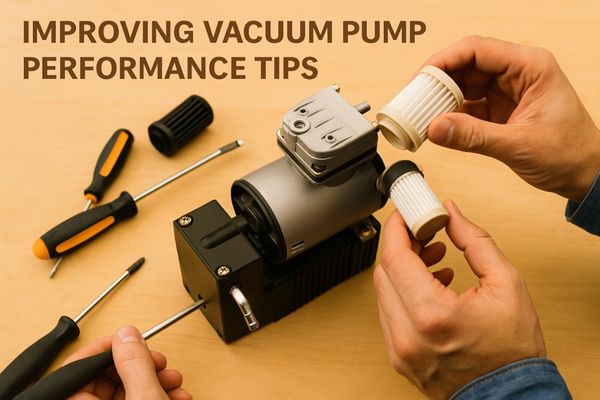

How to Improve Vacuum Pump Performance?

Is your current vacuum pump underperforming, leading to frustrating delays? Often, simple tweaks and consistent, proper care can significantly boost its efficiency and restore optimal function. Don't let poor pump performance continue to slow down your entire workflow.

Improve vacuum pump performance through a combination of regular, thorough maintenance, selecting the appropriate size and model for your specific load, ensuring optimal environmental conditions (especially temperature), and strategically upgrading outdated or worn components.

Let's dive deeper into how you can get the most out of your vacuum pump. Performance isn't just about the pump itself, but how it integrates and operates within its environment.

• Firstly, regular maintenance¹ is non-negotiable. This means more than just a quick wipe-down. You should have a schedule for checking and cleaning filters, inspecting diaphragms for wear or damage, and ensuring all connections are tight to prevent leaks.

• Secondly, correct sizing² is fundamental. A pump that's too small will constantly struggle, leading to long cycle times and premature failure. Conversely, an oversized pump wastes energy. It's about finding that sweet spot.

• Thirdly, and this is often overlooked, is the impact of environmental temperature³.

Impact of Environmental Temperature

Diaphragm pumps, like many mechanical devices, have an optimal operating temperature range. Extreme cold, as you might find in facilities in Northern Europe or Russia during winter, can significantly degrade performance. The diaphragm material itself can become less flexible, affecting its ability to create a strong seal and pump efficiently. Any lubricants, even trace amounts in bearings, can increase in viscosity, adding load to the motor. I recall a client in Siberia whose automated lifting system became incredibly sluggish every winter.

We eventually traced the problem back to a diaphragm vacuum pump that simply wasn't rated for the sub-zero temperatures in their facility. Switching to a model specifically designed for cold environments, with appropriate materials and temperature rating, made a night-and-day difference. Always check the manufacturer's specified temperature range.

Finally, consider component upgrades. If your pump is older, upgrading to newer diaphragm materials or a more efficient motor can sometimes provide a surprising performance boost.

What Is the Use of Diaphragm Vacuum Pump?

Unsure if a diaphragm vacuum pump is the right fit for your specific application needs? These versatile pumps offer a unique set of benefits that make them indispensable in many situations. Discover where they truly excel and why they are often the preferred choice.

Diaphragm vacuum pumps are primarily used for their clean, oil-free operation, excellent chemical resistance, and convenient portability, making them ideal for laboratory applications, precise gas sampling, medical devices, and various filtration processes.

Diaphragm vacuum pumps have carved out a significant niche due to their distinct advantages. Their oil-free operation is perhaps the most celebrated feature. This means the pumped medium is not contaminated by lubricants, which is absolutely critical in applications like medical equipment, food processing, and semiconductor manufacturing. For vacuum lifters handling sensitive materials like glass or finished wood products, an oil-free pump prevents any risk of staining or residue.

Another key strength is chemical resistance. Many diaphragm pumps use materials like PTFE (Teflon) or FFKM for the diaphragm and other wetted parts. This allows them to handle corrosive gases and vapors that would quickly degrade other pump types. This is essential in chemical laboratories or industrial processes involving aggressive substances.

Their portability and relatively low maintenance are also significant draws. Compared to oil-sealed rotary vane pumps, diaphragm pumps are generally lighter, more compact, and don't require oil changes, reducing downtime and operational complexity.

In my early days in the industry, we often relied on oil-sealed pumps for general vacuum lifting tasks. However, for applications involving cleanroom environments or materials that couldn't tolerate even a hint of oil, contamination was a constant worry. Switching to diaphragm pumps for these sensitive tasks was a game-changer, improving product quality and reducing rejected parts. Their reliability in these clean applications maDiaphragm vacuum pumps have carved out a significant niche due to their distinct advantages. Their oil-free operation⁴ is perhaps the most celebrated feature. This means the pumped medium is not contaminated by lubricants, which is absolutely critical in applications like medical equipment, food processing, and semiconductor manufacturing. For vacuum lifters handling sensitive materials like glass or finished wood products, an oil-free pump prevents any risk of staining or residue.

Another key strength is chemical resistance⁵. Many diaphragm pumps use materials like PTFE (Teflon) or FFKM for the diaphragm and other wetted parts. This allows them to handle corrosive gases and vapors that would quickly degrade other pump types. This is essential in chemical laboratories or industrial processes involving aggressive substances.

Their portability and relatively low maintenance are also significant draws. Compared to oil-sealed rotary vane pumps, diaphragm pumps are generally lighter, more compact, and don't require oil changes, reducing downtime and operational complexity.

In my early days in the industry, we often relied on oil-sealed pumps for general vacuum lifting tasks. However, for applications involving cleanroom environments or materials that couldn't tolerate even a hint of oil, contamination was a constant worry. Switching to diaphragm pumps for these sensitive tasks was a game-changer, improving product quality and reducing rejected parts. Their reliability in these clean applications makes them a solid choice for many modern vacuum lifter systems.

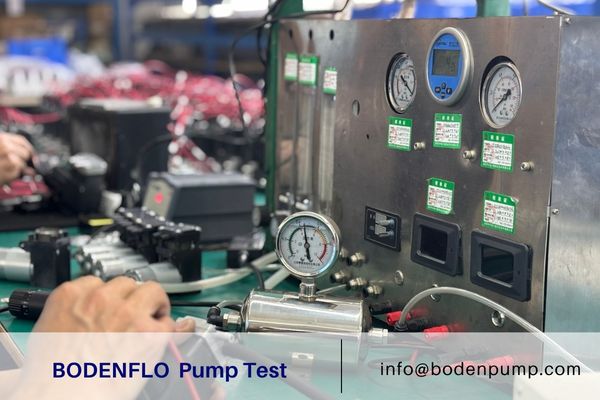

How Much Vacuum Will a Vacuum Pump Provide at Any Point of Time?

Confused by the array of vacuum level specifications and flow rate charts? Understanding exactly what level of vacuum a pump can deliver, and how quickly, is absolutely key to its effective application. Don't just guess; learn how to interpret these crucial performance figures.

A vacuum pump's capability to create a vacuum is typically defined by its ultimate vacuum level (expressed in units like millibar, Torr, or inches of Mercury) and its pumping speed or flow rate (e.g., CFM, L/min). These two parameters together determine how quickly and how deeply it can evacuate a given volume.

When we talk about how much vacuum a pump provides, we're looking at a couple of key metrics. The ultimate vacuum⁶ (or ultimate pressure) is the lowest pressure the pump can theoretically achieve in a perfectly sealed system with no gas load. This indicates the "depth" of vacuum it can pull. For vacuum lifters, a deeper vacuum generally translates to a stronger holding force per unit area of the suction cup.

However, ultimate vacuum alone doesn't tell the whole story. The pumping speed⁷ or flow rate⁸ is equally important. This measures the volume of gas the pump can remove from the system per unit of time. A pump with a high flow rate will evacuate the air from under a suction cup (and any associated tubing or manifold) much faster, leading to shorter cycle times for the lifter.

It's crucial to understand that the vacuum level a pump provides "at any point of time" in a real application is dynamic. It depends on factors like the volume of the system being evacuated, the presence of any leaks, the outgassing from materials within the system, and yes, the ambient temperature.

Temperature's Role in Achievable Vacuum

The ambient temperature can influence how quickly a pump reaches its target vacuum level and even the stability of that vacuum. In very cold conditions, as I mentioned earlier, the pump's mechanical efficiency can be reduced. This means it might take longer to achieve the desired vacuum for your lifter, effectively changing the "vacuum provided at any point of time" during the initial phase of a lifting cycle until the system temperature stabilizes or the pump warms up. For consistent performance, especially in variable temperature environments, selecting a pump designed to handle those variations is critical. We always advise clients at MoldAll to consider this for applications in unheated warehouses or outdoor settings.

How Do I Select the Vacuum Pump?

Feeling overwhelmed by the sheer number of vacuum pump choices available on the market? Selecting the right one is a critical decision that can significantly impact your operational efficiency and costs. Avoid potentially costly mistakes by employing a clear, methodical selection strategy.

Select the most appropriate vacuum pump by thoroughly evaluating your application's specific pressure and flow rate requirements, ensuring chemical compatibility with any process gases, and crucially, considering its designed operating temperature range, especially for demanding or cold environments.

Choosing the right vacuum pump isn't just about picking the one with the highest numbers; it’s about a tailored fit. Here’s a structured approach I recommend:

1. Define Your Application Needs:

   • What are you lifting (material, weight, porosity)?
   • What is the target cycle time for the lifting operation?
   • What is the size and configuration of your suction cups and manifold⁹?
   • Are there any cleanliness requirements (e.g., oil-free)?

2. Determine Required Vacuum Level and Flow Rate:

   • Calculate the necessary holding force, which dictates the vacuum level.
   • Estimate the system volume to determine the required flow rate for your target cycle time. Always add a safety margin.

3. Assess Chemical Compatibility:

   • Will the pump be exposed to any corrosive vapors or dust? If so, ensure the wetted parts (diaphragm, valves, head) are made of resistant materials.

4. Consider Environmental Conditions – The Temperature Factor:
   This is a point I constantly emphasize, particularly for clients with facilities in regions experiencing significant temperature fluctuations, like much of Europe and Russia.

   Prioritizing Temperature Rating

   The pump’s specified operating temperature range is not just a guideline; it’s a critical specification. A diaphragm vacuum pump that performs brilliantly in a climate-controlled factory at 20°C might struggle, become inefficient, or even fail prematurely if installed in an unheated warehouse where temperatures can plummet below freezing. The materials used in diaphragms and valves can lose flexibility in extreme cold, leading to poor sealing and reduced pumping capacity. Conversely, overheating can also degrade pump components.

   When I work with clients like Jacky, who might be designing systems for use in diverse Canadian climates, I always stress the importance of verifying the pump's temperature rating against the harshest conditions it's likely to encounter. Choosing a pump with an appropriate temperature rating, like many of the robust models we feature at MoldAll, is fundamental for long-term reliability and consistent performance.

   Here’s a simplified table to illustrate some key selection factors for vacuum lifters:

By systematically working through these points, you can narrow down your options and select a pump that is truly optimized for your vacuum lifter application.

How Can I Make My Vacuum More Efficient?

Is your vacuum system consuming too much energy or taking longer than necessary to perform tasks? You can often boost its efficiency with some smart adjustments and proactive measures. Get more out of your current setup without necessarily needing a complete overhaul.

Make your vacuum system more efficient by diligently minimizing leaks, ensuring the pump is correctly sized and selected for the task, potentially incorporating vacuum controllers, adhering to regular maintenance schedules, and critically, ensuring the pump's temperature suitability for the environment.

Maximizing vacuum system efficiency is about a holistic approach. Let’s break down the key areas:

• First and foremost, minimize leaks¹⁰. Leaks are the silent killers of vacuum efficiency. Air leaking into the system means your pump has to work harder and longer to achieve and maintain the desired vacuum level. Regularly check all fittings, hoses, seals, and suction cups for wear or damage. A simple ultrasonic leak detector can be a great investment.

• Second, optimizing pump selection and sizing¹¹ is crucial, as we've discussed. An undersized pump is obviously inefficient, but an oversized pump running for short cycles can also waste energy and may not operate at its most efficient point.

• Third, for applications with variable demand, consider using vacuum controllers or Variable Frequency Drives (VFDs)¹² on the pump motor. These can adjust the pump's speed or cycle it on/off based on actual vacuum demand, saving significant energy compared to a pump running continuously at full speed.

• Fourth, regular maintenance is vital. Clogged filters restrict airflow, and worn diaphragms reduce pumping capacity. A proactive maintenance schedule keeps the pump operating at its peak.

Temperature and System Efficiency

An often-underestimated aspect of overall system efficiency is the pump's suitability for the ambient operating temperature. A pump forced to operate outside its optimal temperature range will inherently be less efficient. In cold conditions, as mentioned, mechanical resistance can increase, meaning the pump consumes more power for the same amount of air moved. It might also take longer to reach the target vacuum, extending cycle times and indirectly reducing throughput efficiency.

This is particularly relevant for diaphragm pumps where the flexibility of the diaphragm material is key to its pumping action. At MoldAll, we've seen measurable efficiency gains for clients simply by ensuring their installed pumps had a temperature rating appropriate for their specific factory or warehouse environment. It’s a fundamental check that pays dividends.

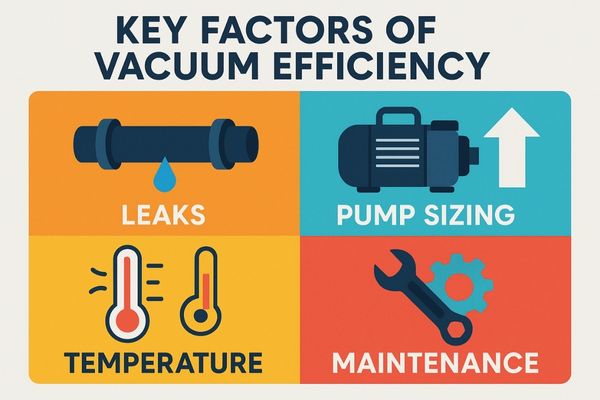

What Are the Factors Affecting Vacuum Efficiency?

Why isn't your vacuum system performing as well as you expect, or as it used to? Several interconnected factors can significantly impact its overall efficiency. Understanding these elements is the first step towards diagnosing issues and optimizing your setup.

Vacuum efficiency is primarily affected by the integrity of system seals (leaks), the appropriateness of the pump size and type for the application, the ambient operating environment (especially temperature), the compatibility of materials with pumped substances, and the diligence of maintenance practices.

Let's delve into the primary factors that dictate how efficiently your vacuum system operates:

1. System Leaks: This is almost always the number one culprit. Even small leaks in hoses, fittings, seals, or suction cups force the pump to work continuously harder, wasting energy and extending pump-down times.
2. Pump Sizing and Type: A pump that is too small for the system volume or required flow rate will struggle, leading to inefficiency. Conversely, a grossly oversized pump can also be inefficient if it's constantly cycling or running at a very low load. The type of pump must also match the application requirements (e.g., oil-free for clean applications).
3. Operating Environment – The Critical Role of Ambient Temperature:
   I cannot stress enough how significantly the ambient temperature, particularly in regions known for extreme cold like parts of Europe or Russia, can affect vacuum efficiency. Diaphragm materials can stiffen in low temperatures, reducing their sealing effectiveness and stroke volume. This directly translates to lower pumping speed and a shallower achievable vacuum for the same energy input. Manufacturers provide temperature specifications for a reason; operating outside these limits invariably leads to reduced efficiency and potentially shorter pump life. It’s a fundamental factor we always highlight at MoldAll when consulting on system design.
4. Conductance Limitations: The "pipes" of your vacuum system – hoses, tubing, manifolds, and fittings – all offer some resistance to airflow. Narrow, long, or convoluted pathways can significantly restrict flow, effectively bottlenecking the pump and reducing overall system efficiency.
5. Material Compatibility and Outgassing: If materials within the system (including the load being handled by a lifter) outgas significantly, this adds to the gas load the pump must handle, reducing efficiency.
6. Maintenance Practices: Neglected maintenance, such as clogged inlet filters or worn diaphragms and valves, directly degrades pump performance and, therefore, system efficiency.

Addressing these factors systematically can lead to substantial improvements in your vacuum system's performance and energy consumption.

What Makes a Vacuum Powerful?

What truly defines a "powerful" vacuum system or vacuum pump? It's more than just a single specification; it’s a combination of attributes that enable it to perform demanding tasks effectively and reliably. Discover the key elements that deliver real, usable vacuum strength.

A vacuum is considered powerful based on its ability to achieve a deep ultimate vacuum level (very low absolute pressure), maintain a high flow rate (pumping speed) to evacuate volumes quickly, and operate robustly and consistently under the actual load conditions of the application.

When we describe a vacuum as "powerful," we're generally referring to several key performance characteristics:

1. Deep Ultimate Vacuum: This is the ability of the pump to remove a very high percentage of air molecules from a sealed system, resulting in a very low absolute pressure. For applications like vacuum lifters, a deeper vacuum translates directly to a greater pressure differential across the suction cup, meaning more holding force per unit area.
2. High Flow Rate (Pumping Speed): Power isn't just about depth; it's also about speed. A pump with a high flow rate can evacuate a given volume (like the space under a suction cup and in the connecting lines) much more quickly. This is critical for achieving fast cycle times in automated lifting applications.
3. Robustness Under Load: A truly powerful pump maintains its performance characteristics even when connected to a real-world system with its inherent leaks, outgassing, and flow restrictions. Some pumps look great on paper (datasheet performance) but falter when faced with the demands of an actual industrial application.
4. Pump Design and Motor Quality: The internal design of the pump, the quality of its components (like diaphragms and valves), and the power and efficiency of its motor all contribute to its overall power and reliability.

Conclusion

Selecting the right diaphragm vacuum pump, with careful consideration of factors like flow rate, pressure, and especially its temperature rating, is paramount for optimizing vacuum lifter cycle times and overall system efficiency.
