How Does a Micro Diaphragm Air Pump Support Air Sampling on Drones?

Getting air samples from remote locations is hard and risky. Slow, ground-based methods don't work. Drones with micro pumps offer a fast, safe, and accurate solution.

A micro diaphragm air pump enables drone-based air sampling by being lightweight, compact, and power-efficient. It actively pulls a precise, stable volume of air across a sensor or into a collection bag, ensuring accurate data capture without compromising the drone's flight time or payload capacity.

This explains the basic role of the pump. But the journey from a simple pump to a reliable scientific instrument is full of challenges and smart engineering. To appreciate how this technology works, we need to break it down, piece by piece. Let's start with the big picture.

What is drone-based air sampling and why is it important?

Industrial sites or disaster zones pose huge risks. Sending people in for air tests is dangerous and slow. There must be a safer, faster way to get critical data.

Drone-based sampling is crucial because it allows us to collect air quality data from dangerous or inaccessible locations safely and quickly. This provides vital information for environmental protection, public safety, and industrial monitoring without risking human lives.

I've worked with environmental agencies who needed to understand the plume from a chemical fire. Before drones, they had to wait for the wind to carry particles to fixed ground stations, which gave an incomplete picture. Now, they can fly a drone directly into the area of concern and get real-time data¹. This ability changes everything, from protecting first responders to warning local communities. It’s about getting better data, faster and more safely than ever before, creating detailed 3D pollution maps² instead of just a few ground-level guesses.

Key Advantages of Drone Sampling

What is a micro diaphragm air pump and how does it work?

Complex pumps can seem like black boxes. Understanding how they work is the first step to using them effectively. It's actually a very clever and simple mechanical process.

A micro diaphragm pump uses a motor to move an elastic diaphragm up and down. This motion changes the volume in a small chamber, opening and closing valves to create a flow of air, generating either pressure or a vacuum.

At its heart, a diaphragm pump³ imitates breathing. The motor turns an eccentric cam⁴, which is like a crank on a bicycle. This cam pushes a connecting rod, which flexes a flexible, rubber-like diaphragm. When the diaphragm moves down, it creates a vacuum, pulling air in through an inlet valve. When it moves up, it pressurizes the chamber, pushing the air out through an outlet valve. This cycle repeats very quickly to create a continuous flow. The beauty is its simplicity and oil-free operation⁵, as the air only ever touches the diaphragm and valves.

Core Components and Their Function

Why are micro diaphragm air pumps suitable for drones?

Drones have strict limits on weight and power. A heavy, power-hungry pump will ruin flight time and stability. You need a component that is small, light, and efficient.

Micro diaphragm pumps are ideal for drones due to their extremely low weight, compact size, and minimal power consumption. This ensures they don't negatively impact the drone's flight stability, payload capacity, or battery life, making them the perfect engine for airborne sampling systems.

Every single gram matters on a drone. I remember a university team that was building a custom air sampler. They started with a generic industrial pump, and their drone could barely get off the ground. The flight time was terrible. We helped them integrate one of our BODENFLO pumps⁶, which weighed only a fraction of their original choice. It completely solved their weight and power issues⁷, allowing them to focus on the science, not the struggle of just staying in the air. This is the core challenge our pumps are designed to solve.

The Critical Design Triangle for Drones

How does a micro diaphragm pump enable stable flow for accurate sampling?

Inaccurate data is useless. Fluctuations in airflow during sampling can corrupt your results. You need a pump that delivers a perfectly steady and consistent flow.

The pump ensures accuracy by providing a very stable and consistent flow rate. Its diaphragm technology and advanced motor control create a smooth, non-pulsating stream of air. This is critical for sensors that require a precise volume of air to work correctly.

Think of it like this: if your sensor needs exactly 1 liter of air per minute to give a correct reading, and your pump is delivering 1.2 L one second and 0.8 L the next, your final data will be wrong. This pulsation is a common problem with less advanced pump designs. We have spent years perfecting our head design and motor controllers to minimize these pulses. For scientific monitoring, a stable flow isn't just a nice feature; it's a fundamental requirement for believable, actionable data. It's the difference between guessing and knowing.

Achieving Stability and Control

What challenges do these pumps face in UAV applications?

It's not always easy to fly a pump. The drone environment is harsh and presents unique problems. A pump that works on a lab bench might fail in the air.

Pumps on drones face challenges from vibration, extreme temperatures, humidity, and fluctuating power supplies. These factors can affect performance, lifespan, and the accuracy of the samples being collected if the pump is not designed to withstand them.

The biggest challenge is often vibration. The high-frequency vibrations from the drone's motors can travel through the frame and into the pump. For a standard pump, this can cause premature wear on the motor bearings and even affect the seating of the valves, leading to inconsistent flow. We've seen it happen. That's why robust construction and motor quality are so important. Additionally, flying from a hot, dry ground level up to a cold, humid altitude in minutes puts stress on all components. The materials in the pump have to be stable enough to handle these rapid changes without failing.

Common UAV Challenges and Solutions

How can engineers improve pump performance on drones?

A good pump is just the start. The way you integrate it into your drone system is just as important. Poor integration can ruin the performance of a great component.

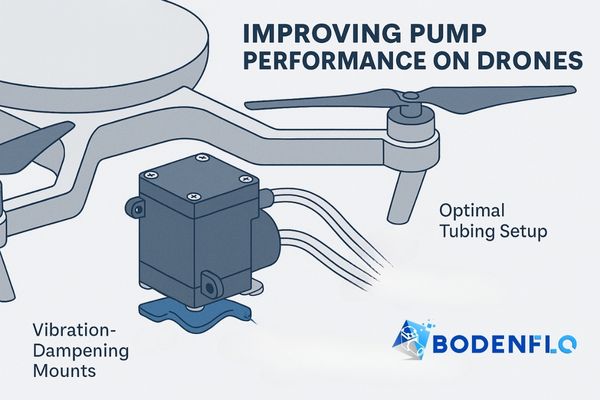

Engineers can improve performance by using vibration-dampening mounts, ensuring a stable power supply, and optimizing the tubing. Short, wide-diameter tubes reduce flow restriction, and proper mounting prevents mechanical stress, maximizing both pump efficiency and lifespan.

I often tell engineers to think about the entire "air-path¹²" as a single system. The pump is the engine, but the tubing is the highway. If you have a long, thin, or kinked tube, you are forcing the pump to work much harder to achieve the desired flow rate. This increases power consumption and reduces the pump's lifespan. We recommend keeping tubing as short and straight as possible. Also, isolating the pump from the drone's main frame with soft silicone or rubber mounts is a simple trick that makes a huge difference in reducing vibration-related wear and noise.

System Integration Best Practices

What are real-world examples of air sampling pumps used in drones?

Theory is one thing, but how is this technology actually being used today? The applications are diverse and growing every day, solving real problems across many industries.

Real-world examples include drones monitoring industrial emissions for regulatory compliance, mapping pollution plumes after chemical spills for public safety, and assessing air quality over large agricultural areas to understand environmental drift and its impact.

We have customers using our pumps for some amazing applications. One group is monitoring methane levels¹⁴ over landfills to identify leaks. Another is using a fleet of drones to create air quality maps¹⁵ of entire cities, providing data that was impossible to get before. In agriculture, our pumps are helping researchers understand how pesticides drift³ in the air, leading to safer and more efficient farming practices. Each of these applications relies on a small, reliable pump to pull a consistent air sample. It's the enabling component that makes the entire mission possible.

Example Applications

How do you select the right micro diaphragm air pump for your drone project?

Choosing the wrong pump can ground your project. With so many options, how do you pick the perfect one? A simple checklist can guide your decision to success.

To select the right pump, match its specs to your mission. Define your required flow rate (L/min), the system's backpressure, your power budget (V), and expected lifespan. Prioritize low weight and compact size above all else for drone applications.

When a new client comes to us for a drone project, we don't just ask "what pump do you want?". We walk them through a checklist. The most common mistake I see is underestimating backpressure. A fine particle filter can create a lot of resistance, and the pump must be powerful enough to pull air through it consistently. You have to think about the entire system. Answering these questions before you buy will save you a lot of time and money.

Your Pre-Flight Selection Checklist

What’s next for air quality monitoring with micro pumps and drones?

Technology never stands still. The systems we use today are amazing, but the future holds even more potential. What breakthroughs are just over the horizon?

The future lies in smarter, smaller, and more connected systems. Expect further pump miniaturization, on-board AI to analyze data in real-time, and networked swarms of drones that can create live, dynamic air quality maps of entire regions.

We are constantly pushing the boundaries of what's possible. Our R&D is focused on making our pumps even smaller and more efficient, but the really exciting part is system integration¹⁷. Imagine a pump that can adjust its own speed based on feedback from the air quality sensor, ensuring perfect sampling in all conditions. Or a drone that not only identifies a pollution source but can autonomously dispatch other drones to track it. This isn't science fiction; it's the next logical step. The pump will evolve from a simple component into an intelligent part of a much larger, automated environmental monitoring network.

Future Trends

Conclusion

Micro diaphragm pumps are the heart of modern drone air sampling. Their unique blend of low weight, energy efficiency, and flow stability enables safe, accurate data collection from virtually anywhere on Earth — including industrial zones, disaster sites, and remote terrains.

If you're developing UAV-based environmental monitoring systems and need high-performance, compact micro air pumps, BODENFLO offers both standard and customized solutions tailored to your needs.

📩 Contact us today at info@bodenpump.com to discuss how our pumps can power your next-generation drone application.

🚀 BODENFLO – Empowering Precision Air Sampling from Above.
