How Does Duty Cycle Affect Micro Pump Lifetime in Continuous Operation?

Your pump fails prematurely despite being rated for "continuous duty." This unexpected downtime hurts your product's reputation and forces costly redesigns, leaving you frustrated and behind schedule.

Duty cycle directly impacts pump lifetime by causing heat accumulation. In continuous operation, this thermal stress accelerates material aging in the motor, diaphragm, and valves, leading to performance degradation and eventual failure far sooner than datasheet ratings suggest.

As a project manager at BODENFLO with 7 years of project experience, I've seen countless projects get derailed by underestimating duty cycle. Engineers often see "continuous duty" on a datasheet and assume it's a guarantee. In reality, it's a conditional rating that depends heavily on the operating environment. Let's break down why duty cycle is the silent killer of micro pumps and how you can design for genuine long-term reliability.

What Is Duty Cycle in Practical Terms?

You see "100% duty cycle" on a datasheet and assume it means indefinite operation. But your pump still fails, making you question what the term really means for your design.

In practice, duty cycle is not just about on/off timing; it's a measure of accumulated thermal and mechanical stress. A 50% duty cycle can be just as damaging as continuous operation if cooling periods are too short to dissipate heat effectively.

From an engineering perspective, duty cycle¹ is a stress multiplier. It defines how much thermal and mechanical fatigue a micro pump accumulates over its life, which is far more important than just the ratio of on-time to off-time. I always urge clients to look beyond the percentage and evaluate the real-world stress conditions.

A pump running in short, frequent bursts without enough time to cool down is effectively operating continuously from a thermal standpoint. For example, a pump running for 2 minutes on and 2 minutes off might seem like a 50% duty cycle, but thermally it behaves much closer to 100% because it never fully cools.

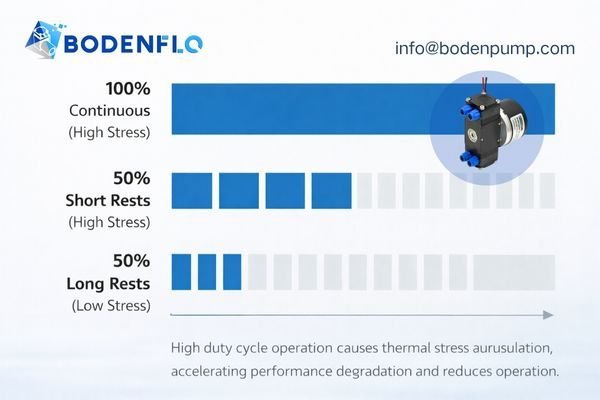

Duty Cycle as a Stress Indicator

Duty Cycle Scenario	Practical Implication	Effective Stress Level
100% Continuous	No cooling intervals. Heat constantly accumulates to its maximum level.	High
50% (Long Cycles)	Long "on" time allows significant heat buildup. Short "off" time is not enough to cool down.	High
50% (Short Bursts)	Short "on" time generates less heat per cycle. Long "off" time allows for full cooling.	Low
Variable Speed	Stress depends on average speed and load. Can be deceptively high.	Variable

---

Why Is Thermal Buildup the Hidden Lifetime Killer?

Your pump is operating well within its pressure and flow specs, but it still fails ahead of schedule. You're left confused, suspecting a defective part when the real culprit is hidden.

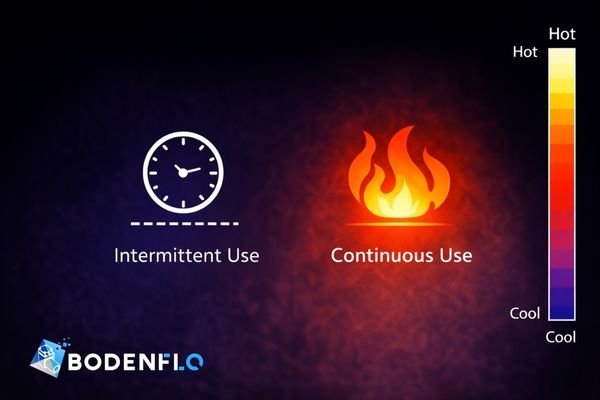

Yes, thermal buildup is the primary cause of premature failure in high-duty-cycle applications. Micro pumps have limited thermal mass, so motor heat accumulates faster than it can dissipate, cooking the components from the inside out and drastically shortening their life.

I often call heat the "hidden lifetime killer" because you can't see it on a spec sheet. Unlike large industrial pumps with cooling fins and significant mass, micro pumps are designed for compactness. This design trade-off means they are much more sensitive to heat. When duty cycle is high, the internal temperature can steadily climb 10–15°C or more above ambient.

This may not sound like much, but for materials like rubber diaphragms and motor bearing grease, aging accelerates exponentially with temperature. As a rule of thumb, every 10°C increase in operating temperature can cut the life of electronic and mechanical components in half. This is why a pump that works perfectly on an open test bench can fail inside a tight, unventilated product enclosure.

How Does Continuous Operation Change Pump Behavior?

Your pump performs perfectly during short tests, but its performance degrades after running for hours. You need to understand what changes inside the pump during extended operation.

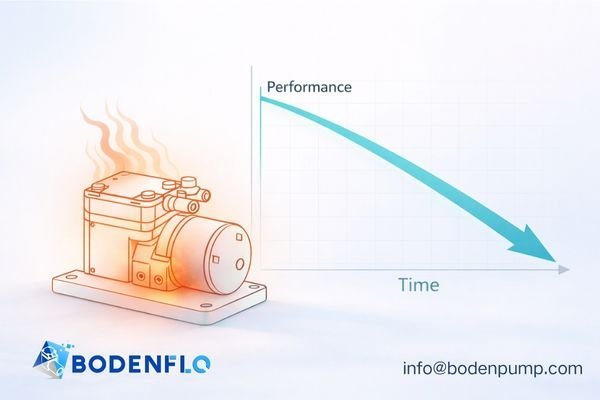

Continuous operation causes heat accumulation in the motor and pump head. This elevated temperature reduces diaphragm elasticity, degrades valve sealing, and increases internal leakage, leading to a gradual and irreversible loss of performance over time.

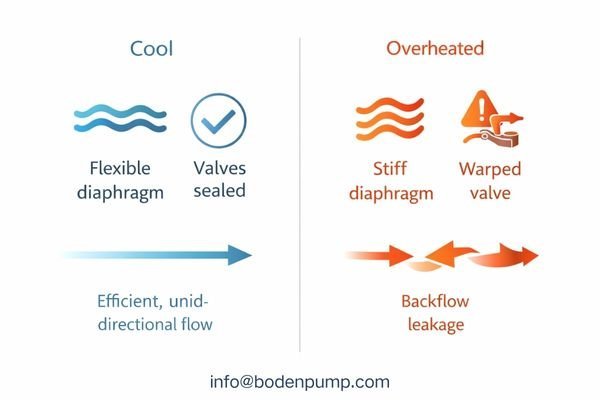

In my experience with OEM gas sampling and medical device projects², this is a classic scenario. The gradual performance decline isn't due to a sudden failure, but rather a collection of effects caused by sustained heat. The pump's core components are physically changing. A warmer diaphragm becomes stiffer and can't complete its full stroke, moving less air.

The tiny rubber valves that direct airflow can lose their perfect seal due to thermal expansion or fatigue, allowing backflow that hurts efficiency. At the same time, the motor windings get hotter, which increases their electrical resistance and reduces the torque available to drive the pump against a load. None of these factors are immediately obvious, but together they create a downward spiral in performance.

Why Are Datasheet Lifetime Ratings So Often Misleading?

The datasheet promised 10,000 hours, but your pump failed at 3,000. You feel misled by the specs, and now your product's reliability and your company's warranty costs are at risk.

Datasheet lifetime ratings are measured under ideal, controlled laboratory conditions. Real-world applications introduce fluctuating loads, trapped heat from enclosures, and voltage drops, all of which accelerate wear and significantly reduce the actual, achievable lifetime.

A datasheet lifetime³ is a benchmark, not a field-use guarantee. When I review a new project, I spend most of my time discussing the gap between the datasheet's test conditions and the customer's actual system. That 10,000-hour rating is achievable, but only if your device perfectly mimics the lab: stable 24°C ambient temperature, nominal voltage, and a fixed, defined load.

In reality, a portable device's battery voltage drops, an instrument's enclosure traps heat from other electronics, and a sampling filter clogs over time, increasing the load on the pump. Each of these real-world deviations adds stress, and under continuous duty, this accumulated stress is what causes the pump to fail much earlier than the datasheet predicts.

Is Duty Cycle Really a Choice Between Continuous and Intermittent?

You classified your application as "intermittent" because the pump takes brief pauses, yet it's still overheating. Your design assumptions aren't matching reality, leading to unexpected reliability issues and field failures.

No, it's far from a binary choice. Many systems operate in a "gray zone" with long run times and brief pauses. From a thermal stress perspective, these scenarios can be just as demanding as true continuous operation if the cooldown periods are insufficient.

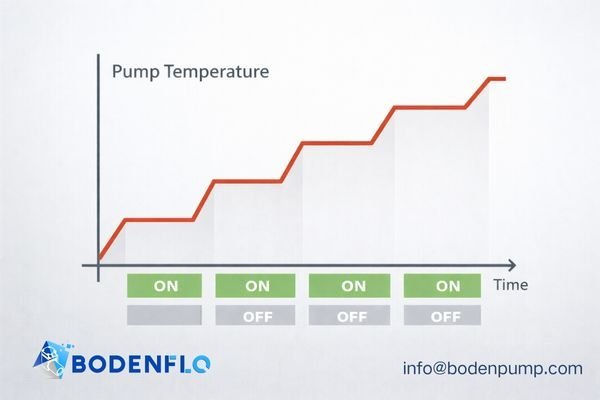

Thinking of duty cycle as simply "on" or "off" is a dangerous oversimplification. The real factor is thermal equilibrium: is the pump dissipating heat faster than it's generating it over time? For example, a system that runs a pump for 5 minutes and rests for 1 minute is extremely stressful. The pump never has a chance to cool down, so its baseline temperature climbs with each cycle.

This is often more damaging than running at a lower, but truly continuous, speed. I always advise clients to analyze the thermal impact of their timing, not just the timing itself. Scenarios like standby vacuum holding (where the pump kicks on periodically to compensate for leaks) or variable-speed operation fall into this gray zone and must be evaluated for their total thermal stress.

What Engineering Strategies Can Truly Extend Pump Lifetime?

You're tired of pumps failing in the field and want to design for reliability from the start. You need a practical checklist of strategies to prevent premature failure in high-duty-cycle applications.

To extend lifetime, you must actively manage stress. This involves selecting the right pump with performance reserves, optimizing the system to reduce the pump's workload, and ensuring a thermally stable operating environment through smart design.

Designing for lifetime is always more cost-effective than dealing with field failures. When I kick off a project with a customer requiring long-term operation, we focus less on the pump's maximum specs and more on building a robust system around it.

The goal is to make the pump's job as easy as possible. This means not only choosing a pump built for longevity (like one of our BLDC pumps⁴) but also designing the entire fluidic path to be efficient. Reducing system resistance with wider tubing or lower-restriction filters, for example, allows the pump to run slower, cooler, and longer to achieve the same performance. It's a holistic approach that pays massive dividends in product reliability.

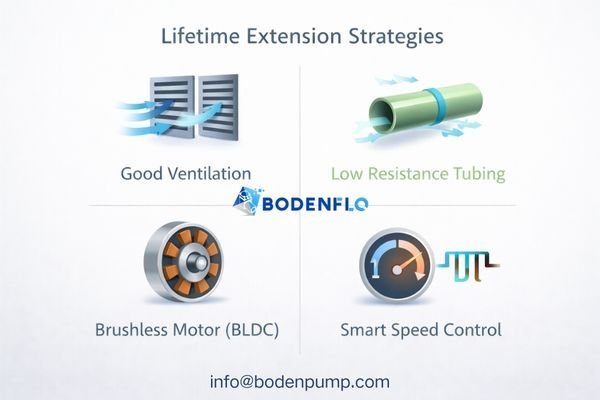

A Proactive Design Checklist:

• Select for Reserve: Choose a pump that meets your needs at 60-70% of its max capability. This "headroom" is your buffer against heat and aging.
• Prioritize Brushless (BLDC) Motors: For any serious continuous-duty application, a BLDC motor is essential. It runs cooler, is more efficient, and has a much longer mechanical life.
• Optimize for Airflow: Design your product enclosure with vents. Ensure the pump is not buried under other hot components. Every degree of cooling you add extends life.
• Implement Smart Controls: Use PWM speed control⁵ to run the pump only as fast as necessary. If the task is done, turn the pump off. Don't run at 100% speed unnecessarily.

Final Thought

Duty cycle is not a minor specification—it is a core design constraint that directly determines micro pump lifetime. Pumps rarely fail because they are poorly built; they fail because their duty cycle requirements were underestimated.

In applications requiring long-term or near-continuous operation, pump selection should be based on thermal behavior, stress accumulation, and real operating conditions, not just nominal performance values.

If your system requires extended runtime and stable performance over thousands of hours, addressing duty cycle at the design stage can prevent unexpected failures later.
