Explosion-proof Micro Vacuum Pump: Does Your Gas Sampling Equipment Truly Need One?

You're designing gas sampling equipment for a hazardous environment, but the risk of explosion is a major concern. A standard pump could ignite flammable gases, leading to catastrophic failure and severe safety risks.

Yes, a certified explosion-proof (Ex) pump is essential if your equipment will operate in a classified hazardous location (like ATEX/IECEx Zones) or will be sampling flammable gases. Using one is a non-negotiable requirement for ensuring safety and achieving regulatory compliance.

I remember a client developing a portable methane detector for natural gas pipelines. They initially planned to use a standard pump to save costs. When we walked through the ATEX zone classifications and the potential ignition sources inside a tiny DC motor, it was a real eye-opener. They realized that specifying a certified Ex pump wasn't an "upgrade"—it was the only responsible engineering choice. This experience taught me that guiding our partners on safety is just as important as providing them with hardware.

What Defines an "Explosion-Proof" (Ex) Micro Pump?

You see the term "explosion-proof," but you're unsure what it really means. It feels like a marketing buzzword rather than a concrete engineering specification, leading to uncertainty in your design.

A true explosion-proof pump isn't just a brushless pump; it's a complete system certified under standards like ATEX or IECEx. It's specifically engineered to prevent all potential ignition sources: electrical sparks, static discharge, and high surface temperatures.

Understanding what makes a pump "Ex-certified¹" requires looking at it from an ignition-prevention mindset. A standard pump has at least three ways it can cause an explosion. A certified pump is designed to eliminate all three.

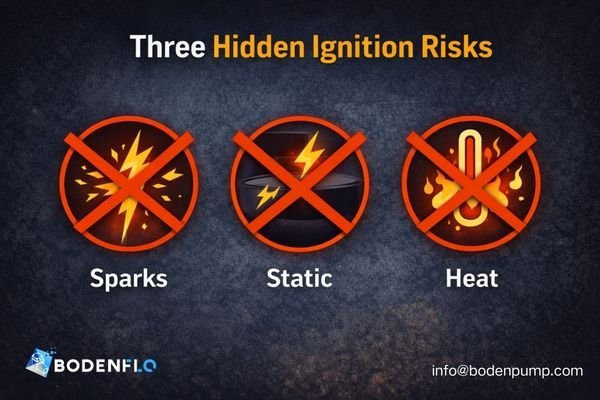

The Three Ignition Sources in a Micro Pump

• Electrical Sparks: The brushes in conventional DC motors create tiny arcs during normal operation. In a flammable atmosphere, a single spark is all it takes for an explosion.
• Static Discharge: As dry gas flows quickly over standard insulating plastic pump parts, it can generate a static charge (the triboelectric effect). A sudden discharge of this static electricity can easily ignite a flammable gas mixture.
• High Surface Temperature: A pump motor that runs inefficiently or stalls can overheat. If its surface temperature exceeds the autoignition temperature of the surrounding gas, it can cause a fire or explosion without any spark at all.

Certification is Non-Negotiable

An "explosion-proof" claim is meaningless without certification. Standards like Europe's ATEX Directive² and the global IECEx system classify hazardous areas into Zones and define the required equipment protection levels. A pump must be independently tested and certified to these standards to be considered truly safe for use in these environments.

How Does a Brushless Motor (BLDC) Eliminate the Primary Ignition Risk?

You know brushed DC motors are a liability in hazardous areas. The constant sparking is an obvious fire risk, forcing you to look for a safer alternative for your design.

Brushless DC (BLDC) motors are intrinsically safer because they use electronic commutation instead of physical brushes. This design completely eliminates the primary source of electrical sparks, making them the mandatory starting point for any explosion-proof pump.

The distinction between a brushed and brushless motor³ is the single most important factor in preventing electrical ignition. It's a fundamental difference in how they operate.

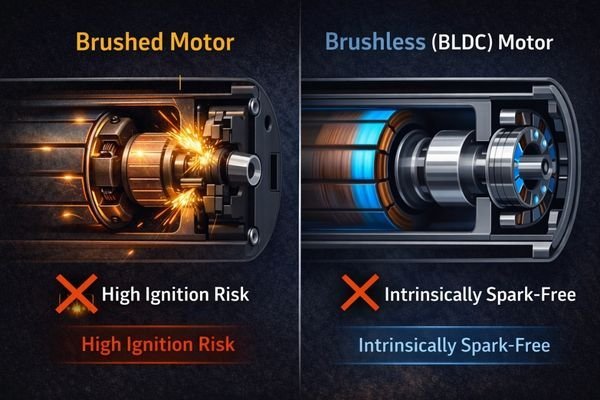

The Sparking Mechanism of a Brushed Motor

A traditional DC motor works by passing current through graphite brushes that make physical contact with a spinning commutator. Every time a brush breaks contact with a commutator segment, a small electrical arc—a spark—is generated. These sparks are continuous during operation and are a guaranteed ignition source in a flammable environment.

The Inherent Safety of Brushless Design

A BLDC motor⁴ has no brushes. Instead, a sophisticated electronic controller switches the power to the motor's stationary windings (the stator). This creates a rotating magnetic field that pulls the rotor around. Since there is no physical contact and no mechanical switching, there is zero chance of an electrical arc being created. This design is inherently spark-free.

Feature	Brushed DC Motor	Brushless DC (BLDC) Motor
Commutation	Mechanical (Brushes)	Electronic (Controller)
Spark Generation	Yes, Continuous	No, Intrinsically Sparkless
Safety in Ex Areas	Unacceptable	Essential Requirement
Lifespan/Reliability	Lower (wear parts)	Much Higher (no wear parts)

What About Non-Electrical Risks like Static and Heat?

You've selected a brushless pump, thinking your safety work is done. However, your equipment can still fail certification if you ignore the secondary, non-electrical ignition risks.

A truly explosion-proof pump also mitigates static electricity and high temperatures. This is achieved through the use of conductive materials for the flow path and careful thermal management to stay below critical temperature limits.

A certified Ex pump is a holistic safety system. A brushless motor is necessary, but it's not sufficient on its own.

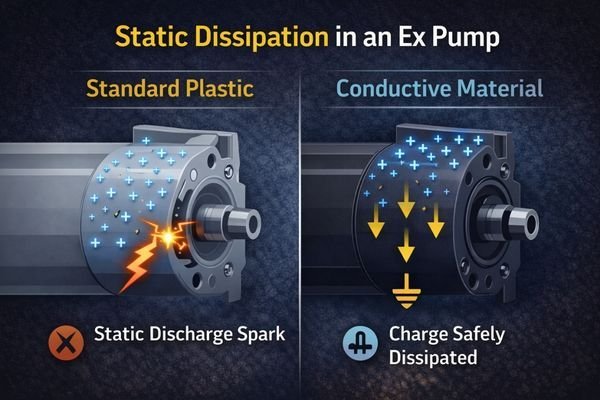

The Danger of Static Discharge

When gas, especially a dry one, moves at high speed across the surface of an insulating material like standard plastic, it can strip away electrons and create a significant static charge. This charge can build up until it's strong enough to arc to a grounded component. This electrostatic discharge (ESD)⁵ spark is a potent ignition source.

Engineering Solution: Conductive Materials

To combat this, certified explosion-proof pumps like those from BODENFLO use specially formulated conductive plastics or all-metal components for the pump head, diaphragm cover, and valves. These materials have a low surface resistance, preventing static charge from accumulating in the first place by safely dissipating it to the device's ground plane.

Thermal Management as a Safety Feature

Every explosive gas has an autoignition temperature. To be certified, a pump is assigned a "T Rating⁶" (e.g., T4 = max surface temp of 135°C). The pump must be guaranteed never to exceed this temperature during operation, even under fault conditions. This is achieved through:

• High-Efficiency Motors: BLDC motors run cooler than brushed motors.
• Thermal Cutoffs: Some designs include a built-in thermal switch that cuts power if the temperature approaches the safety limit.

How Do You Decode Explosion-Proof Certifications (ATEX & IECEx)?

You see a long string of certification codes on a datasheet. These alphanumeric codes are confusing, making it hard to know if a component truly meets the safety requirements for your specific application.

These codes are a shorthand that tells you exactly where and how a device can be used safely. By breaking down the string, you can identify the equipment group, protection level (Zone), gas group, and temperature class.

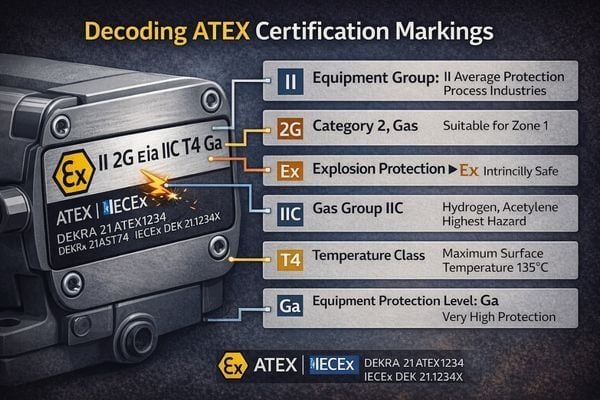

Understanding these markings is essential for any engineer working with hazardous environments. It's the language of safety compliance. Let's break down a typical ATEX marking⁷ string: II 2G Ex ia IIC T4 Ga.

Marking	Meaning	Explanation
II	Equipment Group II	For use in surface industries (not mining, which is Group I).
2G	Category 2, Gas	Suitable for use in Zone 1 (an area where explosive gas is likely to occur in normal operation).
Ex	Explosion-Proof8	The hexagonal logo indicating compliance with explosion-proof standards.
ia	Protection Concept	"Intrinsic Safety9," meaning the electronics are designed to be so low in energy that they cannot produce a spark or heat to cause ignition.
IIC	Gas Group	Approved for the most dangerous gas group (including Hydrogen, Acetylene), making it also suitable for less volatile groups IIA and IIB.
T4	Temperature Class	The maximum surface temperature of the device will not exceed 135°C.
Ga	Equipment Protection Level10	EPL Ga indicates a "very high" level of protection, suitable even for Zone 0. This can sometimes supplement the category marking.

By matching these codes to the requirements of your target environment, you can specify a component with confidence, knowing it's designed and certified for the job.

When Do You Truly Need an Explosion-Proof Pump?

Ex-certified pumps are a significant investment. You need to confidently justify the cost and know precisely when using one is a mandatory requirement versus an unnecessary precaution.

You absolutely need a certified Ex pump if your device operates in a classified hazardous location (Zone 0, 1, or 2) or if the gas you are sampling is flammable and could be present within its explosive range.

Yes -> "Use Ex Pump". "Sampling Flammable Gas?" -> Yes -> "Use Ex Pump".">

The decision can be simplified into a clear risk assessment based on two key questions: "Where will the device be used?" and "What is it sampling?"

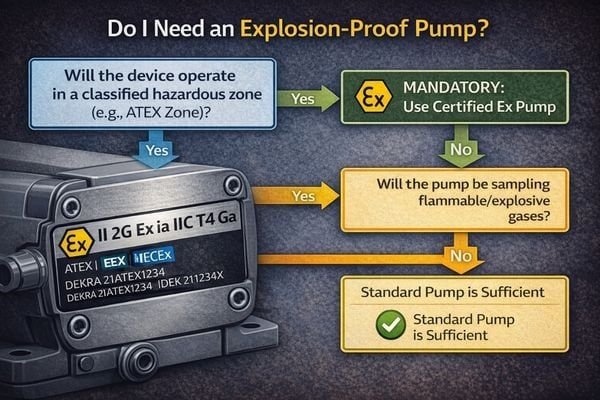

Decision Framework: Environment and Media

Scenario	Pump Requirement	Rationale
1. Operating in a Hazardous Environment (e.g., refinery, chemical plant, underground mine)	Certified Explosion-Proof Pump11 is Mandatory	The ambient atmosphere itself is potentially explosive. The entire device, including the pump, must be certified safe for that specific ATEX/IECEx Zone (e.g., Zone 1, 2).
2. Sampling Flammable Gas in a Safe Environment (e.g., lab analysis of a natural gas sample)	Certified Explosion-Proof Pump11 is Mandatory	Even if the lab is safe, the internal wetted path of the pump contains an explosive gas mixture. A leak or internal spark could cause the device itself to explode.
3. Sampling Non-Flammable Gas in a Safe Environment (e.g., air quality monitoring for CO2)	Standard Pump is Sufficient	There is no flammable gas present, either inside or outside the pump. The risk of explosion does not exist, so a standard pump can be used safely.

This clear framework removes ambiguity. If the answer to "Is there flammable gas inside or outside the pump?" is yes, then an Ex-certified pump is the only safe and compliant choice. At BODENFLO, we provide pumps specifically designed and certified for these demanding scenarios.
