Your biochemistry analyzer suffers from cross-contamination and frequent maintenance. The intermittent, bubbly waste fluid is causing your standard pumps to fail, leading to downtime and unreliable test results.

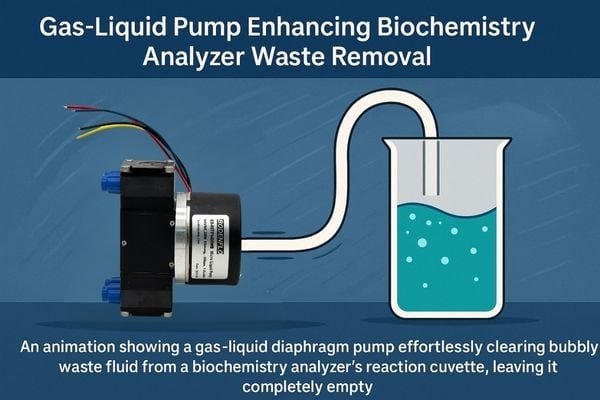

Gas-liquid diaphragm pumps are specifically designed to handle a mix of gas and liquid, using high airflow to create strong suction. This ensures complete and rapid removal of bubbly waste from reaction cups and tubing, preventing residue buildup and pump failure.
As a project manager here at BODENFLO, a Chinese micro pump manufacturer, I work with analytical instrument OEMs every day. I've seen countless hours wasted troubleshooting issues that all trace back to the waste removal system. Engineers often select a pump based on pure liquid or pure gas specs, not realizing that analyzer waste is a chaotic mix of both. This fundamental mismatch is the root cause of many downstream failures. Let's explore why a specialized gas-liquid pump is not just a better option, but a necessary one.

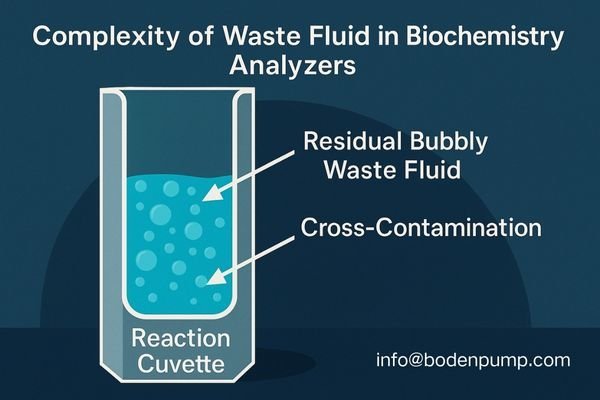

Why Is Waste Removal a Critical Design Challenge in Biochemistry Analyzers?
You're designing a new analyzer, but the waste fluid system seems overly complex. It's not just simple liquid; it's a messy, intermittent mix that threatens the entire instrument's reliability.
Waste removal is challenging due to the complex nature of the fluid—a mix of reagents, cleaning solutions, and air bubbles. Incomplete removal leads to cross-contamination, inaccurate results, and frequent maintenance.
In the OEM projects I manage, a common oversight is underestimating the complexity of waste fluid. It's never a clean or consistent medium. This misunderstanding leads to design flaws that are difficult to fix later.
The True State of Analyzer Waste
The waste stream in a typical biochemistry analyzer is a chaotic mixture:
- Reaction Cup Residue: Small, leftover volumes of samples and expensive reagents.
- Mixed Cleaning Waste: A combination of aggressive cleaning solutions and rinse water.
- Bubbly, Intermittent Flow: The fluid is not a solid stream. It's often frothy and flows in short bursts, with large pockets of air mixed in.
The Impact of Poor Waste Removal
If this unpredictable waste is not removed completely and quickly, it causes significant problems. Residual fluid can lead to assay-to-assay carryover, producing false results. It also leads to biofilm buildup1 in the tubing, requiring more frequent and costly maintenance cycles. The most common OEM mistake is treating this complex fluid as a simple liquid pumping task.

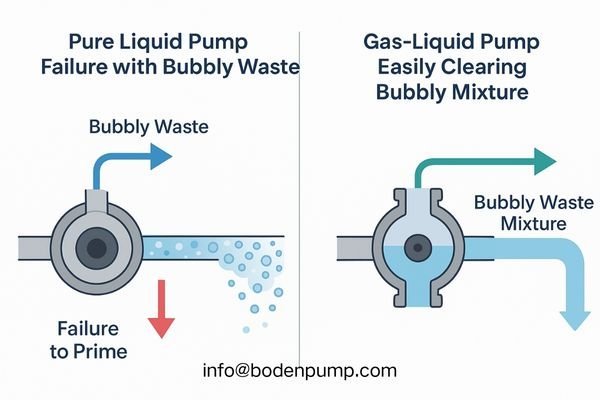

Why Do Pure Liquid Pumps Struggle in Biochemistry Waste Applications?
You've installed a high-quality liquid pump, but it keeps failing to clear the waste line completely. The pump occasionally runs dry or loses its prime, leaving frustrating residue behind.
Pure liquid pumps struggle because they are not designed to handle gas. When air bubbles enter the pump, it can cause the pump to cavitate or lose suction, resulting in incomplete waste removal and eventual failure.
Using a pure liquid pump2 for analyzer waste is a classic application mismatch I frequently encounter. These pumps are designed for one thing: moving a solid, uninterrupted column of liquid. Analyzer waste is the exact opposite of this ideal condition.
The Problem with Air
A pure liquid pump relies on the liquid itself for lubrication and to create a proper seal inside the pump head. Here's what goes wrong when air gets in:
- Idling and Incomplete Pumping: When a pocket of air enters the pump, it can lose its prime. The mechanism spins, but it no longer has the ability to create suction, leaving waste behind in the tubing.
- Flow Instability: The presence of compressible bubbles in the line causes the flow rate to become erratic and unstable.
- Reliability and Lifespan Issues: The frequent starting and stopping, combined with running dry during air pockets, puts immense stress on the pump's bearings and seals, leading to a drastically shortened operational lifespan.
Why Do Conventional Air Pumps Fail in Waste Extraction Systems?
You tried using a powerful air pump to create suction, but it failed catastrophically after just a few weeks. The diaphragm tore, causing a major leak inside your instrument.
Conventional air pumps fail because their diaphragms are not designed to withstand the physical impact of liquid slugs. The repeated stress from the dense liquid causes the diaphragm material to fatigue, stretch, and tear.
This is a failure mode I have analyzed in many real-world OEM projects. An engineer sees "high suction3" on an air pump datasheet and assumes it will be perfect for waste removal. This is a very costly mistake.
Structural Weakness Under Liquid Load
A pure air pump is optimized for moving a low-mass fluid: air. Its diaphragm is typically thin and highly flexible to maximize airflow and efficiency. Liquid, however, is about 800 times denser than air. When a slug of waste liquid traveling at high speed hits this thin diaphragm, the impact force is enormous, like a small hammer blow.
Typical Failure Scenario
I have seen numerous cases where a powerful air pump is used for waste. Initially, it works great. But after a few thousand cycles, the spot on the diaphragm where the liquid hits begins to weaken and deform. Eventually, a microscopic tear forms, which quickly propagates across the diaphragm, causing a complete loss of suction and a liquid leak inside the instrument. It is efficient at sucking air, but it has zero compatibility with liquids.
What Is a Gas-Liquid Diaphragm Pump and How Does It Work?
You've heard of gas-liquid pumps, but you're not sure how they are different. You need to understand the design principle that allows them to handle the very conditions that destroy other pumps.
A gas-liquid diaphragm pump is a hybrid designed to move a mixture of air and liquid. It combines the high airflow and suction power of an air pump with a reinforced structure that can safely handle liquid impact.
As its name implies, a gas-liquid pump is purpose-built for mixed-phase media. It isn't just a slightly modified air pump or liquid pump; it's a unique design from the ground up, specifically for tasks like waste removal.
Key Structural Differences
Compared to pure air or liquid pumps, a gas-liquid pump has several key distinctions:
- Reinforced Diaphragm: The diaphragm is thicker and made from a more robust material compound, engineered to absorb the energy of liquid slugs without tearing.
- Optimized Pump Head: The geometry of the pump chamber and valves is designed to manage a turbulent, two-phase flow, preventing liquid from getting trapped and ensuring it is expelled efficiently.
Design Logic
The pump is designed primarily for a gas-dominant workflow. It uses a large volume of air to create powerful suction to "pull" the liquid. The liquid part is secondary but expected. The entire structure is engineered to survive the inevitable slugs of liquid that come along with the air, making it perfectly suited for the intermittent, bubbly flow found in biochemistry analyzers.

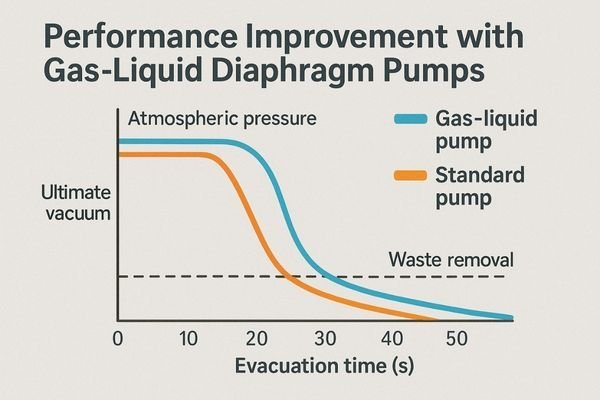

How Do Gas-Liquid Diaphragm Pumps Improve Waste Removal Performance?
You need a solution that doesn't just survive, but actually performs better. You want faster cycle times, less residue, and a lower total cost of ownership for your instrument.
Gas-liquid pumps improve performance by using high airflow to create stronger suction, ensuring a more complete evacuation of waste. Their robust design reduces liquid impact stress, leading to longer life and lower maintenance costs.
The performance improvement we see when an OEM partner switches to a gas-liquid pump is dramatic. It solves the core problems of speed, completeness, and reliability all at once, leading to a better overall instrument.
| Performance Metric | Improvement with Gas-Liquid Pump |
|---|---|
| Suction Power | The high gas flow rate creates a stronger, more immediate vacuum, pulling liquid and bubbles out much faster to increase instrument throughput. |
| Emptying Rate | This powerful suction overcomes the surface tension of the liquid, ensuring less residual fluid is left clinging to the walls of cuvettes and tubing. |
| Diaphragm Longevity | The optimized diaphragm design absorbs and dissipates the energy from liquid impacts, preventing the fatigue and tearing that plagues standard air pumps. |
| Overall Stability | By effectively handling both gas and liquid, the pump operates smoothly without the idling or stalling seen in pure liquid pumps, improving system stability and reducing lifetime maintenance costs. |

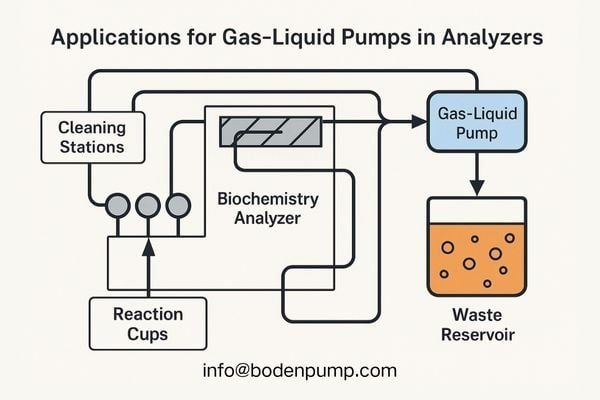

What Are Some Typical Biochemistry Analyzer Applications for Gas-Liquid Diaphragm Pumps?
You see the benefits, but you need to know exactly where in the analyzer to apply this technology. You are looking for specific functions where these pumps offer the most significant advantage.
Gas-liquid diaphragm pumps are ideal for the rapid evacuation of reaction cup waste, the complete draining of cleaning stations, and as the core component in pre-vacuum waste chamber designs.
In my project work with IVD manufacturers, we've identified several key functions where a gas-liquid pump provides an immediate and substantial improvement to the instrument's fluidic design.
Key Integration Points
- Reaction Cup Waste Evacuation: After each test, the cuvette must be emptied instantly. The high suction power of a gas-liquid pump does this in a fraction of a second, directly increasing instrument throughput.
- Cleaning Station Waste Recovery: During cleaning cycles, the pump must remove a mix of cleaning fluids, rinse water, and air. A gas-liquid pump handles this messy, multi-phase mixture reliably.
- Pre-Vacuum Waste Systems: In some high-end designs, a chamber is first evacuated by the pump to a deep vacuum. A valve then opens, and the vacuum instantly sucks the waste out of the cuvettes. This requires a pump with high vacuum and airflow capabilities.
- Multi-Channel Systems: In analyzers with many parallel reaction channels, a single, powerful gas-liquid pump can serve multiple channels, simplifying the overall system design and reducing cost.
What Key Performance Parameters Should You Consider in Pump Selection?
You are ready to select a pump and need a checklist. You want to ensure you evaluate the right specifications to guarantee performance and reliability in your specific analyzer design.
Key parameters include gas flow rate, the pump's tolerance for liquid, diaphragm material and strength, and its noise profile. You must also match the pump's duty cycle to your application's needs.
Choosing the right pump is more than just looking at one number on a datasheet. As a project manager, I guide my clients to consider a balance of several critical parameters for a successful integration.
| Parameter | Why It's Critical for Waste Removal |
|---|---|
| Gas Flow Rate4 | Directly relates to how quickly the pump can create suction. Higher flow means faster evacuation and higher instrument throughput. |
| Liquid Tolerance5 | The manufacturer should specify the proportion of liquid the pump can handle. This must be matched to your system's expected waste volume per cycle. |
| Diaphragm Material & Strength6 | Must be chemically compatible with your reagents (e.g., EPDM, FKM) and structurally robust enough to handle thousands of liquid impacts. |
| Noise & Vibration | In a clinical or laboratory setting, a quiet instrument is essential. Check the pump's decibel rating (dBA) and mounting system. |
| Working Mode | Confirm if the pump is rated for intermittent (short bursts) or continuous operation to prevent overheating and premature failure. |
What Are the BODENFLO Gas-Liquid Diaphragm Pump Solutions for Biochemistry Analyzers?
You need a reliable supplier with proven solutions for the IVD industry. You are looking for a partner with a range of products and the expertise to help you select and customize the right pump.
BODENFLO offers a range of gas-liquid diaphragm pumps specifically designed for biochemistry analyzers. Our pumps feature robust diaphragms and optimized flow paths, with proven performance in major OEM instruments.
At BODENFLO, we have invested heavily in developing solutions for this specific challenge because our OEM partners told us it was a major pain point. Our gas-liquid series is the result of that direct feedback and joint engineering effort.
BODENFLO Design Features
Our pumps are characterized by:
- A proprietary diaphragm technology that combines flexibility for high gas flow with the strength to resist liquid impact.
- High-efficiency brushless DC motors for long life, low noise, and precise PWM speed control.
- A wide selection of chemically resistant materials7 for all wetted parts.
Application Feedback and Support
We offer pumps across different flow ranges to suit everything from small point-of-care devices to large, high-throughput laboratory analyzers. The feedback from our IVD partners has been overwhelmingly positive, with reports of significantly reduced maintenance cycles and improved instrument uptime. Our dedicated OEM support team works closely with your engineers to provide selection guidance, application testing, and customization to ensure a perfect fit for your system.
To illustrate how these features translate into real-world specifications, here are two of our most commonly integrated models for IVD applications.
Example Model: BODENFLO BD-05TFD700WB
This compact model is ideal for point-of-care instruments or analyzers with decentralized waste collection at each module.
| Parameter | Specification |
|---|---|
| Model | BD-05TFD700WB |
| Voltage Range | 12V / 24V DC |
| Maximum Air Flow | 1.5 L/min |
| Maximum Liquid Flow | 700 mL/min |
| Suction Lift | 4 mWg |
| Pressure Head | 10 mWg |
| Motor Type | Brushless Motor (6,000-8,000 hr lifespan) |
| Max Power | 10W |
| Wetted Materials | Head: PPS; Diaphragm: EPDM/PTFE; Valve: EPDM/FKM |
| Dimensions | 82 x 30 x 60 mm |
| Weight | 210g |
Example Model: BODENFLO BD-05TF1400WB
A more powerful dual-head model, perfect for high-throughput analyzers or systems with a single, centralized waste removal point that serves multiple channels.
| Parameter | Specification |
|---|---|
| Model | BD-05TF1400WB |
| Voltage Range | 12V / 24V DC |
| Maximum Air Flow | 2.5 L/min |
| Maximum Liquid Flow | 1.4 L/min |
| Suction Lift | 4 mWg |
| Pressure Head | Continuous: 10 mWg; Instant: 60 mWg |
| Motor Type | Brushless Motor (6,000-8,000 hr lifespan) |
| Max Power | 28W |
| Wetted Materials | Head: PPS/PP; Diaphragm: EPDM/PTFE; Valve: EPDM/FKM |
| Dimensions | 86 x 54 x 67 mm |
| Weight | 376g |

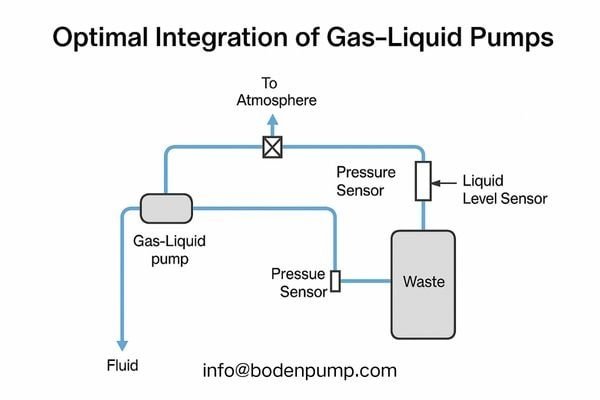

How Can You Integrate Gas-Liquid Diaphragm Pumps into Your Analyzer's Waste System?
You have a pump and are ready for integration. You need practical engineering advice on system layout, tubing, and control to maximize reliability and avoid common installation pitfalls.
Successful integration requires short, wide-bore tubing on the inlet side, a properly positioned check valve to prevent backflow, and coordination with control software to optimize the pump's duty cycle.
The pump is only one part of the system. Proper integration is key to unlocking its full potential. Here are some engineering best practices I always share with my clients during our project kick-off meetings.
System Layout and Installation
- Keep Inlet Tubing Short: Mount the pump as close as possible to the waste source. Long inlet tubing increases resistance and slows down response time.
- Use Wide-Bore Tubing: A larger diameter inlet tube reduces flow resistance and makes it easier for the pump to pull a strong vacuum.
- Prevent Backflow: Install a high-quality check valve or a pinch valve immediately downstream from the pump's outlet to prevent waste from flowing back into the system when the pump is off.
Control and Coordination
Coordinate the pump's operation with your system's valves and sensors. For example, use a liquid level sensor in a waste reservoir to activate the pump only when needed. This thoughtful system-level design is what elevates the reliability of the entire instrument.
Conclusion: Why Gas-Liquid Diaphragm Pumps Are Becoming the Preferred Choice
Biochemistry analyzer waste demands a pump that handles both air and liquid. Gas-liquid diaphragm pumps provide the necessary power and reliability. They are the future of IVD waste system design, ensuring instrument accuracy by solving the problem at its source.
Don't let an overlooked waste system compromise your instrument's performance. Contact the BODENFLO engineering team at info@bodenpump.com to discuss your specific application and find the optimal pump solution.
-
