Why Do Automated Microplate Washers Need Dual-Head Diaphragm Air Pumps?

Automated microplate washers demand precise fluid control for accurate results. Using the wrong pump can lead to inefficient washing, cross-contamination, or system failure. How do dual-head pumps solve this?

Automated microplate washers need dual-head diaphragm air pumps because these pumps can efficiently provide both the vacuum for aspirating waste liquid and the pressure for dispensing wash solutions or drying, often from a single compact unit.

Transition Paragraph:

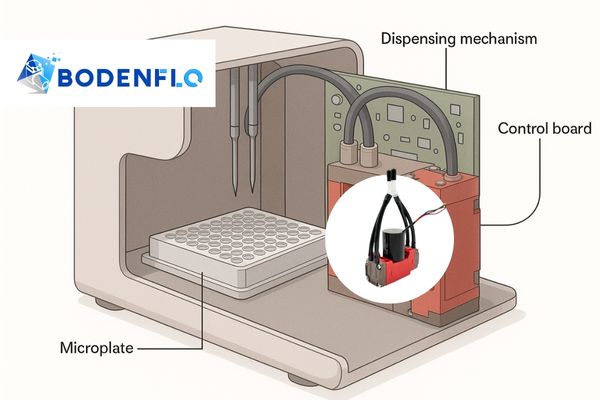

In modern labs, automation is key. Microplate washers are workhorses, processing many samples quickly. The fluidics inside these machines must be reliable and precise. As a Project Manager at BODENFLO, I've helped many equipment manufacturers select the optimal pumps for these demanding applications. The heart of these systems often relies on a specific type of pump technology to handle the different tasks involved in washing microplates.

What Is a Dual-Head Diaphragm Air Pump?

You hear "dual-head" and might wonder what it means for a pump. Is it complicated? It's actually a smart design that offers more capability from one motor.

A dual-head diaphragm air pump has two separate pump chambers and diaphragms, typically driven by a single motor. This allows it to perform two functions simultaneously or provide higher flow/pressure than a single-head pump.

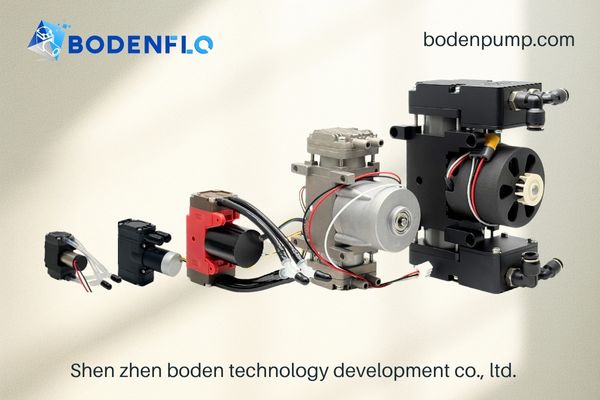

A dual-head diaphragm air pump¹, as the name suggests, features two distinct pumping "heads" or chambers. Each head contains its own diaphragm, inlet valve, and outlet valve. The clever part is that both these heads are usually driven by a common motor via an eccentric mechanism. This design allows for several configurations:

1. Parallel Connection: The inlets of both heads are connected, and the outlets are connected. This effectively doubles the flow rate compared to a single head of the same size, while maintaining similar pressure capabilities.
2. Series Connection: The outlet of the first head is connected to the inlet of the second head. This configuration significantly increases the achievable pressure or vacuum level.

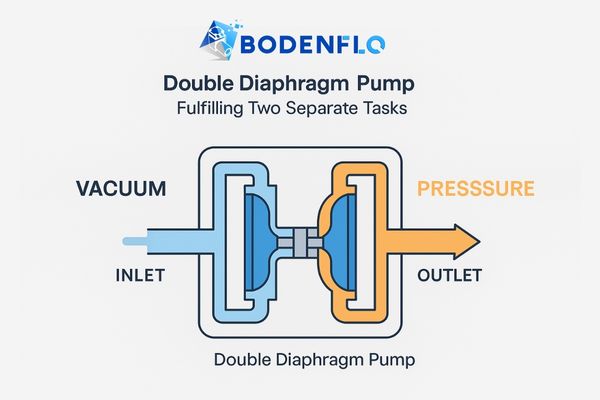

3. Independent Operation: Each head can be used for a separate task, provided the system plumbing allows for it. For instance, one head could generate vacuum while the other generates pressure. This is highly relevant for microplate washers².
   At BODENFLO, we often configure our dual-head pumps for independent operation to meet the specific needs of applications like lab automation. The compact nature of having two pumping functions powered by one motor is a significant advantage in equipment design.

Why Do Plate Washers Require Both Vacuum and Pressure?

Microplate washing isn't just about squirting liquid in; it's a multi-step process. Why do these machines need both suction and blowing capabilities, essentially?

Plate washers require vacuum to aspirate (suck out) waste liquid from wells and pressure to dispense wash buffers, reagents, or air for drying, ensuring thorough cleaning and preparation of microplates.

The core function of an automated microplate washer³ is to efficiently and consistently clean the wells of microplates. This involves several steps where both vacuum and pressure play critical roles:

• Aspiration (Vacuum): After an incubation step or a reaction, the liquid in the microplate wells (e.g., reagents, cell culture media, unbound antibodies) needs to be removed. A vacuum source, provided by one head of the pump, is connected to aspiration needles or a manifold. These needles descend into the wells, and the vacuum sucks the liquid out, sending it to a waste container. Complete and gentle aspiration is crucial to avoid carry-over and to protect any bound material (like cells or antibodies).
• Dispensing (Pressure)⁴: Once the wells are emptied, fresh wash buffer or rinse solution needs to be added. The other head of the pump can provide positive air pressure. This pressure can be used to push wash buffer from a reservoir through dispensing needles or a manifold into the wells. Multiple dispense and aspirate cycles are often performed to ensure thorough cleaning.
• Drying (Pressure - Optional): In some protocols, after the final wash and aspiration, air pressure can be used to help dry the wells or the aspiration/dispensing manifold itself.
  Having both capabilities readily available from a single pump unit streamlines the design of the microplate washer and makes the process more efficient. From my experience at BODENFLO, integrating these dual functions into one component is a common request from equipment manufacturers.

What is the purpose of a double diaphragm pump?

The term "double diaphragm pump" is often used interchangeably with "dual-head." What's the main goal of using such a pump design in an application?

The purpose of a double diaphragm pump is typically to provide either increased flow/pressure compared to a single diaphragm, or to offer two independent fluidic paths for different tasks, all driven by one motor.

The primary purpose of employing a double diaphragm (or dual-head) pump design boils down to enhancing capability or versatility. When I work with clients at BODENFLO, their reasons for choosing a double diaphragm pump⁵ usually fall into these categories:

1. Increased Performance: If a single diaphragm of a practical size doesn't meet the flow rate or pressure requirements, connecting two diaphragms in parallel (for higher flow) or in series (for higher pressure/vacuum) using a single motor can be a more compact and sometimes more cost-effective solution than using a much larger single-head pump or two separate pumps.
2. Dual Functionality: This is a major driver in applications like automated microplate washers. One motor drives two pump heads, and each head can be plumbed to perform a distinct function. For example, one head creates vacuum for aspiration, and the other creates pressure for dispensing or drying. This saves space, reduces the number of components, and can simplify the overall system design and control.
3. Reduced Pulsation: When two heads are configured to operate out of phase, their combined output can have significantly lower pulsation compared to a single-head pump. This results in a smoother, more consistent flow or pressure, which can be beneficial in sensitive applications.
   The overarching goal is to achieve more with less – more performance or more functionality from a single, efficient pump unit.

What is the difference between a single and double diaphragm pump?

We've talked about "dual-head" and "double diaphragm." How does this compare to a standard single diaphragm pump in basic terms?

A single diaphragm pump has one diaphragm and chamber. A double (or dual-head) diaphragm pump has two diaphragms and chambers, usually driven by one motor, offering greater flow, pressure, or dual functionality.

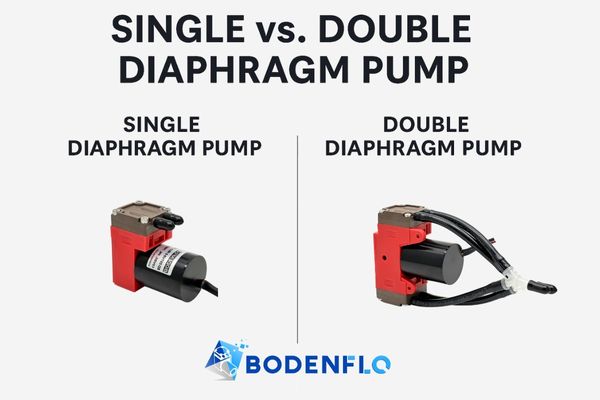

The fundamental difference lies in the number of pumping mechanisms integrated into the unit. Let's break it down using a table to make it clearer for equipment designers:

As a project manager at BODENFLO, I often guide clients towards a dual-head solution when their application clearly benefits from the combined capabilities. While a single diaphragm pump is perfect for straightforward tasks, the dual-head design offers significant advantages when multiple functions or enhanced performance are needed within a compact space, like in an automated microplate washer. The choice depends entirely on the specific requirements of the equipment.

What is the advantage of Using a Dual-Head Pump in Microplate Washers?

So, for microplate washers specifically, what makes a dual-head pump the smart choice? Why not just use two separate small pumps?

The advantages of using a dual-head pump in microplate washers include a compact design, cost-effectiveness over two separate pumps, simplified system integration, and efficient provision of both vacuum and pressure from one unit.

Using a dual-head diaphragm air pump in automated microplate washers offers several distinct advantages that equipment manufacturers appreciate. Based on many projects I've managed at BODENFLO, these are the key benefits:

1. Space Efficiency: Laboratory equipment is often designed to be as compact as possible. A dual-head pump, providing two functions (vacuum and pressure) from a single motor and housing, takes up significantly less space than two individual pumps. This is a major plus for instrument designers.
2. Cost-Effectiveness: Generally, one dual-head pump is less expensive than purchasing, installing, and wiring two separate single-head pumps of comparable quality and performance. This helps keep the overall bill of materials (BOM) for the microplate washer lower.
3. Simplified Integration and Control: With only one electrical connection for the motor and a more consolidated plumbing arrangement, the assembly process is simpler. Control logic can also be more straightforward as you're managing a single component that serves two roles.
4. Balanced Performance: Dual-head pumps can be designed so that the vacuum and pressure capabilities are well-matched for the aspirate and dispense cycles of a microplate washer.
5. Reduced Component Count: Fewer pumps mean fewer potential points of failure and less inventory to manage.

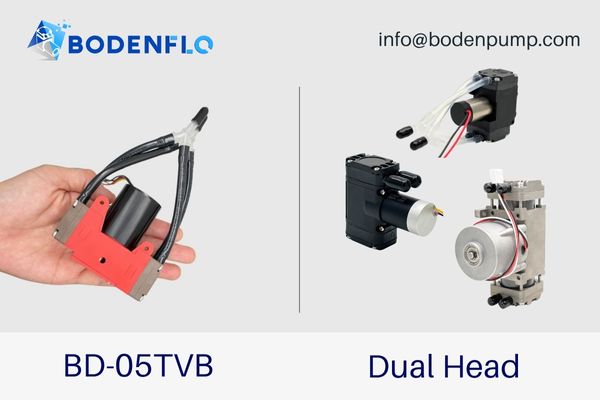

   At BODENFLO, our dual-head pumps like the BD-05TVB are specifically engineered to deliver these advantages, providing reliable, simultaneous vacuum and pressure tailored for applications like microplate washing. It streamlines the design and manufacturing process for our clients.

What are the disadvantages of a double diaphragm pump?

While dual-head pumps offer many benefits, are there any potential downsides equipment designers should be aware of? No component is perfect for every single situation.

Disadvantages of a double diaphragm pump can include slightly higher initial cost than one single-head pump, and if the single motor fails, both pump functions are lost, unlike with two independent pumps.

It's important to have a balanced view. While dual-head (or double) diaphragm pumps⁶ are excellent for many applications like microplate washers, there are a few considerations:

1. Single Point of Motor Failure: The most significant potential disadvantage is that both pumping functions rely on a single motor. If that motor fails, you lose both vacuum and pressure capabilities. With two entirely separate pumps, if one motor fails, the other function might still be operational (though the washer would still be non-functional). However, with high-quality brushless DC motors⁷, like those we use in many BODENFLO pumps, motor failure is rare when operated within specifications.
2. Initial Cost vs. One Single Pump: A dual-head pump will generally cost more than one comparable single-head pump. However, it's usually less expensive than two comparable single-head pumps. So, if you truly need two functions, it's typically a net saving.
3. Repair Complexity (Potentially): If a repair is needed, the internal mechanics are slightly more complex than a very simple single-head pump. However, diaphragm and valve replacement are usually straightforward for trained technicians.
4. Interdependence of Performance (Less Common): In some very specific custom designs, if one head is under extreme load, it could slightly influence the performance of the other head due to shared motor load, but this is generally not an issue with well-designed pumps operating within their intended range.
   From my perspective at BODENFLO, the benefits of compactness, cost-effectiveness⁸ (versus two pumps), and simplified integration for dual-function applications like microplate washers almost always outweigh these potential disadvantages, especially when using reliable, long-life components.

What is the best double head diaphragm air pump in Automated Microplate Washer?

With various options out there, how can an equipment manufacturer identify the "best" dual-head pump for their microplate washer design? It often comes down to specific needs and value.

The "best" double head diaphragm air pump for an automated microplate washer, like the BODENFLO BD-05TVB, offers performance comparable to established models (e.g., Thomas 1420-0001) but with added benefits like low MOQ, fast delivery, and competitive pricing.

Defining the absolute "best" pump is subjective and depends on the specific priorities of the equipment manufacturer. However, when we talk about an ideal choice for automated microplate washers, certain criteria stand out. At BODENFLO, we've developed our BD-05TVB dual-head diaphragm air pump⁹ with these needs in mind.
Many manufacturers are familiar with established pumps like the Thomas 1420 series. Our BD-05TVB is designed to offer performance characteristics that are directly comparable¹⁰ to models such as the Thomas 1420-0001, ensuring that it can meet the demanding vacuum and pressure requirements for efficient aspiration and dispensing in microplate washing cycles.
But performance parity is just the starting point. What makes the BD-05TVB a compelling option, and in many cases the "best" choice for U.S. equipment producers, are the additional advantages we offer:

• Low Minimum Order Quantities (MOQ)¹¹: This is crucial for manufacturers developing new instruments, for smaller production runs, or for managing inventory efficiently. We support flexibility.
• Fast Delivery: We understand that project timelines are critical. Our agile operations allow for quicker turnaround times on orders, helping manufacturers get their products to market faster.
• Competitive Pricing: The BD-05TVB delivers robust performance and reliability at a price point that enhances the overall cost-effectiveness of the microplate washer.
  So, the "best" pump isn't just about specs; it's about the total value proposition—performance, reliability, flexibility, speed, and cost. The BODENFLO BD-05TVB aims to excel across all these areas for microplate washer applications.

What are the Key Considerations When Choosing a Pump for Plate Washers?

When designing a microplate washer, selecting the pump is a critical decision. What factors must an engineer or product manager absolutely keep in mind?

Key considerations for choosing a pump for plate washers include required vacuum/pressure levels, flow rates for aspiration/dispensing, reliability and lifespan (motor type), chemical compatibility (for air path), noise, size, and supplier support.

Choosing the right pump for an automated microplate washer is a multi-faceted decision. As a Project Manager at BODENFLO, I always walk clients through these key considerations:

1. Vacuum and Pressure Performance: What are the minimum and maximum vacuum levels needed for complete aspiration without damaging samples? What pressure is required for effective dispensing and potentially for drying? These need to be specified for both heads if using a dual-head pump.
2. Flow Rates: How quickly does aspiration need to occur? What is the desired dispense rate to fill wells efficiently but without splashing? Adequate flow ensures the washer meets its throughput targets.
3. Reliability and Lifespan: Microplate washers are often used heavily. A long operational life is essential. This often points towards pumps with Brushless DC (BLDC) motors, which offer significantly longer lifespans than brushed motors.
4. Chemical Compatibility (Air Path): While the air pump itself may not directly contact harsh wash buffers, the air it displaces will. Ensure the pump's internal air path materials (diaphragm, valves, head material) won't be degraded by any vapors or mists it might encounter.
5. Noise Level: Laboratory environments often prefer quieter equipment. The pump's noise rating (dBA) should be considered.
6. Size and Mounting: The pump must physically fit within the instrument's chassis and have suitable mounting options.
7. Power Consumption: Especially for benchtop units, power efficiency can be a factor.
8. Supplier Support and Customization: Can the supplier provide good technical support? Are they willing to make small modifications (e.g., port configurations, wire harnesses, performance tweaks) if needed? At BODENFLO, this is a core part of our service.
   Thoroughly evaluating these factors ensures the selected pump will perform reliably and meet all the application's demands.

Conclusion

Dual-head diaphragm air pumps are vital components in automated microplate washers, delivering both reliable vacuum for waste removal and controlled pressure for liquid dispensing. Integrating both functions into a single compact unit reduces system complexity, saves space, and enhances overall washing performance.

BODENFLO’s BD-05TVB dual-head diaphragm air pump is a proven alternative to models like the Thomas 1420-0001—offering compact dimensions, 7.2 L/min flow, up to 200 kPa pressure, and a long operational life in a lightweight 188g design.
