How Do You Validate a Liquid Diaphragm Pump System Before Mass Production?

Your OEM project is failing in the final stages, yet the pump seems to work perfectly on its own. The real issue is system integration, causing mismatched performance, leaks, and costly delays.

Before mass production, you must validate the liquid pump's performance (flow, pressure), reliability (lifetime, temperature), and material compatibility within your actual system. This ensures it meets all requirements under real-world operating conditions, not just on a lab bench.

I have seen too many promising projects get stuck right before launch because of a validation gap. An engineer selects a pump based on its datasheet, but once it's integrated into the final device with all its filters, valves, and specific liquids, the performance drops. The flow isn't there, the pump overheats, or it starts leaking after 100 hours. These are not pump failures; they are system integration failures. A complete validation process is the only way to catch these issues early and ensure a successful product launch. This guide walks you through the exact steps my team and I recommend to our OEM partners.

What Should Be Verified Before Mass Production of a Liquid Diaphragm Pump System?

You feel the pressure to move to production, but you're not sure if you've tested everything. Skipping a critical validation step now could lead to product recalls and field failures later.

A structured validation plan is your best insurance policy. It provides a clear roadmap to verify every aspect of the pump's integration, from initial performance to long-term reliability and chemical compatibility, ensuring you move to mass production with full confidence.

Before we dive into the details, let’s look at the overall process. A haphazard approach to testing won't work. You need a systematic plan that builds confidence at each stage. I always advise engineers to follow a clear sequence to make sure nothing is missed. This ensures that you're not just testing the pump, but validating its role within your entire system. This is the framework we use to guide our clients towards a successful launch.

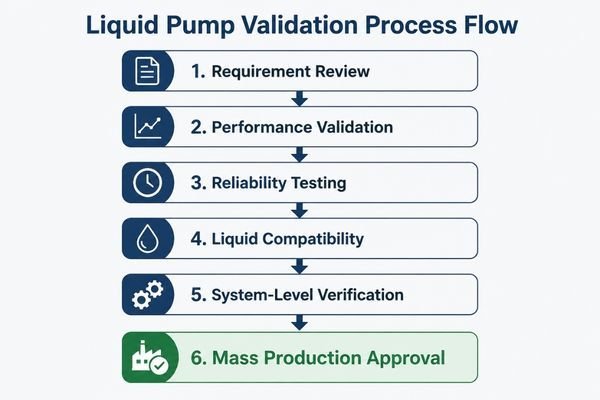

Our Recommended Validation Workflow:

1. Requirement Review: Confirm all design specifications.
2. Pump Performance Validation: Test flow, pressure, and priming.
3. Reliability Testing: Evaluate lifetime, temperature, and sealing.
4. Liquid Compatibility Testing: Ensure materials can handle the specific fluid.
5. System-Level Verification: Test the pump in the final product assembly.
6. Mass Production Approval: Sign off with data-backed confidence.

How Do You Validate Liquid Diaphragm Pump Performance?

Your system needs a precise flow rate, but the pump's datasheet shows a different number. This gap between specification and reality can completely derail your project's performance goals.

The solution is to test the pump under actual operating conditions, not just in a free-flow state. You must measure flow rate, pressure capability, and self-priming ability using your system's specific voltage, tubing, and liquid to confirm it meets design parameters.

Performance validation is the first and most critical hands-on step. The goal here is simple: does the pump do what you need it to do? This goes far beyond checking the maximum flow rate listed on the datasheet.

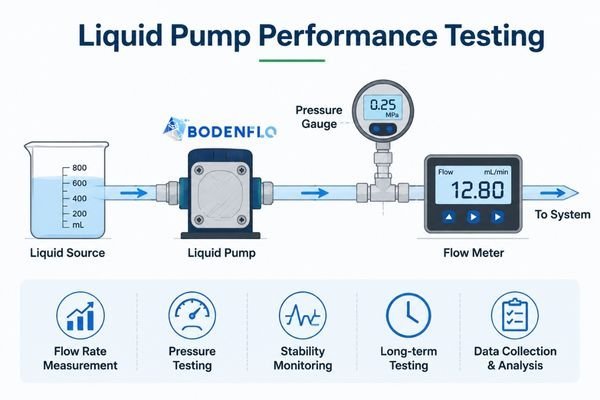

How to Test Flow Rate Under Actual Operating Conditions?

Never rely solely on the "max flow" spec. You must test the flow rate under your actual system load. This means using the same voltage, tubing (length and diameter), and final liquid that will be in your product. Measure the flow rate at your target working pressure. Remember, the actual system flow will almost always be lower than the free-flow specification due to system resistance.

How to Verify Pressure Capability?

Connect a pressure gauge to the pump's outlet and check if it can reach and maintain your required working pressure. More importantly, observe how the flow rate drops as the pressure increases. A good pump will maintain a stable flow rate at its target pressure.

How to Evaluate Self-Priming Performance?

For liquid pumps, this is key. Test the pump's ability to pull liquid from a lower reservoir. You should measure two things: the maximum vertical suction height it can achieve and the time it takes to establish a steady flow. Document these results, as they are crucial for applications where the pump is not gravity-fed.

How Do You Perform Reliability Testing for Liquid Diaphragm Pumps?

A pump that works for one day is a prototype. A pump that works for thousands of hours is a product. Without proper reliability testing, you're just gambling on the pump's lifespan.

Reliability testing pushes the pump to its limits to uncover potential failure modes. This involves continuous operation tests to check for performance degradation, temperature rise measurements to ensure motor longevity, and leakage checks to guarantee sealing integrity over time.

This is where we separate the professional-grade components from the rest. Reliability testing simulates the entire life of your product in an accelerated timeframe.

Continuous Operation Test

Run the pump continuously for hundreds or even thousands of hours under its rated load. Set up a cycling test that mimics your product's actual use (e.g., 5 minutes on, 10 minutes off). During the test, periodically measure the flow rate and monitor for any signs of increased noise, leakage, or significant temperature changes. A drop in performance indicates a potential wear issue.

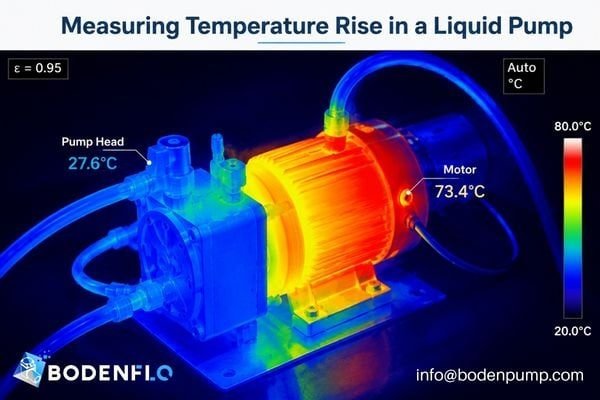

How to Measure Temperature Rise During Operation?

Heat is a major killer of pump components. High temperatures can degrade the diaphragm, damage motor windings, and affect electronic reliability. Use thermocouples or a thermal camera to monitor the temperature of the pump surface and motor case during continuous operation. Make sure it stays within the manufacturer's specified limits.

How to Check Leakage and Sealing Reliability?

Even a tiny leak can destroy a product. Check all sealing points—the pump head, valves, and tubing connections—for any signs of liquid. One effective method is a pressure-holding test, where you pressurize the system, isolate the pump, and monitor for any pressure drop over time.

How Do You Validate Liquid Compatibility with Pump Materials?

You tested your system with water and it worked perfectly, but it fails in the field with the actual chemical. Material incompatibility can cause diaphragms to swell, valves to stick, and seals to fail.

You must validate compatibility by testing the pump with the final liquid. This involves evaluating the wetted path materials—like EPDM, FKM, or PTFE—through immersion tests and long-term operation to ensure there is no chemical degradation, swelling, or performance loss.

For liquid pumps, this step is absolutely non-negotiable. Many liquids, even seemingly harmless ones, can be aggressive towards certain elastomers and plastics.

Why Is Material Compatibility Important?

The liquid in your system comes into direct contact with the pump's diaphragm, valves, and pump head. An incompatible chemical can cause these materials to swell, harden, or dissolve over time, leading to catastrophic failure.

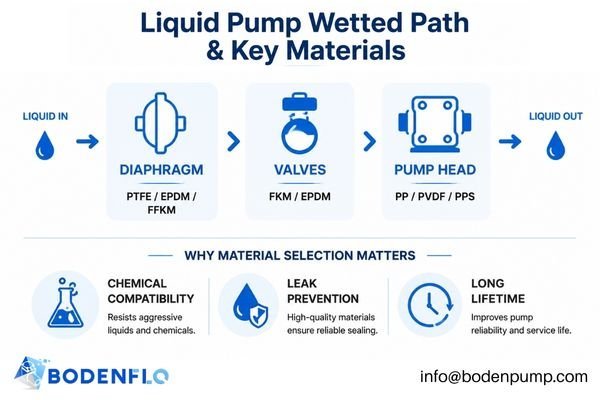

What Materials Should Be Evaluated?

Work with your pump manufacturer to choose the right materials for the job. Different elastomers have different chemical resistances.¹

How to Test Chemical Compatibility?

The best way is to run the pump with your final liquid for an extended period. Afterwards, disassemble the pump and visually inspect the diaphragm and valves for any changes in shape, color, or texture. Compare the pump's performance before and after the test; any significant drop in flow or pressure indicates a compatibility issue.

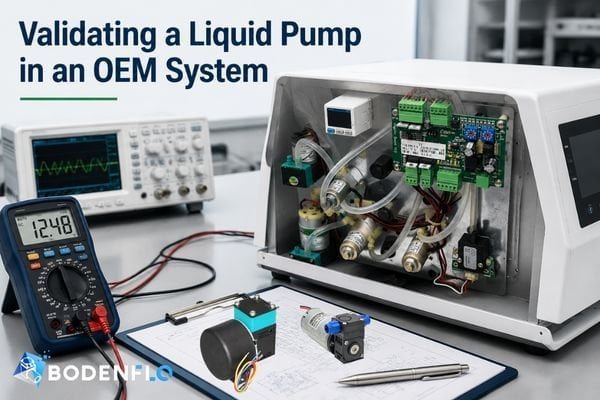

How Do You Validate the Pump in the Complete OEM System?

Your pump passed all bench tests, but fails when installed in your device. Bench testing in isolation is not enough; the pump's performance is dictated by the system it's in.

You must validate the pump within the final system assembly. This means testing with the actual liquid, under the real system load including all tubing and filters, and using the final control strategy. This is the only way to see true system performance.

This is the final exam for your pump and your system design. All previous tests lead to this moment: proving it all works together as intended.

Testing with the Actual Liquid

As mentioned, water is not a universal substitute. High-viscosity liquids, cleaning solutions, inks, or chemical reagents behave differently. They affect flow rates, pressure requirements, and material compatibility. Your final validation must use the exact liquid your customer will use.

Testing Under Actual System Load

Don't test a bare pump. Assemble the complete pneumatic circuit, including the final length and diameter of tubing, all filters, check valves, nozzles, and reservoirs. These components add resistance (pressure loss) that the pump must overcome. This is the only way to measure the true flow rate your end-user will experience.

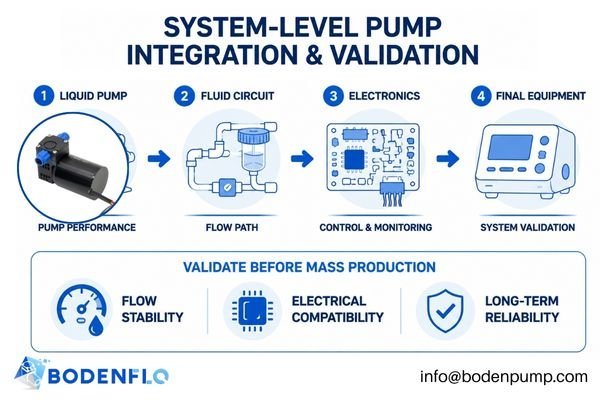

How Does System Integration Affect Pump Performance?

Every component in the system affects the pump. Long or narrow tubes increase resistance, clogged filters reduce flow, and the electronic control strategy (e.g., PWM for speed control) influences motor life and noise. System-level validation helps you identify and optimize these factors before they become a problem.

What Common Problems Can Be Found During Pump Validation?

You're running tests and seeing problems, but you don't know the root cause. Is it the pump, the system, or the way you're testing it?

Understanding common failure modes helps you troubleshoot faster. Issues like low flow, overheating, noise, or short lifetime are often caused by system-level problems like tube restrictions, excessive pressure, improper mounting, or material incompatibility—not a faulty pump.

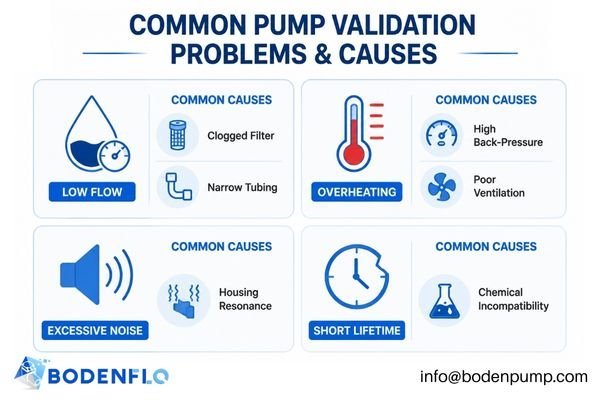

Through thousands of validation cycles with our partners, my team and I have seen the same issues crop up. Here are the most common problems and their likely causes:

• Problem 1: Flow Rate Lower Than Expected
  This is often caused by high flow resistance from long or thin tubing, a clogged filter, or a liquid that is more viscous than what the pump was specified for.

• Problem 2: Pump Temperature Too High
  This usually points to the pump working against excessive back-pressure or being run continuously at its maximum load without adequate ventilation in the final device housing.

• Problem 3: Noise and Vibration Issues
  The cause can be mechanical resonance with the device housing. Try using soft, vibration-damping mounts. Noise can also come from flow pulsation, which can be managed with a pulsation dampener.

• Problem 4: Short Lifetime
  If a pump fails prematurely, it's almost always due to being operated outside its specifications (e.g., overpressure) or a chemical incompatibility that has degraded the diaphragm or valves.

How Does BODENFLO Support OEM Liquid Diaphragm Pump Validation?

You need a pump, but you also need an expert partner to help you avoid these problems. Simply buying a component online leaves you to solve complex integration challenges all by yourself.

BODENFLO acts as your engineering partner, not just a supplier. We support you through the entire validation process, from initial requirement analysis and pump selection to hands-on performance testing, liquid compatibility evaluation, and final system validation to ensure your mass production is a success.

We believe our job isn't done until your product is successfully launched. That's why we built our process around supporting OEM engineers at every stage. When you partner with BODENFLO, you get more than just a high-performance mini pump. You get access to our expertise to de-risk your project. We assist with:

• Requirement Analysis: We help you define the exact performance specs needed for your application.
• Pump Selection & Customization: We select the right pump and materials for your specific liquid and operating conditions.
• Performance Testing: We can provide detailed performance curves based on your system's load.
• Liquid Compatibility Evaluation: Our team advises on the best material choices for chemical resistance².
• Prototype Validation: We provide samples and technical support as you test the pump in your device.
• Mass Production Support: We ensure consistent quality and on-time delivery once you're ready to scale.

Conclusion

Before mass production, thoroughly validate pump performance, reliability, and compatibility in your system. This data-driven approach is the best way to prevent costly field failures and ensure a successful product launch. Contact BODENFLO at info@bodenpump.com to start your validation with an expert partner.
