Mass Flow Meter vs. Float Flow Meter: Which Is Better for Testing Diaphragm Gas Pumps in Medical Devices?

Getting inconsistent flow data for your pumps? This uncertainty can lead to device non-compliance and jeopardize patient safety, putting your entire medical device project at risk.

For medical device applications, a mass flow meter is the superior choice. It provides highly accurate, repeatable measurements of true gas mass, unaffected by environmental changes, which is essential for safety and regulation.

As a project manager at a micro pump manufacturer, I’ve seen firsthand that how you test a pump is just as critical as the pump’s design itself. Medical device manufacturers demand absolute certainty in the performance data they receive. If the wrong testing equipment is used, it can produce misleading results — and create significant problems for the project timeline, compliance, and end-user safety.

Let’s explore the two most common tools for pump testing in this field and see why one is the clear winner when it comes to meeting the exacting standards of the medical industry.

What Is a Diaphragm Gas Pump and Why Test Its Flow?

Your device includes a gas pump, but do you know its exact output? Without precise testing, you're guessing, which is unacceptable for a medical product.

A diaphragm pump moves gas using a flexible membrane. We test its flow rate to guarantee it delivers the precise, stable volume of gas required for accurate device function and patient safety.

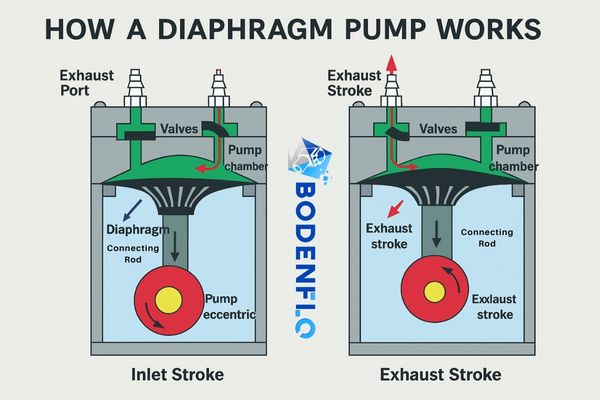

A diaphragm gas pump¹ is a simple, reliable machine. Inside, a motor moves a connecting rod, which flexes a rubber-like diaphragm back and forth. This motion, combined with one-way inlet and outlet valves, creates suction and pressure to move gas. It’s an elegant, oil-free design perfect for medical applications where air or gas purity is critical.

But why is testing so important? In a medical device, the pump isn't just moving air; it's performing a critical function. For a gas analyzer, it must deliver a precise sample volume for an accurate reading. For respiratory therapy equipment, it must deliver a specific flow of air to the patient. Any deviation from the specified flow rate could lead to a misdiagnosis or improper treatment. Testing isn't just about quality control; it's a fundamental part of ensuring the device is safe and effective.

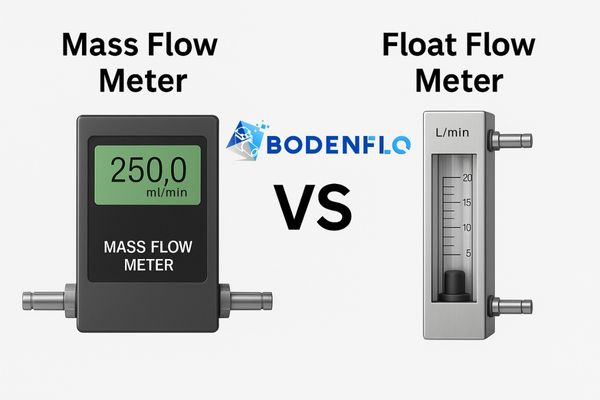

How Does a Mass Flow Meter Work Compared to a Float Flow Meter?

You know you need to measure flow, but the methods are very different. Using a tool without understanding its principle can lead you to trust faulty data.

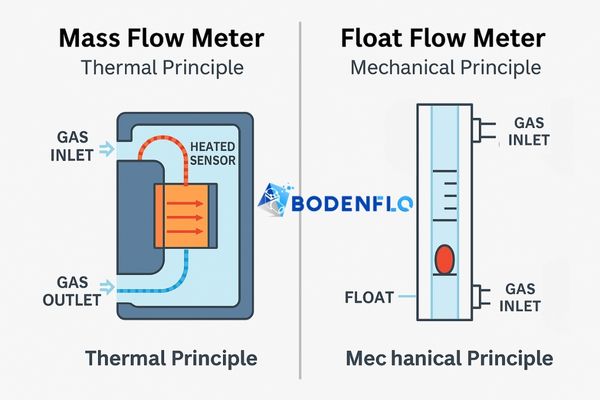

A mass flow meter uses a heated sensor to measure gas flow based on thermal transfer. In contrast, a float flow meter uses gas pressure to visually push a ball up a tapered tube.

The difference in how these two meters work is the core reason for the difference in their results. A mass flow meter² is an electronic device. As gas passes through it, it flows over two sensors. One is a heater, and the other is a temperature sensor. The flowing gas cools the heated sensor. The meter measures the amount of electrical power needed to keep the heater at a constant temperature. This power is directly proportional to the "mass" of the gas flowing past it. It’s a direct measurement of how many molecules are passing through.

A float flow meter³ is purely mechanical. Gas enters the bottom of a vertical, tapered glass tube, pushing a small float (often a ball) upwards. The tube is wider at the top. The float rises until the upward force from the gas flow perfectly balances the downward force of gravity. You then read the flow rate from a printed scale on the side of the tube.

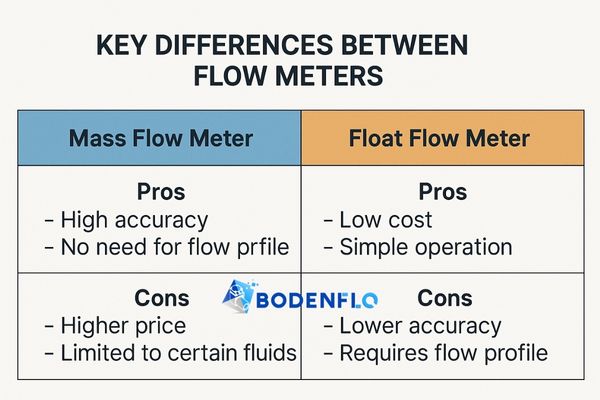

What Are the Key Differences Between Mass and Float Flow Meters?

Your two meters are giving you wildly different numbers for the same pump. This discrepancy is confusing and makes it impossible to validate your product's performance.

Mass flow meters offer high accuracy, digital output, and are immune to pressure changes. Float meters are simpler and cheaper but are less accurate and highly affected by gas pulsation and conditions.

I’ve had many conversations with designers who were puzzled by this exact issue. They'd test one of our pumps with a float meter and get one value, and we'd test the same pump with our mass flow meter and get a completely different value.

This is expected because of the pump's design. A diaphragm pump creates a naturally "pulsed" flow. A mass flow meter's sensor accurately averages these pulses into a true flow rate. A float meter's ball, however, will bounce or oscillate with each pulse, making an accurate reading nearly impossible. Depending on the pump's internal design, I’ve seen the float meter show a reading that's double the actual flow, or sometimes one-third less. The two tools are not measuring the same thing.

Why Are Mass Flow Meters Preferred in Medical Device Testing?

Your device needs to pass strict regulatory audits. Using data from an inaccurate testing method is a surefire way to fail certification and delay your product launch.

Mass flow meters are preferred because they provide the high accuracy, repeatability, and traceable digital data required by medical regulators like the FDA and CE. Their reliability is essential for patient safety.

When you are building a medical device, you are operating in a world of high stakes and strict rules. Regulatory bodies demand proof that your device performs exactly as specified, every single time. This is where mass flow meters become non-negotiable. Their digital output can be logged, saved, and submitted as part of a technical file for CE marking or FDA submission.

In our labs, we use high-end mass flow meters like the TSI Electric Flowmeter⁴, because we know that is the standard our medical device clients use and trust. When we provide them with a pump, we also provide a data sheet with flow characteristics we can stand behind, tested on equipment that matches their own quality standards. This alignment is crucial for serving high-end medical device manufacturers. It builds trust and streamlines their validation process.

When Might a Float Flow Meter Still Be a Viable Option?

Mass flow meters are expensive. You wonder if there's ever a situation where a cheaper float meter is good enough for your needs.

A float flow meter is a good, cost-effective choice for non-critical applications. It's useful for quick diagnostic checks on a workbench or for initial prototyping where you only need a rough flow indication.

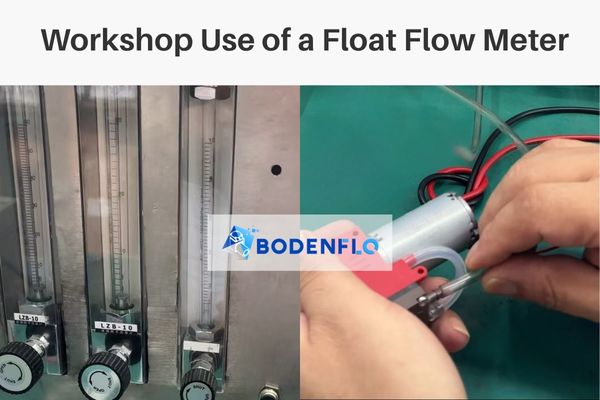

While I wouldn't recommend a float meter for final testing or quality control of a medical product, it certainly has its place. Think of it as a different tool for a different job. If an engineer is developing a new prototype and just needs to see if the pump is working at all, a float meter is a fast and easy way to get a "go/no-go" answer.

It can be useful for comparative testing⁵, for example, quickly checking if a design change increased or decreased flow, even if the absolute number isn't accurate. In a maintenance or repair shop, it can be a handy diagnostic tool to quickly spot a major failure. Its value lies in its simplicity and low cost for tasks where precision is not the primary goal. You just have to be very aware of its limitations and never use its data for formal validation.

How to Select the Right Flow Meter for Your Medical Diaphragm Pump Testing?

You understand the differences, but need a clear rule for choosing. Making the wrong choice could mean re-doing months of expensive testing.

Your selection criteria should be simple: is the application critical and regulated? If yes, a mass flow meter is the only choice. If not, a float meter can be considered.

Choosing the right flow meter doesn't have to be complicated. I guide my clients through a very simple decision-making process based on their final application.

1. Is the pump being used in a finished medical device for sale in a regulated market (e.g., US, EU)?

   • If YES, you must use a mass flow meter. There is no other option. You need the accuracy, reliability, and data logging capabilities for your technical file and quality management system.

2. Is the testing for internal R&D, prototyping, or a non-critical application?

   • If YES, you can now consider other factors. Do you need high accuracy for your research? If so, stick with a mass flow meter. If you just need a quick, low-cost indication of flow for a basic check, then a float flow meter becomes a viable option.

At BODENFLO, since we specialize in pumps for demanding industries like medical, we use mass flow meters as our standard to ensure our customers get the reliable data they need.

What Are the Common Questions About Flow Meter Testing?

Still have lingering technical questions about flow meters? This hesitation can delay your project and lead to costly mistakes in testing your medical device pumps.
Common questions revolve around calibration needs, the effect of gas type on readings, and why results differ. A mass flow meter needs calibration, and its readings are specific to the gas being measured.

After discussing the main points, a few specific questions always come up. Answering them directly can clear up the final bits of confusion for engineers and project managers.

Q1: Do I need to calibrate my flow meter?

Absolutely. For medical devices, regular calibration of your testing equipment is mandatory. A mass flow meter must be sent to a lab periodically to be checked against a traceable standard. This guarantees its accuracy and is a key part of your quality management system. Float meters are rarely calibrated because their inherent imprecision doesn't justify the cost.

Q2: Does the type of gas affect the reading?

Yes, this is critical for mass flow meters. Their thermal principle means they are calibrated for a specific gas, usually dry air. If you test with oxygen or nitrogen, the reading will be inaccurate unless you apply a specific gas correction factor (K-factor) or use a meter that allows you to select the gas type.

Q3: Why is a brand like TSI often mentioned for medical testing?

TSI flow meters are an industry standard for medical device testing because they are highly accurate, reliable, and designed for the low pressure, low flow rates typical of medical micro pumps. Using a TSI meter means your test results are credible and comparable to others in the industry.

Q4: How Do I Know Which Flow Meter Was Used to Test the Micro Diaphragm Pump I Purchased?

It’s a valid concern, as the test method significantly affects the reported performance. Always consult your supplier and request the specific testing method or even a test video if possible. Due to internal design differences among diaphragm pumps, readings from float flow meters and mass flow meters can vary widely — sometimes differing by a factor of two. For example, a pump rated at 20 L/min on a float meter might actually deliver only 10 L/min when measured with a mass flow meter. Understanding which method was used allows you to interpret the performance data correctly and set realistic expectations for your application.

Q5: Why Do Micro Diaphragm Pumps Show Lower Flow on Mass Flow Meters Compared to Float Flow Meters?

This discrepancy is common and stems from how each meter type reacts to pulsating flow and backpressure. Micro diaphragm pumps inherently produce pulsating, compressible gas flow, which tends to overstate readings on float meters due to their mechanical inertia and insensitivity to pulsations. Mass flow meters, on the other hand, measure the true mass of gas moving through, compensating for pulsations and showing more accurate — but lower — flow rates. For medical device development, where accuracy and repeatability are critical, relying on mass flow meter data is always recommended.

Conclusion

For testing medical diaphragm pumps, mass flow meters provide the accuracy and traceable data that regulations demand. Float meters are useful for simple checks but lack the precision required for critical medical applications. Choosing the right testing method ensures your device meets both performance expectations and compliance standards.

At BODENFLO, we understand the importance of accurate testing and reliable micro diaphragm pumps for your medical projects. Our team offers both expertise and customizable solutions to help you achieve success.
