How Do You Measure Back Pressure in a Miniature Liquid Pump System?

Are your back pressure calculations just estimates? You've run the numbers, but a single overlooked component, like a sharp bend or a tight filter, could be skewing your results and leading you to choose the wrong pump.

The most accurate way to find your system's back pressure is to build a simple test rig. Install a T-connector and a pressure gauge at the pump outlet, then use a valve to control the flow rate while recording the corresponding pressure at specific points.

I can't tell you how many times I've seen a project delayed because the calculated back pressure didn't match reality. Theory is a great starting point, but a real-world measurement is undeniable proof. Taking 30 minutes to build this simple test rig can save you weeks of troubleshooting and the cost of ordering a pump that isn't up to the task. It's the most reliable way to guarantee you select the perfect BODENFLO pump for your system's unique needs.

Why Should You Measure Miniature Liquid Pump Back Pressure Instead of Just Calculating It?

You've already spent time with formulas and online calculators. Is it really worth the effort to build a physical test setup? This hesitation can lead to basing a critical pump selection on incomplete or inaccurate data.

While calculations provide a useful estimate, a direct measurement is the only way to capture the total system resistance. It accounts for every single source of friction in your real-world setup—including the ones you didn't think of.

A calculation can't "see" things that a pressure gauge can feel. Think about a tiny piece of flashing inside a cheap connector, or a section of tubing that gets slightly pinched when installed in a tight enclosure. These are "hidden" sources of friction that formulas miss but a physical test will instantly reveal. For critical applications like medical devices or high-precision lab instruments, measuring isn't just a good idea—it's an essential part of the design validation process¹. It replaces assumption with certainty.

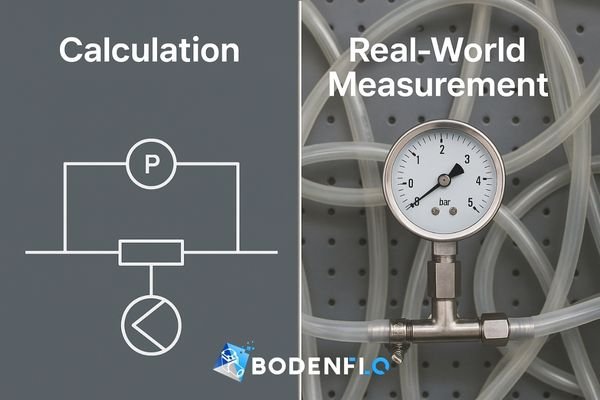

Comparing Methods: Calculation vs. Measurement

What Essential Tools Are Needed for a Back Pressure Test Rig?

You're ready to test, but the thought of sourcing special parts seems daunting. You might think you need expensive or hard-to-find laboratory equipment to get an accurate reading, delaying your project.

You only need a few common and inexpensive fittings to build a professional-grade test rig. Most of these components can be found at any industrial supply store.

Getting the right tools is half the battle. The most important choice you will make is selecting a pressure gauge with the correct range. If you use a gauge with a range that is too high (e.g., 0-10 bar), you won't be able to see the small, critical pressure changes in your miniature system. The needle will barely move, making your readings useless. For most of the miniature pumps we sell at BODENFLO, a low-range gauge is absolutely essential for getting meaningful data.

Essential Components for Your Test Rig

How Do You Assemble the Test Rig for an Accurate Measurement?

You have all the components, but you're unsure of the correct order to connect them. A small mistake in the assembly, like placing the gauge after the valve, can invalidate your entire test.

To ensure accuracy, the pressure gauge must be placed before the needle valve. This setup allows the gauge to measure the full back pressure created by both the valve and your entire system downstream.

The logic is simple: we want to measure the total resistance the pump has to fight against. The needle valve⁴ is our tool for simulating different levels of resistance, and our system provides the baseline resistance. The pressure gauge⁵ needs to be positioned between the pump and these sources of resistance to get a correct reading. I always double-check these connections before starting a test.

Correct Assembly Order

1. Pump Outlet to T-Connector: Connect the outlet of your miniature liquid pump directly to the input of the T-connector. Use a short, straight piece of tubing.
2. T-Connector to Pressure Gauge: Connect one of the parallel branches of the "T" to your pressure gauge. Ensure the connection is tight and leak-proof.
3. T-Connector to Needle Valve: Connect the other parallel branch of the "T" to the input of your needle valve. This will control the flow going to the rest of your system.
4. Needle Valve to System: Connect the output of the needle valve to the rest of your fluidic system, including a flow meter if you have one.

What is the Step-by-Step Process for Recording Data?

You've built the rig, but a rushed or inconsistent testing procedure can give you bad data. If you don't allow the system to stabilize at each point, your recorded pressure values will be meaningless.

The key to a good measurement is to adjust the flow rate slowly and wait for the pressure reading to become completely stable before writing it down. This ensures each data point is accurate and repeatable.

Think of it like tuning a musical instrument; you make small adjustments and then listen for a stable note. In our case, we make a small adjustment to the needle valve and then watch for a stable pressure reading⁶. I usually give it 5-10 seconds at each target flow rate to ensure there are no fluctuations. This patience pays off by giving you a set of data points you can trust completely.

The 4-Step Measurement Process

1. Start with the Valve Fully Open: Turn on the pump. With the needle valve fully open, the flow rate will be at its maximum, and the pressure reading should be very low.
2. Set Your First Target: Slowly begin to close the needle valve. Watch the flow rate decrease and the pressure increase. Carefully adjust the valve until you hit your highest target flow rate (e.g., 300 mL/min).
3. Wait and Record: Wait for the pressure gauge to become completely stable. Once it is, write down the pressure value next to the flow rate.
4. Repeat for All Targets: Continue to slowly close the valve to hit your next target flow rates (e.g., 200 mL/min, 100 mL/min). Wait for the system to stabilize and record the pressure at each point.

How Do You Turn Your Raw Data into a System Curve?

You've finished the test and now you have a list of numbers. This raw data is useful, but it doesn't immediately show you the relationship between flow and pressure in your unique system.

By plotting your data points on a graph with flow rate on the X-axis and pressure on the Y-axis, you create a "system curve." This visual tool is the key to understanding your system's performance.

The system curve tells a story. It visually demonstrates how much harder the pump has to work (more pressure) to achieve a higher flow rate. You will notice it is not a straight line; the back pressure usually increases exponentially as the flow rate goes up. This is because friction loss, a key part of back pressure, increases with the square of the fluid velocity. Creating this curve transforms your simple table of data into a powerful diagnostic and selection tool that engineers can use to perfectly match a pump to your application.

Your Data and the Resulting Curve

When plotted, these points create a curve that represents your system's unique resistance profile.

What Should You Do With Your System Curve Data?

You have an accurate system curve, but what's the final step? How do you use this powerful information to make the right choice? Keeping this data to yourself means you've done all the work without getting the final reward.

The next step is to send this data to your pump supplier. Providing them with your system curve is the single best way to ensure they can recommend a pump that will perform perfectly in your application.

When you send us your system curve⁷ at BODENFLO, we can overlay it directly onto the performance curves of our various miniature pumps. The exact point where your system curve intersects a pump's performance curve is the true operating point⁸—the actual flow and pressure you will get in the real world. This removes all guesswork. It allows us to confirm not just the right model, but also the ideal motor type and materials for your specific needs, ensuring long life and reliable performance. Sharing your data is the final, crucial step in the process.

Conclusion

Measuring your back pressure with a simple test rig removes all guesswork. It provides the precise, real-world data needed to create a system curve, which is the key to selecting the perfect miniature liquid pump for your system.
