You've installed a silencer, but your device is still too loud, or worse, the pump's performance has dropped. The noise is frustrating, and the performance loss is a critical engineering failure.

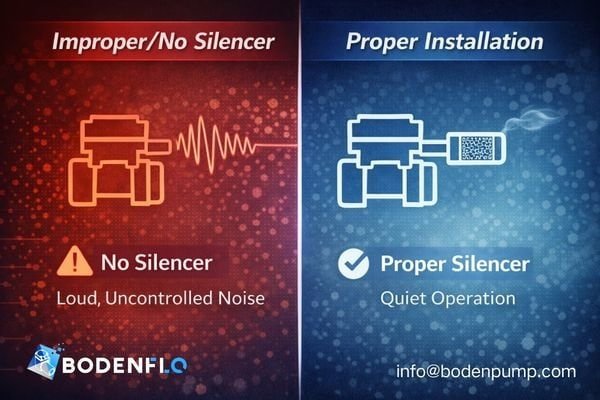

A silencer's effectiveness hinges on its installation. Correct placement and sealing are crucial to reduce noise without creating excessive backpressure that can damage the pump and reduce its flow rate.
As a project manager here at BODENFLO, one of the most common issues I help engineers troubleshoot is noise. A micro diaphragm pump, by its very nature, creates air pulsations that result in noise. While a silencer is the obvious solution, a poorly implemented one often creates more problems than it solves. I've seen pumps overheat and fail prematurely simply because a silencer was installed as an afterthought. This guide is about moving from "just adding a silencer" to strategically engineering a quiet, efficient, and reliable system.
Why Is the Correct Installation of a Silencer Critical for Micro Air Pumps?
You're trying to meet strict noise requirements, but your pump is still failing acoustic tests. The pressure to deliver a quiet product is high, but your solutions aren't working.
Correct installation is critical because an improper setup creates high backpressure. This not only fails to quiet the pump but also leads to motor overheating, reduced flow, and premature failure.
Let's break down why a small plastic or metal part can have such a big impact on your whole system. The key is understanding the balance between noise reduction and pump performance.
The Physics of Noise
A micro diaphragm pump doesn't produce a smooth, continuous stream of air. It creates rapid, discrete pulses. This pulsation of air exiting or entering the pump port generates aerodynamic noise. A silencer works by providing an expansion chamber and a tortuous path that smooths out these pulses, converting sound energy into a very small amount of heat.
The Performance Trade-off

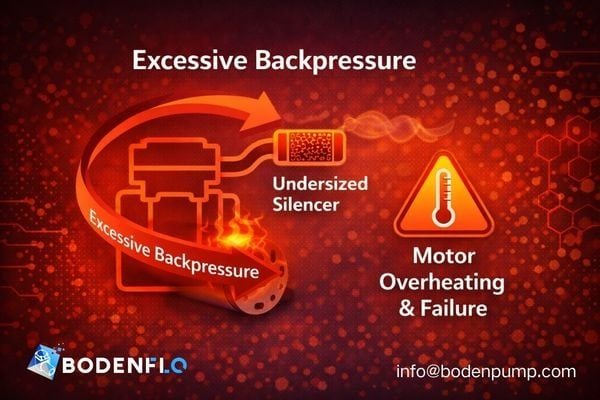

Every silencer adds some level of resistance, or backpressure1, to the system. A properly sized and installed silencer adds minimal backpressure. However, an incorrect one acts like a bottleneck. The pump's motor must work much harder to push air through this restriction, causing it to draw more current, generate more heat, and ultimately reduce its effective flow rate and lifespan.
The "Whisper-Quiet" Requirement
For devices used at a patient's bedside, in a quiet laboratory, or in a high-end consumer product, a low decibel (dB) level is not a feature—it's a requirement. Industry standards often demand noise levels well below 45 dB, which is nearly impossible to achieve with a bare pump. Correct silencer installation is the first and most important step to meeting these stringent acoustic targets.
Inlet vs. Outlet: Where Should You Position the Silencer for Best Results?
Your pump is generating noise, but you're unsure whether to put the silencer on the intake or the exhaust. Placing it on the wrong port could be a waste of time and money.

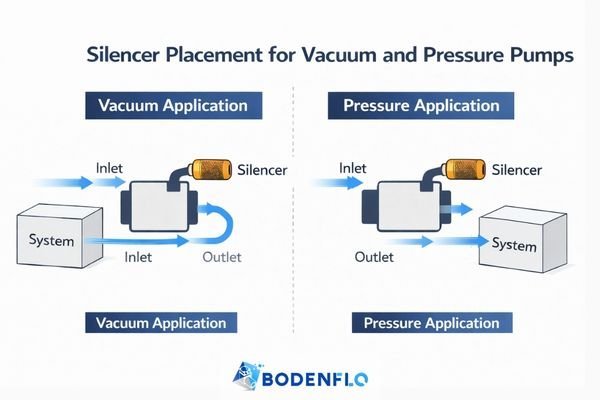

For best results, place the silencer on the port where the air is venting to the atmosphere. For vacuum applications, this is the exhaust. For pressure applications, this is the intake.
The rule is simple: you silence the port that "talks" to the open air. The noise you hear is the high-velocity air pulses interacting with the atmosphere. Let's look at the two main scenarios.
Vacuum Applications
In a vacuum or suction application, the pump draws air from a sealed system and vents it out into the room. The problematic noise source is the pulsating air leaving the exhaust port. Therefore, the silencer should be installed on the outlet/exhaust port. Placing a silencer on the sealed vacuum intake side will do nothing to reduce the audible noise and will only restrict the pump's vacuum performance.
Pressure Applications
In a pressure application, the pump draws air from the room, pressurizes it, and sends it into a sealed system. Here, the noise is generated by the pump's intake port "hissing" as it rapidly draws in air. The silencer should be installed on the inlet/intake port to quiet this noise. The outlet is connected to a closed system, so there is no aerodynamic noise to silence there.
Dual-Silencer Setup
When is it necessary to install mufflers on both ports? This is rare but can be required in systems where the pump alternates between pressure and vacuum, or in extremely sensitive applications where even the slightest noise from a semi-sealed line must be dampened. A dual setup provides maximum sound dampening but also maximum backpressure, so it should only be used when absolutely necessary and with a pump powerful enough to handle the increased load.
What Are the Step-by-Step Best Practices for Silencer Installation?
You've attached the silencer, but it's leaking or vibrating, possibly making the noise even worse. A flimsy installation is undermining your entire noise-reduction effort.
A secure, leak-proof installation is essential. This involves selecting the right connector, optimizing tubing length, mounting securely to prevent vibration, and orienting it to allow for drainage.
I guide clients through these four steps to ensure the silencer contributes to a solution, not a new problem. Getting these details right is what separates an amateur setup from a professional one.
Step 1: Selecting the Right Connector
The seal between the pump port, tubing, and silencer must be perfectly airtight. Any leak, no matter how small, will create a high-frequency "whistling" sound that defeats the purpose of the silencer. Use properly sized barbed fittings and, if necessary, small hose clamps or zip ties to ensure a gastight seal. For threaded silencers, use Teflon tape or a suitable thread sealant.
Step 2: Optimizing Tubing Length
Do not mount the silencer directly to the pump port. Use a short piece of flexible tubing (e.g., silicone). The length of this tube is important; it acts as a secondary expansion chamber2, helping to dampen pulsations before they even reach the silencer. A length of 2-5 cm is often a good starting point for testing.
Step 3: Secure Mounting
A loose silencer will vibrate against the device chassis. This vibration will transmit through the housing and can amplify mechanical noise3, making the device louder. Use a dedicated clip or bracket to mount the silencer securely to the chassis, ensuring it does not touch any other components.
Step 4: Orientation and Drainage
If you are pumping gas with any moisture content, condensation can form and collect inside the silencer. If this water builds up, it can block the pores and create extreme backpressure. Always orient the silencer vertically with the opening pointing downwards so that any condensation can drain out via gravity.
How Does Silencer Material Impact Noise Reduction and Pump Health?
You see choices like porous plastic, sintered bronze, and others. Choosing the wrong material can lead to clogging, poor performance, or even damage to your pump.

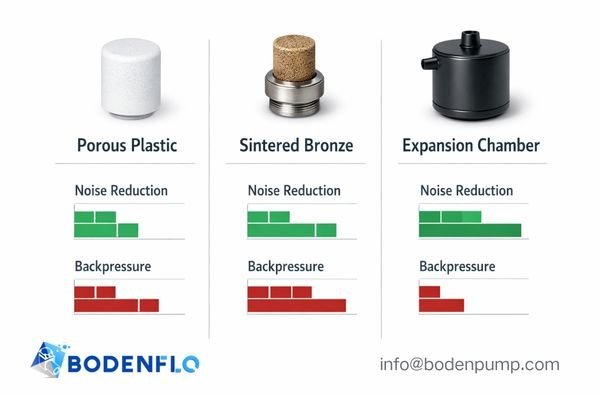

The material directly impacts the balance between noise reduction and backpressure. Porous plastics offer a good balance, bronze offers durability, and large expansion chambers offer the best performance.
The material isn't just about what the silencer is made of; it dictates the method of silencing. As an engineer at BODENFLO, I help clients select the right type based on their specific application environment and performance needs.
| Silencer Material | Noise Reduction | Backpressure | Pros | Cons |
|---|---|---|---|---|
| Porous Plastic (PE) | Good | Low-Medium | Cost-effective, lightweight, good general-purpose balance. | Can clog over time. Not for very high pressure. |
| Sintered Bronze | Moderate | Medium-High | Extremely durable, great for high-pressure/temp environments. | Heavy, prone to clogging in dusty environments, higher backpressure. |
| Expansion Chamber | Excellent | Very Low | Superior low-frequency dampening, minimal performance impact. | Larger physical size, higher cost. |
Porous Polyethylene (PE) silencers are the most common type for micro pumps. They are inexpensive and effective.
Sintered Bronze mufflers are more common in rugged, industrial pneumatic systems. While durable, their higher backpressure and tendency to clog make them less ideal for many micro-pump applications unless durability is the absolute top priority.
Expansion Chamber silencers are the premium choice. These are often larger, hollow canisters that work by giving the air pulses room to expand and slow down. They offer the best noise reduction with the least amount of backpressure, making them ideal for high-performance applications where flow rate cannot be compromised.
What Are the Common Mistakes That Engineers Make During Installation?
Your pump is still noisy, or worse, has failed prematurely despite a new silencer. A simple, overlooked mistake during installation might be the hidden cause of your problems.

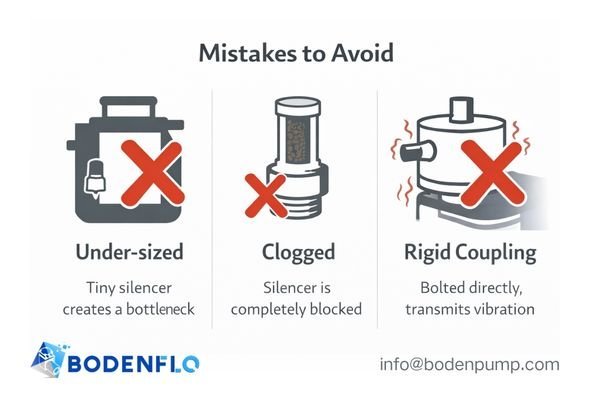

The most common mistakes are under-sizing the silencer, completely ignoring maintenance, and using a rigid connection that transmits vibration instead of isolating it. These errors quietly undermine pump performance and lifespan.
I've troubleshooted hundreds of noise-related field failures. More often than not, the issue comes down to one of these three simple, avoidable mistakes.
Under-Sizing the Silencer
This is the number one error. An engineer might choose a silencer that has a smaller orifice or lower flow rating than the pump itself. This creates a severe "bottleneck" effect, dramatically increasing backpressure. The pump motor overheats, flow drops, and the pump is destined for a short life. Rule of thumb: The silencer's effective flow path should always be larger than the pump's port diameter.
Ignoring Maintenance
A silencer is a filter. Over time, it will clog with dust and particulates from the ambient air. As it clogs, backpressure steadily increases. I call this a "silent killer" because the pump slowly suffocates, with performance degrading over months until it finally fails. Silencers should be on a periodic replacement schedule, just like any other filter in your system.
Rigid Coupling
Directly threading a silencer into a pump port seems logical, but it's a mistake. This rigid connection transfers 100% of the pump's mechanical vibration to the silencer and the chassis. Using a short piece of flexible silicone tubing to connect the pump and silencer acts as a vibration isolator, decoupling the components and preventing the noise from being amplified by the device's housing.
What Are Advanced Solutions Beyond the External Silencer?
You've perfectly installed an external silencer, but you still need to shave off a few more decibels. You're hitting the limits of what a simple muffler can do.

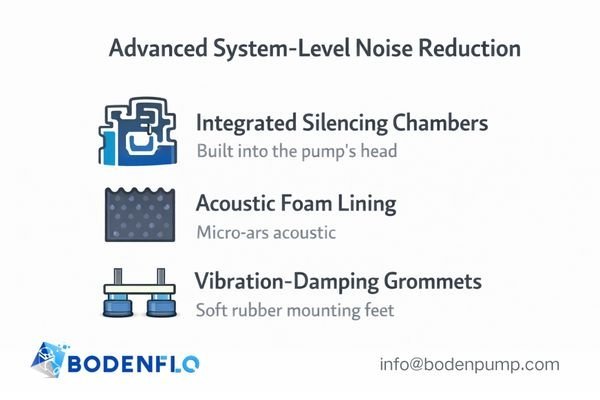

To achieve the absolute lowest noise levels, you must move to a system-level approach. This includes pumps with integrated silencing chambers, acoustic foam enclosures, and vibration-damping mounts.
When a client needs to get from "quiet" to "whisper-quiet," we have to look beyond just the external muffler and treat noise reduction as a holistic system design challenge.
Integrated Pump Head Silencers
The most effective place to reduce noise is at the source. At BODENFLO, we've engineered pump heads with complex internal chambers that act as built-in silencers. These designs disrupt air pulsation before the air even leaves the pump head, dramatically reducing source noise and lessening the reliance on bulky external mufflers. This is a key feature in our premium quiet pump series.
Enclosure Damping
Your device's housing can act like a speaker, amplifying any vibration. A comprehensive solution involves lining the enclosure with acoustic foam to absorb airborne sound waves and using soft, rubberized vibration-damping feet or grommets to mount the pump. This combination isolates the pump from the chassis and traps the sound that does escape.
Case Study: A Medical Suction Device
A client's portable suction device was failing its 45dB noise limit, testing at 51dB. We found their silencer was mounted rigidly and was slightly undersized. By switching to a larger expansion-chamber silencer, connecting it with 3cm of flexible silicone tubing, and adding small vibration-damping grommets to the pump mount, we brought the noise down to 43dB—a perceived halving of the sound level and a huge win for their product.
Summary: Maximizing Silence Without Sacrificing Performance
The key to a quiet pump is not just adding a silencer, but installing it correctly to balance acoustics with performance, ensuring a long, reliable life for your device.
Here is the pro-engineer's post-installation checklist:
- Is the seal completely airtight (no whistling)?
- Is flexible tubing used to isolate vibration?
- Is the silencer mounted securely to the chassis?
- Is it oriented for moisture drainage?
- Has pump temperature and flow been re-checked to ensure performance wasn't compromised?
