How is a High-Performance Micro Diaphragm Pump Manufactured?

You’ve integrated a micro diaphragm pump, but it fails under load. Your vacuum readings are inconsistent, and project timelines are slipping. The pump is the problem, but the root cause is hidden.

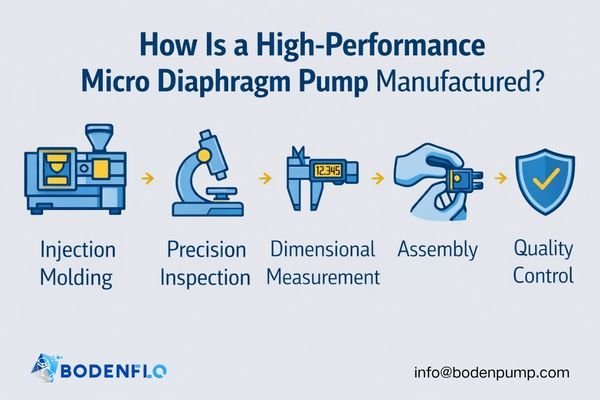

It starts with manufacturing. A high-performance micro diaphragm pump is built through a meticulous, multi-stage process. We achieve this with precision molding, rigorous component inspections, modular assembly, and comprehensive performance testing at every single step.

A pump is more than the sum of its parts; it's an ecosystem of precision. The final spec sheet you rely on is only possible because of a dozen preceding quality gates. Let's walk through our factory floor, step-by-step, to see exactly how we bring this philosophy to life and build trust into every pump.

Why do we insist on high-precision injection molding for our pump heads?

A pump fails due to a subtle leak. You spend hours tracing it back to a tiny, almost invisible warp in the plastic pump head—a fundamental manufacturing defect that should have been caught at the source.

We solve this by using high-stability, electronically-controlled injection molding. This commitment to precision ensures every component is dimensionally stable and free from defects, forming the reliable foundation for the pump's critical airtight seal.

The pump head is the cornerstone of airtightness. Our focus is on consistency and control within standard manufacturing tolerances, not on making unrealistic claims. A reliable pump is built from reliable parts. Here’s a breakdown of our practical, engineering-led approach:

Manufacturing Aspect	Our Standard & Rationale
Molding Machinery	We use modern, high-stability injection molding machines. Their precise electronic controls allow us to maintain consistent pressure, temperature, and timing for every part. This minimizes variations and prevents defects like sink marks or voids.
Mold Engineering	Our molds are engineered and maintained to tight tolerances (e.g., within fractions of a millimeter). This ensures the critical sealing surfaces and internal channels of the pump head are perfectly formed, batch after batch, for a reliable seal.
Material Selection	We choose specific engineering plastics for specific functions. This is a critical engineering choice: • Pump Head: We typically use PPS (Polyphenylene Sulfide)1 for its excellent chemical resistance and high dimensional stability. • Pump Body/Casing: We often use Nylon (PA)2 for its toughness, durability, and excellent vibration-dampening properties.

How do we use electronic magnification to catch tiny flaws?

A pump works perfectly for 100 hours, then fails. The culprit? A microscopic burr on a plastic part that slowly wore down the diaphragm. It was a failure you could never have predicted because the flaw was invisible.

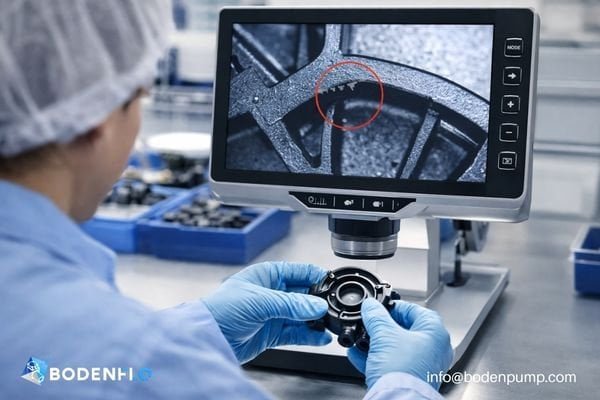

We use electronic microscopes to inspect every component surface for micro-burrs and stress cracks. This preventative quality control step identifies and eliminates potential long-term failure points before they are ever assembled, safeguarding the pump's operational lifespan.

Quality control that relies on the naked eye is simply not enough. Under electronic magnification, we hunt for specific defects that directly impact the pump's lifespan and reliability.

What we search for:

• Micro-Burrs³: Tiny, sharp imperfections on molded parts.
  • Impact: Act like a razor, causing premature wear and tear on the flexible diaphragm.
• Surface Micro-Cracks⁴: Hairline cracks formed during molding or handling.
  • Impact: Can propagate under vibration and pressure, leading to catastrophic failure in the field.
• Sink Marks & Voids: Small depressions or bubbles within the plastic.
  • Impact: Create uneven sealing surfaces, leading to subtle but critical leaks.

How do we ensure every part fits with micron-level accuracy?

Your system needs a deep vacuum, but the pump you just installed is underperforming. The motor runs fine, but the pressure isn't building. The issue could be a microscopic tolerance mismatch between the valve and the pump housing.

We use high-precision digital calipers to verify the dimensions of every critical component. This strict control of tolerances ensures that each part fits perfectly, creating the tight seals necessary for maximum vacuum performance and consistent batch quality.

A micro pump's performance is a game of microns. Even slight deviations can dramatically affect output. We measure and control key dimensions to guarantee predictable results.

Measured Component	Impact of High-Precision Control5
Pump Casing and Valve Plate Fit	Creates a perfect, airtight seal, which is the primary factor in achieving deep vacuum and high pressure.
Diaphragm Seating Area	Ensures the diaphragm is held securely without being pinched, optimizing its stroke for maximum flow and preventing premature wear.
Piston and Bearing Housing	Guarantees smooth, concentric motion, which reduces vibration, noise, and energy consumption while extending motor life.

How do we verify motor performance before it even enters a pump?

Your device requires stable flow at a specific voltage, but the pump's performance is erratic. The problem isn't the pump head; it’s an inconsistent motor that wasn't properly vetted before assembly.

We perform a dual verification on every motor. We use a laser tachometer to confirm its RPM meets design specs at set voltages, and our technicians manually check the shaft for bearing play, guaranteeing both electrical performance and mechanical smoothness.

This combination of empirical data and expert human touch ensures the motor—the heart of the pump—is flawless.

Our Two-Step Motor Verification Process:

1. Quantitative Test (The Data):
   • Tool: Laser Tachometer⁶
   • Action: We measure the motor's rotational speed (RPM) at its specified operating voltages (e.g., 12V and 24V).
   • Purpose: To confirm it has the power and speed to drive the pump and deliver the promised flow rate.
2. Qualitative Test (The Feel):
   • Tool: Experienced Technician's Hands
   • Action: We manually rotate and pull on the motor shaft.
   • Purpose: To feel for any "grittiness," friction, or excessive wobble in the bearings. This predicts and prevents issues like future noise and premature wear.

How does our modular assembly process ensure quality?

A complex assembly line with too many steps creates more opportunities for error. A single mistake early on can cascade, leading to a faulty final product that is difficult to diagnose.

We use a modular kit pre-assembly process. The piston, pump head, and motor are assembled into separate, verified sub-modules by specialized teams. This isolates and perfects each stage, ensuring no faulty component ever moves to final assembly.

This "divide and conquer" strategy makes our quality control more robust and our assembly more efficient. We break the build into three distinct stages, each with its own quality checks.

Modular Assembly Stages:

• Pump Head Kit: The pump casing, valves, and diaphragm are assembled and checked for perfect sealing.
• Piston Kit: The piston, connecting rod, and bearing are integrated and verified for smooth, concentric movement.
• Motor Kit: The pre-screened motor is prepared with its wiring and mounts.

This approach means that by the time of final assembly, we are not just combining parts; we are integrating three pre-verified, high-quality subsystems.

What does every single pump have to pass before leaving the line?

You’ve received a batch of pumps, but some units draw more current than expected, threatening your device's power budget. You need every pump to perform exactly as the spec sheet promises, without exception.

Every single pump that comes off our final assembly line is immediately connected to a test rig. We run it and measure its core performance metrics—voltage, current draw, flow rate, and pressure—to ensure it perfectly matches the official specification sheet.

This is not a spot check; it's a 100% performance guarantee for every unit. Each pump is tested against four critical datasheet parameters.

Parameter Tested	Our Standard	Why We Test It
Operating Voltage	Must run stably at its rated voltage (e.g., 12V, 24V).	Confirms correct motor and electrical connections.
Current Draw (Amps)	Must be within the specified nominal range under load.	Guarantees the pump won't overload your power supply.
Flow Rate (L/min)7	Must meet or exceed the minimum specified flow rate.	Ensures the pump delivers the performance you designed for.
Pressure/Vacuum (kPa)	Must achieve the target pressure or vacuum level.	Validates the integrity of the entire airtight system.

How do we simulate your specific application before shipping?

A pump works fine on a test bench but fails in your device. Why? Because a simple flow test doesn't replicate the specific back-pressure and system resistance of your unique application.

If required, we go beyond standard tests and simulate your real-world load conditions. Whether it's pressure-cuff inflation or low-voltage sampling, we ensure the pump works in your world, not just ours.

This is where we become an extension of your engineering team. We translate your application needs into specific, measurable test protocols that reflect real-world operating conditions.

Application	Our Simulation Protocol	Why It's Critical for Your Device
Medical NPWT	Connect the pump to a sealed 50–100 mL chamber. Measure the time to reach –100 mmHg (≈–13.3 kPa) and assess its ability to maintain stable vacuum with minor leakage.	This reflects real NPWT needs, where pressure stability and leakage compensation are more important than absolute vacuum, ensuring therapeutic effectiveness.
Portable Gas Sampler8	Operate the pump at reduced voltage (e.g., 3.0–3.5V from a 5V nominal) to simulate battery drain. We monitor flow stability, start-up reliability, and consistency.	This guarantees accurate sampling performance even as the device's battery depletes, preventing corrupted data collection in the field.
Inflatable Rehab Cuff	Measure the time to pressurize a defined-volume cuff to a target of 150–200 mmHg. We evaluate inflation speed, pressure stability, and repeatability over multiple cycles.	This ensures controlled, consistent pressure delivery for therapy applications, which is essential for patient safety and the effectiveness of the treatment.

What extreme conditions do we test our pumps against?

You need a pump that can run 24/7 for months or years. You can't afford to have a diaphragm fatigue or performance drift due to fluctuating temperatures. How can you be sure of its long-term reliability?

We conduct rigorous reliability testing by running pumps 24/7 for thousands of hours under simulated extreme conditions. This includes long-term diaphragm fatigue tests and environmental chamber tests to validate performance stability.

This is how we confidently specify a lifespan of thousands of hours. Our reliability validation is designed to push the pumps past their limits.

Our Reliability Testing Protocol:

1. Lifetime Endurance Test⁹:
   • Process: Pumps are run continuously for hundreds or thousands of hours.
   • Objective: To validate the diaphragm's anti-fatigue properties and the motor's bearing lifespan under constant use.
2. Environmental Stress Test:
   • Process: Pumps are placed in an environmental chamber and operated while temperatures and humidity are cycled from low to high extremes.
   • Objective: To ensure performance (flow, pressure) remains stable and does not drift when the operating environment changes.

What is the final gate before a pump is sent to you?

Your project is on a tight schedule, and receiving a single defective pump in a batch can cause delays. You need to trust that the quality of the first pump you test represents the entire shipment.

Our Outgoing Quality Control (OQC) team acts as the final gatekeeper. They perform a strict random-sample inspection on every finished batch, verifying performance and appearance against a rigorous checklist before any product is cleared for shipment.

This final check acts as an audit on our entire process, ensuring batch-level quality.

The OQC Checklist Includes:

• Random Performance Audit: A random sample of pumps from the batch is re-tested for flow, pressure, and current draw.
• Cosmetic Inspection: Every sampled pump is checked for scratches, proper labeling, and overall cleanliness.
• Packaging Verification: We ensure the pumps are correctly packed with adequate anti-vibration materials to prevent any damage during transit.

Only after a batch passes this final inspection is it sealed for shipment.

Conclusion: Why does a transparent manufacturing process matter?

Trust is built on details. Choosing a supplier with a transparent manufacturing system means you are choosing a partner who guarantees consistency, reliability, and performance from the inside out.
