How We Validate Micro Diaphragm Pump Reliability: A Deep Dive into Life Testing and Failure Analysis (DPA)

You’ve selected a pump that looks great on paper, but it fails in the field, triggering costly recalls and damaging your brand. This uncertainty is a constant risk for your mission-critical device.

At BODENFLO, we replace uncertainty with data. Through rigorous accelerated life testing, failure analysis, and environmental screening, we provide the validation you need to trust the pump at the heart of your system.

As a project manager here, I’ve seen the relief on an OEM partner’s face when we hand them a full reliability report. They aren’t just buying a pump; they are buying confidence. They know that the component at the core of their product has been pushed to its limits and proven its worth long before it reaches a customer. This deep dive into our validation process is about showing you how we build that confidence, one test at a time. It’s about replacing hope with hard data.

Why is Reliability Validation the Backbone of OEM Micro Diaphragm Pump Selection?

You’re worried a small component failure could bring down your entire system. A single pump failure can trigger massive recalls and warranty claims, costing you dearly.

Reliability validation is crucial because a micro pump is the ‘heart’ of many devices. Its failure can cause catastrophic system failure, leading to huge financial losses and brand damage.

When we start a new OEM partnership, we always talk about risk. It’s not a comfortable conversation, but it’s the most important one.

The "Heart" of the System

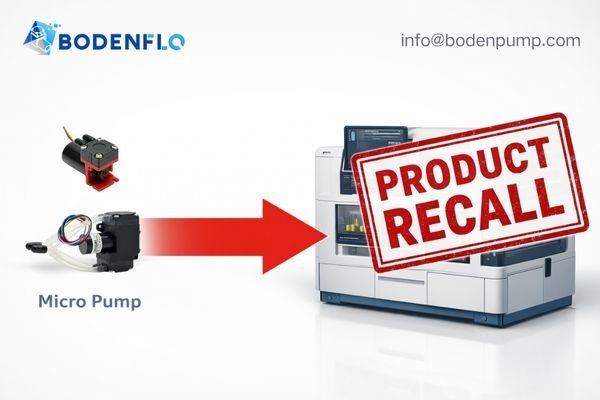

I always use the same analogy: the micro pump is the heart of your device. If it fails, the entire system is dead. A failure in a $50 pump can easily lead to a $50,000 medical device recall. The cost isn’t just in replacing the unit; it’s in logistics, service technicians, regulatory fines, and the irreversible damage to your brand’s reputation for quality.

Mission-Critical Consistency

For applications like 24/7 diagnostic analyzers or environmental monitors, consistency is everything. The flow and vacuum rates must be precise on day one and just as precise on day one thousand. Any drift in performance can lead to false readings, incorrect patient diagnoses, or failed environmental compliance. Our testing validates this long-term stability.

Mitigating the Total Cost of Ownership

Rigorous testing is an investment that drastically reduces the Total Cost of Ownership (TCO)¹. A cheaper, untested pump might seem like a saving, but that saving is quickly erased by the high costs of field failures.

Cost Factor	Untested Pump	Validated BODENFLO Pump
Upfront Cost	Low	Moderate
Warranty Claims	High	Near Zero
Service Calls	High	Near Zero
Brand Damage	High Risk	Low Risk
Total Cost	Very High	Predictably Low

How Does Accelerated Life Testing (ALT) Predict Years of Performance for Micro Diaphragm Pumps?

You need to know if a pump will last 10,000 hours, but you can’t wait over a year to find out. Your project timeline is too short for real-time testing.

Accelerated Life Testing (ALT) uses models like the Arrhenius equation and increased stress factors (like cycle frequency) to simulate years of wear in just weeks, predicting the pump’s reliability.

We can’t bend time, but we can compress it. ALT allows us to provide our partners with long-term performance data on a product development timeline.

Simulating Real-World Wear

We use scientifically established models to accelerate aging without introducing unrealistic failure modes. For temperature-related wear on motor windings and elastomers, we use the Arrhenius model², where a controlled increase in temperature accelerates chemical aging. For mechanical wear on the diaphragm and valves, we increase the cycle frequency. This allows us to compress 10,000 hours of simulated use into a manageable testing window of weeks or months.

The "End of Life" Definition

A pump doesn’t just "work" or "fail." Its performance degrades over time. In our lab, "end of life" is professionally defined. It’s the point where a pump’s performance drops below 80% of its initial rated flow³ or its noise level exceeds a predefined specification. This gives our OEM partners a clear, functional benchmark for reliability.

Duty Cycle Stress⁴

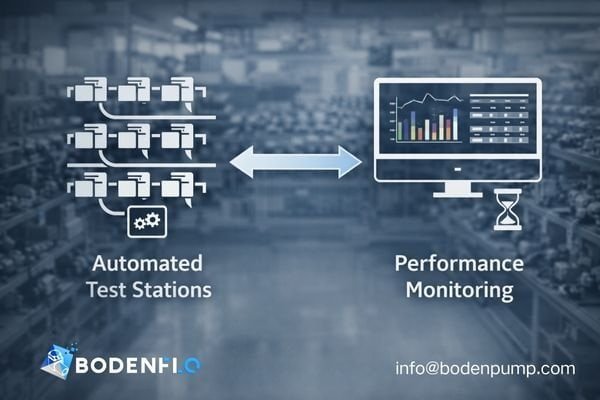

A pump in a blood pressure monitor faces thousands of high-stress start/stop cycles. This is far more demanding than running continuously. Our test racks are programmed to replicate these specific duty cycles, stressing the motor windings and diaphragm in a way that truly reflects the final application.

What Does High-Load Testing Reveal About Micro Diaphragm Pump Fatigue?

You’ve integrated a pump into a tight space, and it’s running hot. You’re worried this constant stress will cause premature failure, but you don’t know how to test for it.

High-load testing reveals how a pump behaves under worst-case conditions. We test for thermal breakdown, the ability to restart against backpressure, and how noise increases as components wear.

A pump’s datasheet performance is measured in ideal conditions. We are obsessed with testing for the non-ideal, high-stress conditions that pumps face inside real products.

Thermal Management in Compact Spaces

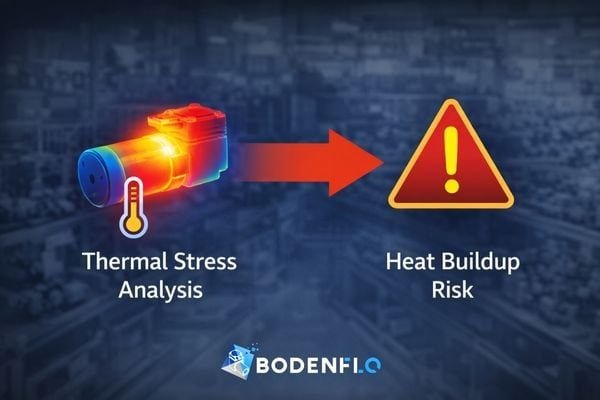

In a fanless, handheld device, heat is a killer. High load makes the motor work harder, generating heat. This heat softens the elastomer diaphragm, reducing its elasticity and flow performance. It also degrades the motor winding insulation, leading to electrical failure. We run pumps at maximum load in temperature-controlled chambers to find these thermal limits before they become a problem in your device.

Restarting Under Backpressure

Imagine a power flicker on a medical device. The pump stops, but a check valve holds vacuum in the line. Can the pump restart against that residual vacuum? Many motors will stall. We consider this a critical reliability check and design our motor-and-drive systems to have enough torque to overcome this backpressure, guaranteeing a successful restart every time.

Noise Floor Degradation

A new pump is quiet, but an old pump "rattles." We quantify this. Throughout a life test, we monitor the pump’s acoustic signature. A measurable increase in decibels tells us that bearings are wearing, valves are stiffening, or fasteners are loosening. This data allows us to pinpoint and reinforce the components that contribute to noise over time.

How Do Failure Analysis and DPA Drive Micro Diaphragm Pump Superiority?

Your pump failed, but you don’t know why. Was it a material defect, contamination in the system, or something else? Without knowing the root cause, you can’t prevent it from happening again.

Failure analysis and Destructive Physical Analysis (DPA) act as an "engineering autopsy" to find the exact root cause of a failure, allowing us to continuously improve our pump designs.

For our engineering team, a failed pump from a life test isn’t a problem; it’s an opportunity. It contains the data we need to build a better, stronger product.

Root Cause Identification (RCA)

We use structured problem-solving methods like Failure Mode and Effects Analysis (FMEA) to guide our investigation. Was the failure caused by material fatigue from millions of cycles? Was it chemical degradation from an unexpected fluid in the system? Or was it electrical overstress from the power supply? Identifying the root cause is the only way to implement a meaningful corrective action.

Destructive Physical Analysis (DPA)

This is our "engineering autopsy." The pump is carefully disassembled layer by layer under a microscope. We inspect for micro-tears in the EPDM or FKM diaphragm, look for carbon or particle buildup on valve seats, and check for signs of corrosion on motor bearings. This granular detail tells us the story of how the pump failed.

Material Science Iteration

This failure data feeds directly back into our R&D. If DPA shows that a diaphragm is failing due to chemical attack, we might recommend a switch from EPDM to FKM or PTFE. If we see a specific wear pattern, it might lead us to optimize the elastomer’s shore hardness⁵ or adjust the motor’s torque curve to reduce stress. It is this feedback loop that drives true design superiority.

Can Your Micro Diaphragm Pump Survive Environmental Stress Screening (ESS)?

Your device needs to work in a hot factory and a cold hospital. Can the pump inside handle that temperature swing, plus the shocks of shipping and the vapors from cleaning agents?

Environmental Stress Screening (ESS) pushes a pump beyond its normal operating limits to find hidden weaknesses, ensuring it can survive real-world temperature swings, vibration, and chemical exposure.

A pump doesn’t live in a perfect, 25°C world. It lives in the real world, which is messy, unpredictable, and harsh. ESS is how we guarantee our pumps are ready for it.

Temperature & Humidity Cycling

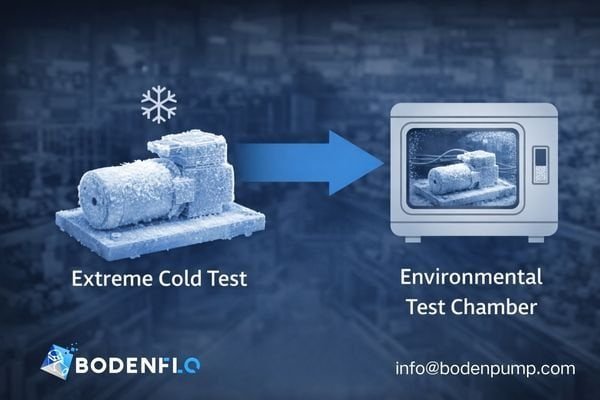

We place our pumps in environmental chambers and cycle them between extreme temperatures, often from -20°C to +60°C, under varying humidity. This tests for material expansion and contraction, ensuring that seals remain tight and that performance remains stable whether the device is in a cold laboratory or a hot, humid industrial plant.

Vibration and Impact Testing

Your product will be shipped, dropped, and used in vehicles. We mount our pumps on vibration tables that simulate these conditions. This ensures that internal components—especially the motor and eccentric assembly—remain perfectly aligned and that no fasteners come loose, which could lead to immediate failure or a drastic increase in noise.

Chemical Compatibility Stress⁶

In medical settings, devices are frequently wiped down with aggressive disinfectants. In industrial settings, solvent vapors may be present in the air. We conduct specific tests where pumps are exposed to these common chemicals to validate the resilience of their housing materials and seals, preventing premature cracking or swelling.

How Can OEM Customers Access Custom Reliability Validation Reports from Bodenflo?

You need proof that a pump meets your specific reliability needs, not just generic datasheet numbers. You need data that reflects your unique application.

We believe in transparency. We provide our OEM partners with detailed reliability reports and can even replicate their specific system conditions in our lab for custom validation.

Data is the foundation of trust. We don’t just tell our partners our pumps are reliable; we show them the data to prove it.

Transparency as a Service

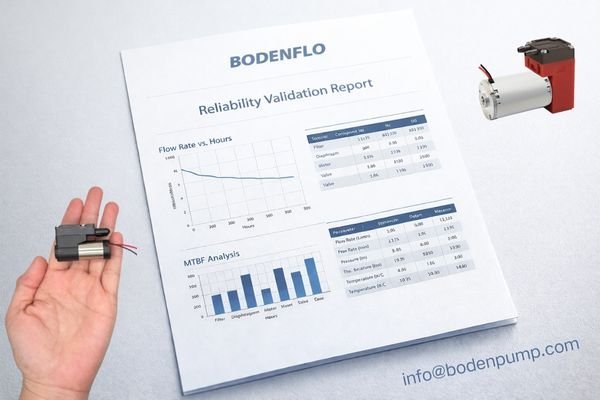

We provide our qualified OEM partners with detailed MTBF (Mean Time Between Failures)⁷ reports, life-cycle curves showing performance over time, and full DPA findings upon request. This gives your engineering team the data they need to make an informed decision and manage risk.

Replicating Your System

Your system isn’t just a pump; it’s a specific length of tubing, a specific filter, and a unique enclosure. We work with our partners to replicate their exact system setup⁸ in our validation lab. This means our test data is not just representative; it’s directly applicable to your product’s real-world performance.

Collaborative Quality Assurance

Quality is a partnership. We frequently work with an OEM partner’s QA team to align our testing protocols with their internal standards, including those required for certifications like ISO9001 or environmental compliance like RoHS and CE. This ensures a smooth integration and qualification process.

Summary: Why Reliability is the Ultimate ROI for Micro Diaphragm Pumps

You’re about to sign a contract for a critical component. You need to be sure you’ve asked the right questions to protect your product and your company.

The ultimate value of a micro diaphragm pump is not its price, but its proven reliability. This is what delivers the highest return on investment by preventing costly failures.

Before you select a pump supplier, make sure you get clear answers to these critical questions:

1. Can you show me the life test data for this pump under a load similar to mine?
2. What is your definition of "end of life" (e.g., flow drop percentage)?
3. Have you tested the pump’s ability to restart against backpressure?
4. What environmental and stress testing has been performed on this model?
5. If a failure occurs, what is your process for root cause analysis (DPA/RCA)?

At BODENFLO, our commitment is to precision engineering backed by transparent data. We don’t just sell pumps; we provide proven, reliable solutions.

Ready to see the data? Contact our lab today to request a Micro Diaphragm Pump Reliability Whitepaper.
