Do micro diaphragm liquid pumps have self-priming capabilities, and what is their maximum suction lift?

Your system isn't pulling liquid, and the pump is just running dry. This priming failure can halt your entire project, causing frustrating delays and costly redesigns.

Yes, micro diaphragm pumps have excellent self-priming capabilities. Specific Bodenflo models can achieve suction lifts of 3, 4, and even up to 7 meters of water gauge (mWg), ensuring reliable performance.

As a project manager, one of the most common troubleshooting calls I get from engineering teams is about priming failure. The system is assembled perfectly, but the pump just can't seem to pull the liquid from the reservoir. This issue is almost always related to a misunderstanding of self-priming capabilities and the factors that affect suction lift. It's not just about the pump's spec sheet; it's about how the entire system works together. Let's walk through the core concepts so you can design for success from the start.

Do Micro Diaphragm Liquid Pumps Have Self-Priming Capabilities?

Your centrifugal pump requires a pre-filled line to work, a design constraint you can't afford. You need a pump that can start completely dry and still pull liquid.

Yes, micro diaphragm pumps are inherently self-priming. They can create a vacuum from a dry state to evacuate air from the intake line and lift liquid into the pump.

When I'm helping a team choose a pump, the ability to self-prime¹ is often a critical, non-negotiable feature. This is where diaphragm pumps have a huge advantage over other technologies like centrifugal pumps, which need to be initially filled with liquid (a "priming charge") to function.

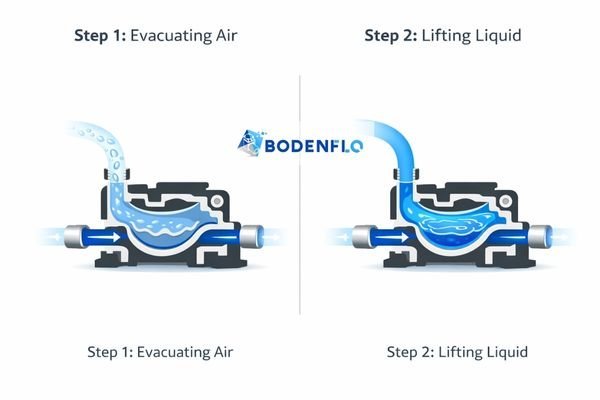

The Physics of Dry Priming

A diaphragm pump works by the reciprocating motion of its flexible membrane. On the downstroke, it increases the volume in the pump head, creating a pressure drop. Even when the chamber is full of air, this action lowers the pressure below the atmospheric pressure outside. This differential is strong enough to pull air out of the intake tube. The upstroke then pushes this trapped air out the exhaust valve. This cycle repeats, effectively acting as a vacuum pump until all the air is purged and liquid is lifted into the pump. The key is the valving efficiency; high-quality elastomer valves must create a perfect seal on each stroke to maintain the vacuum and prevent air from leaking back into the system during start-up.

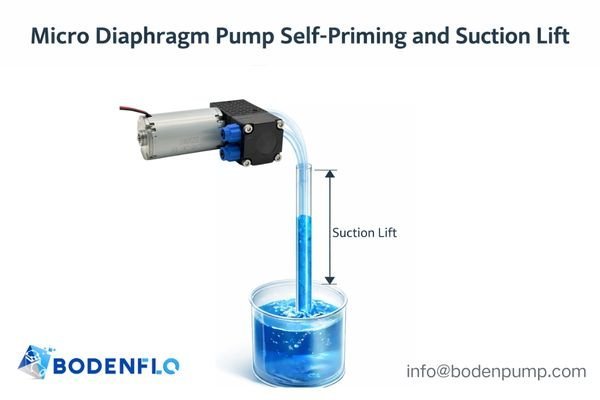

What Is the Maximum Suction Lift and How Is It Measured?

You need to pull liquid from a container on the floor, but you're not sure if the pump is strong enough. You need to understand the real-world limits of its suction power.

Suction lift is the maximum vertical distance a pump can pull liquid. Our high-performance pumps achieve lifts of 3, 4, and even up to 7 meters of water gauge (mWg).

On every pump datasheet, you'll see a spec for "suction lift²." It's one of the most important but often misinterpreted numbers. It's crucial to distinguish between vertical lift and horizontal run. A pump can pull liquid across a very long horizontal tube with minimal effort, but lifting it vertically against gravity is the true test of its strength. While physics dictates a theoretical maximum of about 10 meters at sea level, practical performance is key. Standard micro pumps often struggle beyond 1-3 meters. However, at Bodenflo, we have engineered models that push these boundaries, offering exceptional suction lifts of 3mWg, 4mWg, and even up to 7mWg for our high-performance series.

Bodenflo Standard Suction Lift Test Conditions

Parameter	Standard Value	Rationale
Media	Water	Provides a consistent, low-viscosity baseline.
Temperature	25°C (77°F)	Fluid properties like viscosity change with temperature.
Tubing ID	Matches Pump Port	Prevents unnecessary flow restrictions.
Motor Speed	Nominal Voltage	Represents typical operating performance.

What Factors Can Significantly Reduce Your Pump's Suction Performance?

Your pump worked perfectly on the test bench, but it fails to prime inside your device. You suspect something in your system design is hurting its performance.

Your pump's suction performance can be drastically reduced by high fluid viscosity, incorrect tubing size, and changes in altitude. These factors increase resistance and weaken the vacuum effect.

When a pump fails to prime in the field, my first step is to review the system for three common culprits. These factors can steal performance and cause a pump that meets specs on paper to fail in reality.

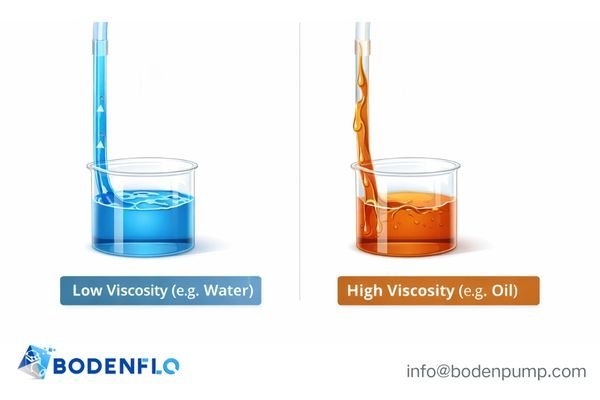

Fluid Viscosity³

This is the single biggest factor. A pump that can lift water 3 meters might struggle to lift a thick oil or reagent even a few centimeters. Viscous, honey-like liquids create significant internal friction (drag), which the pump's vacuum must overcome. This slows the priming process and dramatically reduces the achievable suction lift.

Tube Diameter and Length⁴

This is what I call the "drinking straw effect." A long, narrow straw makes it hard to drink a thick milkshake. Similarly, an overly long or narrow intake tube adds friction. Conversely, a tube that is too wide forces the pump to evacuate a much larger volume of air before it can start lifting liquid, which can also lead to priming failure.

Altitude and Ambient Pressure

A pump's ability to create a vacuum is relative to the external atmospheric pressure. In high-altitude regions like Denver or Mexico City, the lower ambient pressure gives the pump less "push" to work with, directly reducing its effective suction lift compared to its performance in a sea-level lab.

How Does System Integration Impact Real-World Priming Success?

You've accounted for fluid and altitude, but priming is still unreliable. You need to check the mechanical setup of your system for hidden problems that are killing the vacuum.

Real-world priming success depends on a perfectly sealed system. Even a tiny air leak in a fitting will prevent a vacuum from forming. Pump orientation, however, has minimal effect.

As a project manager, I always tell my teams that the pump is just one part of the fluidic system. The way you integrate it is just as important as the component itself. Often, the root cause of a priming issue isn't the pump, but a flaw in the integration.

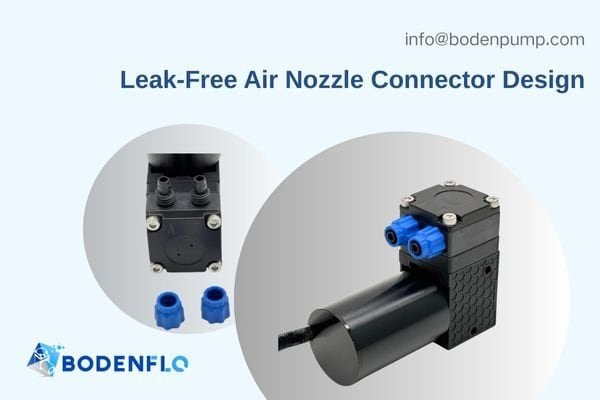

The "Zero Leak" Requirement

This is the most critical rule. A diaphragm pump creates a vacuum to prime. If there is an air leak anywhere in the intake line—a loose fitting, a cracked tube, a bad seal—the pump will continuously pull in air from the path of least resistance instead of lifting the liquid. Even a microscopic leak that you can't see or hear is enough to prevent a full vacuum from forming.

Pump Orientation

I get this question a lot: "Does mounting the pump upside down affect priming?" For a micro diaphragm pump, the answer is generally no. Because it relies on strong mechanical displacement rather than gravity, its priming ability is not significantly affected by its mounting orientation, which gives designers great flexibility.

The Role of Check Valves⁵

Adding an external check valve at the end of the intake line can help "trap" the liquid in the tube, making subsequent primes much faster. However, a poorly chosen valve with high cracking pressure can add extra resistance and actually hinder the initial prime.

Why Is High Suction Lift Crucial for Medical and Industrial OEMs?

You are designing a large analytical machine, but you're not sure why you need a pump with high suction lift. You need to understand the real-world application benefits.

High suction lift is crucial for reliability. It allows OEMs to place pumps conveniently within a device while pulling fluids from large, floor-standing reservoirs without worrying about priming failure.

In the projects I oversee, suction lift isn't just a technical spec; it's a feature that enables better, more reliable, and more user-friendly machine design. For OEMs in demanding fields, a pump with strong and reliable suction is a core requirement.

In-Vitro Diagnostic (IVD) Analyzers⁶

These complex machines often use large containers of reagents or wash buffers placed on the floor or a low shelf for easy replacement. The pump, located deep inside the machine, must have enough suction strength to reliably pull these fluids up several feet to the testing module, every single time. Priming failure here would mean a failed diagnostic test.

Inkjet Printing Systems⁷

Large-format printers use bulk ink reservoirs to reduce downtime. The pumps must maintain a consistent ink supply to the print heads, which are often located much higher than the ink tanks. High suction lift ensures ink is always available and prevents air ingestion, which can cause print defects and damage the expensive print heads.

Environmental Sampling

Portable water or gas analysis devices are used in the field to draw samples from wells, rivers, or remote sources. A pump with a high suction lift is essential for reliably drawing a sample from a source that is several feet below the device.

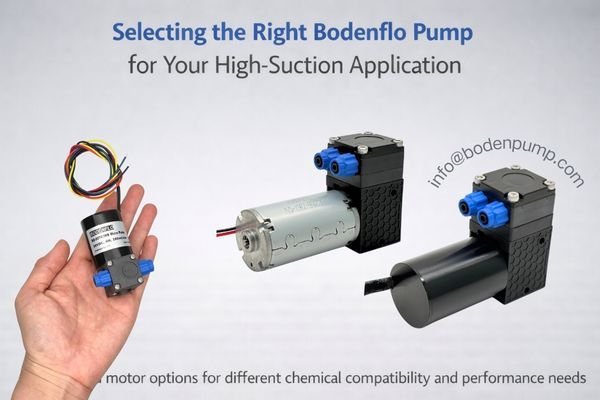

How to Select the Right Bodenflo Pump for Your High-Suction Application?

Your application demands strong, consistent suction, but you don't know which pump configuration to choose. You need guidance on motor, material, and tuning options for optimal performance.

For high-suction applications, select a Bodenflo pump with a BLDC motor for consistent torque, choose materials like FFKM to handle aggressive fluids, and ask about PWM tuning for difficult liquids.

When an engineer comes to me with a challenging high-suction application, we don't just look at one pump. We configure a complete solution. Selecting the right pump is a process of matching the motor, materials, and controls to the specific demands of the project.

Motor Choice

Priming, especially with viscous fluids, requires consistent power. Brushless DC (BLDC) motors⁸ are the best choice here. They provide the high, steady torque needed to overcome initial resistance and ensure a successful prime, cycle after cycle. They also offer a much longer operational life, which is critical for industrial and medical equipment.

Material Selection

The seal is everything in a vacuum. The diaphragm and valve materials must be chemically compatible with your fluid. We offer a full range of elastomer options, including EPDM, FKM, FFKM, and PTFE. Choosing the right one—for example FFKM for the most aggressive chemicals or EPDM for general use—ensures the diaphragm maintains a perfect seal over thousands of hours without degrading.

Customized Solutions

For very high-viscosity fluids, standard pump settings may not be optimal. Our engineering team can create customized solutions by using Pulse-Width Modulation (PWM) to tune the stroke frequency⁹. By slowing down the pump cycle, we give thicker fluids more time to flow into the chamber, dramatically improving priming success.

Conclusion: Making an Informed Decision on Pump Suction

You need a simple final checklist to ensure you've covered all the bases for reliable pump suction before you commit to a design and place an order.

Use this 5-point checklist before finalizing your design. For any remaining questions, consult our application engineers to get the data you need to be confident in your choice.

Final Suction Design Checklist:

1. Have you confirmed your required vertical suction lift?
2. Is your fluid viscosity significantly higher than water?
3. Are all intake fittings and connections 100% leak-proof?
4. Have you chosen a pump with the right motor (BLDC) and materials (FKM/FFKM)?
5. Does your system require a custom PWM tune for priming?

Still unsure about your suction lift requirements? Contact our application team for a custom test report.
