Are your high-power electronics overheating and throttling performance? Traditional fans are bulky, loud, and often can't keep up, forcing your expensive components to underperform just to prevent damage.
Micro liquid pumps enable active liquid cooling, a highly efficient method for thermal management. They circulate a coolant to absorb heat directly from hot components and move it away to a radiator, resulting in significantly lower temperatures, quieter operation, and more stable performance.
This might sound like a complex solution, but it's becoming a necessity. As devices from medical lasers to data servers pack more power into smaller spaces, air simply can't remove the heat fast enough. At BODENFLO, we've specialized in miniature pump technology since 2013, and we've seen this shift firsthand. A reliable micro pump is no longer just a component; it's the key to unlocking the true potential of modern electronics. Let's look at exactly how they make such a significant difference.
Why is Liquid Cooling More Effective Than Air Cooling?
Is the constant roar of fans from your powerful equipment driving you crazy? This noise is a sign that your air cooling system is struggling to keep up, limiting your device's true power.

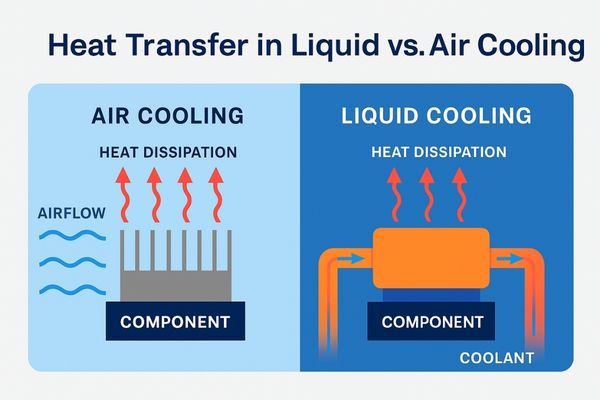

Liquid cooling is far more effective because liquids have a much higher heat capacity and thermal conductivity than air. This means a small volume of coolant can absorb and transport a massive amount of heat away from a component, far surpassing the capability of airflow.
Let's dive deeper into the science behind this. The effectiveness of a cooling system depends on two main properties: heat capacity1 and thermal conductivity2. Heat capacity is the amount of energy a substance can absorb before its temperature rises. Water, a common coolant, can absorb over 3,500 times more heat energy than the same volume of air. Thermal conductivity is how quickly that heat moves through the substance. Again, water is about 24 times more conductive than air.
This massive difference is why liquid cooling is so powerful. A tiny, steady flow of liquid from one of our micro pumps can pull heat away from a CPU or GPU faster than a huge, noisy fan. This efficiency doesn't just improve performance; it completely changes the design possibilities for high-tech equipment.
Key Thermal Properties: Air vs. Water
| Property | Air (at sea level) | Water (liquid) | Advantage |
|---|---|---|---|
| Heat Capacity | ~1.2 kJ/m³K | ~4184 kJ/m³K | ~3500x |
| Thermal Conductivity | ~0.025 W/mK | ~0.6 W/mK | ~24x |
How Do Micro Pumps Enable Compact and Silent System Designs?
Are you trying to fit powerful electronics into a small, quiet space? Bulky heatsinks and loud, high-speed fans often make this impossible, forcing you to compromise on either power or design.

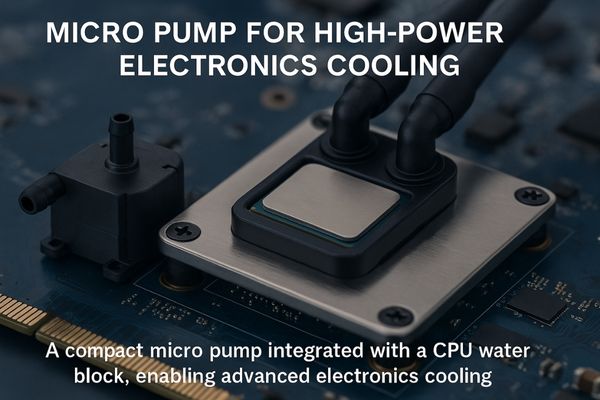

Micro liquid pumps enable compact designs by replacing massive heatsinks with small water blocks and flexible tubing. They operate with almost no noise, allowing even high-performance systems to run silently, something impossible with equivalent air cooling.
The main advantage here is design freedom. With traditional air cooling, a large metal heatsink and fan must be mounted directly onto the hot component. This creates a bulky, heavy, and inflexible design. A liquid cooling system1, powered by a micro pump, decouples these functions. A small, efficient water block sits on the chip, and the heat is transported through thin, flexible tubes to a radiator. This radiator can be placed anywhere in the chassis where there is better airflow. This means you can build smaller, sleeker, and more powerful devices.
Furthermore, the noise level drops dramatically. Instead of a small fan screaming at 5000 RPM, you have a quiet BODENFLO pump2 and large, slow-spinning fans on the radiator. This is essential for applications like medical equipment at a patient's bedside or high-end PCs in a recording studio, where performance cannot come at the cost of noise.
What Pump Specifications are Critical for Optimal Cooling Performance?
Are you unsure which pump to choose for your cooling loop? Selecting a pump with the wrong specifications can lead to poor performance, overheating, or even system failure.
For optimal cooling, the most critical pump specifications are its flow rate, pressure (or head), and voltage range. These determine how much heat the system can move, its ability to handle complex loops, and its compatibility with your device's power supply.
Let's break down why each specification is so important. At BODENFLO, we design pumps to meet a wide range of needs.
Flow Rate
This measures the volume of liquid the pump can move per minute (L/min). A higher flow rate means the coolant circulates faster, carrying heat away from the source more quickly. Our liquid pumps offer flow rates from 0.3 to 1.6 L/min1, covering everything from small, portable devices to demanding high-power systems.
Pressure (Head)
This is the force the pump can exert to push the liquid through the cooling loop. Every component, like a water block or radiator, creates resistance. Higher pressure is needed to maintain a good flow rate in longer, more complex loops. Our pumps provide a pressure range of 0.44 to 3.5 bar2, ensuring reliable performance even in restrictive systems.
Voltage and Power
The pump must match your system's power source. Our pumps operate from 1V to 24V, offering flexibility for both low-power, battery-operated devices and high-performance, wall-powered equipment. Low power consumption is also key to overall system efficiency.
What Key Features Ensure a Micro Pump's Reliability and Longevity?
Are you hesitant about liquid cooling because you're worried about pump failure or leaks? The thought of a malfunctioning cooling system destroying your expensive electronics is a valid concern for many.
A reliable micro pump is built with a long-life brushless motor, chemically resistant materials, and a robust, sealed design. These features ensure thousands of hours of continuous, leak-free operation, protecting your valuable components.
When a pump is tasked with protecting a critical system, reliability is not optional. At BODENFLO, we build this in from the ground up. First, we use brushless DC motors. Unlike older brushed motors, they have no physical contacts that wear out, allowing for lifespans of up to 10,000 hours1 of continuous operation. Second, we choose materials carefully.
The pump's diaphragm and housing must be compatible with the coolants used in these systems, which often contain anti-corrosive and biocide additives. Using materials like EPDM and PPS prevents degradation over time. Finally, our diaphragm pump design is inherently robust and provides excellent sealing.
Our entire manufacturing process is governed by our UKAS ISO9-001:20152 quality management system, ensuring that every pump we ship meets the highest standards for performance and durability. This is how we provide the peace of mind needed to trust a liquid cooling solution.
Which Industries Benefit Most from Micro Liquid Cooling Systems?
Are you designing for a specific industry and hitting thermal limits? Conventional cooling can hold back innovation in specialized fields where reliability and compact design are non-negotiable.
Industries with high power density and strict requirements for size, noise, and reliability benefit most. This includes medical equipment, data centers, automotive applications, and advanced robotics, where performance cannot be compromised by heat.
The need for advanced thermal management cuts across many high-tech fields. We see our pumps being integrated into an increasingly diverse range of applications, each with unique challenges that liquid cooling1 solves perfectly.
- Medical & Beauty: Devices like aesthetic lasers and patient monitoring systems require silent operation and a small footprint. Micro liquid cooling allows for powerful, portable equipment that can be used right at the bedside without disturbing patients.
- Data Centers & HPC: Here, it's all about density. Liquid cooling allows engineers to pack more processing power into a server rack, drastically increasing computational capability while managing the immense heat load efficiently.
- Automotive & Robotics: In electric vehicles and automated factory equipment, critical control units and sensors need reliable cooling in harsh, high-vibration environments. The compact and robust nature of micro pump systems is a perfect fit.
- Laboratory Instruments: Precision is key in scientific analysis. Micro pumps provide stable and exact temperature control for sensitive equipment, ensuring test results are always accurate.
How are Micro Pumps Evolving to Meet Future Cooling Demands?
Worried that today's cooling solutions won't handle tomorrow's technology? As chips get hotter and devices get smaller, the challenge of heat dissipation is only growing, threatening future innovation.
Micro pumps are evolving to be smaller, more efficient, and smarter. Future pumps will feature integrated controls for dynamic speed adjustment, advanced materials for greater longevity, and even lower power consumption to meet the demands of next-generation electronics.
The electronics industry never stands still, and cooling technology must evolve with it. At BODENFLO, our research and development are focused on the key trends that will define the future of thermal management. One major area is miniaturization1. We are constantly pushing to make our pumps smaller and lighter—some models weigh as little as 18g—to enable integration into even more compact devices.
Another crucial evolution is smart control. By incorporating PWM speed control, our pumps can adjust their flow rate in real-time based on the system's thermal load. This optimizes performance when needed and saves power and reduces noise during idle periods. Finally, efficiency is a constant goal. Advances in our brushless motor technology and diaphragm design mean we can deliver more flow and pressure for every watt of power consumed, a critical factor for battery-powered and portable applications.
Conclusion
Micro pumps are essential for modern electronics, enabling liquid cooling systems that are more efficient, compact, and quieter, ultimately unlocking greater performance and safeguarding your valuable high-power components.
👉 At BODENFLO, we specialize in high-performance micro pumps tailored for electronics cooling and OEM integration. If you are looking for a reliable partner for custom liquid cooling solutions, our engineering team is ready to support your project from concept to production.
