Your portable device has a short battery life, or worse, the pump fails to start. You chose a low-current pump, but the system is unreliable, leading to customer complaints and costly redesigns.

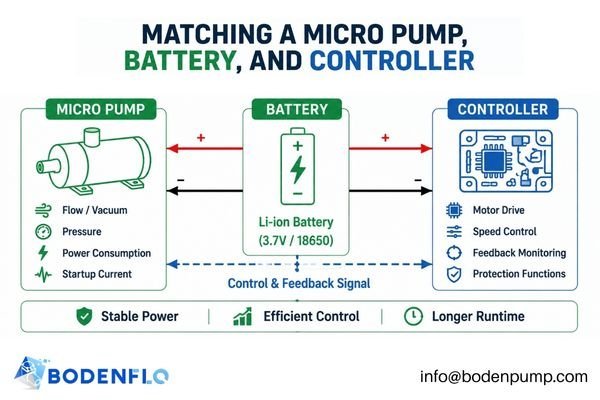

A reliable system requires matching the battery's discharge rate to the pump's startup current and using a controller that manages power efficiently. The pump, battery, and controller must be validated together, not as separate parts.
As a project manager at BODENFLO, I've seen many projects for portable devices get derailed by a poorly matched power system. An engineer specifies a small, energy-efficient micro pump, but then the final product dies after only an hour, or the controller randomly resets when the pump kicks on. They often blame the pump, but the real issue is that the pump, battery, and controller were treated as three separate components. They are not. They form a single, interconnected power system. Getting the synergy right between these three parts is the absolute key to creating a reliable, long-lasting portable pneumatic device.
What Components Are Included in a Battery-Powered Micro Pump System?
You think your system is just a pump and a battery, but it keeps failing. This is because you're missing the critical support components that ensure safe and reliable operation.
A complete battery-powered system includes the micro pump, battery, a controller to manage operations, a driver circuit to power the motor, and protection circuits to prevent damage and ensure safety.
When we design a portable system at BODENFLO, we don't just look at the pump. We look at the entire electrical ecosystem it lives in. A single weak link can bring the whole system down. A basic, robust system always includes these core components working in harmony. The power flows from the battery, but it's managed and regulated at every step to ensure the pump gets the stable power it needs without damaging the battery or the electronics.

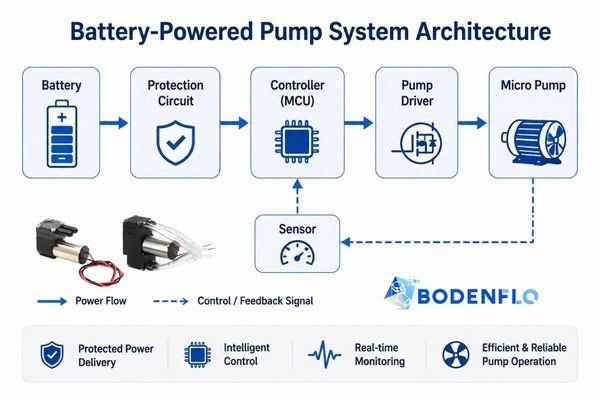

System Architecture:
- Battery: The energy source.
- Protection Circuit: Prevents over-charging, over-discharging, and short circuits. This is vital for battery health and safety.
- Controller (MCU): The "brain" that decides when the pump should run based on logic or sensor input.
- Pump Driver: A dedicated circuit (like an H-bridge or MOSFET) that handles the high current the pump motor needs, protecting the controller from the electrical load.
- Micro Pump: The "muscle" that does the pneumatic work.
- Sensor(s): The "senses" (e.g., a pressure sensor) that provide feedback to the controller.
How Should Engineers Calculate the Power Requirement of a Micro Pump?
Your battery life calculation is wrong, and your device doesn't last as long as promised. This happens when you only use the pump's "rated current" from the datasheet in your calculations.

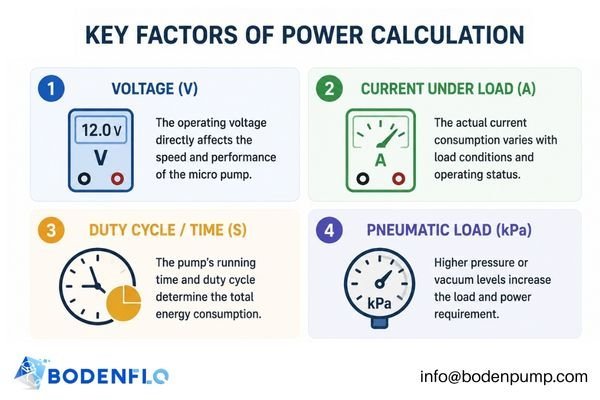

To accurately calculate power requirements, you must consider the pump's voltage, its actual current draw under your specific load (not its free-flow rating), and its duty cycle (how long it's on vs. off).
The datasheet gives you a starting point, but the real world is what matters. The current your pump draws depends heavily on the work it's doing. Pumping against a high pressure or deep vacuum requires more effort and thus more current. Your power budget calculation must reflect this reality. I always advise engineers to measure the current draw in a prototype that simulates the final application's load. This is the only way to get a number you can trust for your battery life calculations. Don't forget to account for peaks, especially the startup current, which can be significantly higher than the running current.
| Parameter | Impact on Power Calculation |
|---|---|
| Voltage | Determines the pump's base speed and power. Must be stable. |
| Current | The main factor in energy consumption. Must be measured under real-world load. |
| Duty Cycle | A pump running 10% of the time uses 90% less energy than one running continuously. |
| Load (Pressure/Vacuum) | Higher load increases current draw and is a critical variable in your calculation. |
How Should Engineers Select the Right Battery for a Micro Pump?
You're trying to choose a battery, but the options are overwhelming. Picking the wrong type can lead to a device that is too big, too heavy, or has insufficient runtime.
Choose a battery by balancing its capacity (mAh) for runtime, its discharge rate ('C' rating) to handle the pump's startup current, and its physical size and weight to fit your portable device.
The battery is the fuel tank for your device. Choosing the right one is a critical trade-off between runtime, power delivery, and physical constraints. While there are many battery chemistries, for most high-performance portable devices, Lithium-Ion (Li-ion) is the standard1. Within Li-ion, the form factor is a key decision. I often see engineers working with these common cylindrical cells.

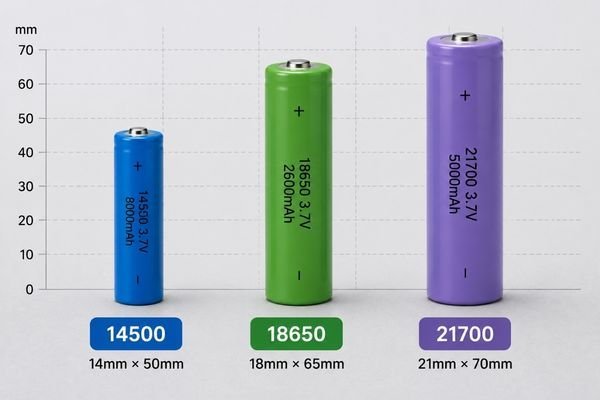

| Battery Type | Key Advantage | Typical Application |
|---|---|---|
| 14500 (AA size) | Very small and compact. | Wearable devices, miniature gas samplers. |
| 18650 | Excellent balance of capacity, power, and size. | Most common choice for portable medical tools, vacuum grippers. |
| 21700 | Higher capacity and discharge rate. | Devices needing very long runtime or powering high-flow pumps. |
Beyond the type, you must verify that the battery's maximum continuous discharge rate can safely provide the current your pump needs, especially during startup. A battery with a low discharge rate might be cheaper, but it will lead to performance problems.
Why Is Startup Current Important When Matching a Battery with a Micro Pump?
Your pump stutters on startup, or worse, it resets your device's controller. This frustrating issue is almost always caused by underestimating the pump's startup current.

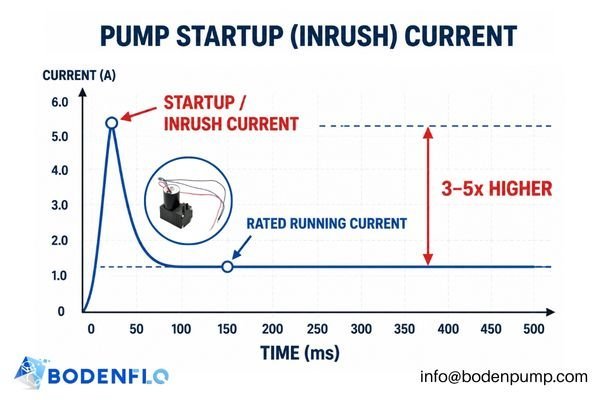

The startup current of a DC motor can be 3 to 5 times its rated running current. If the battery and controller cannot supply this brief surge, the system voltage will collapse, causing the pump to fail or the controller to reset.
This is probably the single most common and most confusing problem I help engineers solve. They look at a pump's datasheet, see a rated current of 500mA, and design their power supply for 500mA. But at the exact moment the pump is switched on, the motor acts like a near-short circuit for a few milliseconds, demanding a huge amount of current (the inrush or startup current) to get moving2. If the battery's internal resistance is too high or the power supply trace is too thin, the voltage plummets. A microcontroller running at 3.3V might see its supply drop to 2.5V for a moment, triggering its brown-out detection and causing a reset. The solution is to ensure your battery has a high enough discharge 'C' rating and to place a sufficiently large capacitor right next to the pump's power input to supply this initial surge.
How Can Engineers Protect the Battery and Micro Pump System?
Your prototype worked, but the battery died after a few weeks, or the pump burned out. This happens when you neglect the essential protection circuits that ensure long-term safety and reliability.
A robust system must include protection circuits for over-charge, over-discharge, over-current, and short-circuits. These circuits shield the battery from damage and protect the pump and controller from dangerous electrical conditions.
Protection circuits are not optional. They are the seatbelts and airbags of your electronic system. For any commercial product, especially a medical device, these are an absolute requirement. Many modern Lithium-Ion batteries come with a built-in Protection Circuit Module (PCM)3, but you need to understand what it does and what it doesn't do.
- Over-Charge Protection: Stops charging when the battery is full to prevent dangerous overheating and damage.
- Over-Discharge Protection: Disconnects the battery from the load when its voltage gets too low. This is critical for extending the battery's cycle life. Draining a Li-ion battery completely can permanently damage it.
- Over-Current Protection: Acts like a fuse, disconnecting the power if the pump draws too much current, for example, if the motor stalls. This protects both the battery and the pump.
- Short-Circuit Protection: Instantly cuts power if a short circuit is detected, preventing a potential fire.
- Temperature Protection: Monitors the battery temperature and can shut down the system if it gets too hot during charging or discharging.
How Should Engineers Control a Micro Pump to Reduce Energy Consumption?
Your pump runs all the time, draining the battery quickly. This brute-force approach is simple to implement but extremely wasteful for a portable device.

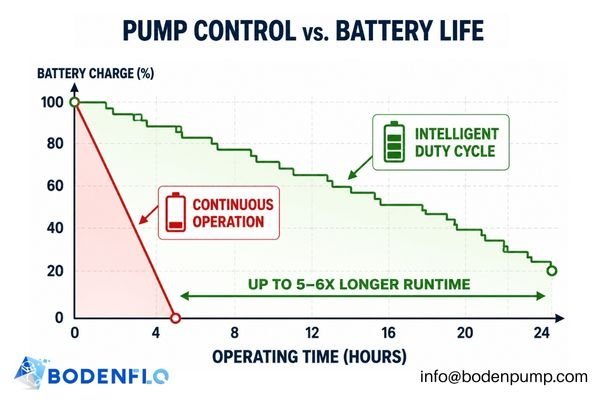

To save energy, use intelligent control strategies. Implement duty cycle control with pressure sensor feedback to run the pump only when necessary, and use PWM speed control to provide only the required flow, not maximum flow.
How you control the pump is just as important as which pump you choose. A smart controller can dramatically extend battery life. The goal is to minimize the amount of time the pump is running and the power it consumes when it is running.
Effective Power Management Strategies:
- Duty Cycle Control: In many applications, like maintaining a vacuum in a sealed container, the pump doesn't need to run 100% of the time. Use a pressure sensor to turn the pump on only when the pressure drifts outside a set window (hysteresis).
- Pressure Feedback: The pump runs until the target pressure/vacuum is reached, then immediately shuts off. This is far more efficient than just running the pump for a fixed amount of time.
- PWM Speed Control4: Instead of running the pump at full speed (100% ON), you can use Pulse-Width Modulation (PWM) to run it at, say, 70% speed. This can significantly reduce power consumption in applications where maximum flow isn't needed.
- System Sleep Mode: The controller itself consumes power. When the device is idle, put the microcontroller into a deep sleep mode where it consumes microamps of current, waiting for a trigger to wake up.
How Should Engineers Validate a Battery-Powered Micro Pump System?
Your design looks good on paper, but you need to prove it works reliably in the real world. Skipping a thorough validation process is a recipe for field failures and unhappy customers.
Validate the entire integrated system, not just the individual components. Perform battery rundown tests to verify runtime, check startup performance under various load conditions, and monitor thermal behavior to ensure nothing overheats.

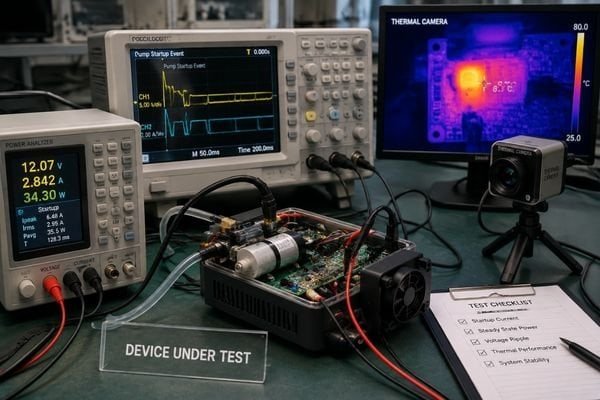

The final step is to prove that your system works as intended. In our test labs, this is a non-negotiable phase. We build the final prototype and subject it to a series of tests that replicate and exceed real-world conditions. This is the only way to find unexpected interactions between the pump, battery, and controller and gain confidence in your design.
Essential Validation Tests:
| Test | Purpose | What to Measure |
|---|---|---|
| Runtime Test | Verify battery life claims. | Charge the battery fully and run the device in its typical use case until the over-discharge protection kicks in. Log the time. |
| Startup Test | Check for voltage drop. | Use an oscilloscope on the power rail to capture the voltage and current during pump startup. Does the voltage droop too much? |
| Thermal Test | Find hot spots. | Run the device continuously inside an enclosure and use a thermal camera or thermocouples to check the temperature of the pump, battery, and controller ICs. |
| Full Load Test | Verify performance. | Run the pump against its maximum expected load and ensure it can perform without overheating or causing a system reset. |
| Cycle Test | Check long-term reliability. | Run the system through thousands of on/off cycles to check for mechanical or electrical wear and tear. |
How Can Engineers Build a Reliable Battery-Powered Micro Pump System?
Building a robust portable pneumatic system requires a holistic approach. The micro pump, battery, and controller must be selected and tested as a unified system, not as separate, independent parts.
BODENFLO provides customized micro pump solutions for battery-powered devices, including micro air pumps, vacuum pumps, pump control solutions, and OEM engineering support. Contact our team at info@bodenpump.com to discuss your project requirements.
-
