How Do You Select the Optimal Micro Vacuum Pump for Battery-Powered NPWT Systems?

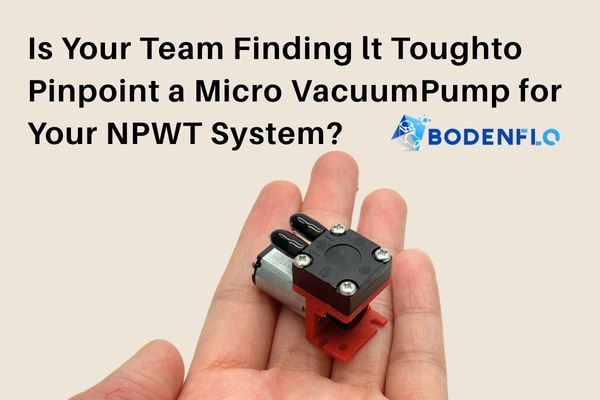

Is your team finding it tough to pinpoint a micro vacuum pump for your NPWT system that truly delivers on power, portability, and patient well-being? Making a less-than-ideal choice here can lead to rapid battery drain and a therapy that doesn't meet expectations.

The best micro vacuum pump for battery-powered NPWT systems needs to blend high efficiency with a small, light design. It must also provide precise vacuum control, operate quietly, and show proven reliability. Often, this means using brushless DC motor technology for longer life and better control.

Here at BODENFLO, as a Project Manager, I've overseen numerous projects involving the development and integration of micro pumps for medical devices, especially portable Negative Pressure Wound Therapy (NPWT) systems. From my vantage point managing these projects, I can tell you that selecting the right micro vacuum pump is a cornerstone of the NPWT system's overall success. I've seen firsthand how specific pump characteristics translate into better patient adherence to therapy, increased mobility, and more effective treatment. Let's go through the critical questions you should be asking.

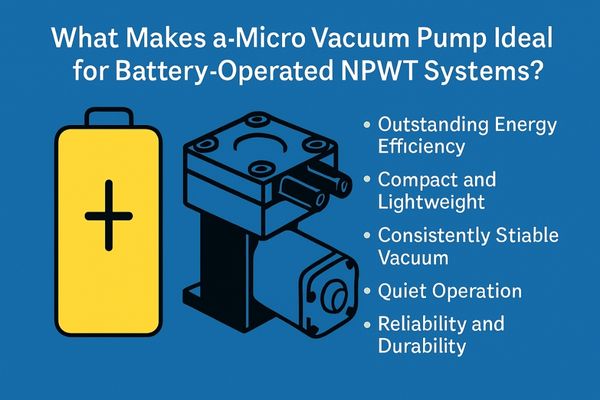

What Makes a Micro Vacuum Pump Ideal for Battery-Operated NPWT Systems?

Is a primary concern for your project how to find a pump that won't quickly exhaust your NPWT device's battery? It's not just about a small physical size; certain performance characteristics are vital for these specialized applications.

A truly ideal pump for battery-operated NPWT will offer outstanding energy efficiency for extended runtimes. It also needs a compact and lightweight form factor for easy portability, and it must generate a consistently stable vacuum for effective therapy.

When we at BODENFLO embark on a new NPWT project with a client, our initial discussions always revolve around a core set of pump characteristics.

• Low Power Consumption¹: This is always at the top of the list. The pump must use minimal current to maximize battery life. This allows patients greater freedom and less frequent charging. Our engineering teams focus heavily on motor efficiency and pump mechanics to achieve this.
• Compact Size & Low Weight²: Wearable or portable NPWT devices naturally demand miniaturization. The pump is often a key component influencing overall device size. I've seen projects where fitting the pump into the desired enclosure was a major milestone.
• Quiet Operation: For any device intended to be worn or used close to a patient for extended periods, low noise levels are essential for comfort and discretion. This influences our motor selection, housing design considerations, and sometimes recommendations for mounting.
• Reliability & Durability: NPWT can sometimes be a long-term treatment. The pump chosen must operate reliably for many hours, often under continuous or frequent intermittent use. We ensure our recommended pumps have undergone rigorous life testing.
• Precise Vacuum Control³: The system must maintain a stable, prescribed negative pressure at the wound site. This is critical for the therapy to work. The pump must respond accurately to the control system's inputs to achieve this.

These elements aren't just nice-to-haves; they are fundamental requirements for a successful battery-operated NPWT system from a project and product perspective.

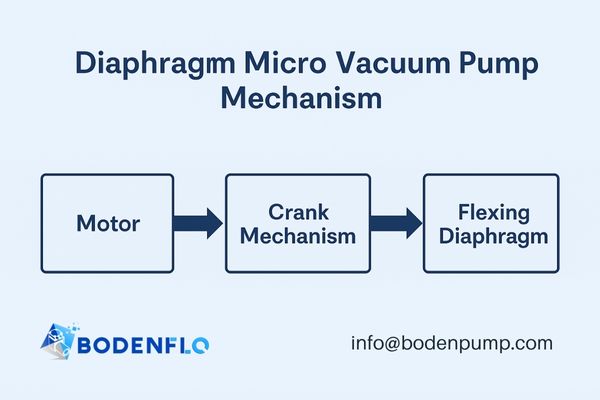

What Type of Micro Vacuum Pump Is Best for Battery-Operated NPWT Devices?

Are you weighing options like diaphragm, rotary vane, or other pump types for your portable NPWT design? It's important to know that the underlying technology choice greatly impacts performance and suitability for battery power.

Generally, diaphragm micro vacuum pumps are the preferred choice for battery-operated NPWT devices. This is because they offer oil-free operation, good efficiency, the ability to generate sufficient vacuum, and they come in relatively compact designs.

From my project management experience here at BODENFLO, diaphragm vacuum pumps have consistently shown themselves to be the most suitable technology for portable NPWT applications. Our clients often select them for these reasons:

• Oil-Free Operation⁴: This is a non-negotiable for medical applications. It prevents any risk of contaminating the wound site or the internal components of the device.
• Efficiency⁵: Modern diaphragm pumps, particularly those our engineers pair with advanced brushless DC motors, deliver excellent efficiency. This is a key factor in extending battery life for portable devices.
• Vacuum Capability⁶: These pumps can reliably achieve the necessary vacuum levels, typically up to around -80 kPa (or -600 mmHg), which is what's needed for effective negative pressure wound therapy.
• Compactness: Our R&D teams at BODENFLO have made significant strides in engineering very small and lightweight diaphragm pump solutions that fit well within the tight constraints of wearable medical devices.
• Controllability: Diaphragm pumps respond very well to speed control adjustments, which allows for precise regulation of the vacuum level by the NPWT device's control system.

While other pump technologies exist, they might present challenges like higher power demands or the risk of particulate generation. For the majority of battery-powered NPWT projects we handle, our advanced diaphragm pump series at BODENFLO provide the best overall balance of critical features. I recall one project where a client switched to one of our optimized diaphragm pumps, and it resulted in a nearly one-third increase in their device's battery duration, a significant win for their product.

How Do You Choose a Micro Pump for Portable Wound Therapy Systems?

Do you find yourself looking through many datasheets while trying to pick a micro pump for your portable wound therapy system? Taking a structured approach can help you narrow down the choices to find the ideal match for your project requirements.

You should begin by clearly defining the critical performance parameters. These include the required vacuum level, necessary flow rate, limits on power consumption, maximum acceptable noise level, target operational lifespan, and material compatibility. Then, you match these defined needs against pump specifications.

Selecting the right micro pump for a portable wound therapy system is a detailed process. At BODENFLO, when a client, perhaps a product designer like Jacky, outlines their project needs, we guide them through these key considerations to ensure a good fit:

1. Target Vacuum Level⁷: What specific negative pressure (e.g., -125 mmHg or -16.7 kPa) does the therapy protocol demand? The pump must reliably achieve and maintain this setpoint.
2. Flow Rate⁸: What air flow rate is needed to quickly establish and then maintain the vacuum, especially considering potential leaks in the wound dressing? This can be a dynamic need.
3. Power Budget: What is the maximum allowable power consumption to meet the desired battery life targets for the device? This often steers the choice towards specific motor types, like brushless DC.
4. Noise Specification: What is the maximum acceptable noise level (in dB) for patient comfort and discretion? We can provide detailed noise performance data for our pumps.
5. Operational Lifespan⁹: How many hours of continuous or intermittent operation is the device designed for over its lifetime? This influences recommendations for pump models built for durability.
6. Size and Weight Constraints: What are the maximum physical dimensions and weight for the pump to fit within the portable device's design?
7. Wetted Materials (if applicable): While the pump usually handles air, if there's any possibility of fluid or exudate contact, material biocompatibility becomes a critical factor. Most NPWT systems incorporate filters upstream of the pump.
8. Certifications: Does the pump manufacturer (like BODENFLO) hold relevant quality certifications, such as ISO 13485, for medical device components?

Carefully evaluating each of these points helps ensure the selected pump will perform as expected within the specific NPWT system.

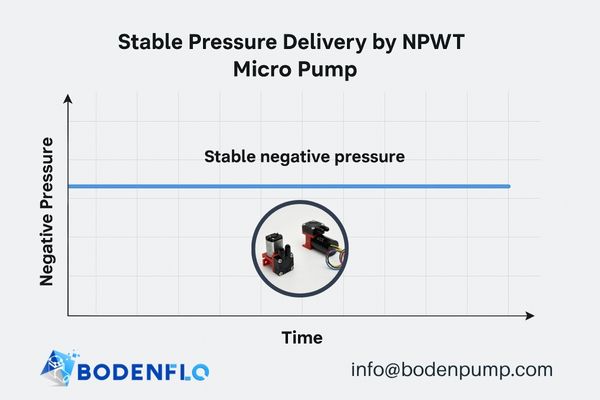

Can a Battery-Powered Micro Pump Deliver Stable Pressure for NPWT?

Are you concerned that a small, battery-powered micro pump might not be able to maintain the consistent negative pressure that is so important for effective wound healing? I can assure you that modern pump technology is capable of delivering this stability.

Yes, well-designed battery-powered micro vacuum pumps can deliver highly stable and precise negative pressure for NPWT. This is particularly true for pumps that use brushless DC motors and are integrated with good control electronics or receive feedback from external sensors.

Maintaining a stable negative pressure¹⁰ is a fundamental requirement for NPWT. Any significant fluctuations can hinder the healing process or cause discomfort for the patient. At BODENFLO, we've dedicated significant engineering effort to ensure our micro vacuum pumps can achieve this level of stability, even when operating on battery power.

• Brushless DC Motors (BLDC)¹¹: These motors offer excellent speed control. By precisely adjusting the motor speed, the pump's output can be finely tuned to maintain the target vacuum level. This is a key feature of many BODENFLO pumps.
• Sensor Feedback Loops¹²: Most advanced NPWT systems use a pressure sensor located near the wound site. This sensor provides real-time feedback to the device's microcontroller. The controller then adjusts the pump speed (often using a PWM signal) to correct any deviations from the desired pressure. Our pumps are designed to respond quickly to these control signals.
• Optimized Pump Head Design: The internal design of the pump head, including aspects like diaphragm stroke and valve configuration, is optimized by our engineers for consistent performance across its intended operating range.
• Leak Compensation: A responsive pump, when combined with intelligent system software, can increase its speed to compensate for minor leaks that might occur in the wound dressing, thus helping to maintain the therapeutic pressure.

I've reviewed project test data many times where our BODENFLO pumps for NPWT applications maintain pressure well within +/- 5 mmHg of the setpoint. This precision is well within clinical requirements and is definitely achievable.

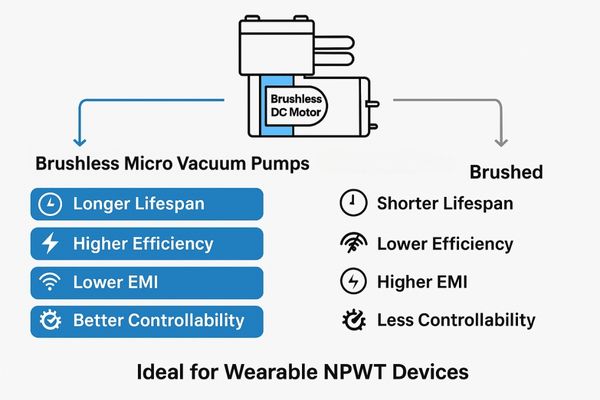

Why Are Brushless Micro Vacuum Pumps Ideal for Wearable NPWT Devices?

When you're considering different motor types for your wearable NPWT device, do you wonder why brushless pumps are so frequently recommended by pump specialists? The advantages extend well beyond just improving battery life.

Brushless micro vacuum pumps are considered ideal for wearable NPWT devices. This is because they offer a longer operational lifespan, higher efficiency (which is critical for battery-powered devices), lower electromagnetic interference (EMI), and much better controllability when compared to older brushed motor technologies.

For wearable NPWT devices, the choice of motor within the micro vacuum pump is a crucial design decision that impacts many aspects of the final product. At BODENFLO, we almost exclusively recommend brushless DC (BLDC) motors for these demanding applications. Here’s a comparison:

While the initial component cost of a BLDC pump might be slightly more than a brushed version, the long-term benefits in device longevity, battery performance, and overall user experience for wearable NPWT systems are very compelling. We've helped many clients at BODENFLO develop more compact, reliable, and user-friendly devices by guiding them to our BLDC pump solutions.

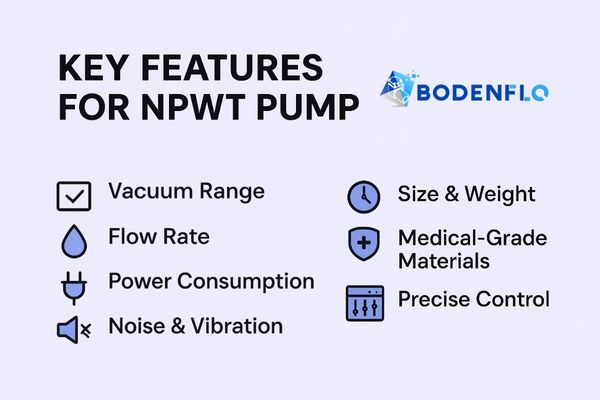

What Are the Key Features to Look for in a Micro Pump for NPWT?

Are you trying to put together a definitive checklist of features that your micro pump absolutely must have for an NPWT application? It really comes down to making sure all the critical performance and safety aspects are properly addressed.

The key features to look for include an appropriate vacuum range and flow rate for the therapy. Also vital are low power consumption, minimal noise and vibration levels, a compact physical size, a long operational life, considerations for medical-grade materials, and reliable, precise control capabilities.

When our project teams at BODENFLO consult with clients on NPWT applications, we always emphasize a comprehensive set of features. You can think of this as building the ideal functional profile for the pump that will go into your device:

• Vacuum Range¹³: The pump must be capable of achieving and stably maintaining clinically relevant negative pressures. This typically falls between -50 mmHg and -200 mmHg (which is about -6.7 kPa to -26.7 kPa).
• Flow Rate: It needs to provide sufficient flow to quickly establish the vacuum and manage any small leaks that might occur. For NPWT, this is often in the range of 0.5 to 5 liters per minute (LPM), depending on the specific dressing size and system design.
• Power Consumption¹⁴: This needs to be as low as possible, especially for battery-operated devices. A good target might be less than 2 Watts at the typical operating point.
• Noise Level: Aiming for below 45 dBA at a distance of 1 meter is a good goal for patient comfort, though even lower is always better. We can provide specific noise data for BODENFLO pumps.
• Size & Weight: These should be minimized to support portability and wearability. For example, a pump under 100 grams and fitting within a compact envelope is often desired.
• Lifespan: The pump should be rated for thousands of hours of operation (e.g., over 10,000 hours for our BLDC models) to match the expected life of the medical device.
• Motor Type: Brushless DC (BLDC) motors are highly preferred due to their efficiency, long life, and excellent controllability.
• Control Interface: The pump should be compatible with standard control methods like PWM (Pulse Width Modulation) or analog voltage for easy speed adjustment by the device's main controller.
• Certifications/Compliance¹⁵: It's important that the pump manufacturer, like BODENFLO, adheres to quality standards such as ISO 13485 for medical device components. Material compliance (e.g., RoHS, REACH) is also a key consideration.

Ensuring your chosen pump meets these criteria will greatly increase the chances of a successful and effective NPWT device design.

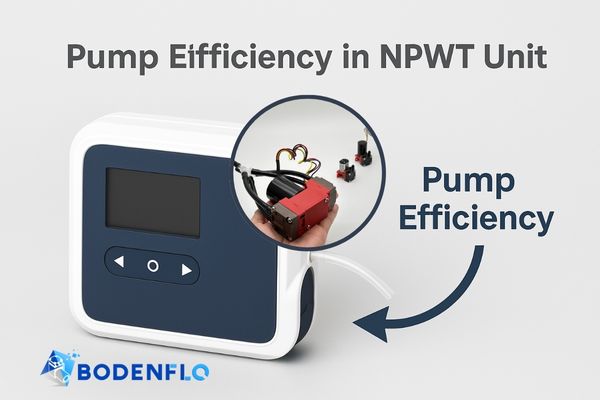

How Does a Micro Vacuum Pump Improve Efficiency in Portable NPWT Units?

Are you thinking that efficiency only relates to the pump's direct power draw? Actually, a well-chosen micro vacuum pump contributes to the overall efficiency of portable NPWT units in several important ways.

A highly efficient micro vacuum pump directly helps to extend the battery life of the device. It also allows for more compact overall device designs, contributes to the consistent application of therapy for potentially better healing outcomes, and can reduce the thermal load within the device itself.

The positive impact of a micro vacuum pump's efficiency goes well beyond just its own power consumption figures in portable NPWT units. From our project management perspective at BODENFLO, we see these interconnected benefits for our clients' devices:

1. Extended Battery Life (The Obvious Win)¹⁶: This is the most direct benefit. A pump that uses less power means the NPWT device can operate longer on a single battery charge. Alternatively, it can allow for a smaller, lighter battery to be used while achieving the same runtime. This directly enhances patient mobility and convenience.
2. Reduced Thermal Management Needs¹⁷: More efficient pumps generate less waste heat. In a compact, often sealed, NPWT device, managing internal heat can be a significant design challenge. A cooler-running pump simplifies the thermal design and can also improve the longevity of other sensitive electronic components within the device. I've seen projects where a less efficient pump necessitated adding a heatsink or even a small fan, which adds complexity, cost, and more power draw.
3. Smaller Overall Device Size: Higher pump efficiency can sometimes mean that a smaller motor or a more compact pump head design is sufficient to achieve the required performance. This directly contributes to the critical goal of miniaturization for portable and wearable NPWT systems.
4. Consistent Therapeutic Pressure Delivery¹⁸: An efficient pump that can respond quickly and maintain a stable vacuum ensures that the prescribed therapy is delivered consistently to the wound. This, in turn, can lead to more efficient wound healing processes and potentially shorter overall therapy durations for the patient.
5. Optimized System Performance: When the pump performs its primary task efficiently, the main control system of the NPWT device doesn't have to work as hard to manage it. This can potentially save processing power and further contribute to overall battery savings.

So, when you are selecting a pump, its efficiency rating should be seen as a critical factor that multiplies benefits across the overall effectiveness, design, and usability of the portable NPWT unit.

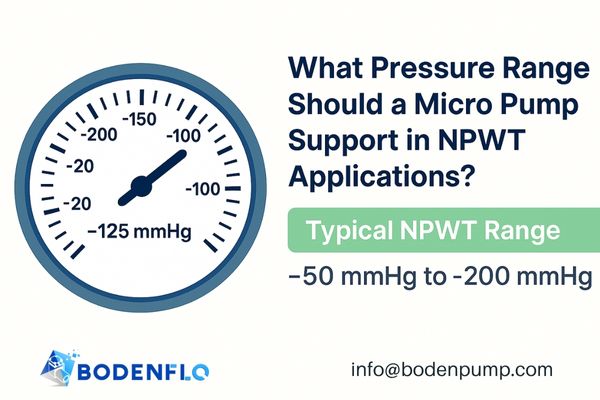

What Pressure Range Should a Micro Pump Support in NPWT Applications?

Are you uncertain about the specific negative pressure values that your micro pump needs to achieve and maintain for NPWT? This range is defined by clinical needs and must be a key part of your pump selection specifications.

A micro pump intended for NPWT applications should typically be able to support a controllable negative pressure range from approximately -50 mmHg to -200 mmHg. This range (which is about -6.7 kPa to -26.7 kPa) covers most standard therapeutic protocols for wound healing.

The therapeutic window for Negative Pressure Wound Therapy is quite well-defined by clinical practice. At BODENFLO, our pumps that are targeted for NPWT applications are carefully designed and rigorously tested to operate effectively and reliably within these established ranges.

• Typical Therapeutic Range: Most NPWT protocols specify the use of continuous or intermittent negative pressure that falls somewhere between -75 mmHg and -150 mmHg. A very common target pressure setting is -125 mmHg.
• Lower End of the Range (-50 mmHg to -75 mmHg): These lower pressures might be used for wounds that are particularly fragile, or when initiating therapy on a new wound, or for patients who have specific sensitivities.
• Higher End of the Range (-150 mmHg to -200 mmHg): These higher negative pressures may be employed for wounds that produce very high levels of exudate or for certain specific types of wounds. However, pressures beyond -200 mmHg are rarely indicated and can carry a risk of causing tissue damage.
• Pump Capability & Control: Therefore, the micro vacuum pump selected must not only be capable of reaching these pressure levels but also be precisely controllable across this entire range. This allows clinicians to set the exact pressure level that is needed for each individual patient and wound type.
• Safety and Performance Margins: As a standard practice at BODENFLO, we typically design our pumps to have some performance headroom. This means they can often achieve vacuum levels slightly beyond the maximum therapeutic requirement. This ensures consistent performance even if there are minor variations in the system or small leaks.

For instance, a common specification we receive from NPWT device manufacturers is the ability for the system to maintain -125 mmHg with a tolerance of ±10 mmHg. The pump must be selected to confidently meet this requirement with high reliability over the device's lifespan.

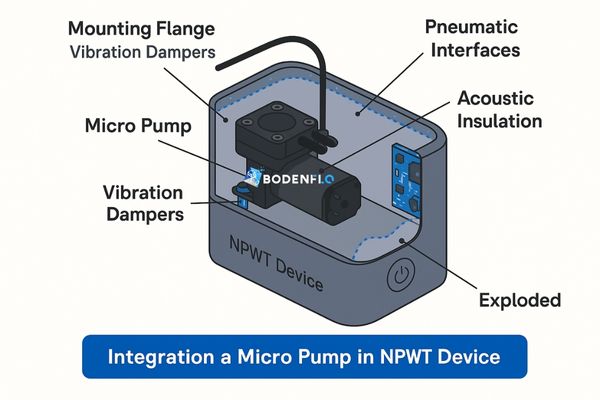

How Can OEMs Integrate Micro Pumps into Battery-Powered Wound Therapy Devices?

Are you an OEM facing the technical challenges of smoothly integrating a micro pump into your compact, battery-powered wound therapy device? Successful integration requires careful attention to mechanical, electrical, and acoustic details.

OEMs should focus on secure mounting methods that include vibration damping. They also need to ensure efficient power delivery and control (often using PWM). Proper pneumatic connections are vital, and potentially, acoustic shielding may be needed to seamlessly integrate micro pumps.

Integrating a micro vacuum pump into a battery-powered NPWT device is a critical engineering step for Original Equipment Manufacturers (OEMs). At BODENFLO, we often provide application support and advice to our clients in this area.

• Mechanical Mounting:
  • The pump needs a stable and secure mounting point within the device housing. Many of our BODENFLO pump models come with built-in mounting flanges or threaded holes to facilitate this.
  • Vibration damping is extremely important. Using elastomeric grommets, specialized soft mounting brackets, or other damping materials can effectively isolate pump vibrations from the device casing. This significantly reduces transmitted noise and improves user comfort. I've seen projects where simple, well-chosen grommets made a remarkable difference in perceived sound.
• Pneumatic Connections:
  • It's essential to ensure airtight connections between the pump's inlet/outlet ports, any filters, pressure sensors, and the tubing that leads to the wound dressing. Barbed fittings are commonly used for flexible medical tubing.
  • OEMs should also consider the internal diameter of all tubing and connectors to minimize any undue flow restriction, which could make the pump work harder.
• Electrical Interface & Control:
  • The pump must be provided with clean, stable power according to its specified voltage and current requirements.
  • Precise speed control needs to be implemented, typically via a PWM (Pulse Width Modulation) signal from the device's main microcontroller to the brushless pump's integrated driver electronics. We provide detailed electrical interface specifications for all our pumps.
• Acoustic Management:
  • Beyond just vibration damping at the mounting points, the internal layout and design of the device casing can influence the overall noise profile. Avoiding large, resonant cavities and sometimes strategically using acoustic foam can further reduce the perceived noise levels for the patient.
• Thermal Management:
  • OEMs should ensure there is adequate airflow or heat dissipation pathways if the pump is located in a tightly enclosed space, although highly efficient pumps (like many in the BODENFLO range) generate less waste heat, simplifying this aspect.
• Serviceability (if relevant):
  • While our high-lifespan BLDC pumps are designed for longevity, if there's any potential need for pump replacement during the device's service life, designers should consider ease of access.

Close collaboration between the NPWT device OEM and the pump manufacturer (like us here at BODENFLO) right from the early design phase can proactively address these integration challenges and lead to a more optimized final product.

Conclusion

Selecting the best micro vacuum pump for your battery-powered NPWT project means carefully matching low power use, compact size, precise control, and quiet operation to your specific device and therapy requirements.
At BODENFLO, we specialize in helping OEMs select and customize micro vacuum pumps tailored for NPWT applications. Contact our technical team at info@bodenpump.com to discuss your project needs.
