80 LPM Air Flow Low Power
Mini Compressor Air Vacuum Pump

Manufacturer in China

Over 15 years of experience in manufacturing and production of miniature pumps. Specialized in manufacturing air suction pump.Product features are oil-free, small size, light weight, maintenance-free, corrosion-resistant, etc.

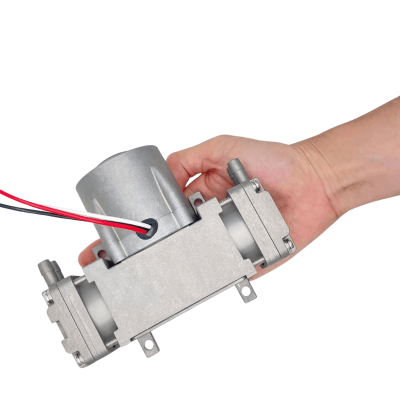

Miniature compressor Pumps small size 80lpm

24V DC, 80LPM, 7Bar, -85kpa, 132 x 87.5 x 52 mm, 830g

Quality micro Air & Vacuum Pumps

What can you get? When you buy a sample.

BODENFLO owns the intellectual property rights to develop and design its own 80 LPM high-flow miniature air pumps and is committed to continuously provide users with competitive small miniature air pumps.

Premium Edition

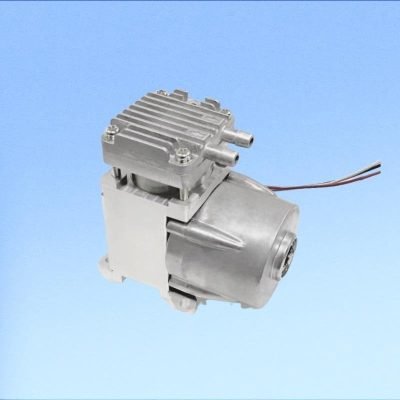

mini compressor vacuum pump

BD-08AB-S/BD-08VB-S

Voltage: 24V DC; 3A

Brushless motor-Long life

Standard parameters

100*67.4*97mm 690g

Model
Use for Pressure
Use For Vacuum
BD-08AB-S DC 24V
Max Pressure 6 bar, Max Flow 45L/min; Brushless motor; 5000 hours lifetime
/
BD-08VB-S DC 24V
/
Max Vacuum -85kpa, Max Flow 40L/min; Brushless motor; 5000 hours lifetime
mini compressor for air and vacuum

BD-08AB-D/BD-08VB-D

Voltage: 24V DC; 4.5A

BLDC, PWM function; Continuous work

Standard parameters

131 x 64 x 106.5 mm  803g

Model
Use for Pressure
Use For Vacuum
BD-08AB-D DC 24V
Max Pressure 7 bar, Max Flow 80L/min; Brushless motor; 5000 hours lifetime
/
BD-08VB-D DC 24V
/
Max Vacuum -85kpa, Max Flow 70L/min; Brushless motor; 5000 hours lifetime

General version

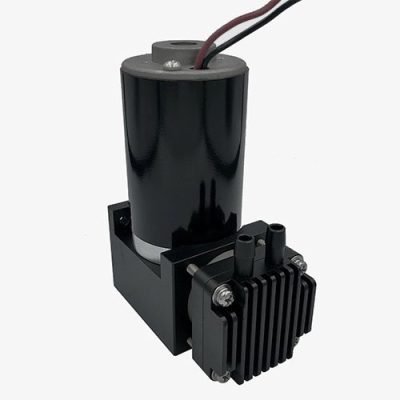

mini air compressor

BD-08A-S/BD-08V-S

Voltage: 24V DC; 3A

Brush motor-Small Size

Standard parameters

145 x 67.4 x 97 mm 1kg

Model
Use for Pressure
Use For Vacuum
BD-08A-S DC 24V
Max Pressure 6 bar, Max Flow 50L/min; Brush motor; 1000 hours lifetime
/
BD-08V-S DC 24V
/
Max Vacuum -85kpa, Max Flow 40L/min; Brush motor; 1000 hours lifetime
Double head Vacuum compressor

BD-08A-D/BD-08V-D

Voltage: 24V DC; 5A

High flow-Intermittent work

Standard parameters

150 x 52 x 131 mm 1.18KG

Model
Use for Pressure
Use For Vacuum
BD-08A-D DC 24V
Max Pressure 7 bar, Max Flow 80L/min; Brush motor; 1000 hours lifetime
/
BD-08V-D DC 24V
/
Max Vacuum -85kpa, Max Flow 70L/min; Brush motor; 1000 hours lifetime

BD-08 series is the smallest size and lightest weight high performance 80L mini compressor on the market. It can be used for  pressure up to 7 bar and vacuum up to -85 kpa, also in the field of miniature pumps.

The BD-08 series is exclusively designed, developed, produced and sold by BODENFLO.
This is a product that can bring you core competence, contact us now.

Learn more product details

With the further requirements of various industries on the miniaturization of air suction pump, air pumps, oilless vacuum pumps, compressors, non-polluting working medium and other characteristics, compact size, oil-free and maintenance-free, low noise, environmental protection and energy-saving micro-miniature class of pumps and compressors are more and more widely used.

BD-08 Spec -PDF File

Advantages

>Product name: Mini compressor, small piston pump, micro air pump, micro vacuum pump, air suction pump

>Principle: displacement pump
>Movement: Piston reciprocating type
>Pump head type: double head

Dimension Compariso

Model: BD-08AB-D/BD-08VB-D

Super small size Air Vacuum Pump

Model: BD-08AB-D/BD-08VB-D

Micro piston pump, refers to the oil-free, small size of the miniature air pump, vacuum pump, compressor, air suction pump, mainly single-headed and double-headed style. The single-headed style has one inlet and one outlet pumping nozzle and one exhaust nozzle, and the double-headed style has one inlet and one outlet pumping nozzle and two exhaust nozzles, and can continuously form a vacuum or negative pressure at the inlet; the working medium is mainly gas, a small size of the instrument.

The basic principle is: miniature piston pump through the cylinder in the fixed crank drive piston to achieve volume changes, that is, the air in the pump cavity compression, stretching, so as to form a large flow of vacuum (negative pressure) and positive pressure.

Trusted By Our Partners

Foxconn company logo
Mindray
Top Creating banner logo
Amway company logo

Manufacturing Process

We have strict quality inspection standards and take every order and every product seriously.

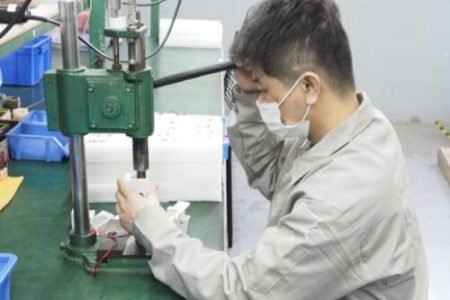

pump housings factory

Assembly & Crimping

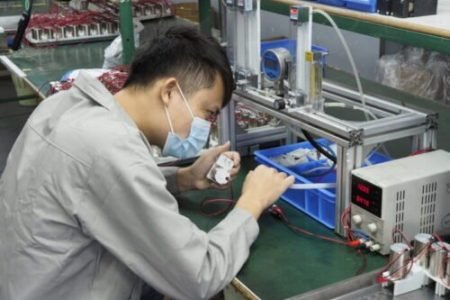

producing a miniature pump

Testing & Inspection

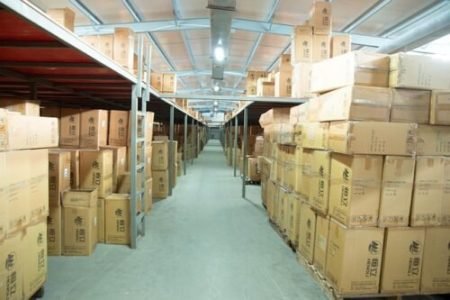

Micro Diaphragm Pump factory

Label & Packaging

Product certification

ISO 9001 English
EMC证书-博登科技_00
EMC证书-博登科技_00
07A博登 RoHS证书_00
博登 RoHS证书_00

Typical Applications

Automotive

micro air pump for car

high flow brake pumps – using vacuum (negative pressure)

high pressure high flow compressor / urea pump – using positive pressure

Instrument and tool field

micro air pump for lab

using positive pressure

using negative pressure (vacuum)

using negative pressure (vacuum)

Medical rehabilitation field

micro air pump for oxygen

using 5 bar positive pressure

using positive pressure

using positive and negative pressure

3 STEP TO GET BODEN PUMPS DONE

1

2

3

browse & quote

choose your micro pump model above, get a consultation and receive a quote fast

Sample

request a fully production-grade sample for testing before placing full order.

order&ship

place production order then sit back, relax and allow us take of the rest.

Or call: 86-13723743155

Low MOQ

Avoid inventory space and budget increases by ordering a minimum of 10-100 units to take advantage of our cost effective unlimited premium customization.

Form and construction design

Meticulously designed by our engineers to suit your pressure and flow requirements, specifically tailored to your brand.

Professional services

Professional business and technical teams follow up and create exclusive files for each customer to meet the standards provided by the customer before mass production.

Flexible customisation

With our excellent R&D and production capabilities, we can deliver cost effective and advantageous customised solutions to our customers.

Limitless options

A wide range of parameters, pressure options, from diaphragm materials, motor styles and sizes to special designs such as PTFE and FKM, brushed and brushless motors, high flow rates, etc., offer endless design possibilities.

Factory direct sales

High-end R&D and multiple production lines with unlimited R&D strength, parameter selection and product production capacity to provide you with an all-round quality purchasing experience.

Dedicated Support

One-on-one support by our senior product specialist. From consultation, design, to production and logistics.

Why Choose BODEN PUMP?
OLYMPUS DIGITAL CAMERA
Our beginning
Brand News

Shenzhen Boden Technology Development Co., Ltd.(Brand: BODENFLO) were founded in 2003 on three principles – quality, integrity and personal service – and our growth is directly attributable to hands-on management, innovative technology and good old-fashioned hard work.

From our humble beginnings in a small shop in Shenzhen to operating in an area of over 1000 square metres, BODENFLO has grown with one goal in mind: to manufacture and sell the best miniature pumps.

Our space is not large, but excellent management has made BODENFLO one of the country’s leading and most respected manufacturers of fine, custom-designed miniature air & vacuum pumps.

Now we have implemented comprehensive quality management and have passed ISO9001, ROHS, CE and other certifications.BODENFLO sincerely hopes to go forward hand in hand with customers and friends to create good results.

BD-08 Series FAQ

  • BD-08 series is divided into 2 versions, Premium Edition (brushless motor version) and General Edition (brush motor version).
    The brush motor version has a lifetime of 1000 hours and the brushless motor (BLDC) version has a lifetime of 5000 hours.
  • BD-08 series models are divided into air pump (inflation) and vacuum pump (suction). For example, “BD-08AB-D”, “A” stands for air pump, “B” stands for brushless motor, “D ” stands for double head.
  • Because of the small size of BD-08 series, but high flow rate and high pressure, they are often used in the automotive industry. So it is also called small compressor for air and vacuum.

Brushless motor version model.

BD-08AB-S

BD-08 brushless single-head compressor for air (mini air pump), for inflation, pressurization.

BD-08AB-D

BD-08 brushless double-head compressor for air (mini air pump), for inflating, compressing air.

BD-08VB-S

BD-08 brushless single-head compressor for vacuum (mini vacuum pump), for pumping, suction.

BD-08VB-D

BD-08 brushless double-head compressor for vacuum (mini vacuum pump),for pumping,negative pressure,evacuating.

Brush motor version Model.

BD-08A-S

BD-08 brushed single-head compressor for air (miniature air pump), for Aerating, pressurizing.

BD-08A-D

BD-08 brushed double-head compressor for air (mini air pump), for inflation, compressing air.

BD-08V-S

BD-08 brushed single-head compressor for vacuum (mini vacuum pump), for pumping, suction air.

BD-08V-D

BD-08 brushed double-head compressor for vacuum (mini vacuum pump),for pumping,negative pressure,evacuating.

BD-08 brushless version

  •  PWM-Speed control function
    1,PWM frequency: 1KHz-5KHz, the motor driver board can automatically identify, the main control board can choose a fixed frequency in this range. Recommended to use 1KHz (most commonly used). 2,PWM amplitude: 5V, or no amplitude (OC gate output, note that the duty cycle logic is opposite). 3,PWM duty cycle: active high. 17% duty cycle – start, 5% duty cycle – stop, 100% duty cycle – corresponding to the highest speed
  • FG – speed feedback signal line
  • Other

Low parameters are available, high parameters are not.

The brushless version is in stock.

T/T bank payment; Paypal, etc.

More Choose
