How Can You Master Flow and Speed Control in Electric Mini Pumps?

Struggling to fine-tune your mini pump's flow? You are not alone. Precise control boosts performance and extends lifespan.

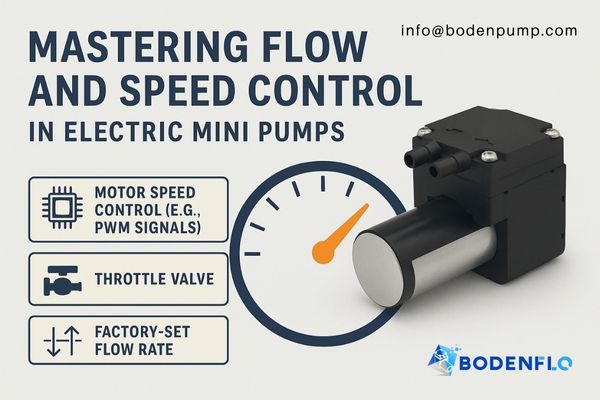

Mastering flow and speed control involves selecting the right method for your application. Options include adjusting motor speed via built-in controls or PWM signals, using throttle valves, or choosing pumps with factory-set flow rates. Each offers unique advantages.

Transition Paragraph:
I have learned a thing or two about flow control over the years. In fact, a R&D director with 15 years of engineering experience once told me that flow control is very friendly to miniature diaphragm pumps and can extend the service life, especially suitable for precision equipment. It's key to know the best way to achieve that control. So, let’s dive into the details of mastering flow and speed control in electric mini pumps.

What Is the Most Efficient Method of Flow Control in a Pumping System?

Which method gives you the best control with the least hassle? The answer depends on your needs.

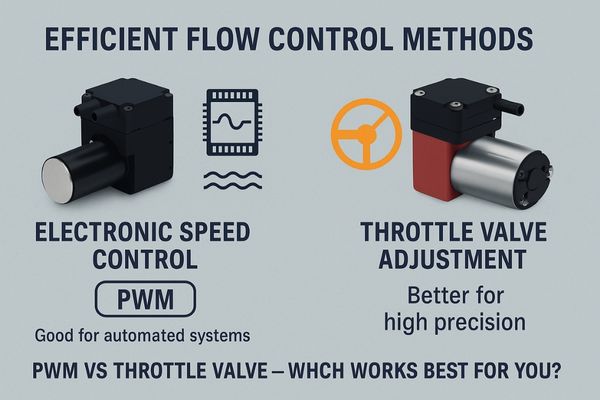

The most efficient method depends on the application. For automated systems, electronic speed control is efficient. For high precision and low pulsation, throttle valves are often preferred, although they may require more manual adjustment.

Electronic speed control¹, like PWM, is excellent for automated systems because it allows dynamic adjustments via control signals. There is no need for manual tweaks. However, for applications demanding high precision and minimal pulsation, throttle valves² might be a better choice. Though they often require more manual adjustments, the level of fine-tuning they offer can be essential. I was once working on a project where we needed to integrate a pump into a fully automated system. We opted for a pump with PWM control³, which allowed us to adjust the flow based on real-time data from sensors. It eliminated the need for manual intervention and optimized the system's performance. Selecting the right method depends heavily on the specifics of your application, balancing automation, precision, and ease of use.

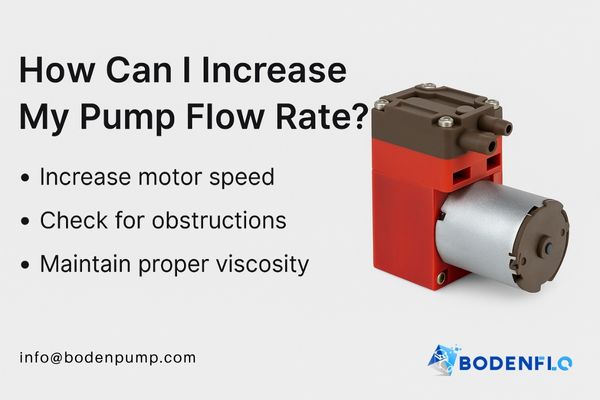

How Can I Increase My Pump Flow Rate?

Need a bigger output from your pump? It might be easier than you think to achieve.

To increase pump flow rate, increase the motor speed if your pump has speed control features. Also, ensure that there are no obstructions in the pump's inlet or outlet lines and that the fluid viscosity is within the pump's specified range.

First, check if your pump has speed control features. If it does, increasing the motor speed is often the easiest way to boost the flow rate. Ensure there are no blockages or constrictions in the inlet or outlet lines. Obstructions can significantly reduce the flow. Viscosity plays a crucial role, and using a fluid outside the pump's specified viscosity range can hinder performance. I once had a project where the flow rate was lower than expected. It turned out that the technician used a thicker fluid than what the pump was designed for. Once we switched to the correct fluid, the flow rate went back to normal. Flow rate is tied to motor speed. So, optimizing these factors can often lead to significant improvements.

How Do You Control the Speed of a Pump?

What are the common ways to adjust a pump's speed, and what do they involve?

Pump speed is commonly controlled through electronic methods like PWM (Pulse Width Modulation), frequency control, or adjusting the supply voltage. Some pumps also offer manual control through knobs or touch screens.

Electronic methods are the most common. PWM involves varying the width of the electrical pulse sent to the motor, effectively controlling its speed. Frequency control⁴ adjusts the frequency of the power supply, which directly impacts the motor's RPM. Adjusting the supply voltage is another way to control speed, mainly in pumps with brush motors. I have seen other pumps with manual controls⁵. Knobs and touch screens allow for real-time adjustments, providing a hands-on approach. Each method offers different levels of precision and convenience, so selecting the right one depends on your application's requirements.

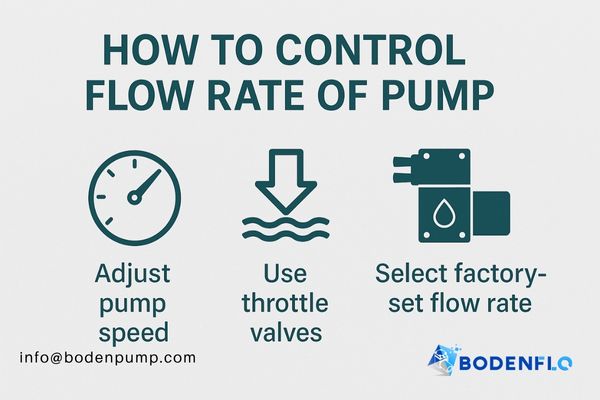

How to Control Flow Rate of Pump?

Besides speed, what other factors can you manipulate to manage flow?

You can control the flow rate of a pump by adjusting the pump's speed, using throttle valves to restrict flow, or selecting a pump with a specific factory-set flow rate tailored to your needs.

Adjusting pump speed⁶, as discussed, is a direct way to manage flow. Using throttle valves introduces a physical restriction, allowing you to fine-tune the flow by varying the valve opening. You can also opt for a pump with a factory-set flow rate⁷. This is useful when you need a specific flow rate. I once consulted on a project where the client needed a consistent flow rate for a chemical dosing system⁸. They chose a pump with a factory-set flow rate because it provided the reliability they needed without the hassle of constant adjustments. This is a practical solution when consistent flow is critical.

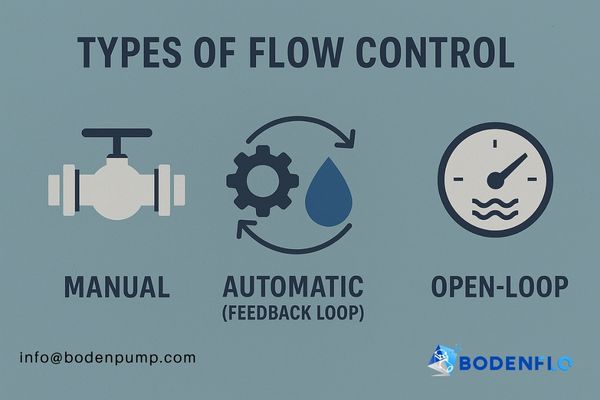

What Are the Three Types of Flow Control?

Can flow control be categorized? Yes, and understanding these categories helps.

The three main types of flow control are manual, automatic (feedback control), and open-loop control. Manual control involves direct human adjustment. Automatic control uses sensors and feedback loops. Open-loop control relies on pre-set parameters without feedback.

Manual flow control involves direct human adjustment of valves or pump speed. Automatic flow control uses sensors to monitor flow and adjust pump speed or valve position via a feedback loop, maintaining a set flow rate. Open-loop control relies on pre-set parameters without feedback, which is simpler but less adaptive. I was part of a project involving a complex water purification system. It used automatic flow control with feedback loops to maintain optimal performance. The system continuously monitored flow rates, adjusting pump speeds to compensate for variations in water quality and demand. This level of automation ensured consistent and efficient purification.

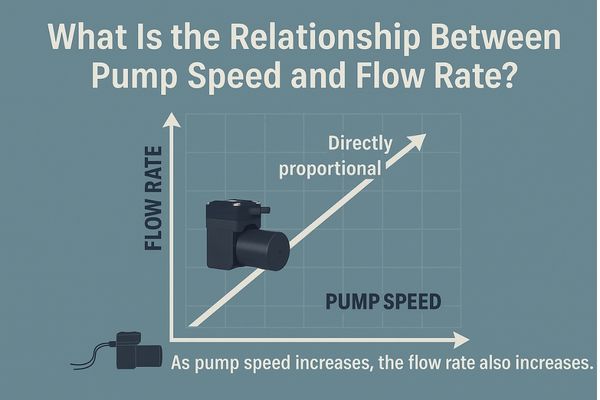

What Is the Relationship Between Pump Speed and Flow Rate?

How are these two fundamental parameters linked?

Generally, pump speed and flow rate have a direct relationship: as pump speed increases, flow rate also increases. This relationship is linear, but factors like fluid viscosity and system pressure can influence it.

As pump speed increases, the flow rate also increases. The relationship is generally linear. However, it's important to remember that fluid viscosity and system pressure can influence this relationship. For instance, a more viscous fluid will result in a lower flow rate at the same pump speed. I remember an instance where we were testing a pump with different fluids. The data clearly showed that the flow rate decreased as the viscosity of the fluid increased, even when the pump speed remained constant. This relationship is a useful guide, but understanding the nuances ensures accurate flow management.

Conclusion

Mastering flow and speed control in electric mini pumps involves understanding various methods and their applications. Consider your specific needs and constraints to select the most effective approach for your system.
