You're comparing datasheets, and every miniature pump lists a "no-load" and a "load" current. Focusing on the wrong number could lead you to choose a pump that overheats or drains your battery.
Both are critical, but they tell different stories. No-load current reveals the pump's internal manufacturing precision and friction, while load current indicates its efficiency and performance under real-world working conditions.
Here at BODENFLO, I frequently talk to engineers who are laser-focused on the load current because it relates to their application's pressure or flow rate. They sometimes dismiss the no-load current as an irrelevant baseline. But this is a mistake. I've seen projects where a pump with a great "on-paper" load performance fails prematurely because its high no-load current—a sign of poor mechanical quality—was ignored. This article will explain why a true expert looks at both currents to understand the full story of a miniature pump's quality and efficiency.
What Do These Currents Actually Measure?
You see "no-load" and "load" current on a spec sheet, but what do these numbers mean physically? Without a clear understanding, you're just comparing abstract values.

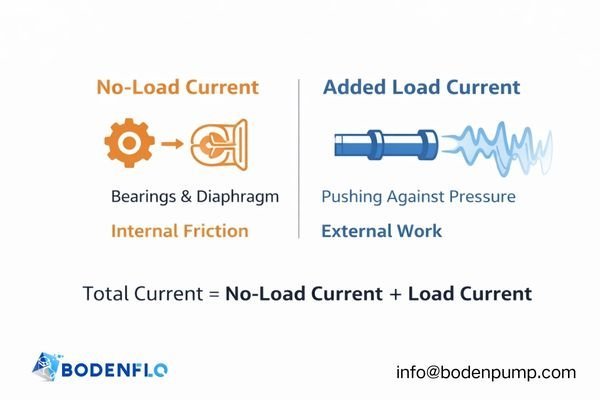

These currents measure two different phases of work. No-load current is the energy to overcome internal friction, while load current is the added energy needed to move fluid against resistance.
Let's break down the basic physics. A miniature pump is an energy conversion device. Understanding what it does with that energy is key to interpreting its current draw.
The "Friction" Baseline: No-load Current
Think of no-load current1 as the energy the pump needs just to run itself, with its ports open to the air and doing no useful work. This electrical energy is spent overcoming all the internal friction within the pump:
- The friction in the motor's bearings.
- The mechanical resistance of the eccentric wheel assembly.
- The energy needed to flex the micro diaphragm itself.
It’s the baseline cost of operation before any real work begins. A lower no-load current means a more mechanically refined and efficient internal design.
The "Work" Phase: Load Current
When you connect the pump to your system and it has to generate pressure or create a vacuum, the motor must work harder. This additional effort requires more electrical energy, and we see this as an increase in current. This is the load current. It is the sum of the no-load current plus the current needed to perform the actual work of moving fluid against system resistance. As pressure or vacuum demand increases, the load current rises accordingly.
The Physics of Energy Conversion
At its core, a pump converts electrical energy (Volts x Amps = Watts) into mechanical energy (Flow x Pressure). Current (Amps) is the most direct indicator of how much electrical energy is being consumed at any given moment. Therefore, monitoring current is the simplest and most effective way to evaluate a miniature pump's efficiency and health.
Why Is No-Load Current the "Silent Truth" About Manufacturing Quality?
Two miniature pumps have similar load performance, but one fails much sooner than the other. You suspect a quality issue but can't find it in the standard performance charts.
You should have looked at the no-load current. A low and consistent no-load current is a direct indicator of high manufacturing precision, low internal friction, and better production consistency.
If I could only choose one electrical parameter to judge the raw mechanical quality of a new batch of pumps, it would be the no-load current. It's a "silent" spec that speaks volumes.
Mechanical Precision
Why does a high-quality pump have a lower no-load current? It comes down to manufacturing precision.
- Tighter Tolerances: Components that are machined and assembled with very high precision fit together perfectly, resulting in less friction.
- Better Bearings: High-quality bearings run smoother and require less energy to rotate.
- Optimized Mechanics: A well-designed eccentric and diaphragm assembly moves with less internal stress and resistance.
A low no-load current is the direct result of this precision. It means less energy is wasted fighting against itself.
Internal Friction & Heat
A high no-load current is a red flag. It means a significant portion of the input energy is being converted directly into heat due to excessive internal friction, even before the pump does any work. This premature heat generation can drastically shorten the life of the pump's two most critical components: the diaphragm, which can become brittle, and the motor windings, whose insulation can degrade.
Consistency Check
For an OEM, consistency is everything. By measuring the no-load current of a sample of pumps from different production batches and plotting the distribution, you can gain powerful insight into the manufacturer's quality control. A tight, consistent grouping indicates a stable and reliable production line. A wide, scattered distribution suggests inconsistency in assembly or component quality.
How Can You Decipher Load Current for Efficiency and System Resilience?
Your device's battery life is shorter than expected, and the pump housing gets surprisingly hot. You chose a pump that meets the pressure spec, but it's clearly inefficient in your system.
You focused on a single load point, not the pump's overall efficiency. An expert evaluates the load current's behavior across the entire operating range to judge true performance and thermal impact.
Load current isn't just a number; it's a dynamic indicator of how the pump responds to a challenge. Analyzing its behavior reveals the pump's true character.
Work-to-Current Ratio (Energy Density)
The most important question is: how much useful work (flow and pressure) do I get for each milliamp of current drawn? This is the pump's real-world efficiency. A more efficient pump will show a smaller increase in current for a given increase in pressure. When comparing two pumps, the one that can hold a target pressure with a lower load current is converting energy more effectively, leaving more power available for other components or extending battery life.
Thermal Management
All current flowing through a motor's resistance generates heat, a phenomenon known as Joule heating ($I^2R$). This becomes a critical issue in compact, densely packed devices with little airflow. A pump with a high load current will generate significantly more heat, which can warm the entire enclosure, affect sensitive electronics, and even compromise the integrity of the fluid being pumped. Choosing an efficient motor with a low load current is a fundamental step in passive thermal management.

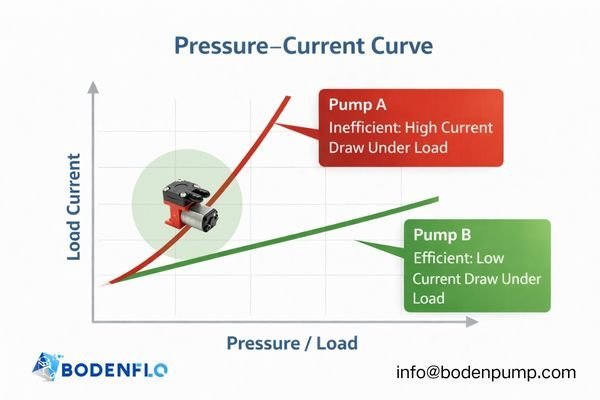

Pressure-Current Curves2
This is what sets seasoned engineers apart. They don't just ask for the current at a single pressure point. They request the full Pressure-Current curve. The slope of this curve is incredibly revealing. A pump with a steep slope may be powerful but inefficient, drawing a large amount of current for every incremental increase in pressure. A pump with a shallow slope is more resilient; it handles increasing load with greater efficiency and thermal stability.
What Is the Diagnostic Power of Current Monitoring in OEM Applications?
Your device is in the field, and a filter clogs, causing a system failure. You wish your device could have detected the problem and warned the user before it failed.
It could have, by monitoring the miniature pump's current. Abnormal shifts in load current are powerful, "sensorless" indicators of system-level problems like clogs, leaks, and component wear.
By treating the pump's current as a real-time data stream, you can build a smarter, self-diagnosing system without adding expensive external sensors.

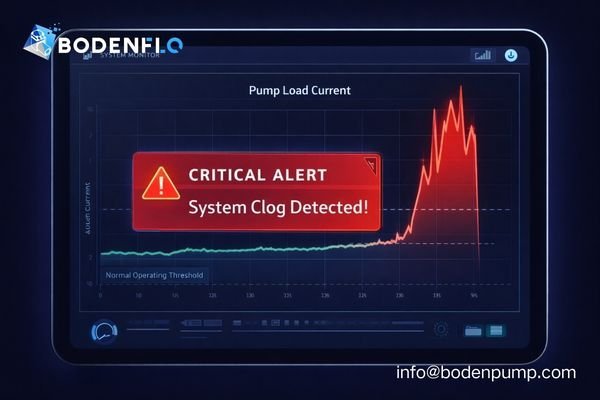

Detecting System Clogs
This is the most common diagnostic application. When a downstream filter gets clogged or a tube gets pinched, the system's resistance increases dramatically. The pump must work much harder to push against this blockage, causing its load current to spike well above the normal operating range. By setting a current threshold in your firmware, you can use this spike as an early warning signal to trigger a "Check Filter" alarm for the user.
Identifying Leaks
The opposite is also true. Imagine a micro diaphragm pump is maintaining a vacuum in a sealed container. If a seal fails or the diaphragm itself ruptures, the pump is no longer working against a load; it's essentially pumping from the open air. This causes a sudden and significant drop in the load current, often falling close to the no-load value. Your system's controller can interpret this drop as a critical leak and trigger an immediate system shutdown or error message.
"Sensorless" Health Monitoring
Instead of adding a costly pressure or flow sensor just for diagnostics, you can use the pump's own current draw as a proxy sensor. By establishing a baseline for normal operating current, any significant deviation—up or down—points to a change in the system's state. This intelligent, cost-effective approach to health monitoring makes your device more robust and reliable in the field.
How Do Power Supply and Battery Life Impact Small Manufacturers?
You're designing a portable device and struggling to balance performance with battery life. Choosing the wrong power supply or underestimating current draw can ruin your product's viability.
Your power system design must be based on peak load current, not average or no-load values. Furthermore, a low no-load current is critical for maximizing standby time in battery-powered devices.
For any OEM, but especially for startups and small manufacturers creating portable devices, making the right decisions about power can make or break the product.
Sizing the Power Unit
A common and fatal mistake is sizing the power supply (like a DC-DC converter) based on the pump's average or no-load current. You must design your power system to handle the peak load current3, which often occurs at startup or under maximum pressure conditions. If the power supply can't deliver this peak current, its voltage will sag, potentially causing your system's microcontroller to reset. You must account for the worst-case scenario.
Optimizing Battery Run-time
In portable medical or analytic devices, the pump may not run continuously. It might run for 30 seconds every 5 minutes. During the "off" periods, the device is in a low-power standby mode. However, if the pump has a high no-load current, even its brief run-times will consume a significant chunk of the battery. More importantly, a pump with a low no-load current is indicative of an efficient motor, which will also have a lower load current, directly extending the active run-time of the device on a single charge.
Inrush Current Management
When a DC motor starts, it can momentarily draw a huge "inrush" current, often many times higher than its steady-state load current. Your circuit protection (like fuses or polyswitches) must be designed to withstand this brief surge without tripping, while still protecting the system from a true overcurrent fault. Understanding both the peak inrush current and the sustained load current is essential for designing a robust and reliable power circuit.
Which One Should You Prioritize in a Comparative Summary?
You're ready to make a decision. With all this information, which current value should be your top priority when selecting a miniature pump for your application?
It's not about choosing one over the other. You must prioritize them for different stages: use no-load current to verify manufacturing quality and load current to validate real-world system performance.
Thinking of it as a competition is the wrong approach. They are two complementary tools that, when used together, give you a complete picture of the pump.
For Quality Control: Prioritize No-Load Current
When you are evaluating a new supplier or performing incoming quality control on a new shipment of pumps, the no-load current is your best friend. It is a pure measurement of the pump's mechanical health and manufacturing consistency, isolated from any variables in your own system. A low and tight distribution of no-load current gives you confidence in the pump's fundamental quality.
For System Performance: Prioritize Load Current
When you are designing your system's power budget, battery life, and thermal management, the load current is your core focus. You need to know the current draw at your specific working pressure and flow rate to ensure your device will be reliable, efficient, and long-lasting in the hands of your customer.
The BODENFLO Standard
We believe in transparency. That's why at BODENFLO, we don't just provide single data points. We provide our partners with comprehensive current data reports, including full Pressure-Current curves and no-load current distribution charts from our production batches. Our goal is to give you all the information you need to perform a precise, risk-free system match, ensuring our pump performs perfectly inside your application.
Conclusion
No-load and load current are not just numbers on a datasheet; they are diagnostic tools. Understanding both is essential for selecting a high-quality miniature pump and designing a robust, efficient, and reliable system.
At BODENFLO, we provide more than pumps—we provide system-level insight.
From no-load current consistency data to full pressure–current curves, our team helps OEMs select and integrate miniature pumps with confidence.
