Why Do Medical Devices Prefer Oil-Less Mini Compressors Over Traditional Compressors?

Medical devices need clean, reliable air. Traditional compressors risk oil contamination, threatening patient safety and device integrity. Oil-less mini compressors offer a safe, pure, and dependable solution for modern medical equipment.

Medical devices prefer oil-less mini compressors because they guarantee 100% oil-free air, eliminating contamination risks to patients, sensitive sensors, and pneumatic valves. This ensures compliance with medical standards, enhances device reliability, and improves performance in a compact, low-maintenance package.

As a project manager specializing in pump integration for medical OEMs, I've seen firsthand why the conversation has shifted entirely to oil-less technology. It's not just a preference; it's a critical design requirement driven by safety, reliability, and performance demands. The decision impacts everything from patient outcomes to the total cost of ownership of the device. Let's break down exactly why this technology has become the non-negotiable standard in the medical industry.

What Are Oil-Less Mini Compressors and How Do They Work in Medical Devices?

Your team is designing a new medical device and the term "oil-less" keeps coming up. You need to understand what this technology is at a fundamental level and why it's different from what you've used before.

An oil-less mini compressor uses components, like a piston with a high-performance seal or a flexible diaphragm, to compress air without any oil for lubrication. This design inherently prevents oil contamination, making it ideal for medical applications.

An oil-less mini compressor operates on a simple, robust principle. Instead of relying on oil to seal and lubricate, it uses advanced engineering and materials. The core is a piston or diaphragm driven by a motor.

• Oil-Free Compression¹: A piston, fitted with a high-durability, self-lubricating seal (often made from materials like PTFE), moves within a cylinder. As the piston moves down, it draws air in through an inlet valve. As it moves up, it compresses the air and pushes it out through an outlet valve.
• Diaphragm Alternative²: In a diaphragm pump, a flexible membrane is moved up and down by a connecting rod, performing the same function of drawing in and compressing air without any metal-on-metal contact in the compression chamber.

This mechanism ensures the compressed air path never comes into contact with lubricants, guaranteeing the purity of the air supplied to the medical device.

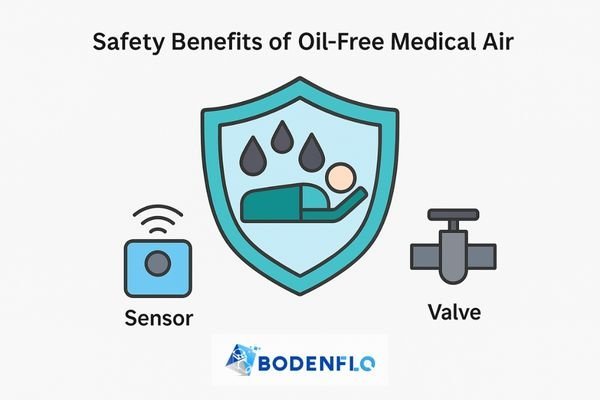

Why Are Oil-Less Mini Compressors the Safety Standard for Medical Air Supply Systems?

Patient safety is your number one priority. You're concerned about how the components inside your device could potentially harm a patient or compromise a diagnostic test, especially the compressed air source.

Oil-less compressors are the safety standard because they deliver medical-grade, contaminant-free air. This prevents oil aerosols from reaching patients, fouling sensitive sensors, or causing pneumatic valves to stick, ensuring both patient safety and device reliability.

The requirement for clean compressed air in medical settings is non-negotiable. Oil-less designs are the only way to meet these stringent demands reliably. The core reason is the complete elimination of lubricant contamination risk.

• Zero Oil Contamination³: The output air is as clean as the ambient air it draws in. This medical-grade purity is essential for respiratory applications like ventilators and nebulizers, where the air is delivered directly to the patient.
• Protection for Device Components: Tiny oil particles from a traditional compressor can form a sticky film on internal components. This can block tiny orifices, cause expensive gas sensors to fail, and make pneumatic control valves malfunction, leading to device failure.
• Regulatory Compliance: Global medical device standards, such as ISO 13485, implicitly demand risk mitigation. Using an oil-less compressor is a direct and effective way to eliminate the known risk of oil contamination and ensure easier regulatory approval.

What Are the Hidden Risks of Traditional Compressors in Medical Equipment?

You're evaluating a lower-cost traditional compressor for your medical device budget. The initial savings seem attractive, but you suspect there might be long-term trade-offs and hidden costs you haven't considered.

Traditional oil-lubricated compressors introduce risks of oil vapor contamination, require frequent maintenance for filters and oil changes, and suffer from higher noise, vibration, and thermal instability, leading to higher downtime and lower long-term reliability.

The initial cost savings of an oil-lubricated compressor are often completely erased by long-term operational problems, especially in a medical context. I always advise engineering teams to look at the total cost of ownership and the risk profile.

Risk Category	Traditional Oil-Lubricated Compressor	Impact on Medical Devices
Contamination	Emits oil vapor and aerosols	Compromises patient breathing air; damages sensors and valves.
Maintenance	Requires oil changes and filter replacements	Increased downtime, higher service costs, risk of human error.
Stability	Higher running temperatures and vibration	Affects the accuracy of sensitive electronics; creates patient discomfort.
Reliability	Prone to failures if maintenance is missed	Potential for catastrophic device failure during critical procedures.

These hidden risks not only increase operating costs but also pose a significant threat to device performance and patient safety, making them a poor choice for modern medical equipment.

How Do Mini Compressor Pumps and DC Air Compressors Improve Medical Device Performance?

Your next-generation medical device needs to be portable, smart, and responsive. You need an air source that is more than just a motor; it needs to be an integrated part of the system's intelligent control loop.

Mini compressor pumps and DC air compressors offer stable pressure, precise flow control, and smart speed regulation. Their low-voltage DC operation makes them perfect for battery-powered portable medical systems, enhancing both performance and user mobility.

The shift to DC-powered mini compressors is about more than just size; it's about enabling smarter, more efficient medical devices. We work closely with OEMs to leverage these advantages for superior performance. A mini compressor pump⁴ isn't just smaller; its lower mass allows for faster response times. A DC air compressor⁵ provides exceptional control. The benefits include:

• Stable Pressure and Flow: Brushless DC motors can be precisely controlled via PWM signals. This allows the device to maintain a perfectly stable pressure or flow rate, which is critical for applications like drug delivery or therapy systems.
• Smart Speed Regulation: The compressor's speed can be adjusted in real-time based on sensor feedback. This saves energy, reduces noise, and allows the device to adapt to changing patient needs.
• Portability: The combination of small size, low weight, and efficient low-voltage DC power is the key enabler for battery-powered portable systems, such as portable oxygen concentrators or ambulatory IPC devices.

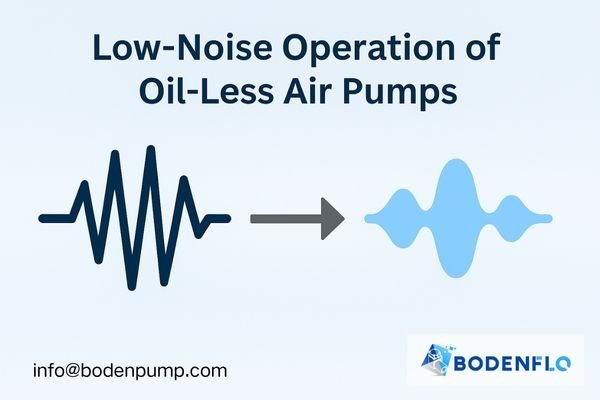

Why Are Oil-Less Air Pumps Essential for Silent and Low-Vibration Medical Design?

Your medical device will be used in a quiet hospital ward or in a patient's home. You're worried that the noise and vibration from the internal compressor will cause patient anxiety and discomfort.

Oil-less air pumps are designed with balanced mechanical systems, high-precision bearings, and integrated vibration-damping mounts. This results in ultra-low noise and vibration, which is essential for patient comfort and meeting hospital acoustic standards.

Noise is a major factor in patient experience. An oil-less air pump⁶ is engineered specifically to address this. The noise in a compressor comes from two primary sources: the motor and the mechanical compression mechanism. BODENFLO tackles both. Our designs incorporate:

• Advanced Motor Technology⁷: High-quality brushless DC motors run more smoothly and quietly than their AC or brushed counterparts.
• Balanced Eccentric Assembly: The mechanical component that drives the piston or diaphragm is precision-balanced to minimize inertial forces, which are a primary source of vibration.
• Optimized Head Design: The airflow path within the pump head is modeled and smoothed to reduce air turbulence noise.
• Integrated Damping: Our pumps are mounted on elastomeric (rubber) feet that absorb high-frequency vibrations, preventing them from transferring to the device chassis and amplifying. This focus on acoustics is critical for devices used near patients, such as bed overlays or respiratory therapy equipment.

Where Are Oil-Less Mini Compressors Widely Used in Medical Applications?

You're convinced of the technology's benefits, but you need to see where it's already proven. You want to know which medical device categories rely on oil-less mini compressors for their core function.

Oil-less mini compressors are the standard in physiotherapy equipment, IPC therapy devices, medical suction units, and diagnostic instruments. Their reliability and purity also make them ideal for portable and home-use medical devices.

The versatility and safety of oil-less technology⁸ have made it a cornerstone in numerous medical fields. At BODENFLO, we have direct experience providing pumps for these demanding applications. Here are some of the most common uses:

• Physiotherapy and Rehabilitation: Powering pneumatic massagers and compression therapy devices that require clean, consistent pressure for therapeutic effect.
• IPC (Intermittent Pneumatic Compression⁹): Inflating and deflating compression sleeves to prevent deep vein thrombosis (DVT). Reliability is key here, as these devices often run for hours.
• Medical Suction and Aspiration: Providing the vacuum source in surgical suction units, wound drainage systems, and airway clearing devices.
• Laboratory and Diagnostic Equipment: Used in gas analyzers, automated sample handlers, and microplate washers where air purity is critical for accurate test results.
• Home-Use Medical Devices: Powering nebulizers, blood pressure monitors, and therapeutic air mattresses, where low noise and high reliability are essential for the home environment.

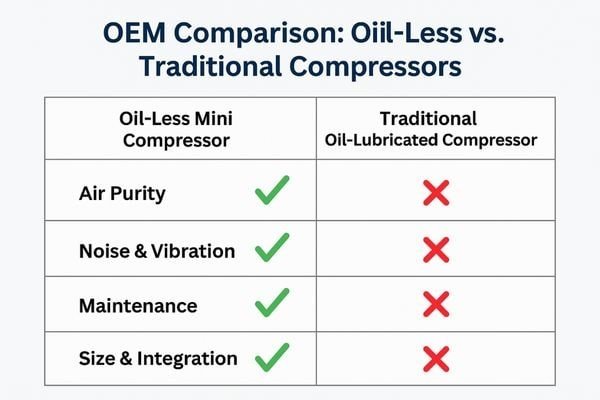

Oil-Less Mini Compressors vs. Traditional Compressors: What Is the Key Performance Comparison for Medical OEMs?

You need a clear, side-by-side comparison to present to your team. You want to evaluate oil-less and traditional compressors across the key metrics that matter most to a medical device OEM.

Compared to traditional compressors, oil-less mini compressors offer superior air purity, lower noise, minimal maintenance, and greater integration flexibility. While initial cost may be higher, their long-term reliability and lower total cost of ownership make them the superior choice.

When a medical OEM is making a sourcing decision, the choice becomes clear when you compare the technologies across five critical areas. My experience shows the long-term value of oil-less technology always wins.

Performance Metric	Oil-Less Mini Compressor	Traditional Oil-Lubricated Compressor
Clean Air Output	Excellent: 100% oil-free, medical-grade air.	Poor: Inherent risk of oil aerosol contamination.
Noise & Vibration	Very Good: Low noise and minimal vibration due to balanced design.	Poor: Generally noisy and prone to significant vibration.
Maintenance	Excellent: No oil changes; maintenance-free for thousands of hours.	Poor: Requires regular oil and filter changes; high service cost.
Size & Integration	Excellent: Compact, lightweight, and easy to integrate.	Fair: Bulky, heavy, and more difficult to position.
Reliability	Excellent: Designed for long, continuous duty cycles.	Fair: Reliability is dependent on a strict maintenance schedule.

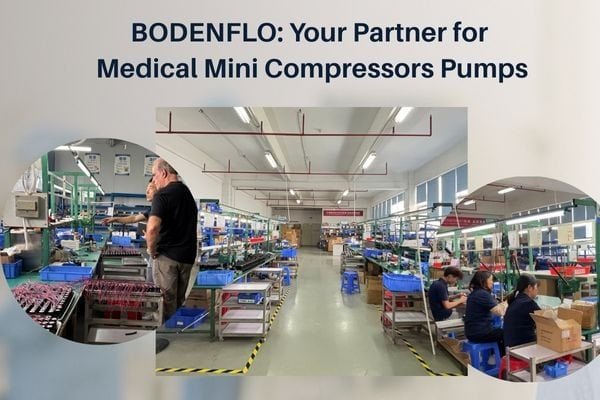

Why Do Medical OEMs Choose BODENFLO Oil-Free Mini Compressor Pumps?

You're ready to source a pump and need a partner who specializes in medical applications. You want a supplier with proven designs, customization capabilities, and experience navigating the global medical device market.

Medical OEMs choose BODENFLO because we provide high-stability, long-lifetime oil-free mini compressor pumps specifically designed for medical duty. Our expertise in customization and our global supply experience make us a reliable partner for your project.

At BODENFLO, as a specialized China mini compressor pump manufacturer¹⁰, we don't just sell pumps; we provide engineered solutions for the medical industry. Global OEMs trust us for several key reasons that align directly with their needs. We have built our reputation on:

• World-Class Quality, Competitive Price: We offer quality and reliability that rivals major European and American brands, providing superior value for our OEM partners.
• Medical-Grade Design: Our oil-free mini compressor pumps are designed from the ground up using medical-grade materials and manufacturing processes to ensure purity and reliability.
• Low-Noise, High-Stability Solutions: We specialize in low-vibration, high-stability DC air compressor¹¹ solutions that are ideal for patient-centric devices.
• Long Lifetime for Continuous Duty: Our pumps are rigorously tested and validated for thousands of hours of continuous operation, meeting the demands of devices like IPC systems and therapeutic mattresses.
• Expert Customization: We work with your engineering team to customize performance, mounting, and connections to ensure a perfect fit for your rehabilitation, IPC, or therapy device.
• Global OEM Supply Experience: With a certified quality management system and a proven track record, we are a trusted, stable supplier for medical manufacturers worldwide.

Conclusion

Choosing an oil-less mini compressor is a critical step in ensuring your medical device is safe, reliable, and high-performing. It eliminates contamination risks and delivers the quiet, stable operation that modern healthcare demands.

To equip your design with the right solution, contact the BODENFLO engineering team at info@bodenpump.com for expert guidance.

---
