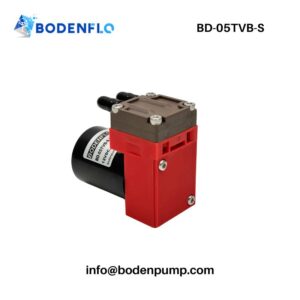

BD-05TVB Brushless Diaphragm Pump Compressor – BODENFLO

Brushless diaphragm pumps operate by flexing a diaphragm to create a vacuum, efficiently drawing and expelling air.

Additional information

Voltage

DC 12V/24V

Air Flow

7.2L/min

Vacuum

-72kPa or -90kPa

Motor

brush/brushless

Diaphragm

EPDM

Structure Description: Micro Diaphragm Vacuum Pump:

The BD-05TVB incorporates advanced engineering design to produce a highly efficient and compact micro diaphragm vacuum pump suitable for various applications.

A micro diaphragm vacuum pump typically consists of a single or multiple diaphragms, which act as a separator between the drive mechanism and the compression chamber. When the volume in the chamber increases, the pressure decreases, creating a vacuum. Key components include:

  • Diaphragm: A flexible member, usually made of elastomer material, which flexes back and forth to create the pumping action.
  • Motor: Drives the diaphragm’s movement.
  • Housing: Encases all components and ensures a tight seal for vacuum creation.

This structure allows the BD-05TVB to deliver consistent vacuum levels, high efficiency, and ensures reliability and long life.



Key Features of BD-05TVB brushless vacuum pump:

  1. Compact Design: BD-05TVB is engineered for space-constrained applications. With an optimized dynamic balance design, it ensures minimal vibration even when delivering large flow rates.
  2. High Efficiency: The pump is designed for maximum performance with minimal energy consumption. It is optimized for a smoother and more stable airflow, thanks to the dual pump head design.
  3. High Durability: Built with robust materials, BD-05TVB has a prolonged lifespan. It incorporates a high-end brushless DC motor which ensures a lifespan of over 10,000 hours.
  4. Low Noise Operation: This pump ensures quiet operation even at peak performance levels.
  5. Variable Speed Control: With both analog voltage and PWM input modes, speed regulation is precise and flexible.
  6. Integrated Feedback Function: Provides real-time speed feedback for accurate pump monitoring and control.
  7. Quick Start/Stop Control: By grounding or disconnecting the ON/OFF wire, efficient motor control is achieved, allowing for rapid start or stop operations.
  8. Compatible with Various Control Units: It seamlessly integrates with a variety of control systems such as PLCs and microcontrollers.
  9. Customizable: BD-05TVB offers a parametric customizable design to suit specific application requirements.
  10. Corrosion Resistance: The pump employs imported high-quality EPDM and FKM rubber materials which are resistant to corrosion from various gases.
  11. Minimal Leakage: Through professional instrumentation measurements, the pump guarantees a low leakage rate, ensuring efficient and reliable operations.

The use of a high-end brushless DC motor, designed for compactness, not only saves space but also significantly extends the pump’s operational life, with a lifespan exceeding 10,000 hours. This longevity is vital for medical devices that are expected to perform over extended periods without the need for frequent replacements.

Diaphragm Vacuum Pump Specifications of BD-05TVB:

Basic Specifications

  • Model: BD-05TVB
  • Voltage: 12V/24V
  • Max Flow Rate: 7.2 l/min
  • Max Parallel Negative Pressure: -72KPa
  • Max Series Negative Pressure: -90KPa

Motor Specifications

  • Motor Type: High-end Brushless DC Motor
  • Max Power: 8W
  • Waterproof Rating: IP40

Operational Environment

  • Storage Temperature: -40°C~60°C
  • Working Temperature: -20°C~45°C

Pump Materials

  • Pump Head: PPS
  • Diaphragm/Valve: EPDM (Customizable with FKM)
  • Pump Body: Nylon

Wiring Instructions

  • Red Wire: Positive Power Supply
    Black Wire: Negative Power Supply
    Blue Wire: PWM (Full Speed When Connected to Positive)
    Yellow Wire: FG, 1Pulse/Cycle

Application Range of BD-05TVB:

  • Negative Pressure Wound Therapy Devices: negative pressure vacuum pump accelerating the healing process with precise and controlled vacuum.
  • Leak Detectors: Ensuring system integrity and safety with accurate and consistent vacuum.
  • Analytical Instruments: Enhancing the precision of measurements and analysis in laboratories and research centers.
  • Vacuum Equipment: Supporting various industrial processes and manufacturing lines with reliable vacuum generation.

Why Choose BODENFLO BD-05TVB?

  • Precision Engineered: A reflection of BODENFLO’s commitment to pioneering excellence and technological advancement.
  • Versatile Applications: Designed to serve multiple industries, ensuring a solution for every vacuum need.
  • Superior Features: Delivering unmatched flow rate and pressure for peak operational performance.
  • Top-Notch Specifications: Equipped with a high-grade brushless DC motor and constructed with premium materials such as PPS, EPDM, and Nylon, guaranteeing longevity and optimal efficiency.
