The BD-05TR32LB is a high-performance micro double-head brushless piston pump, delivering up to 32 L/min flow in parallel mode and –98 kPa vacuum in series mode. Featuring oil-free operation, low vibration, and corrosion-resistant components, it’s ideal for medical rehabilitation devices, high-pressure atomization systems, automation, and robotics.
| Voltage | 12V / 24V |
|---|---|
| Max Flow | 32L/min |
| Max Vacuum | –85 kPa |
| Max Pressure | 8–10Bar (almost no flow at 10Bar) |
| Motor | High-end brushless DC motor |
| Max Power | 100W |
| Weight | 1.62kg |

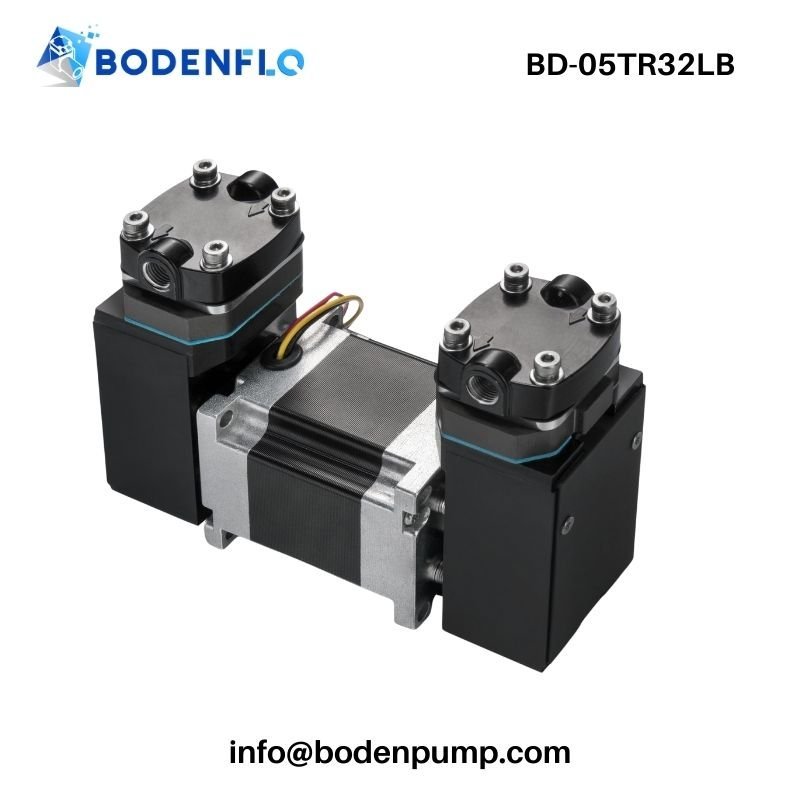

The BD-05TR32LB is a compact double-head swing piston pump built for systems that demand high pressure density and deep vacuum capability within a limited installation space.
Each piston alternately generates negative pressure during the intake stroke and positive pressure during the compression stroke, enabling efficient gas evacuation and compression within a rigid mechanical structure.
By combining two piston heads, the pump supports parallel operation to increase airflow output or series operation to achieve deeper vacuum levels. This flexible architecture allows OEM engineers to configure pressure, vacuum, and flow characteristics according to specific system requirements, while maintaining stable output and controlled pulsation under load.
✓ High flow & strong suction – Provides 32 L/min in parallel or 17 L/min in series with stable vacuum performance.
✓ Low vibration & optimized dynamic balance – Reduces system vibration and ensures stable operation.
✓ High-efficiency brushless motor – 100 W power ensures long lifespan and quiet operation.
✓ Corrosion-resistant flow path – PTFE piston cup and stainless steel valve plate minimize wear and handle high-pressure media.
✓ Threaded inlet/outlet – G1/8 standard connections for easy integration.
✓ Supports high-pressure operation – Up to 10 bar, suitable for high-pressure applications.
| Parameter | Value |
|---|---|
| Model | BD-05TR32LB |
| Voltage Range | 12 / 24 V DC |
| Flow (Parallel) | 32 L/min |
| Vacuum (Parallel) | –85 kPa |
| Flow (Series) | 17 L/min |
| Vacuum (Series) | –98 kPa |
| Max Positive Pressure | 8–10 bar (almost no flow at 10bar) |
| Motor Type | High-end brushless DC motor |
| Max Power | 100 W |
| Waterproof Level | IP00 |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Medium Temperature | –10 ℃ ~ 45 ℃ |

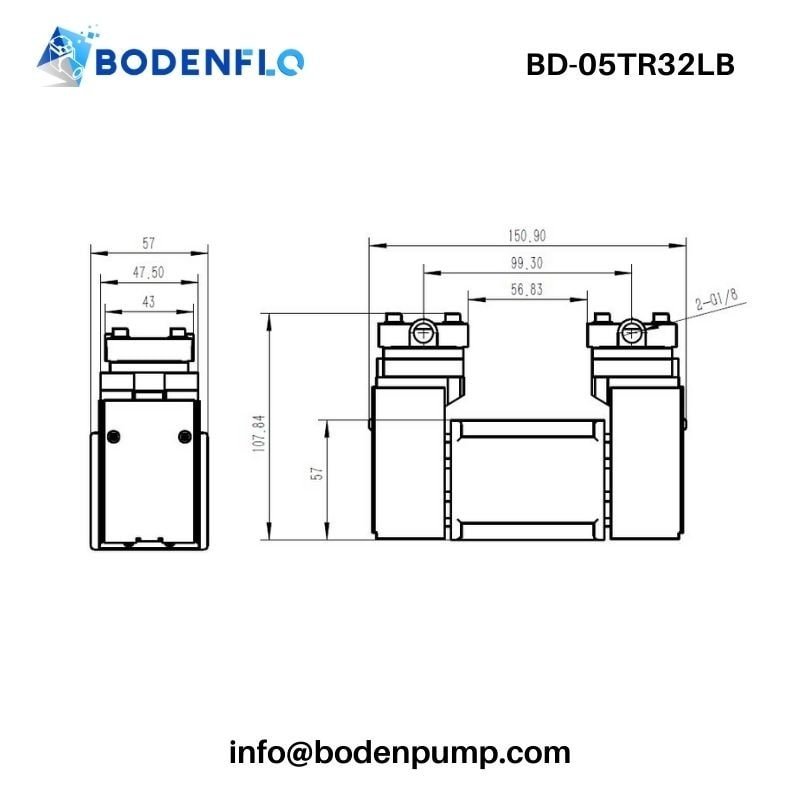

| Dimensions (L×W×H) | 154 × 57 × 109 mm |
| Weight | 1.62 kg |
| Component | Material / Performance |
|---|---|
| Pump Head | Aluminum alloy |
| Valve Plate | Stainless steel |
| Piston Cup | PTFE |
| Pump Body | Aluminum alloy |
| Inlet / Outlet | G1/8 threaded |
📌 Medical rehabilitation equipment – Provides steady suction for intermittent pneumatic therapy systems.
📌 High-pressure atomization devices – Stable and strong airflow for fine-mist or spray systems.
📌 Cleaning and disinfection – Delivers controlled high-pressure output for sterilization or cleaning modules.
📌 Environmental monitoring – Low-leakage vacuum sources for VOC, gas sampling, or CEMS.
📌 Automation equipment & robotics – Parallel or series connection modes enhance performance in pick-and-place or lifting systems.
| Aspect | Available Options |
|---|---|
| Diaphragm Materials | PTFE, FKM, EPDM |
| Voltage | 12 V / 24 V DC |
| Connector Type | Custom connector based on customer requirements |
| Label / Branding | Based on the model provided by the customer |
| Mounting Options | Customized brackets, vibration dampers |
| Cable / Wiring | Custom lengths and connector types |
| Multi-head Configuration | Parallel or series connection customization |
Selecting a micro pump supplier is not simply a matter of comparing specifications. It requires a manufacturing partner with deep understanding of system-level performance, long-term reliability, and scalable OEM integration.
BODENFLO specializes in micro diaphragm pumps and micro piston pumps, delivering oil-free vacuum, controlled airflow, and high-pressure compression solutions across diverse pneumatic architectures.
Core Advantages
BODENFLO is trusted by OEM customers worldwide in medical devices, analytical instruments, industrial automation, environmental monitoring, and smart equipment, delivering scalable micro pump solutions that grow with your product platforms.
“The BD-05TR32LB delivers stable high flow for our cleaning modules, with minimal vibration during operation.”
– Automation Engineer, Germany
“Series connection works perfectly for vacuum sampling in our lab equipment.”
– Lab Technician, Japan

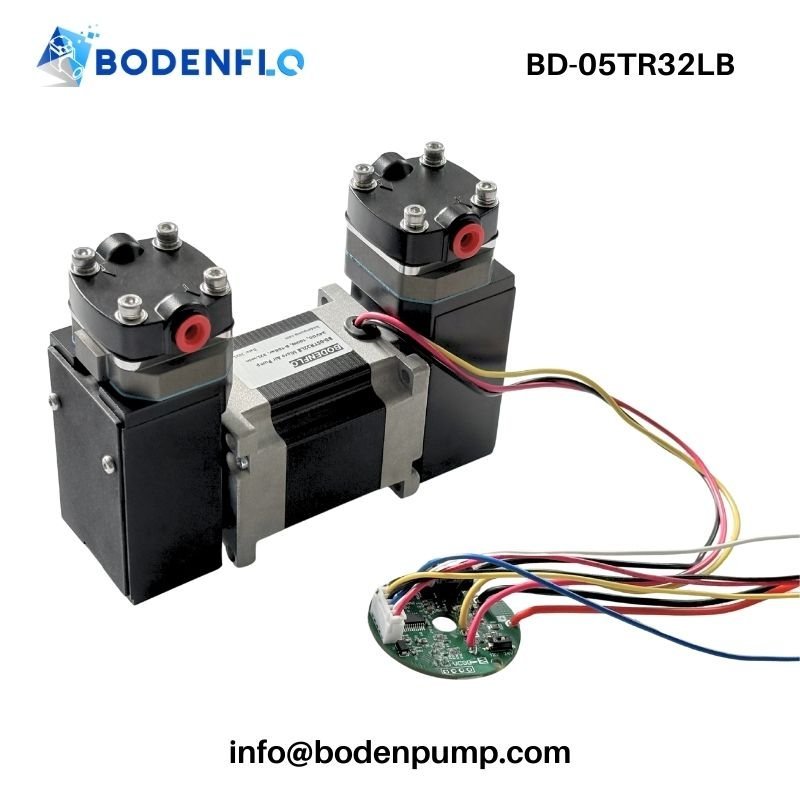

The BD-05TR32LB is driven by a brushless DC motor and features multi-signal control wiring to support precise speed regulation, feedback monitoring, and advanced system integration in OEM platforms.
Wire Definition
Thick Red (Power +): DC power positive
Thick Black (Power −): DC power negative
Yellow (SP): Analog speed control input
White (PWM): PWM speed control input
Recommended frequency: 1–10 kHz
Motor starts when duty cycle exceeds 10%
Blue (FG): Speed feedback signal
Square-wave output
12 pulses per revolution (4-pole BLDC motor)
Thin Black (GND): Signal ground / common ground
Thin Red (5V): 5V output for external potentiometer speed control
This brushless control architecture enables closed-loop speed adjustment, real-time operating feedback, and stable performance across varying loads, without requiring complex external drive modules when paired with a compatible controller.
[BD-05TR32LB Micro Double Head Pump Download Datasheet (PDF)]
Q1｜How does a double-head swing piston design improve system flexibility?
A dual-head configuration allows the pump to operate in either parallel or series mode. Parallel operation prioritizes higher airflow, while series operation increases achievable vacuum depth. This gives OEMs flexibility to optimize one hardware platform for multiple performance targets without redesigning the pump core.
Q2｜What makes swing piston pumps suitable for high pressure density in compact systems?
Swing piston pumps rely on rigid mechanical compression rather than elastic deformation. This enables higher compression ratios, faster pressure build-up, and better dimensional stability under load, making them well suited for compact systems where pressure performance is critical.
Q3｜How should thermal management be addressed in high-load applications?
High pressure and deep vacuum operation increase thermal load on the motor and piston assembly. System designs should incorporate forced airflow, sufficient ventilation clearance, or auxiliary cooling to maintain stable temperature and protect long-term reliability.
Q4｜What integration factors most affect long-term performance?
Key factors include minimizing back pressure, using rigid mounting surfaces to control vibration transmission, and selecting appropriate tubing and fittings rated above the system’s maximum pressure. Proper mechanical integration significantly reduces stress on piston and valve components.
Q5｜When is a double-head piston pump preferred over single-head solutions?
Double-head piston pumps are ideal when a system requires both high flow and deep vacuum options, or when different operating modes are needed across product variants. This architecture allows one pump platform to support multiple performance profiles with minimal system redesign.
Looking for a long-term OEM partner capable of supporting high-pressure piston pump platforms, flexible head configurations, and scalable performance across multiple product lines?
BODENFLO works with global OEMs to deliver:
Platform-level piston pump solutions (single-head, double-head, parallel / series)
Rapid prototyping and engineering samples
Complete technical documentation (datasheets, wiring guides, CAD / STP files)
Custom motor control interfaces and mechanical integration support
Cost-effective manufacturing for pilot runs through mass production
