Ultra‑compact 3.3 V diaphragm pump designed for portable gas sampling.
Stable low‑pulsation flow, lightweight 14.2 g design, and very low power consumption (0.3 W).
| Voltage | 1 V – 4 V DC (Typical 3.3 V) |
|---|---|
| Max Flow | 530 ml/min |
| Max Vacuum | –47 kPa |
| Max Pressure | +44 kPa |
| Motor | Brushed DC |
| Max Power | 0.3 W |
| Weight | 14.2 g |
Miniature diaphragm pumps use a DC motor to drive a flexible diaphragm through an eccentric wheel, creating clean, oil‑free airflow or vacuum for compact devices.

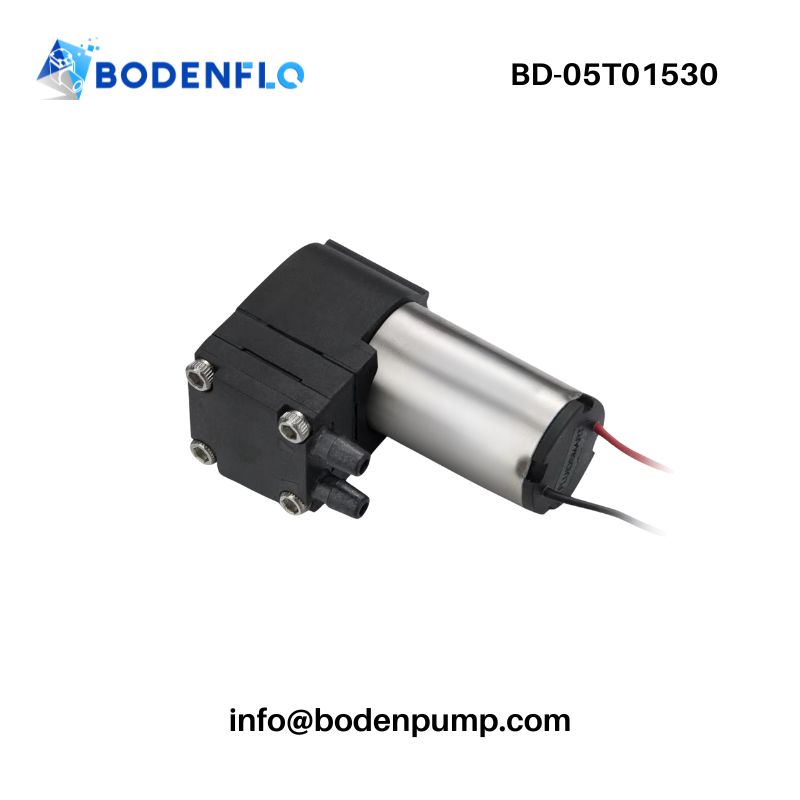

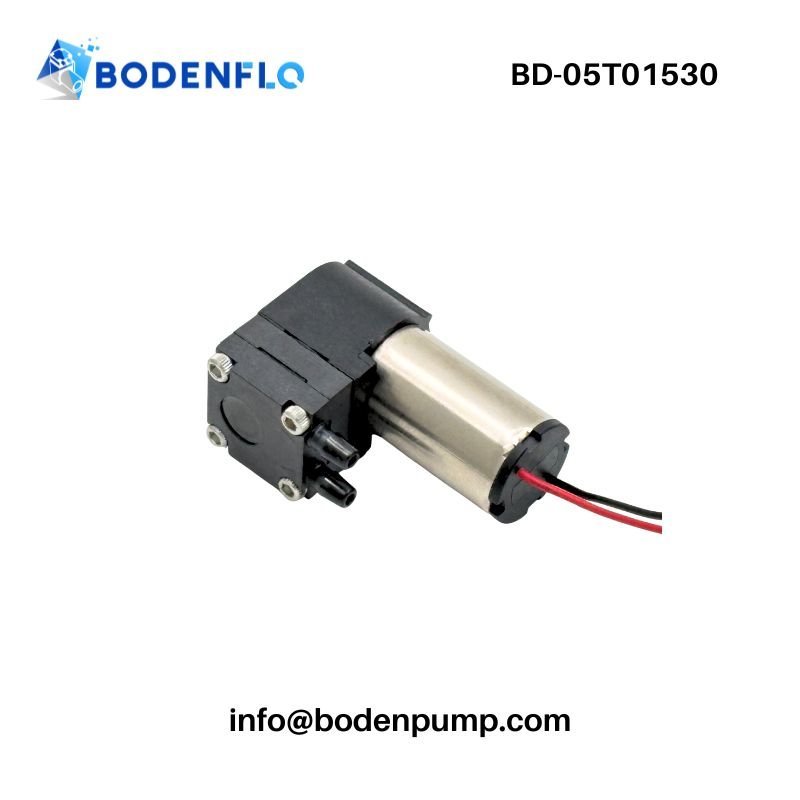

The BODENFLO BD-05T01530 is a miniature diaphragm pump specifically designed for ultra‑compact gas sampling applications.

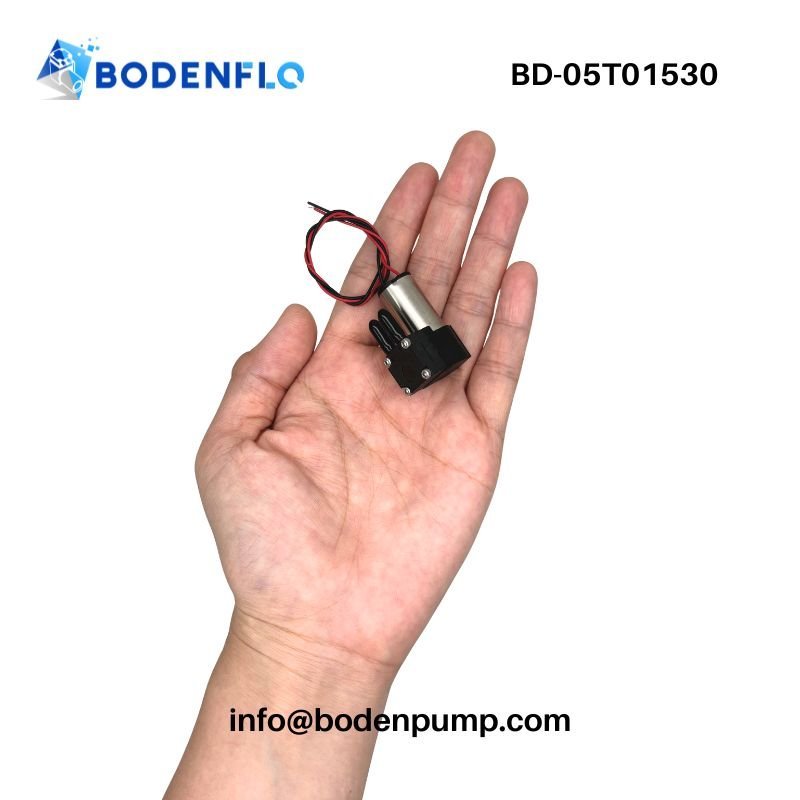

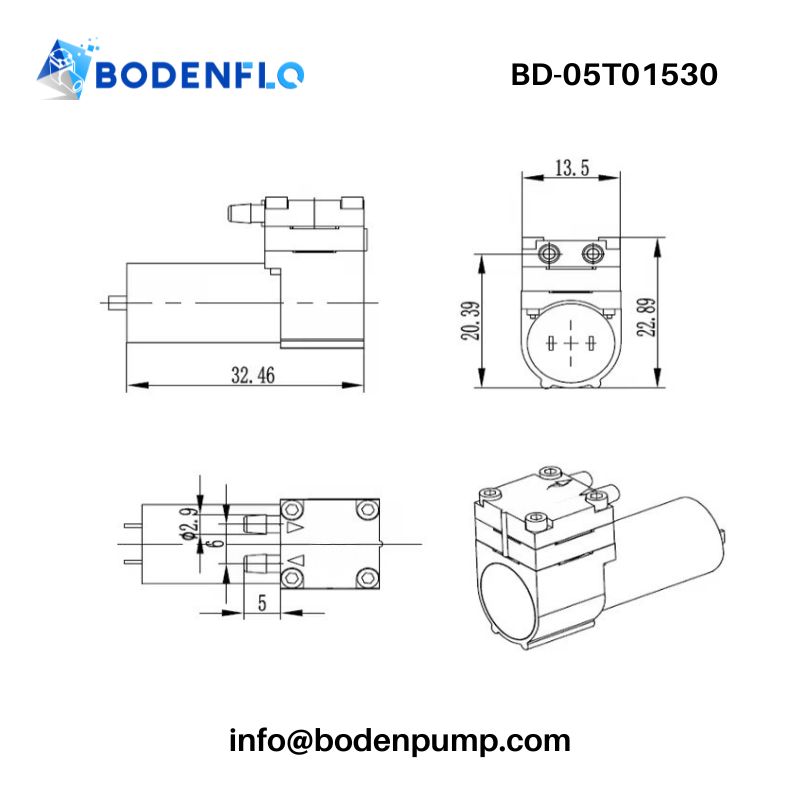

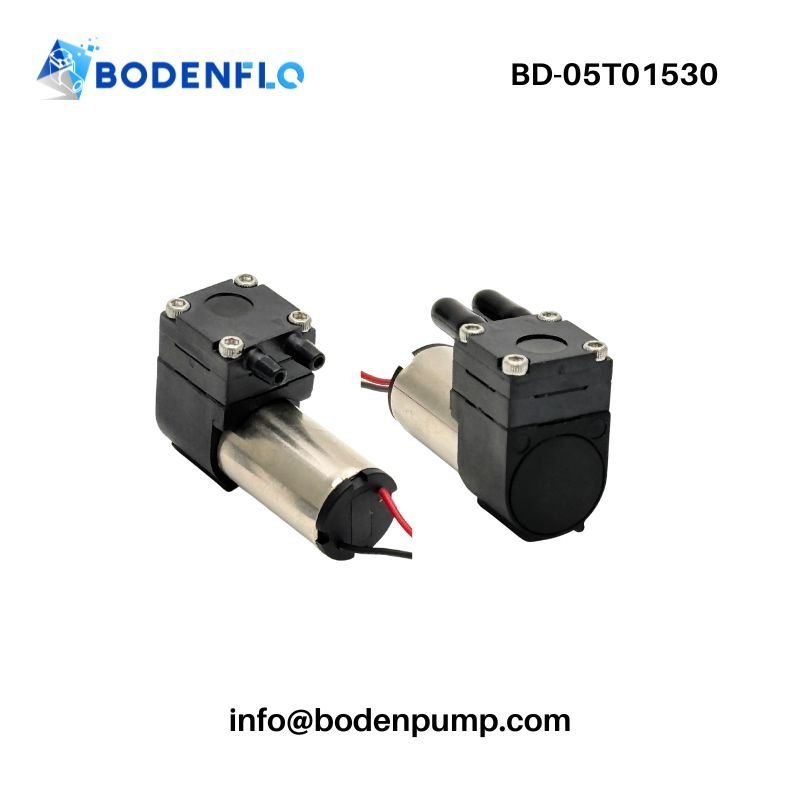

Weighing just 14.2 g and measuring only 33×23×13.5 mm, this pump delivers stable, low‑pulsation flow, low noise, and very low power consumption (0.3 W).
Engineers across medical, analytical, and environmental industries choose the BD‑05T01530 when performance, small size, and efficiency must come together.
✓ Ultra-compact and ultra-lightweight (33×23×13.5 mm, 14.2 g)
✓ Stable gas flow with low pulsation for precise sampling
✓ Low power consumption: only 0.3 W
✓ Long service life: >6,000 hours continuous duty
✓ Oil-free, clean air path – no contamination of sampled gases
✓ EPDM diaphragm (FKM optional) for chemical compatibility
✓ Maintenance-free design: continuous or intermittent operation
| Parameter | Value |
|---|---|
| Model | BD-05T01530 |
| Voltage Range | 1–4 V DC (Typical 3.3 V) |
| Max Flow Rate (3.3 V) | 530 ml/min |
| Max Negative Pressure | -47 kPa |
| Max Positive Pressure | 44 kPa |
| Motor Type | Brushed DC Motor |
| Max Power | 0.3 W |
| IP Rating | IP40 |
| Service Life | >6,000 hours |
| Storage Temperature | -40 ℃ ~ 60 ℃ |
| Operating Temperature | -20 ℃ ~ 45 ℃ |
| Pump Head | PPS |
| Diaphragm/Valve | EPDM (Optional FKM) |
| Pump Body | Nylon |
| Dimensions | 33 × 23 × 13.5 mm |
| Weight | 14.2 g |

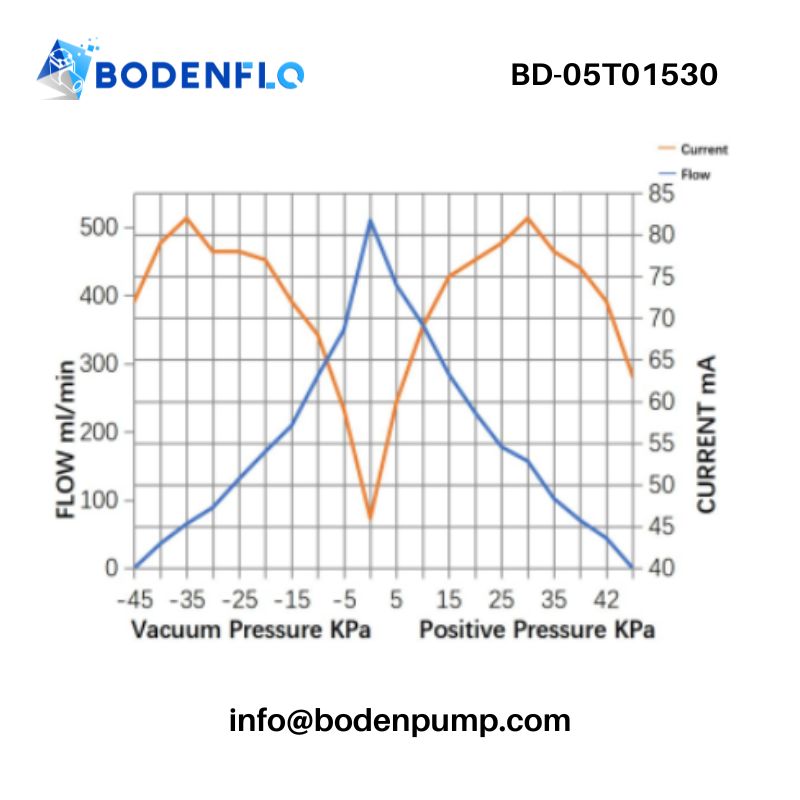

At only 14.2 g, this is one of the smallest and most efficient pumps in the industry.
| Component | Material / Performance |
|---|---|
| Pump Head | PPS (engineering thermoplastic) |
| Diaphragm/Valve | EPDM standard (FKM optional) |
| Pump Body | Nylon – strong, lightweight, durable |
| Lifetime (continuous duty) | >6,000 hours in clean, non-corrosive environments |
📌 VOC and other gas analysis instruments – Provides a stable, low-pulsation, oil-free gas sampling source for accurate readings in VOC and multi-gas analyzers.
📌 Portable and handheld environmental monitors – Drives precise, low-flow air intake for lightweight field instruments detecting pollutants, dust, or gases.
📌 Medical diagnostic and therapeutic devices – Generates reliable vacuum or airflow for compact diagnostic and portable therapeutic systems.
📌 Food safety and processing machines – Maintains contamination-free gas sampling during packaging and quality testing, improving hygiene and safety standards.
📌 Air sampling in environmental protection – Ensures long-term, low-noise suction to collect air samples for laboratory evaluation of air quality.
📌 Automation and robotic equipment – Provides miniaturized vacuum and pressure functions for grippers, sensors, and pick-and-place operations in compact automation systems.
📌 Laboratory analysis and microfluidics – Delivers controlled low flow for microfluidic circuits, precision chemical analysis, and instrument calibration.
| Customization Aspect | Available Options / Notes |
|---|---|
| Diaphragm Materials | EPDM or FKM |
| Electrical Cable / Connector | Custom cable length and connector type for OEM integration |
| Label / Branding | Custom product labeling for OEM projects |
| Pump Configuration | Single-head: BD-05T01530 (530 ml/min, 3.3V, –47 kPa, 44 kPa, 0.3 W) Dual-head: BD-05T011088 (1088 ml/min, 3.3V, –47 kPa, 44 kPa, 0.7 W) |
| Integration Support | Engineering guidance for compact analyzers |
When selecting a mini diaphragm pump supplier, reliability, engineering experience, and long-term support are just as critical as product performance. BODENFLO has been a trusted OEM partner for over 15 years, specializing in high-precision miniature pump solutions for demanding applications.
With BODENFLO, OEM customers gain not only a high-performance micro pump, but also a cost-efficient, long-term manufacturing partner capable of supporting product development from prototype to mass production.
“We integrated the BD-05T01530 into a handheld VOC analyzer.
Its low power consumption and compact size reduced our device weight by 30%.”
– Engineering Director, Germany
“Stable flow and easy installation. This pump has been running over 5,000 hours without issues.”
– Product Manager, USA
“The BD-05T01530 allowed us to keep our medical device extremely compact while ensuring accurate sampling.”
– R&D Manager, South Korea
For quick integration, the BD-05T01530 is designed with simple 2-wire connection:
Red wire: Connect to DC power positive (+)
Black wire: Connect to DC power negative (–)
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
BD-05T01530-SPC BODENFLO Download Datasheet (PDF)
1. What applications is the BD-05T01530 mini diaphragm pump best suited for?
The BD-05T01530 is optimized for portable gas analyzers, VOC sampling instruments, medical diagnostic devices, environmental monitoring equipment, and compact automation systems. Its stable low flow, low pulsation, and oil-free design make it ideal for applications where sampling accuracy, small size, and low power consumption are critical.
2. How reliable is the BD-05T01530 in long-term operation?
Under clean, non-corrosive gas conditions, the BD-05T01530 is designed for continuous-duty operation exceeding 6,000 hours. In addition, long-term testing and field feedback from key OEM customers indicate a typical service life exceeding 8,000 hours in real applications such as handheld gas analyzers and compact medical devices.
3. What customization options are available for OEM projects?
The BD-05T01530 is a standardized, highly stable platform, with customization focused on diaphragm and valve materials (EPDM standard, FKM optional) to improve chemical compatibility. Electrical parameters and structure remain standardized to ensure consistent performance, fast delivery, and controlled quality.
4. Is it oil-free?
Yes. The pump is 100% oil-free and requires no maintenance, ensuring contamination-free gas sampling.
5.Why is the BD-05T01530 more cost-efficient than similar imported pumps?
As a direct manufacturer, BODENFLO controls motor sourcing, pump head molding, diaphragm production, and final assembly in-house. This vertically integrated supply chain allows OEM customers to achieve lower unit cost, stable long-term supply, and reduced dependency on European or Japanese brands, without compromising performance or reliability.
Looking for a high-quality miniature diaphragm pump for your compact gas sampling or analytical device?
Contact BODENFLO for samples, datasheets, or integration support.
Email: info@bodenpump.com
Website: https://bodenpump.com/
We will contact you within 8 hours, please pay attention to the email with the suffix “@bodenpump.com”.
