How to Choose a 5V Micro Vacuum Pump for a Small Air Chamber?

You need a 5V pump for your compact device, but the specs are overwhelming. The wrong choice leads to a noisy, oversized unit with poor battery life and unreliable performance.

For a 5V micro vacuum pump in a small chamber, prioritize the working vacuum level, restart capability under load, and internal leak rate. Calculate the evacuation speed to avoid over-specification, ensuring you balance performance with power efficiency and a compact footprint.

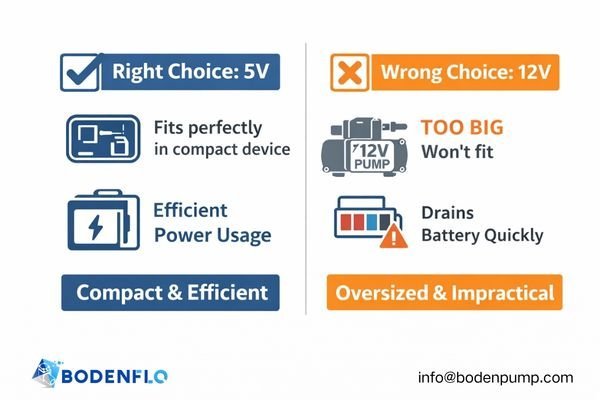

As a project manager at BODENFLO, I remember a client project for a handheld diagnostic tool. Their engineering team was fixated on a high-flow 12V pump for a tiny 30ml chamber. It was noisy, hot, and drained the battery in minutes. We switched them to a right-sized 5V model, and suddenly everything clicked into place. The device was quieter, cooler, and ran for hours. Let’s break down why that small change made all the difference and how you can make the right choice from the start.

Why 5V? The Trade-off Between Portability and Performance?

Your portable device needs reliable power, but big batteries add weight and 12V systems are complex. This makes sourcing power a major design headache.

5V offers a universal standard for compact, efficient power. It simplifies your design by running directly from a USB source or a simple boosted lithium battery.

The decision to use 5V is the first step toward a truly portable and efficient design. It’s the sweet spot for many small-chamber applications.

USB & Battery Compatibility

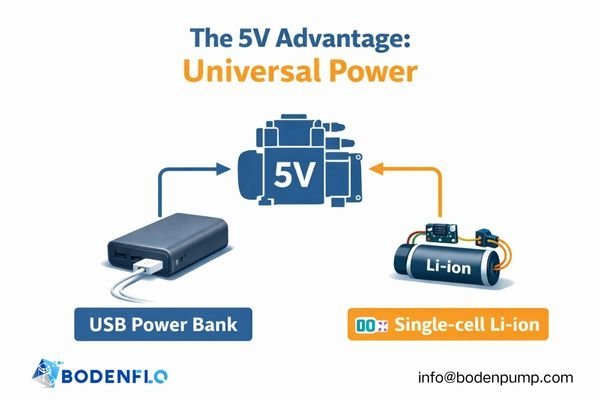

The biggest advantage of 5V is its universality. It is the standard voltage for USB, which means your device can be powered or charged by countless power banks, wall adapters, and computer ports. For battery-powered designs, a single-cell (3.7V) lithium-ion battery, combined with a simple and inexpensive boost converter, can provide a very stable 5V supply. This simplifies the power management circuit significantly compared to multi-cell 12V systems.

Voltage Fluctuation Sensitivity

A single lithium battery's voltage drops from 4.2V down to 3.0V as it discharges. A well-designed 5V pump system, paired with a quality boost converter, will maintain consistent performance across this entire range. This ensures your device operates reliably whether the battery is full or nearly empty.

The "Small Chamber" Advantage

For a small air chamber, brute force is not the answer. You don't need the high power of a 12V pump. A 5V pump, operating in its optimal efficiency range, will evacuate the chamber effectively while consuming a fraction of the power. This superior energy-to-flow ratio is the key to maximizing battery life in compact devices.

Volume vs. Speed: Calculating the "Time-to-Vacuum"?

You want to evacuate your chamber fast, so you pick a high-flow pump. But now it's noisy and drains the battery, for almost no noticeable speed difference.

In a small chamber (e.g., under 50ml), a 3 L/min pump isn't much faster than a 1 L/min one but uses far more power. Use a simple formula to calculate the time-to-vacuum and choose the most efficient pump.

Right-sizing the pump flow rate¹ is the most critical step to avoid wasting power and space. The math is simpler than you think.

The "Small Chamber" Trap

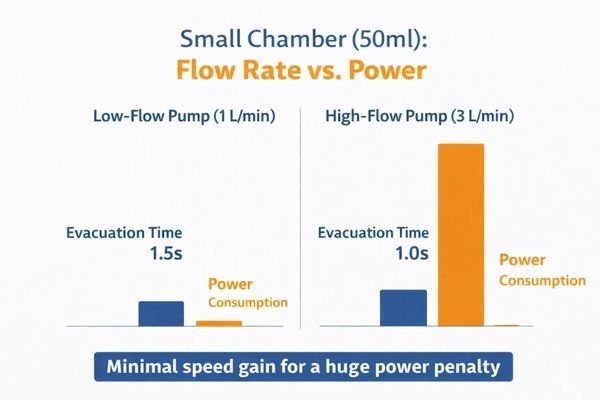

I've seen it many times: a team chooses a 3 L/min pump for a 50ml chamber. The reality is, the perceived speed difference compared to a much smaller 1 L/min pump is negligible—maybe fractions of a second. But the power consumption, noise, and size penalty are huge. In small volumes, tubing resistance and valve speed often become the limiting factors, not the pump's raw flow rate.

Evacuation Speed Formula²

You can estimate the time required to reach a target vacuum with this simplified formula:
Time (seconds) ≈ (Chamber Volume in Liters / Pump Flow in L/min) 60 ln(Initial Pressure / Final Pressure)
This quick calculation helps you see if doubling the flow rate offers a real benefit or just diminishing returns.

Avoiding Overshooting

In systems with sensitive pressure sensors, an overpowered pump can be dangerous. It can evacuate the chamber so quickly that the pressure "overshoots" the target, dropping much lower than intended before the controller can react. This can damage delicate sensors. A lower-flow pump provides a more controlled, ramped evacuation, making it easier to hit your target pressure precisely.

What Key Technical Specs Matter Beyond "Suction Power"?

You're focused on finding a pump with the highest suction power. But after installation, the chamber pressure slowly leaks back up, and the pump struggles to restart.

Ultimate vacuum is often misleading. For small chambers, you must prioritize the pump's internal leak rate (airtightness) and its ability to restart under an existing vacuum.

The datasheet numbers only tell part of the story. For small, sealed systems, these three specifications are far more important in the real world.

Ultimate Vacuum vs. Working Vacuum³

The "ultimate vacuum" spec (e.g., -50kPa) is the maximum pressure a pump can achieve under ideal, no-load conditions. However, your application might only need to hold a "working vacuum" of -20kPa. Don't pay for performance you don't need. Instead, focus on a pump that can efficiently maintain your target working vacuum.

Restart Capability

Imagine your device briefly stops pumping, leaving the chamber at -20kPa. When it tries to start again, the 5V motor has to overcome that existing negative pressure. This requires significant starting torque. Many low-cost pumps will stall in this scenario. A pump with good "restart under pressure" capability is essential for applications that cycle on and off.

Internal Leak Rate⁴

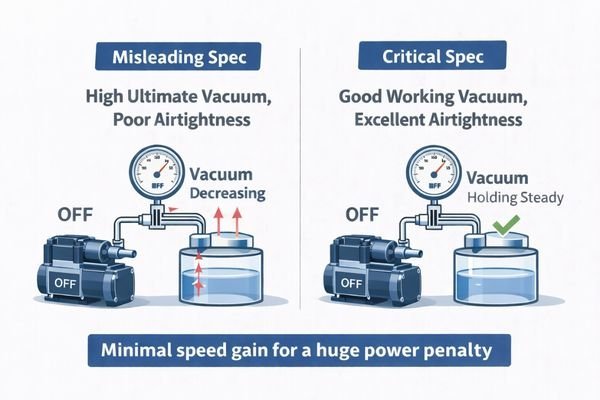

For a small chamber, this is arguably the most critical spec. After the pump turns off, you need the vacuum to hold. A pump with poor internal seals will slowly leak air back into the chamber, forcing it to cycle on more frequently, which drains the battery. A pump with a low leak rate (high airtightness) is more important than raw flow rate for maintaining a stable vacuum.

How Do You Handle Integration Challenges in Compact Enclosures?

You've chosen a 5V pump, but now you can't fit it on the PCB. When you finally do, it overheats in the tight space and vibrates, affecting other components.

Successful integration requires more than matching specs. You must consider the pump's heat dissipation, vibration signature, and physical footprint early in the design phase.

A great pump on paper is useless if it can't be integrated cleanly into your final product. Let's cover the three biggest physical challenges.

Heat Dissipation⁵

Even an efficient 5V pump generates some heat. In a tightly sealed enclosure with no airflow, this heat can build up, raising the temperature of the pump and the surrounding components. This can affect the density of the gas you are pumping, throwing off measurements. Plan for at least minimal passive cooling or choose an ultra-efficient pump designed for continuous operation in enclosed spaces.

Noise and Vibration Isolation⁶

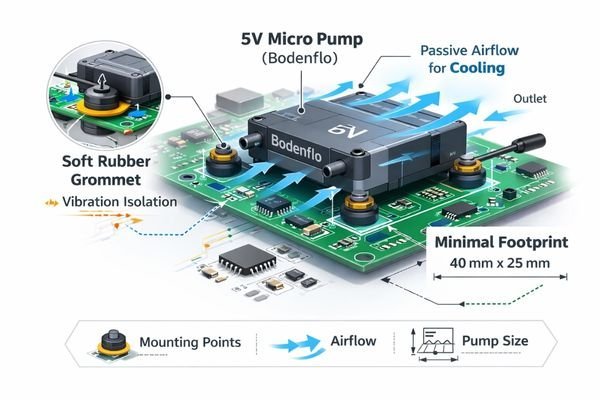

The pump's vibration can travel through the PCB and interfere with sensitive components like accelerometers or optical sensors. A common solution is to mount the pump using soft rubber grommets or a custom silicone bracket. This isolates the micro-vibrations from the rest of the system, ensuring clean sensor data.

Footprint & Orientation

PCB real estate is precious. Can the pump be mounted vertically to save space, or must it lie flat? Bodenflo offers ultra-compact 5V pumps designed for high-density layouts. Considering the pump's orientation and port locations early on will save you from a major redesign later.

What Common Pitfalls Should You Avoid?

Your 5V pump is underperforming. It seems weak, and sometimes it even causes your main processor to reboot when it kicks on.

You've likely fallen for a common 5V system trap. Power delivery is critical; undersized wiring, inadequate power supplies, and excessive backpressure can cripple your pump's performance.

These issues are frustrating because the pump itself isn't broken. The problem lies in the supporting system. Here’s what to check first.

Undersized Wiring

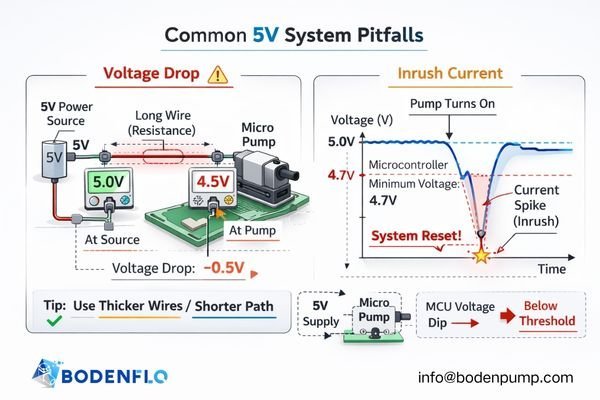

At 5V, even a small amount of resistance in your wires causes a significant percentage of voltage drop. If your pump needs 200mA and the wires are too thin, the voltage at the pump terminals might drop to 4.5V. This is enough to severely reduce its power and torque. Always use the recommended wire gauge for the current and distance involved.

Ignoring the Inrush Current⁷

When a DC motor starts, it draws a large spike of current for a few milliseconds. This "inrush current" can be 3-5 times the normal running current. If your 5V power supply cannot handle this momentary peak, its output voltage will sag. This sag can be deep enough to cause the main microcontroller on your board to reset, leading to a frustrating boot loop.

Silencer Restrictions

To reduce noise, it's tempting to add a muffler or silencer to the pump's exhaust port. However, in a small 5V system, this can create excessive backpressure. The small motor must now work harder to push the air out, which reduces its vacuum performance and increases current draw. Ensure any silencer is specifically designed for low-pressure systems.

Where are 5V Micro Pumps in Action?

You understand the theory, but where are these pumps making a real difference? Which applications absolutely depend on these compact 5V solutions?

5V micro pumps are the enabling technology in handheld gas detectors, portable medical suction devices, and automated lab equipment. These applications demand a perfect balance of portability, precision, and low power.

Let's look at three case studies where a 5V micro vacuum pump⁸ is not just an option, but a core component of the product's success.

Case Study	Why the 5V Pump is Critical
Handheld Gas Detectors	To provide 24-hour continuous monitoring for worker safety, these devices must have extremely long battery life. A low-power 5V pump9 sips current, allowing it to pull air over the sensor all day on a single, small battery.
Portable Medical Suction	For small wound drainage or clearing airways, a device must be lightweight and easy to handle. A 5V pump provides sufficient suction power in a tiny package, making it ideal for portable, patient-centric medical devices.
Automated Pipetting	In lab automation, precision is everything. A 5V vacuum pump can be controlled with extreme accuracy to aspirate micro-liter volumes of liquid into a pipette tip. Its small size allows it to be integrated directly into compact robotic heads.

Conclusion: Making the Smart Choice with Bodenflo

Customizing the pump to your specific 5V application is key to success. This ensures you get the perfect balance of performance, lifespan, and efficiency.

At BODENFLO, we can help you configure the right pump for your project. We can optimize motor windings to balance torque and lifespan, and our team can provide you with a quick selection checklist covering your volume, current, restart pressure, and airtightness needs. Don't guess; let our expertise guide you to the perfect 5V solution. Reach out to us at info@bodenpump.com to start the conversation.

---
