Why Are Pump Curves So Critical for Micro Diaphragm Pump Engineers and Users?

Are you struggling to select the right micro pump or predict its performance in your device? Designing without accurate performance data can lead to inefficient systems, or even complete product failure. Pump curves provide the essential map to navigate these challenges.

Pump curves are vital visual tools. They clearly show a micro diaphragm pump's performance—specifically its flow rate, pressure or vacuum capability, and often power consumption—across its entire operating range. This enables precise pump selection and system optimization.

Understanding these graphs is absolutely fundamental. For anyone working with micro diaphragm pumps, from design engineers to end-users, pump curves are not just helpful; they are essential. At BODENFLO, we consider them the bedrock of good pump application. Let's explore why they matter so much.

Why Is Grasping Pump Curves So Important for Your Project's Success?

Ever picked a pump hoping it would work, only to find it underperforms or is oversized? This trial-and-error approach wastes time, money, and can delay your project significantly. Pump curves are your guide to avoiding these pitfalls.

Understanding pump curves ensures you select the optimal pump that precisely matches your specific flow and pressure requirements. This prevents issues like underperformance or oversizing, thereby saving valuable resources and guaranteeing system reliability.

Grasping pump curves moves you from guesswork to informed decision-making. These graphs provide several key benefits:

• Accurate Prediction¹: They allow you to accurately predict how a pump will behave within your specific system.
• Identify Trade-offs: You can clearly see performance trade-offs. For instance, as you demand more pressure from most diaphragm pumps, the achievable flow rate typically decreases. This helps you find the optimal balance.
• Energy Optimization²: Many curves include power consumption or current draw data. This is crucial for optimizing energy efficiency, particularly in battery-powered devices.
• Meet Client Needs: As a project manager with over 8 years of experience, I've dealt with thousands of clients. A common requirement is the need for these curves to:
  • Confirm specific flow rates under their working pressure or vacuum.
  • Calculate battery life based on the pump's current draw at their operating point.
• Proactive Troubleshooting³: Pump curves help identify and troubleshoot potential performance issues before they become major problems.
• Clear Communication: They facilitate clear communication of performance requirements and capabilities.

Do Mini Diaphragm Pumps Actually Have Their Own Pump Curves?

You might wonder if such small devices like mini diaphragm pumps even bother with detailed performance graphs. It's easy to assume their performance is too minor to chart. This misconception can lead to poor integration in compact, sensitive applications.

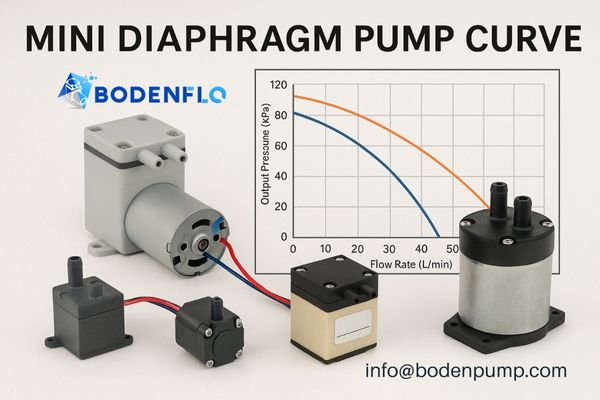

Absolutely, mini diaphragm pumps, despite their compact size, possess characteristic pump curves. Reputable manufacturers provide these curves to meticulously detail their specific performance capabilities concerning flow rate versus output pressure or generated vacuum.

The fundamental principles of fluid dynamics apply regardless of a pump's size. Therefore, even the smallest mini and micro diaphragm pumps⁴ have performance curves⁵ that describe their behavior. The importance of these curves for micro applications includes:

• Precision in Micro Applications: For devices like medical diagnostic tools needing minute sample volumes or portable environmental sensors requiring consistent airflow, there's no room for error. Curves provide this needed precision.
• Manufacturer Responsibility: At BODENFLO, we meticulously test each pump model, including our smallest micro diaphragm pumps, to generate accurate curves.
• Specialized Testing: This involves specialized test rigs⁶ capable of measuring very low flow rates and pressures with high precision.
• Influencing Factors: Factors influencing a micro pump's performance, which are often considered or noted when curves are generated, include:
  • Input voltage stability
  • Ambient temperature
• Voltage Specificity: The curve for a 3V micro pump will differ from its 5V counterpart, even if the mechanical design is similar, highlighting the need for specific curves.

What Exactly Is the "Duty Point" on a Pump Performance Curve?

You see lines on a graph, but how do they relate to your actual application? Using pump curves without understanding key terms like the "duty point" can lead to misinterpreting data and selecting an unsuitable pump.

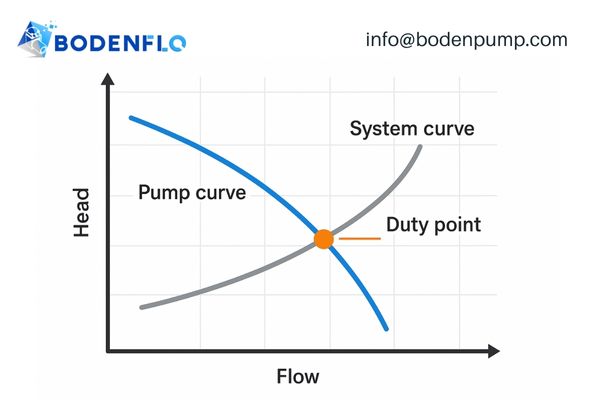

The duty point, also known as the operating point, on a pump curve represents the specific intersection where the pump's performance curve meets your system's resistance curve. It precisely shows the actual flow rate and pressure the pump will deliver when installed in that particular system.

Understanding the duty point⁷ involves several aspects:

• System Resistance⁸: Every system (tubing, filters, nozzles, backpressure) offers resistance to flow. This can be plotted as a "system curve."
• Intersection of Curves: The pump operates where its capability (pump curve) matches the system's demand (system curve). This intersection is the duty point.
• Real-World Performance: The duty point reveals exactly how the pump will perform in your actual application, not just its maximum potential in ideal conditions (open-flow or no-flow).
• Best Efficiency Point (BEP)⁹: Operating a pump at a duty point far from its BEP can lead to:
  • Wasted energy
  • Increased noise
  • Higher vibration
  • Potentially shorter pump lifespan
    Locating the duty point relative to the BEP is therefore crucial for optimal operation.

What Key Information Does a Pump Performance Curve Reveal to You?

A pump curve looks like a set of lines on a graph, but what do these lines actually tell you? If you can't decipher this information, the curve is useless. Understanding its elements unlocks vital performance insights.

A pump performance curve primarily illustrates the crucial relationship between the pump's flow rate and the pressure (or head) it can generate. Additionally, it often includes valuable data on efficiency and power consumption (or current draw) across various operating points.

A typical pump performance curve for a micro diaphragm pump will display several key pieces of information. At BODENFLO, we ensure our curves provide this essential data so engineers can make well-informed decisions.

These parameters help engineers fully understand the pump's operational characteristics and suitability for their application.

What Are Two of the Three Main Items Typically Shown on a Pump Curve?

Some pump curves can seem packed with information, which might feel overwhelming. When you first look at one, what are the absolute must-understand elements? Focusing on the core data is the first step to interpretation.

The two most fundamental items present on nearly every pump performance curve are the flow rate (Q) the pump delivers and the pressure (P) or head (H) it can achieve. A third very common and important item is the power consumption or electrical current draw.

Let's focus on these essentials:

• Flow Rate (Q)¹⁰:
  • Typically found on the horizontal axis.
  • Indicates the volume of air (or gas) the pump moves in a given time (e.g., milliliters per minute, liters per minute).
  • Represents the "quantity" aspect of the pump's performance.
• Pressure (P) or Vacuum Level¹¹:
  • Usually on the vertical axis.
  • Indicates the force the pump can exert or the level of suction it can create (e.g., kPa, psi, mmHg).
  • Represents the "force" aspect of the pump's performance.
• Relationship: For most positive displacement pumps like diaphragm pumps, flow and pressure are inversely related: as pressure output increases, flow rate tends to decrease, and vice-versa.
• Third Crucial Item - Power Consumption/Current¹²:
  • Shows how much electrical energy the pump needs to achieve a certain flow and pressure.
  • Vital for battery-operated devices or energy-sensitive applications.
    I've spent countless hours in the BODENFLO labs testing these relationships to ensure our curves are accurate.

How Do I Correctly Choose a Pump Using Its Performance Curve?

You have the pump curve and your project requirements, but how do you bridge the gap? Just looking at a curve isn't enough; you need a method to make the right selection, otherwise, you risk choosing an inefficient or unsuitable pump.

To select a pump from its curve, first clearly define your application's required flow rate and pressure (this is your target duty point). Then, find a pump whose performance curve shows that it can comfortably meet this duty point, ideally operating near its best efficiency region.

Choosing the right pump using its performance curve is a systematic process:

1. Define Your Needs: Clearly establish the specific flow rate and operating pressure (or vacuum level) your application requires. This pair of values is your target "duty point."
2. Gather Curves: Obtain pump performance curves¹³ for potential candidate pumps. At BODENFLO, we provide these for all our models.
3. Plot Your Duty Point: On each candidate pump's curve, locate your required flow rate on the horizontal axis and your required pressure/vacuum on the vertical axis. Mark this point.
4. Check Performance Match:
   • Does your marked duty point fall on or very close to the pump's flow-pressure curve?
   • If your point is far below the curve, the pump is likely oversized.
   • If the pump's curve is significantly below your point, the pump is undersized and won't meet requirements.
5. Consider Efficiency and Power:
   • Once a pump meets your flow/pressure needs, examine its power consumption (or current draw) curve at that duty point.
   • Is the power consumption acceptable for your power budget or battery life targets?
   • Is the pump operating near its Best Efficiency Point (BEP)¹⁴, if this information is available?
6. Evaluate Other Factors: Beyond the curve, consider:
   • Noise levels (dB).
   • Expected operational lifespan.
   • Physical size and mounting constraints.
   • Note: Consistently operating a pump at the extreme ends of its curve (e.g., maximum flow/minimum pressure or vice-versa) might negatively impact its longevity.

I often walk clients through this selection process. For example, a company developing a portable air sampler needed a precise flow rate against a known filter resistance, all while maximizing battery life. By carefully comparing BODENFLO pump curves, we successfully identified a model that hit their duty point efficiently.

Conclusion

Pump curves are indispensable for micro diaphragm pump selection and system design. They provide a clear visual guide to performance, ensuring optimal, reliable, and efficient operation for your specific application.
