What Is the Best Negative Pressure Pump for NPWT?

Your patient’s recovery is stalling. The portable NPWT device is noisy, its battery life is poor, and frequent alarms from unstable pressure are causing distress and slowing down the healing process.

The best pump for NPWT is a compact, quiet, and highly reliable brushless DC diaphragm pump. It must deliver a stable negative pressure (typically -80 to -120 mmHg), have low power consumption for long battery life, and be designed for thousands of hours of continuous operation.

As a specialist in miniature pumps at BODENFLO, I frequently work with medical device engineers developing the next generation of NPWT systems. Their primary challenge is always the same: finding a vacuum pump that is powerful and reliable enough for effective therapy, yet small, quiet, and efficient enough for patient comfort and mobility. The choice of pump is not just a component decision; it is the core of the entire therapy system. Let’s explore the critical features that define the "best" pump for this demanding application.

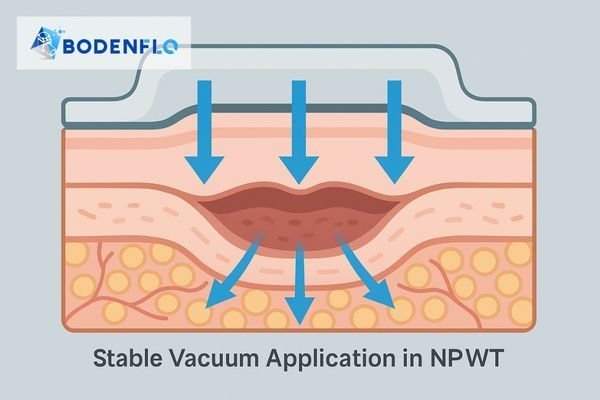

Why is a Stable Vacuum So Critical in Wound Healing?

The patient complains of pain, and you see alarms for pressure fluctuations. An unstable vacuum isn’t just ineffective; it can actively hinder healing and cause unnecessary suffering.

A stable, controlled negative pressure is the foundation of NPWT. It ensures the consistent removal of exudate, reduces edema, and promotes blood flow and tissue granulation. Pressure spikes or drops can cause pain and damage to delicate new tissue.

The entire therapeutic principle of NPWT hinges on maintaining a precise vacuum level, typically between -80 mmHg and -120 mmHg (-10.6 kPa to -16 kPa). This is the "sweet spot" for healing. A high-quality diaphragm pump¹ is essential because it is designed to provide smooth, non-pulsating airflow. This stability is critical for several reasons:

• Pain Management: Sudden increases in vacuum can be painful for the patient. A stable pump avoids this, improving patient compliance.
• Effective Drainage: A consistent vacuum ensures wound exudate and infectious material are constantly drawn away from the wound bed.
• Tissue Perfusion: Stable negative pressure² helps draw blood flow to the area, delivering oxygen and nutrients essential for rebuilding tissue.

Instability compromises every one of these therapeutic goals, turning an effective therapy into a source of problems.

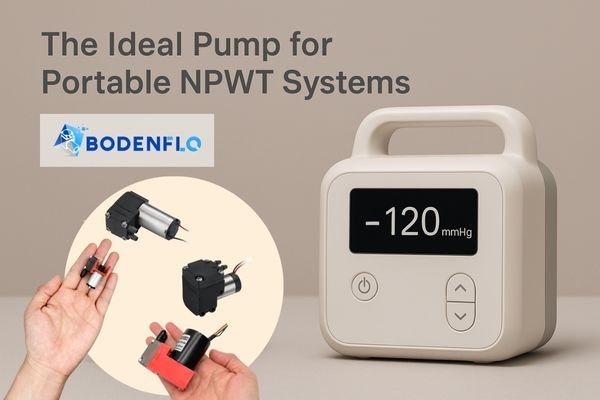

How Does Pump Design Affect Patient Mobility?

Your NPWT device is technically portable, but it’s too big and heavy. The patient feels tethered, and their activity is limited, which can slow down their overall recovery and impact mental well-being.

A compact and lightweight pump is the key to true portability. Modern pump design allows NPWT systems to be small enough to be worn, freeing patients from the bedside and promoting ambulation.

The goal of modern NPWT has shifted from hospital-only treatment to facilitating recovery at home. This is impossible without a miniature vacuum pump³. At BODENFLO, we focus on maximizing the performance-to-size ratio⁴. An ideal NPWT pump must be small enough to fit within a discreet, ergonomic enclosure that doesn’t restrict the patient’s movement.

Consider these design factors:

• Weight: The pump is often the heaviest component. A lighter pump directly reduces the total weight the patient has to carry.
• Footprint: A smaller pump allows for a more compact overall device, making it easier to wear under clothing and less obtrusive.
• Integration: A well-designed pump is easy to mount and integrate, simplifying the manufacturing and design process for medical engineers.

Every gram and millimeter saved on the pump contributes directly to a better patient experience.

Can a Vacuum Pump Really Be Quiet Enough for a Patient?

The constant drone of the pump is keeping your patient awake at night. This noise-induced stress is a significant barrier to rest, which is essential for healing.

Yes, by using a high-quality brushless DC motor, precision-balanced internal components, and proper vibration damping. A well-engineered pump can operate at a noise level below that of a quiet library, making it unobtrusive for 24/7 use.

Noise is one of the most common patient complaints with NPWT devices. The primary source of noise is the motor, which is why motor technology is so critical.

Sources of Pump Noise and Their Solutions:

• Motor Type: Brushed DC motors create noise from friction. Solution: Brushless DC (BLDC) motors⁵ are electronically commutated, making them inherently quieter.
• Mechanical Vibration⁶: An imbalanced motor will vibrate. Solution: Using precision bearings and dynamically balanced components minimizes vibration at the source.
• Enclosure Mounting: Bolting a pump directly to a casing amplifies noise. Solution: Using soft, elastomeric mounts isolates the pump and dampens vibrations.

For a device that runs continuously, a quiet pump is not a luxury—it is a clinical necessity.

What Makes an NPWT Pump Truly Reliable for Continuous Use?

A pump alarm blares at 3 AM due to a motor failure. A lapse in therapy risks wound contamination and requires an urgent, stressful intervention for a nurse and patient.

The key to reliability is a coreless brushless DC motor. By eliminating mechanical brushes, which are the primary point of wear, these motors can achieve lifespans of 10,000 hours or more, ensuring uninterrupted therapy.

An NPWT pump is expected to run 24/7 for weeks. Failure is not an option. The single most important factor determining a pump’s lifespan is its motor.

Let’s compare the two main options for DC pumps:

Feature	Brushed DC Motor	Coreless Brushless DC Motor (BLDC)
Lifespan	1,000 – 3,000 hours	10,000+ hours
Primary Failure	Brush wear	Bearing wear (very long-term)
Maintenance	Requires brush replacement	None required
Suitability	Acceptable for intermittent use	Essential for 24/7 medical devices

For any serious medical device intended for long-term continuous use, a BLDC motor isn’t just better; it’s the only responsible engineering choice.

How Does Power Consumption Impact NPWT Device Design?

The device’s battery dies in just a few hours. The patient is constantly searching for an outlet, which completely defeats the purpose of having a portable system.

Low power consumption is paramount for maximizing battery life. An efficient brushless DC pump draws minimal current, enabling the use of smaller, lighter batteries while still providing all-day untethered operation.

For a portable medical device, battery life is freedom. The vacuum pump is the largest consumer of power, so its efficiency dictates the device’s runtime. An efficient pump allows for a positive feedback loop in device design:

1. High-Efficiency Pump⁷: Draws less current.
2. Smaller Battery: A smaller, lighter battery can be used to achieve the target runtime.
3. Smaller & Lighter Device: A smaller battery and pump lead to a more comfortable end product.

At BODENFLO, we design our pumps to be optimized for low-voltage battery systems⁸, ensuring they provide the required performance at the lowest possible power draw.

What Is the Ultimate Checklist for Selecting an NPWT Pump?

You are comparing pump datasheets, but the specifications are overwhelming. Making the wrong choice could compromise your device’s performance and lead to a poor patient experience.

Use a simple checklist focused on the five most critical attributes. This ensures you select a pump that is not just technically sufficient, but perfectly suited for the unique demands of NPWT.

When I consult with engineers, I recommend they evaluate potential pumps against this essential checklist. If a pump can’t meet these five criteria, it is not the right choice for a modern NPWT device.

• [ ] Motor Technology: Is it a coreless Brushless DC (BLDC) motor for long life (>8,000 hours)?
• [ ] Performance: Can it maintain a stable vacuum of at least -45 kPa?
• [ ] Noise Level: Is the operational noise level low enough for patient comfort?
• [ ] Power Efficiency: Is the current draw low enough to support the target battery life?
• [ ] Form Factor: Is the pump compact and lightweight for a portable or wearable device?

By using this checklist, you can confidently select a pump that will form the reliable, quiet, and efficient heart of your NPWT system.

Which BODENFLO Pump Models Are Ideal for NPWT Systems?

You have the criteria, but which specific pump fits your design? Choosing between dozens of models for either a compact wearable or a powerful clinical unit can be challenging.

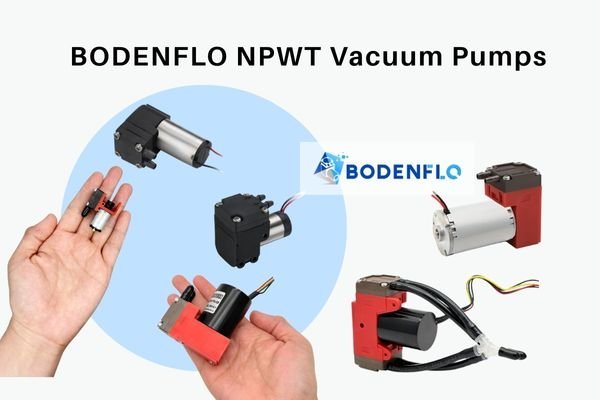

We recommend specific brushless models based on application. For portable devices, the BD-05T02500B offers an ideal balance. For high-performance systems, the BD-05TVB series provides superior power and flow.

Based on the criteria we’ve discussed, the choice of pump depends heavily on the intended use of the NPWT device. Here at BODENFLO, we’ve engineered solutions specifically for these distinct needs.

For Portable & Wearable NPWT Devices:

The primary constraints are size, weight, and battery life. The pump must be highly efficient and reliable. Our brushless "B" models are designed for exactly this.

• Top Recommendation: BD-05T02500B. This model is a standout choice due to its excellent balance of performance and compact size. Its 8000-hour brushless motor guarantees the reliability needed for long-term therapy.
• Higher Flow Option: BD-05T01.51500B. This offers a bit more flow for applications that require it, while retaining the essential long-life brushless motor technology.

For Clinical & High-Performance NPWT Systems:

For hospital use or treating highly exuding wounds, you need more power, higher flow, and a deeper vacuum.

• Top Recommendation: BD-05TVB-S. This pump delivers robust flow and a strong vacuum (-70 kPa) for the most demanding clinical situations, backed by a 10,000-hour lifespan.
• Maximum Performance: BD-05T0512L. When maximum exudate removal is required, this high-end brushless model provides an exceptional 12 L/min flow rate and deep vacuum.

Model	Key Application	Motor Type	Max Flow (approx.)	Max Negative Pressure	Lifespan (hours)
BD-05T02500B	Portable/Wearable	DC Brushless	550 ml/min	-45 kPa	8,000
BD-05T01.51500B	Portable (Higher Flow)	DC Brushless	1.5 L/min	-45 kPa	8,000
BD-05TVB-S	Clinical/High-Performance	DC Brushless	3 L/min	-70 kPa	10,000
BD-05T0512L	Maximum Performance Clinical	High-End Brushless	12 L/min	-72 kPa	8,000-10,000

Conclusion

The best NPWT pump combines a reliable brushless motor, stable vacuum, quiet operation, and low power draw in a compact size. This focus ensures both therapeutic effectiveness and patient quality of life.

---
