How Do I Choose a Small Diaphragm Pump?

Choosing the right pump feels overwhelming. A wrong move can stall your project and waste money. Follow this guide to find the perfect pump for your needs.

To choose a small diaphragm pump, you must first define your application's core needs. Consider the medium (air, gas, or liquid), required flow rate, pressure or vacuum level, and the expected operational lifespan. Matching these key parameters to pump specifications is the most critical step.

That basic answer gets you started. But the real success is in the details. Getting these details right is the difference between a working prototype and a failed project. We need to look at each factor one by one to make sure you have all the information. So, let’s begin with the most fundamental question you need to ask yourself.

First, what medium will your pump handle: air, gas, or liquid?

Not all pumps can handle all things. Using an air pump for liquid will destroy it almost instantly. You must understand the difference to make the right choice.

The medium dictates the pump type. Air pumps, or gas pumps, are for gaseous media. Liquid pumps are specifically designed with different seals and materials to handle fluids. Using the wrong type can lead to immediate failure and system contamination. Always check this compatibility first.

Let's dive deeper into why this is so important. The internal construction of these pumps is very different. When I first started in this industry, I saw an engineer try to use one of our high-flow air pumps to move a water-based solution. The pump stopped working in less than a minute. The reason is simple: the parts inside were not designed for contact with liquid.

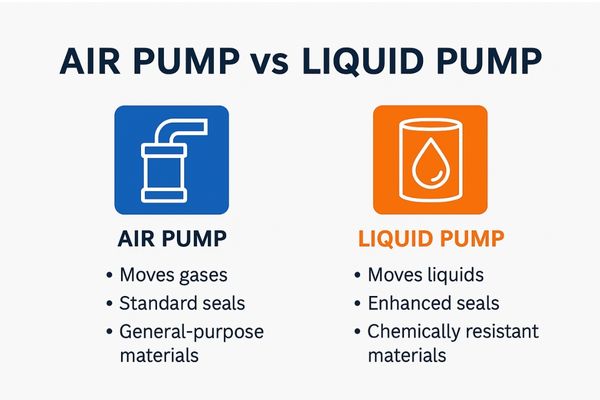

Key Differences in Construction

Air pumps are built to move volume efficiently in a dry environment. The materials for the diaphragm and valves are optimized for flexibility and long life when moving air or neutral gases. Liquid pumps are a different story. The parts that touch the liquid, what we call the "wetted parts¹," must be chemically resistant to prevent swelling, leaking, or breaking down.

At BODENFLO, we design pumps specifically for each medium. Choosing the correct one from the start prevents costly mistakes.

What materials must your pump be resistant to?

An aggressive chemical could dissolve your pump's parts. A material failure means leaks, contamination, and total system shutdown. You need to ensure chemical compatibility.

You must ensure the pump's "wetted parts" (diaphragm, valves) are compatible with your medium. Common options include EPDM for general use, and FKM for aggressive chemicals. Always check a chemical compatibility chart before choosing.

This goes far beyond just air vs. liquid. Even some gases can be highly corrosive. I once worked with a client in the water treatment industry who needed to pump ozone gas. Their first pump's diaphragm, made of standard EPDM rubber, became brittle and cracked within a few days. The material just couldn't handle the oxidizing effects of the ozone. We helped them switch to a pump model with an FKM diaphragm. That pump has been running without issues ever since. It's a small detail that makes a huge difference in reliability.

Common Diaphragm Materials

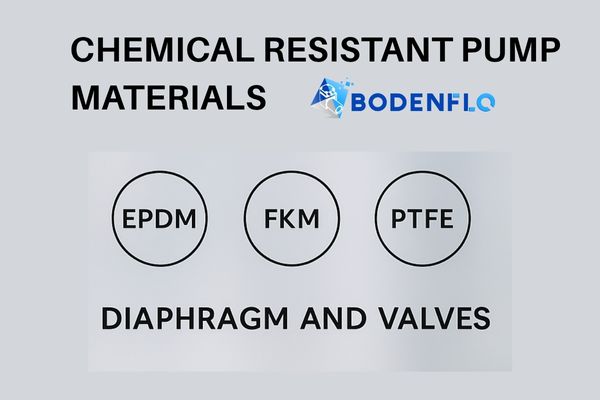

Choosing the right material is critical for the pump's survival and performance. Here’s a simple guide to the most common options we offer.

Our experts at BODENFLO can help you select the right materials for your specific chemical application.

How do flow rate and pressure define your pump's performance?

Your system has specific performance needs. A pump with the wrong flow or pressure simply won't do the job it was designed for. You must match these specifications carefully.

Flow rate (L/min) is the volume of medium moved over time. Pressure (bar) or vacuum (kPa) is the force it can generate. You must determine the operating point for your system, as flow and pressure are often inversely related.

The relationship between flow and pressure is something every engineer must understand. We show this relationship on what we call a performance curve³. Every pump has one. The curve shows that as you demand more pressure from the pump, the flow rate it can deliver goes down. The "sweet spot," or your ideal operating point, is somewhere on that curve. Think about two very different applications. A portable environmental air sampler needs a stable flow rate but pumps against very little pressure. In contrast, a blood pressure monitor needs to generate high pressure, even if the flow rate is low. Your job is to find the point on the curve that matches your system's needs.

Matching Performance to Application

Our BODENFLO pumps offer a massive range, from 0.3 to 60 L/min and up to 3.5 bar. We can help you find a pump whose performance curve fits your exact needs.

Why are voltage and power consumption critical for your design?

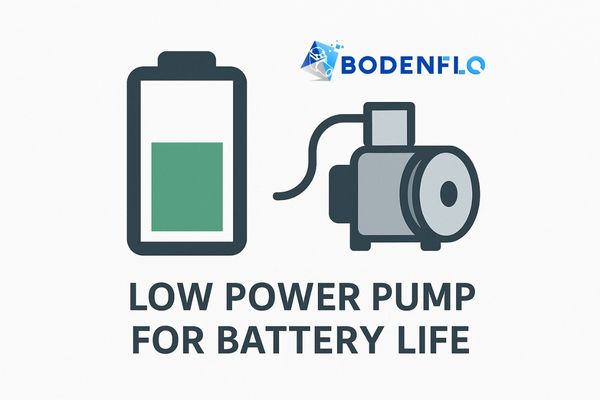

Your device has a limited power supply. A power-hungry pump can drain batteries in an instant or overload your circuits. You must select a pump that fits your power budget.

Voltage (V) must match your power supply, like 12V or 24V. Power consumption (W) affects battery life in portable devices and overall system efficiency. Low-power pumps are essential for battery-operated equipment, while higher-power models deliver more performance.

I remember a client who was developing a handheld gas detector. They first chose a powerful pump for fast sampling, but the battery died in less than an hour. That's not practical for field use. We worked with them to switch to one of our highly efficient Brushless DC (BLDC) motor pumps⁴. The power draw was cut by more than half, and the device's runtime tripled. This is a classic engineering trade-off you must manage. The choice of motor inside the pump is a huge part of this.

Brushed vs. Brushless Motors

The motor is the heart of the pump. Most small pumps use either a standard brushed motor⁵ or a more advanced brushless (BLDC) motor. They have very different impacts on power and lifespan.

• Brushed Motors: These are simpler and less expensive. They are a great choice for applications that are cost-sensitive or don't run continuously. However, the internal brushes wear out over time.
• Brushless Motors (BLDC): These are more advanced. They have no brushes to wear out, so they last much longer. They are also more energy-efficient⁶ and offer precise speed control. They are the best choice for medical devices and battery-powered applications.

Our pumps at BODENFLO are available with a wide voltage range from 1V to 24V, with both brushed and BLDC options.

How important are size and weight for your application?

Your device has limited space. A bulky pump won't fit, killing your compact design. You need a pump that fits perfectly without compromising on the power you need.

For portable or space-constrained devices, size and weight are top priorities. Choose a pump specifically designed for compactness. Our pumps range from just 18g to 4.7kg, ensuring a solution for even the smallest integration challenges.

They are called "miniature" pumps for a reason. But the real engineering challenge is to make something small that is still powerful. That’s where we focus our expertise at BODENFLO: achieving high flow in a small package. For some applications, this is the most important factor. Think about a wearable medical device⁷ that a patient has to wear all day, or a handheld analyzer that a technician carries for hours. In these cases, every gram and every cubic millimeter counts. A lighter, smaller product is a better product. The pump is often one of the largest components, so its size can define the final product's form factor.

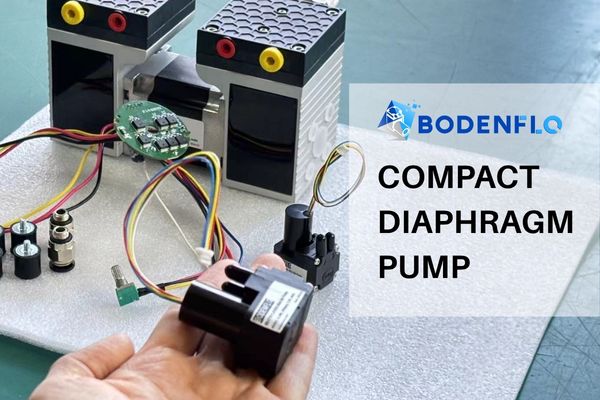

Matching Size to Your Device

We provide detailed dimensions and weights for all our pumps, so you can be sure the model you choose will fit perfectly into your design.

How do you balance lifespan requirements with your budget?

You need a pump that you can rely on. A pump failure can shut down a critical medical process or a high-value industrial machine. You must match the pump's lifespan to your needs.

Lifespan, measured in operational hours, indicates how long a pump can run before it is expected to fail. A medical device may need 10,000+ hours, while a disposable lab tool might only need 300. Higher lifespan pumps cost more but reduce future maintenance.

Thinking about lifespan is really about thinking about the total cost of ownership. A cheaper pump might save you money today, but if you have to replace it four times over the life of your product, was it really cheaper? This is where quality comes in. Our commitment to the UKAS ISO 9001 quality system means we build every pump to be reliable. But the biggest factor in pump longevity is still the motor technology, which we discussed earlier. A brushless motor will always outlast a brushed motor, often by five or ten times. This is the most critical decision when you are balancing cost against the need for long-term reliability.

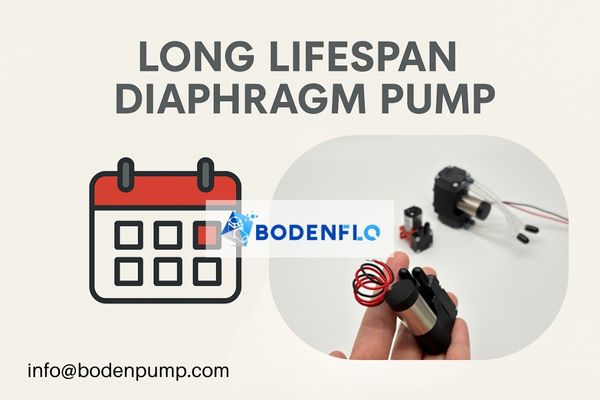

Lifespan and Cost Trade-offs

At BODENFLO, we offer pumps across this entire spectrum. We have cost-effective brushed pumps for simple applications, and premium BLDC pumps for the most demanding equipment.

Conclusion

Choosing the right pump is simple when you consider these key factors. For expert help finding the perfect BODENFLO pump, contact our team at info@bodenpump.com today.
