How Does Load Operation Affect Mini Compressor Lifespan?

Your mini compressor failed way before its datasheet rating, causing costly downtime and customer complaints. This wasn’t a random defect; operating under load silently generates destructive heat and mechanical stress, destroying the compressor from within.

Load operation directly affects lifespan by increasing internal temperature and mechanical stress on the motor, diaphragm, bearings, and valves. This combination of thermal and mechanical strain accelerates material fatigue and wear, drastically reducing the compressor’s real-world operational hours compared to its datasheet rating.

This scenario is one of the most common—and frustrating—puzzles I help clients solve. An engineer specs a 10,000-hour compressor, but the device in the field fails at 4,000 or 5,000 hours. The culprit is almost always a fundamental misunderstanding of "load." The datasheet lifespan is a benchmark, not a guarantee under your specific application’s pressure. Let’s break down what’s really happening inside that pump.

What Does “Load Operation” Mean for a Mini Compressor?

Is your design causing the compressor to work too hard? The term "load" isn’t just a single number; it represents the amount of resistance the compressor has to overcome.

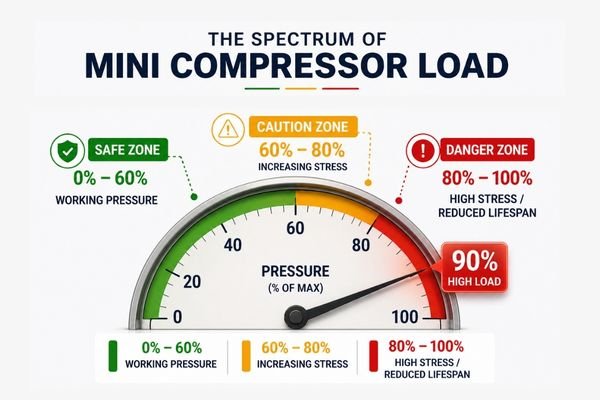

A compressor’s load exists on a spectrum. It ranges from zero resistance (free flow) to maximum resistance (a blocked outlet). Understanding where your application falls on this spectrum is the first step to predicting its lifespan and reliability accurately.

To select the right component, we need to be precise about the operating conditions¹. Each level of load puts a different type of strain on the compressor’s internal components, directly influencing its longevity.

Here’s how I break down the different load states² for my clients:

Clarifying these load states is the first, and most critical, conversation we have with any engineering team we partner with.

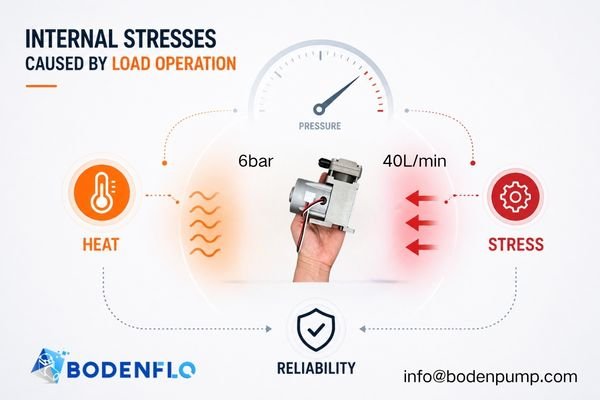

Why Does Load Increase Stress Inside a Mini Compressor?

You know that load is bad, but why exactly does it cause failures? The extra work doesn’t just "wear things out"; it sets off a specific chain reaction of destructive forces inside the pump.

When a compressor works against pressure, every component experiences increased stress. This isn’t just a single point of failure; it’s a system-wide cascade that begins with the motor and ends with material degradation.

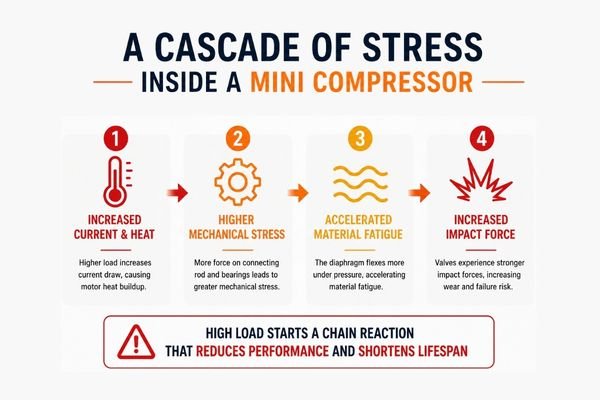

Let’s trace this chain reaction step-by-step:

1. Current Rises: Pushing against pressure requires more torque from the motor. To generate this torque, the motor draws significantly more electrical current.
2. Motor Temperature Soars: This higher current flows through the motor’s copper windings, generating much more heat due to electrical resistance (I²R losses).
3. Diaphragm Deformation Increases: The motor transfers this increased force through the connecting rod to the diaphragm. The diaphragm must now stretch and flex more aggressively to displace air against the high outlet pressure, accelerating material fatigue.
4. Bearing and Rod Pressure Increases: The entire eccentric mechanism, including the bearings and connecting rod, is subjected to higher compressive and tensile forces on every single rotation.
5. Valve Impact Increases: The valve plates must now seal against a much higher backpressure. This means they slam shut with greater force on each cycle, leading to faster wear and tear on the delicate valve seats.

When we perform a failure analysis on a pump returned from the field, we can almost always trace the root cause back through this exact chain of events.

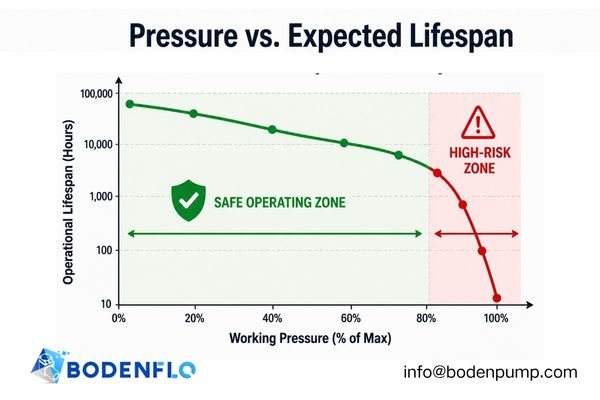

Does Higher Pressure Always Mean Shorter Lifespan?

So, is running a compressor under any load a death sentence? Not necessarily. The relationship is more nuanced; it’s about how much load, for how long, and under what conditions.

The key isn’t whether there is a load, but whether the load is reasonable for the chosen compressor. A compressor operating within its intended working pressure range can have a long and predictable life. The problems begin when it’s pushed to its limits.

Here’s my core judgment framework for evaluating load risk:

• Light to Reasonable Load: If a compressor is operating at 30-60% of its maximum rated pressure, the impact on lifespan is often manageable and can be factored into a reliable product design. For example, a 10,000-hour compressor designed for 3 bar max pressure might still achieve 5,000-7,000 hours when running continuously at 1 bar. That 30-50% reduction is a critical design consideration.
• Operating Near Maximum Pressure³: Continuously running a compressor at 80% or more of its maximum pressure rating is the danger zone. Heat builds up rapidly, and mechanical stress is extreme. Lifespan will decrease dramatically, often by more than 70-80%.
• Frequent Pressurized Starts⁴: The highest stress moment for a compressor is starting against an already pressurized line. This demands a massive inrush of current, putting immense strain on the motor and mechanical parts. This is a very high-risk operating condition.

The most successful engineering teams we partner with treat the maximum pressure rating as a limit to stay clear of, not a target to aim for.

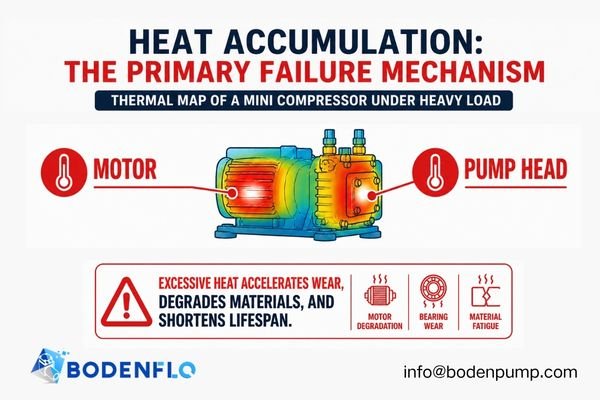

Why Is Temperature the Real Lifespan Killer?

Pressure creates stress, but what a lot of engineers miss is that heat is the ultimate executioner. All the mechanical and electrical stresses we’ve discussed manifest as heat, and heat degrades every critical component inside the compressor.

The increased electrical current generates heat in the motor, and the compression of air itself generates heat in the pump head. If this combined heat isn’t effectively removed, it accumulates, slowly cooking the compressor from the inside out.

Heat is the common enemy of all key internal materials:

• Rubber (Diaphragm & Valves)⁵: High temperatures cause rubber components like EPDM or FKM to lose their elasticity, becoming brittle and prone to cracking. A cracked diaphragm or a valve that no longer seals means total failure.
• Plastics (Head & Housing): If plastic components are used, excessive heat can cause them to warp, leading to air leaks and loss of performance.
• Motor Windings⁶: The enamel insulation on the motor’s copper windings will break down and short-circuit if subjected to prolonged high temperatures, leading to a burnt-out motor.
• Lubricants (Bearings): The grease inside the sealed bearings will degrade and lose its lubricating properties at high temperatures, causing the bearings to seize up.

From our experience across hundreds of OEM applications, poor thermal management inside the final device is the single most common reason a well-chosen pump fails prematurely.

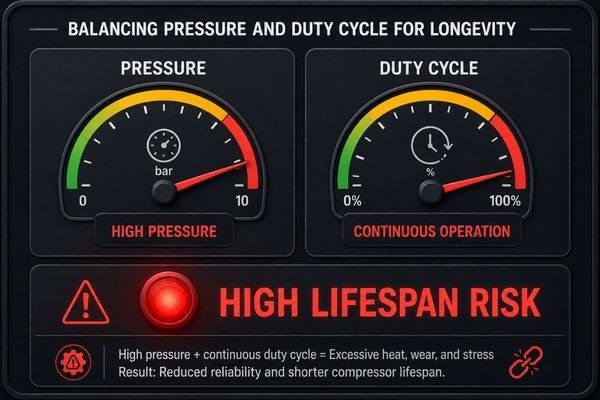

How Do Duty Cycle and Working Pressure Change Lifespan?

How you use the compressor is just as important as the compressor itself. A short burst at high pressure is very different from running continuously at a moderate load.

The combination of pressure and runtime defines the total thermal and mechanical stress on the system. You must consider both to predict the real-world lifespan of the component in your device.

I use this risk assessment table with my clients to help them visualize how their intended use case will affect the compressor’s longevity.

When a client’s application falls into these ‘High’ or ‘Very High’ risk zones, our engineering team flags it immediately so we can discuss a specific mitigation plan together.

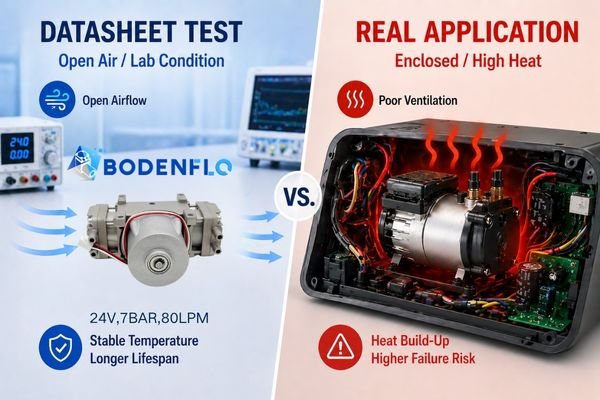

Why Is Datasheet Lifespan So Different from Real Life?

This is a question I get all the time: "The datasheet said 10,000 hours. Why did it fail so early?" The answer is that the datasheet is not a prediction of performance in your device.

A datasheet lifespan is measured under highly controlled, standardized laboratory conditions. This typically means a moderate load, a specified duty cycle, and, most importantly, open-air cooling at room temperature. Your device is not a lab bench.

Your application introduces a host of variables that the standard lifespan test does not account for:

• Higher System Load: Your tubing, filters, and valves add resistance.
• Poor Heat Dissipation: The compressor is often enclosed in a small, unventilated product case, trapping heat and raising the ambient temperature.
• Higher Ambient Temperature: The device may operate in a warm environment, reducing the compressor’s ability to cool itself.
• Specific Duty Cycle: Your start/stop frequency and run times are unique.

Treating the datasheet value as a promise instead of a reference point is one of the costliest assumptions an engineering team can make.

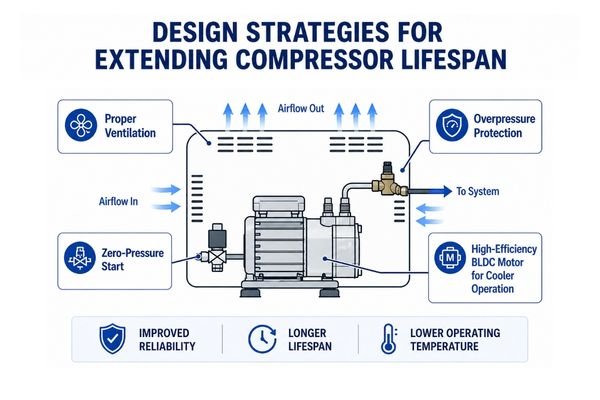

How Can OEM Engineers Extend Mini Compressor Lifespan Under Load?

You don’t have to accept a short lifespan. By making smart design choices, you can mitigate the damaging effects of load and build a much more reliable product.

The goal is not to eliminate load, but to manage it intelligently. This involves a combination of selecting the right component and designing the system around it to minimize thermal and mechanical stress.

Here are the solutions I recommend to my OEM clients:

1. Build in a Pressure Margin: Select a compressor whose maximum pressure is at least 20-30% higher than your required working pressure. Never design a system that requires the pump to run near its maximum rated pressure.
2. Optimize Thermal Management: Ensure adequate ventilation around the compressor. If it’s in a tight enclosure, consider adding a small fan or heat sink to actively remove heat from the motor and pump head.
3. Use the Right Motor: For applications requiring long life under load or precise speed control, a brushless (BLDC) motor⁸ is far superior. They run cooler, are more efficient, and last much longer than standard brush motors.
4. Add a Relief Valve⁹: If there’s a risk of a blocked outlet, install a pressure relief valve or a bypass loop to protect the compressor from dead-end conditions.
5. Avoid Pressurized Starts: Use a solenoid valve to vent the line to zero pressure before the compressor starts. This drastically reduces the startup current draw and mechanical shock.
6. Conduct Real-World Testing: The only way to be certain of lifespan is to build a prototype and run a long-term life test under your application’s actual load, duty cycle, and thermal conditions.

Our most successful client partnerships are with engineering teams who build these six principles directly into their product design process.

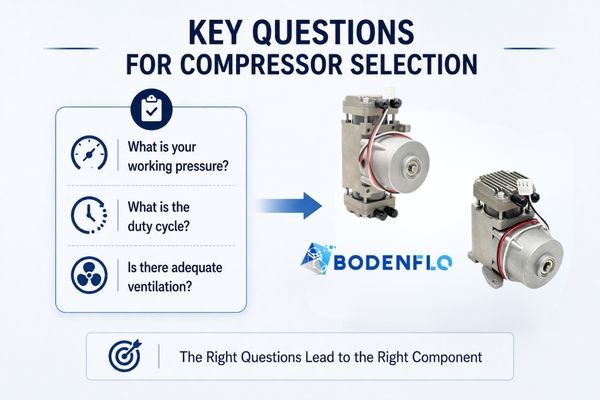

What Should You Ask Before Selecting a Mini Compressor?

Before you choose a component, you need to have a clear and honest conversation with your supplier about your application’s specific demands. Don’t just ask for a "10 LPM pump."

To avoid a load mismatch, you must provide your potential supplier with a complete operational profile. Many standard micro compressors have low-speed motors and are not designed for significant backpressure. You must confirm suitability.

Be prepared to answer these questions:

• What is the continuous working pressure?
• What is the maximum pressure required?
• Will it run continuously or intermittently? What is the duty cycle¹⁰ (e.g., 5 min on, 10 min off)?
• Will the compressor ever need to start against a pressurized line?
• What is the ambient operating temperature of the device?
• Will the compressor be in an enclosed, unventilated space?
• Do you require precise speed control or a lifespan beyond 3,000 hours? (If yes, you likely need a brushless motor.)

The quality of the component you receive is directly proportional to the quality of the information you provide your supplier

Conclusion: Load Doesn’t Kill a Compressor—A Poor Load Match Does

A compressor running under load isn’t inherently a problem. The real issue is selecting a compressor that is not properly matched to the thermal and mechanical demands of that load. Smart engineering is the solution.

By understanding the physics of load, managing heat, and selecting a component with an adequate performance margin, you can design a reliable device that meets and exceeds its expected lifespan.
