Your sensitive sensor readings are noisy and unstable. This turbulence forces complex workarounds, wasting time and money. A low-flow micro pump provides the gentle, precise flow you need.

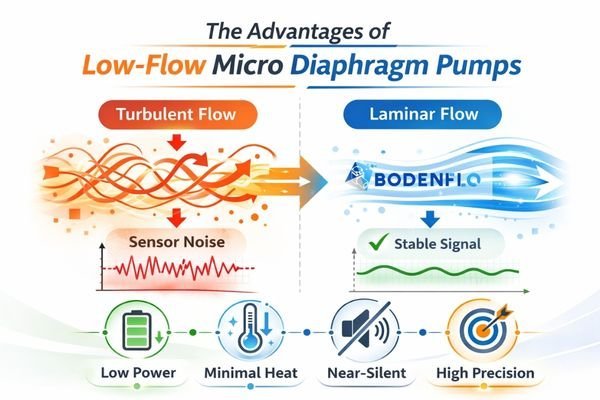

Low-flow micro diaphragm pumps offer superior precision, much lower power consumption, minimal heat, and near-silent operation. They prevent sensor interference by providing a smooth, laminar flow, ideal for portable analytical and medical devices where accuracy and battery life are critical.
As a project manager at BODENFLO with over 7 years of experience, I often see engineering teams at device manufacturers default to a pump that seems more powerful than needed, thinking "we can always turn it down later." This is a common but costly mistake. A high-flow pump running slowly is not the same as a pump designed for low flow. The latter offers distinct advantages in precision, power, and integration that are impossible to replicate with an oversized pump. Let's explore why choosing the right low-flow solution is the smarter engineering choice for many applications.
Why is Less Often More for Sensitive Sensors?
You're trying to get a stable reading from a chemical sensor, but the data is noisy. You suspect your pump's airflow is the culprit, causing constant fluctuations.
This is a classic problem. High-flow pumps create turbulence that interferes with sensor readings. A low-flow pump provides a smooth, laminar stream, dramatically improving your signal-to-noise ratio.
For any application involving analytical sensors, the quality of the sample delivery is just as important as the quality of the sensor itself. This is where low-flow pumps truly excel.
The Turbulence Factor
A powerful pump moves air with strong, distinct pulses. When this turbulent stream hits a delicate chemical sensor (like those for CO₂ or O₂), it creates micro-pressure changes on the sensor's surface. The sensor ends up measuring both the gas concentration and this flow noise, making it impossible to get a clean baseline. A low-flow pump, by its nature, generates a much gentler, almost continuous stream of air, minimizing this disruptive turbulence.

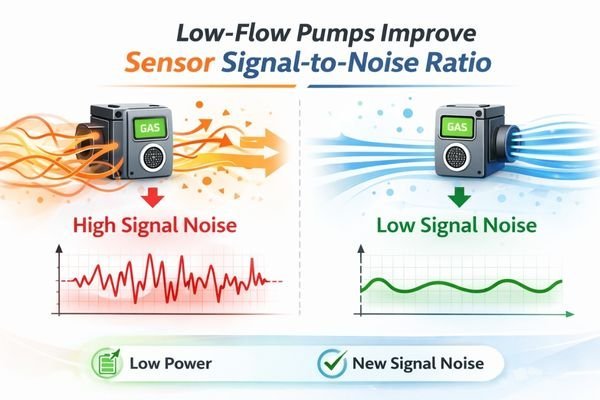

Improving the Signal-to-Noise Ratio
The goal is to maximize the "signal" (the true gas concentration) and minimize the "noise" (interference from the pump and environment). By providing a much smoother, laminar flow, a low-flow pump drastically reduces the noise component of the reading. This allows your system to detect smaller changes in gas concentration with much greater confidence and precision.
Extended Residence Time
In some analytical instruments, the magic happens when a gas sample spends more time inside a reaction or measurement chamber. A high-flow pump would flush the chamber out too quickly. A low-flow pump allows you to precisely control this "residence time," ensuring the chemical reaction or sensor measurement has enough time to complete fully, leading to a much more accurate and reliable result.
How Can You Scale Down Power for Portable Design?
You're designing a battery-powered device, and every milliamp counts. A standard miniature pump is powerful, but it's draining your battery far too quickly.
You've over-specified your pump. A low-flow micro diaphragm pump is designed for maximum efficiency at low flow rates, dramatically extending battery life and simplifying your circuit design.
For any portable or wearable device, power consumption is a primary design constraint. Choosing a pump that is optimized for low power is not just an improvement; it's often the only way to make the product viable.

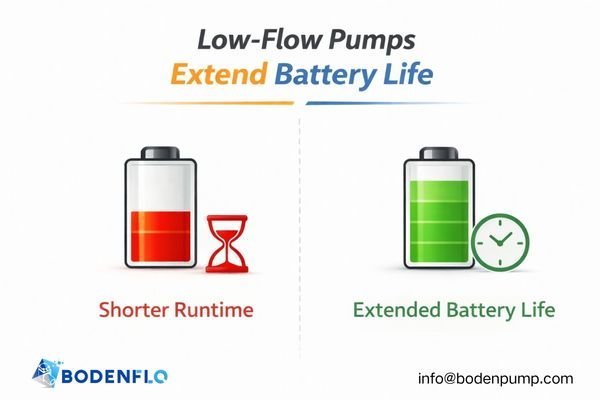

Battery Life Longevity
Moving less fluid requires less work, and less work means less energy consumption. It’s that simple. Comparing two devices, the one with a dedicated low-flow pump will have a significantly longer operational time on a single charge than a device using a powerful pump that has been throttled down. This could be the difference between a device that lasts 8 hours and one that lasts 24 hours.
Startup Current Management
Low-flow pumps are typically built with smaller, more efficient motors. A significant benefit of this is a much lower startup inrush current. This is a huge advantage for your PCB design. A lower peak current means you can use smaller, less expensive power supply components (like regulators and capacitors) and simplifies the design of your circuit protection.
The "Energy-to-Flow" Optimization
At BODENFLO, we don’t just use a smaller motor. We re-engineer the entire system. We optimize the diaphragm's elasticity and the eccentric's mechanical advantage to create a stable flow with minimal energy input. This holistic approach ensures that every joule of energy is used as efficiently as possible, a critical factor for long-term, low-power operation.

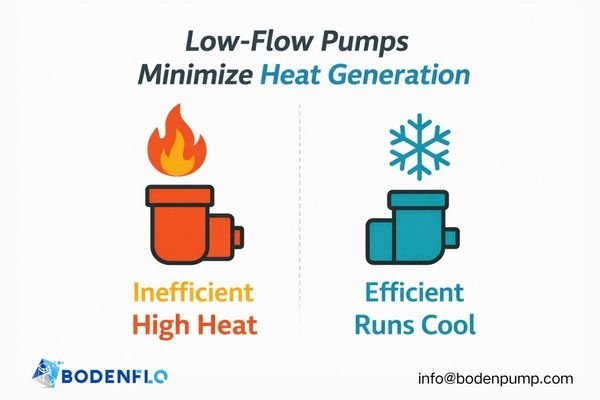

How Does a Low-Flow Pump Help with Heat Dissipation?
Your compact device is getting too warm, and the heat source is the miniature pump. You've tried slowing it down, but the base motor heat is still a problem.
You've discovered the "overheating trap." A big pump running slow is still an inefficient, hot motor. A native low-flow pump generates minimal waste heat, simplifying thermal management and protecting your sample integrity.
In densely packed electronics, every milliwatt of waste heat is a problem. Choosing a low-flow pump is one of the most effective strategies for passive thermal management1.
The Overheating Trap
It seems logical to take a 10 L/min pump and run it slowly to get 1 L/min. However, the large motor in that pump still has a significant baseline power consumption and internal friction, generating a constant amount of heat regardless of the flow output. A true low-flow pump uses a motor perfectly sized for the job, resulting in dramatically lower heat loss ($I^2R$) and a much cooler device.
Impact on Gas Temperature
When a pump gets hot, it pre-heats the gas it is sampling. This thermal expansion means the volume of gas entering the pump is no longer consistent, which can ruin the accuracy of volumetric measurements. Because a low-flow pump runs cool, it ensures the temperature of the sampled gas remains stable, preserving the integrity and consistency of your measurements.
Minimalist Cooling
When your primary heat source is eliminated, your cooling solutions become much simpler. By using a naturally cool low-flow pump, you can often avoid the need for extra components like heat sinks, cooling fans, or complex ventilation designs. This saves space, reduces cost, and eliminates another potential point of failure.
How Can You Achieve "Near-Silent" Operation?
Your device is for a quiet environment or will be worn by a person. The constant buzzing of the pump is distracting and unacceptable for the user experience.
You need to focus on the pump's acoustic signature, not just its decibel rating. A low-flow pump operates at a lower frequency and with less vibration, making its sound much less intrusive.
In medical and consumer applications, the user's acoustic comfort is paramount. A "quiet" device is one that blends into the background, and low-flow pumps are designed to do just that.

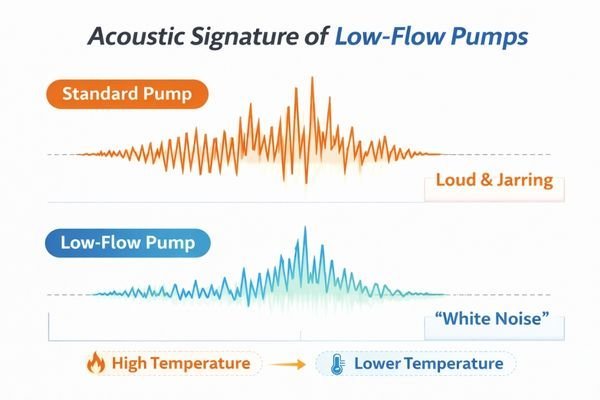

Frequency vs. Decibels
Two pumps might have the same decibel (dB) rating, but one can be far more annoying than the other. High-flow pumps often produce a high-frequency, "whining" or "buzzing" sound that is very noticeable to the human ear. Low-flow pumps, with their smaller motors and slower operation, typically produce a lower-frequency sound that is more like "white noise" and is much easier to ignore.
Vibration Dampening
Vibration is just sound you can feel. The mechanical action of a micro diaphragm pump involves a moving eccentric. In a low-flow pump, this asembly is smaller and ahas a shorter stroke, meaning the resulting mechanical vibrations are tiny. This is critical in applications like optical analysis instruments, where even micro-vibrations can throw off a laser or sensor alignment.
"Invisible" Patient Experience
For a wearable medical device, like a continuous glucose monitor or ambulatory blood pressure cuff, the goal is for the user to forget they are wearing it. The gentle hum and minimal vibration of a low-flow pump allows for "invisible" or "senseless" operation, dramatically improving patient comfort and compliance.
How Can You Integrate Cost-Effectively and Avoid Over-Specification?
To be safe, you chose a pump with more flow than you need. Now your device is bigger, heavier, and more expensive than it should be, and you need extra parts to reduce the flow.
This is the classic "over-specification" error. Choosing a correctly sized low-flow pump from the start simplifies your system, reduces size and weight, and lowers the total bill of materials.
As a project manager, one of my key goals is to eliminate unnecessary cost and complexity. Over-specifying a pump is one of the most common ways projects go over budget.
The Over-Specification Error
The instinct to add a "safety margin" by choosing a bigger pump is tempting. However, this decision has cascading consequences:
- Volume & Weight: A bigger pump makes your device bulkier and heavier.
- Cost: The pump itself is more expensive.
- System Complexity: You now need to add components to reduce the flow.
A right-sized low-flow pump eliminates all of these issues from the start.
Simplifying the System

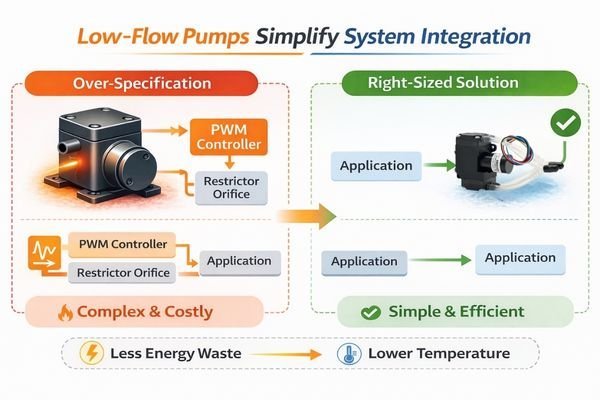

If you use a high-flow pump, you often need to add a precision orifice (a tiny, drilled hole) or a complex PWM speed control circuit to bring the flow down to your target level. These are additional components that add cost, take up space, and introduce new potential points of failure. A dedicated low-flow pump delivers the correct flow rate natively, requiring no such workarounds.
Space Optimization
In modern electronics, every square millimeter on the PCB is valuable. BODENFLO's low-flow series pumps are incredibly compact. Their small footprint and low profile allow for seamless integration into even the most space-constrained designs, giving you more freedom and flexibility in your layout.
Where is Low-Flow the Superior Choice in Case Studies?
You understand the theoretical benefits, but where does a low-flow pump make a tangible difference in a real product?
Low-flow is the enabling technology in wearable gas detectors, microfluidics, and ambient air sampling. In these fields, precision, battery life, and non-disruptive operation are non-negotiable.
Let's look at three areas where choosing a low-flow pump is not just an optimization, but a fundamental requirement for the product to function.
| Case Study | Why Low-Flow is Essential |
|---|---|
| Wearable Gas Detectors2 | For personal safety monitors that must run for an entire 8-hour shift or longer, battery life is the primary concern. A low-flow pump drawing just a few milliamps is the only way to provide continuous monitoring without needing a large, heavy battery. |
| Microfluidic Lab-on-a-Chip3 | These applications involve moving microliters (µL) of fluid through microscopic channels. A high-flow pump would be impossible to control. A precision low-flow pump is required to gently and accurately drive the fluid, enabling portable and automated medical diagnostics. |
| Environmental Ambient Sampling4 | When sampling air to test for pollutants, the goal is to mimic the natural, slow movement of air to get a representative sample. A high-flow pump would aggressively pull in air from a wide area, potentially skewing the results. A low-flow pump provides a gentle, localized sample. |
Conclusion: Finding the "Sweet Spot" with Bodenflo
Choosing a pump is about finding the most efficient solution. Start by defining your required accuracy and battery life, then work backward to determine the ideal flow rate. At BODENFLO, we don't just sell pumps; we help you find the most efficient low-flow solution that perfectly balances performance and portability. Contact us at info@bodenpump.com to get started.
-
