OEM Micro Vacuum & Air & Liquid Pumps for NPWT, IVD, and Therapy Devices
This page provides a clear, structured overview of how BODENFLO micro diaphragm pumps address critical challenges in medical equipment. You’ll find targeted insights into key medical applications, including IVD, NPWT, biochemical analysis, therapy, laboratory automation, dental, aesthetic, and oxygen systems. We also compare our products with other leading brands, explain configuration choices such as single vs dual heads, brushed vs brushless motors, and low vs high flow designs. Real-world case studies, a guide to our certifications, frequently asked questions, and expert knowledge sharing help you make informed decisions about integrating BODENFLO pumps into your medical devices.
IVD devices — such as ELISA analyzers, microplate washers, chemiluminescence and urine analyzers — require pumps that deliver precise microflow, stable vacuum, chemical resistance, and high durability.
Common challenges include reagent corrosion, unstable flow affecting test accuracy, noise interference, and frequent failures under high-cycle operation.

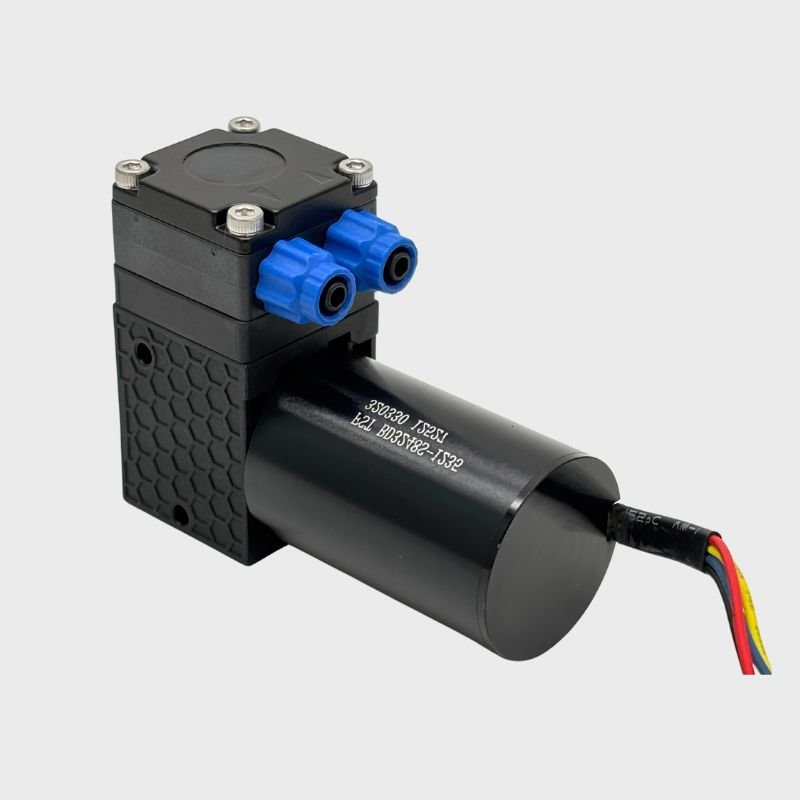

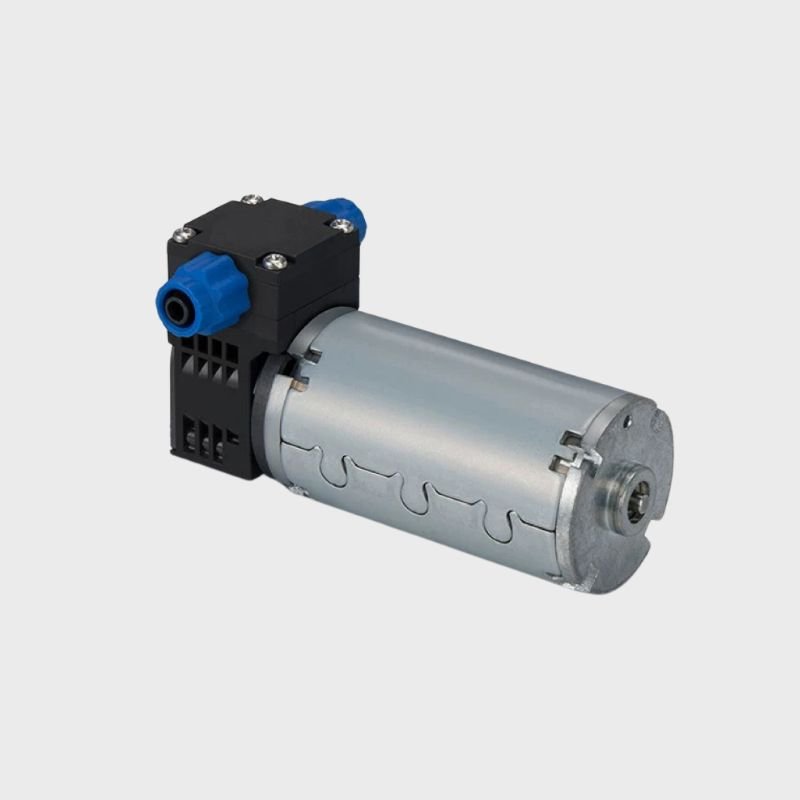

We offer oil-free, brushless micro diaphragm pumps designed for IVD. They ensure:
Stable microflow (300–800 mL/min, ±2% accuracy)
High cycle life (>100,000 cycles)
Chemical-resistant diaphragms (PTFE/FKM/EPDM)
Quiet, contamination-free operation (<50 dB)
Integrated into IVD systems, our pumps handle:
Reaction cup cleaning

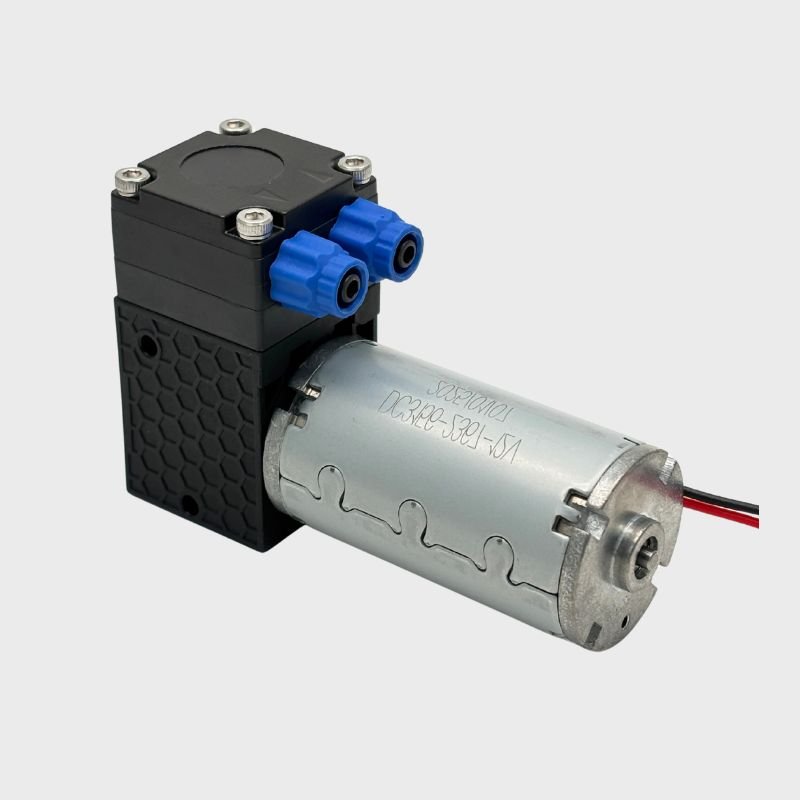

Waste liquid removal

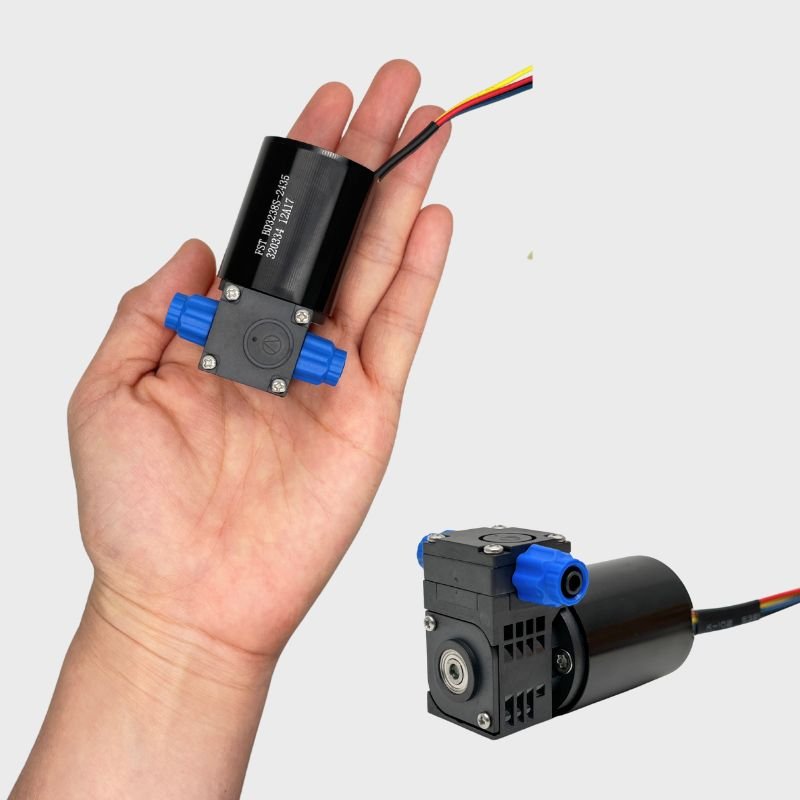

Precise reagent delivery & vacuum chamber control
Microfluidic chip sample transport
Negative Pressure Wound Therapy (NPWT) devices — both portable and hospital-grade — require pumps that deliver a stable vacuum over extended periods to promote tissue regeneration by removing exudate and bacteria. OEMs often face issues like:
Unstable vacuum range, reducing healing effectiveness.
Excessive noise disturbing patient comfort.
Failure during long-term continuous operation.
Corrosion from fluid backflow into the pump.

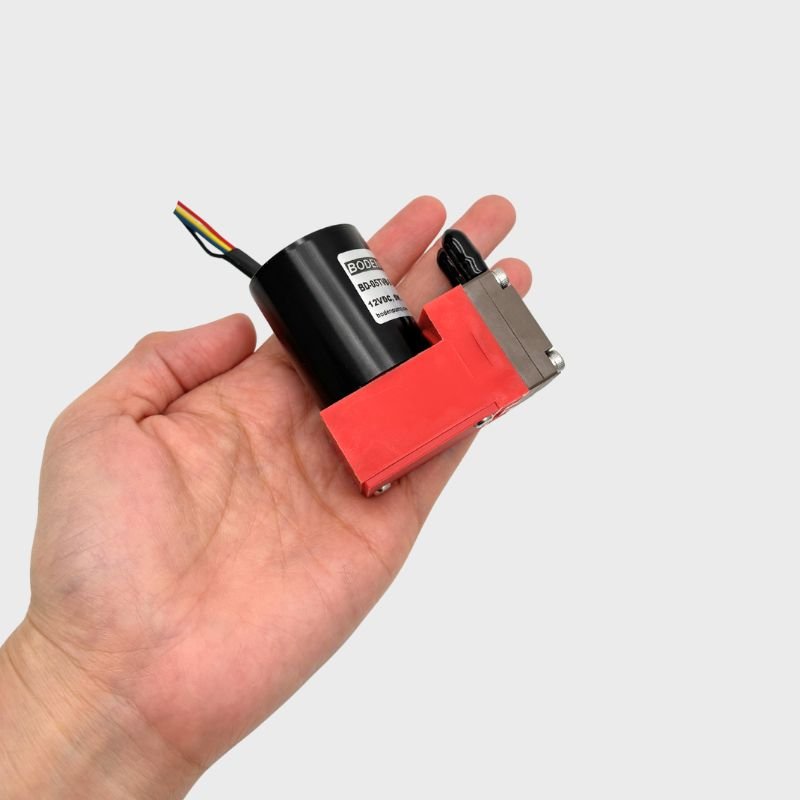

To solve these challenges, BODENFLO offers brushless, oil-free micro diaphragm pumps specifically designed for NPWT applications. These pumps provide reliable, patient-friendly performance that OEMs can trust:
Stable and adjustable vacuum from -40 to -80 kPa ensures consistent therapy outcomes.
Ultra-quiet operation below 50 dB creates a comfortable healing environment.
Continuous-duty design supports 24-hour operation without overheating or failure.
BODENFLO pumps integrate seamlessly into NPWT devices to deliver controlled negative pressure therapy, accelerating wound healing and improving device reliability:
Maintains a constant or intermittent vacuum over the wound site to remove exudate and bacteria.
Supports both portable home-care devices and hospital-grade systems with compact, efficient design.
Enhances tissue regeneration rates while minimizing maintenance needs and noise impact.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Laboratory automation OEMs often face common pump challenges:
Inconsistent vacuum or flow, leading to unreliable sample processing.
Cross-contamination risk from pumps that are not oil-free and clean.
Frequent failures under high-frequency start/stop operation in busy labs.
Laboratory automation OEMs often face common pump challenges:
Inconsistent vacuum or flow, leading to unreliable sample processing.
Cross-contamination risk from pumps that are not oil-free and clean.
Frequent failures under high-frequency start/stop operation in busy labs.
Our pumps perform critical functions in laboratory automation systems:
Evacuate chambers and move samples with stable vacuum control.
Support pipette aspiration/dispensing and microfluidic chip operation.
Enable high-throughput processing with reliable, repeatable performance.
OEMs often encounter issues that compromise therapy device performance:
Fluctuating vacuum or pressure reduces therapeutic effectiveness and consistency.
High noise levels negatively affect patient experience during treatment.
Short pump lifespan under repeated on-off cycles in clinical environments.
BODENFLO’s oil-free micro diaphragm pumps are designed for stable performance and quiet operation, ideal for medical rehabilitation equipment. Advantages include:
Adjustable vacuum and pressure for precise therapy control.
Ultra-quiet design (<50 dB) improves patient comfort.
Brush/Brushless motors enable long service life even under Intermittent/frequent duty cycles.
Compact form factor supports portable and table-top devices.
Our pumps are integrated into therapy equipment to deliver steady vacuum or air pressure, supporting various rehabilitation therapies:
Creates intermittent or continuous negative pressure for ED and wound recovery.
Provides controlled air compression in shockwave and lymphedema devices.
Ensures repeatable, reliable output to maximize treatment efficacy.
Laboratory automation OEMs often face common pump challenges:
Inconsistent vacuum or flow, leading to unreliable sample processing.
Cross-contamination risk from pumps that are not oil-free and clean.
Frequent failures under high-frequency start/stop operation in busy labs.
BODENFLO’s oil-free micro diaphragm pumps are designed for automated and high-cycle lab environments. They offer:
Precise, stable vacuum and microflow for reproducible sample handling.
Clean, oil-free operation to protect sensitive reagents and prevent contamination.
Brushless motor options for long life under frequent cycling.
Compact, low-noise design suitable for bench-top instruments.
Our pumps perform critical functions in laboratory automation systems:
Evacuate chambers and move samples with stable vacuum control.
Support pipette aspiration/dispensing and microfluidic chip operation.
Enable high-throughput processing with reliable, repeatable performance.
Dental equipment manufacturers often face pump-related challenges:
Excessive noise disrupts patient comfort and clinical atmosphere.
Vacuum instability affects the efficiency of saliva and fluid removal.
Short operational life due to long working hours in busy dental practices.

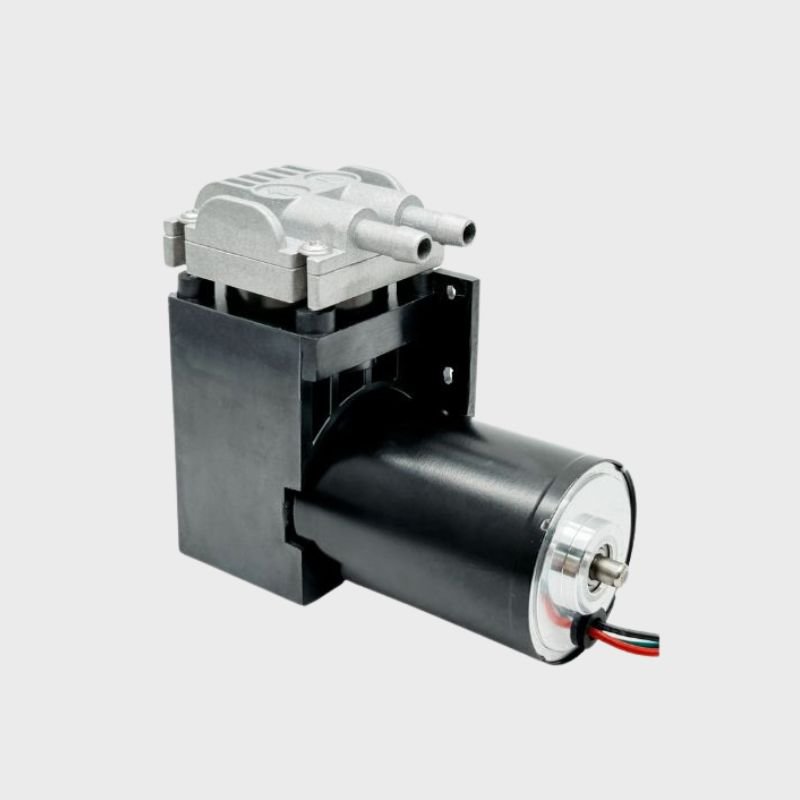

BODENFLO provides oil-free, ultra-quiet micro diaphragm pumps tailored for dental applications. Benefits include:
Consistent vacuum for effective saliva and fluid removal during procedures.
Ultra-low noise level (<40 dB) enhances patient comfort.
Long-life design for continuous-duty operation throughout clinical hours.
Compact, maintenance-free construction suitable for chair-side integration.
Our pumps integrate seamlessly into dental equipment to:
Provide continuous suction of saliva, blood, and rinsing fluids during treatment.
Operate quietly to maintain a calm clinical environment.
Deliver reliable performance over long daily operation cycles.
Manufacturers of aesthetic devices often encounter pump issues that affect product performance:
Excessive noise and vibration reduce user comfort and product quality perception.
Bulky pumps that limit compact and portable product design.
Inconsistent pressure or vacuum output that impacts treatment results.
BODENFLO offers miniature oil-free micro diaphragm pumps designed specifically for aesthetic equipment. Key advantages include:
Compact dimensions and lightweight design for portable beauty devices.
Quiet, low-vibration operation (<45 dB) to improve the user experience.
Customizable flow, pressure, and motor options to match specific device needs.
Long-life, maintenance-free pumps for consumer and professional aesthetics markets.
Our pumps are integrated into aesthetic devices to:
Generate controlled vacuum or pressure for skin lifting and massage treatments.
Provide smooth, stable airflow for consistent cosmetic results.
Enhance portability and ergonomic design with compact and quiet pump technology.
Voltage Range: DC 12/24 V
Manufacturers of oxygen-related medical devices often encounter pump problems such as:
Unstable air flow or pressure, affecting oxygen purity and therapy efficiency.
High noise and vibration, making devices unsuitable for bedside or home use.
Premature pump failures under continuous 24/7 operation.
BODENFLO provides oil-free micro diaphragm compressor pumps tailored for oxygen supply systems. Our solutions offer:
Stable continuous airflow to maintain consistent oxygen concentration.
Ultra-quiet operation (<50 dB) to improve patient comfort.
Brushless motor design for long life and 24/7 duty cycles.
Compact, maintenance-free construction for portable or stationary oxygen equipment.
Integrated into oxygen concentrators and nebulizers, our pumps:
Draw in ambient air, compress it and deliver stable flow to the oxygen generation module.
Ensure clean, oil-free airflow for patient-safe therapy.
Enable portable home-use systems and reliable clinical units.
When selecting a pump supplier for medical devices, manufacturers often compare global brands. Each brand has strengths, but OEMs looking for cost-effective customization, low noise, and fast development support increasingly choose BODENFLO.
High procurement cost and long lead times with large international brands.
Limited flexibility for custom performance or compact form factors.
Noise and size constraints that make it difficult to optimize small portable medical devices.
Competitive performance with stable vacuum/pressure and quieter operation.
Flexible customization: multi-head, parametric design, brushed/brushless options.
Fast response and low MOQ for cost-effective, OEM-tailored solutions.
For portable NPWT, IVD, and beauty devices, BODENFLO’s pumps are smaller, quieter, and faster to customize.
For industrial-grade continuous systems, BODENFLO offers brushless long-life solutions at a lower total cost of ownership.
If your device requires silent operation, small dimensions, rapid engineering support, or cost optimization, BODENFLO is the strategic alternative to KNF, Thomas, and Gast for medical-grade miniature pumps.
📩 Contact our engineering team to evaluate the best solution for your next-generation medical device.

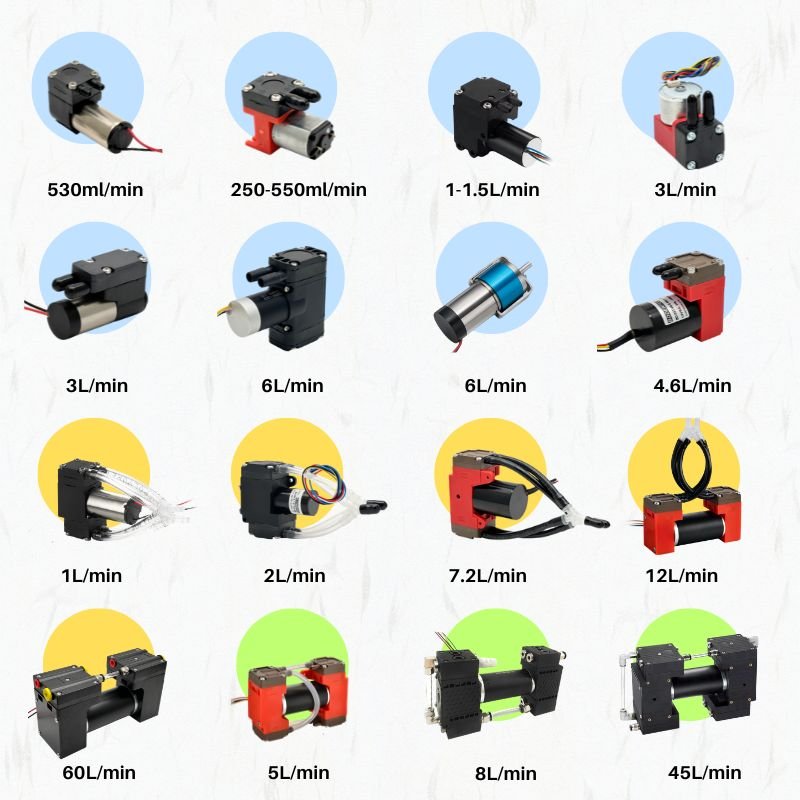

Choosing the right pump configuration is critical in medical device design. Single-head, dual-head, and multi-head pumps each offer unique performance advantages. BODENFLO helps OEMs match the right configuration to flow, pressure, and redundancy requirements.
Single-head: Simple structure, compact size, cost-effective. Suitable for limited space and applications with moderate flow or vacuum requirements.

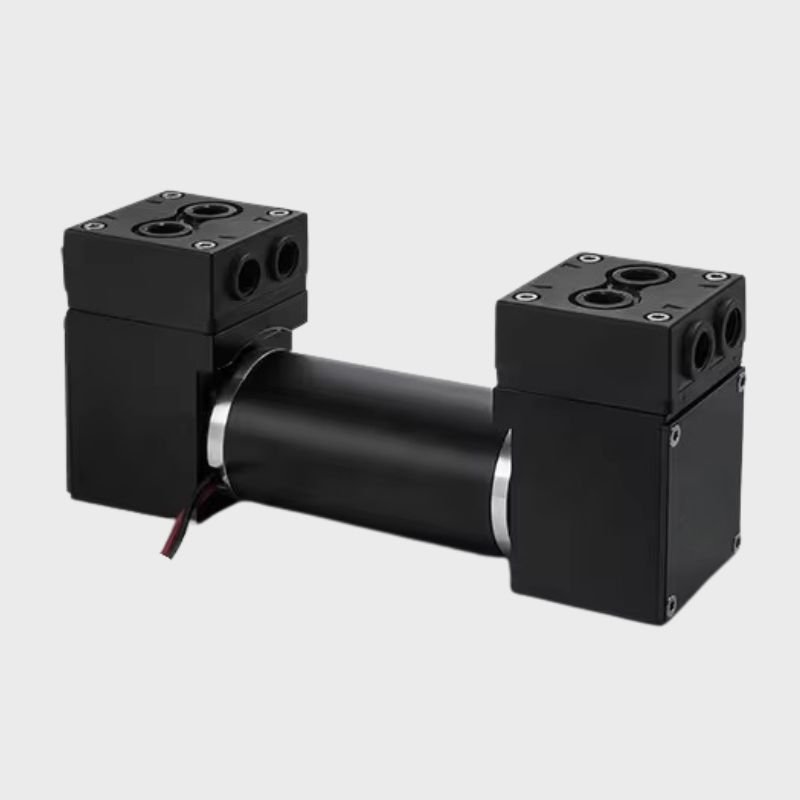

Dual-head: Two pump heads can be connected in parallel for higher flow or in series for higher vacuum/pressure, providing smoother and more stable performance.
Multi-head: Three or more pump heads designed for ultra-high flow, long-duty cycles, or redundancy in complex systems.
Single-head: Flow 0.5–45 L/min, vacuum up to -85 kPa

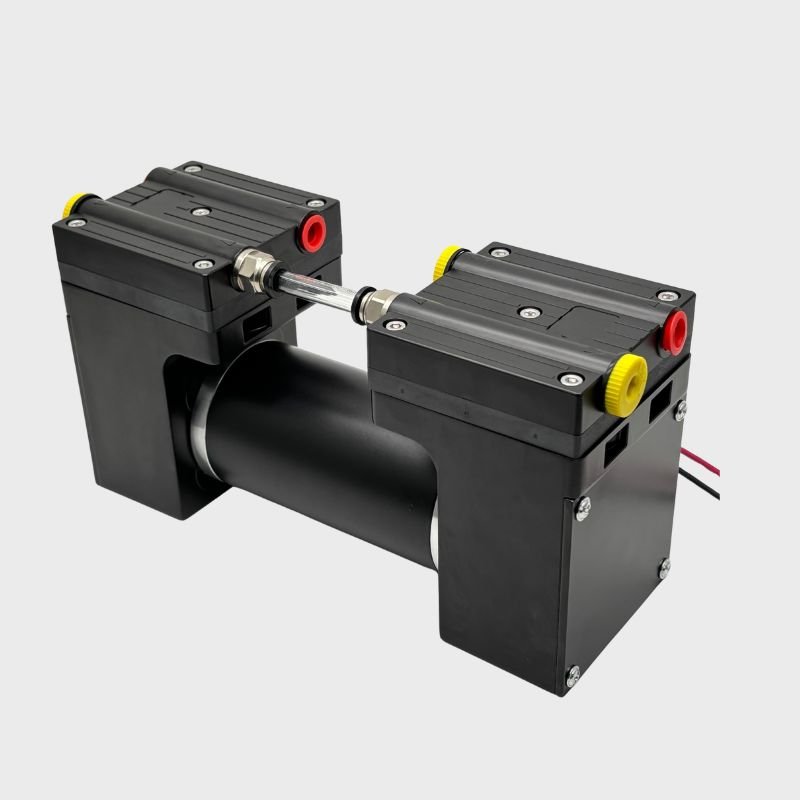

Dual-head: Flow 4–60 L/min, vacuum up to -100 kPa
Multi-head: Flow 5-45 L/min, high vacuum up to -100kpa, strong continuous operation capability
Single-head: Portable NPWT devices, IVD analyzers, dental treatment units, aesthetic/beauty devices
Dual-head: Shockwave therapy devices, oxygen concentrators, rehabilitation systems, lab automation workstations
Multi-head: High-capacity biochemical analyzers, continuous laboratory instruments, multifunction medical platforms
Not necessarily. The choice depends on the required flow, vacuum, and size of your application.
Multi-head configurations are recommended when very high flow, redundancy, or continuous operation is required.
Parallel connection increases flow, while series connection increases vacuum or pressure.
In many cases, yes. However, space, power supply, and control settings need to be checked before replacing the configuration.
Not necessarily. With brushless, oil-free designs like BODENFLO pumps, multi-head systems are still low-maintenance and designed for long life.

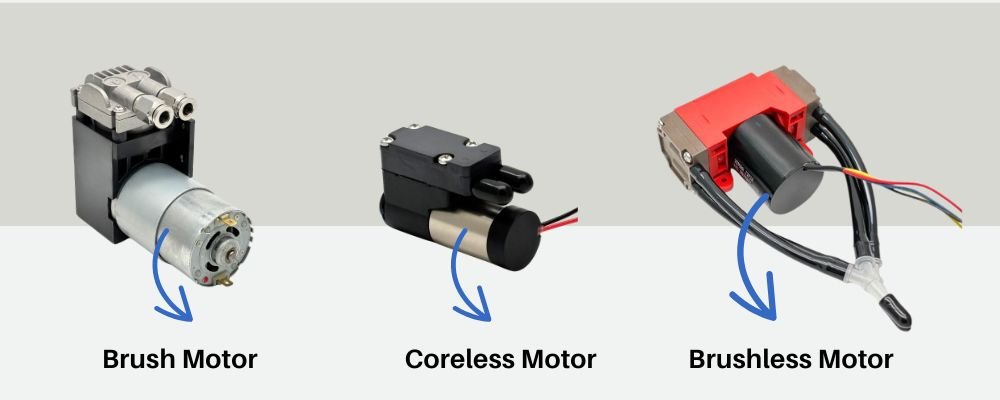

Selecting the right motor type is a key factor for performance, durability, and cost in medical pump systems. Brushed, brushless, and coreless motors each serve different application requirements.
Brushed: Simple, low-cost, suitable for intermittent or short-term use. Limited lifespan due to brush wear.
Brushless: Long service life, stable performance, and low noise. Ideal for continuous-duty or precision medical applications.

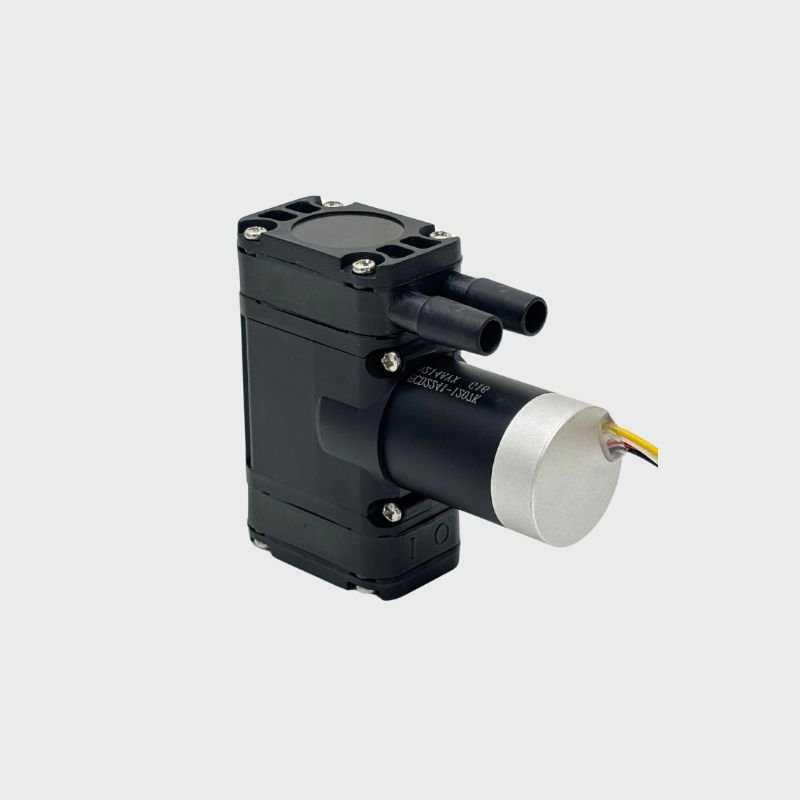

Coreless: Lightweight with fast response, used in compact, battery-powered devices requiring quick startup.
Brushed: Lifespan 1000–6000 hours, lower cost.
Brushless: Lifespan 5000–10000+ hours, stable continuous operation.
Coreless: Lifespan 6000–8000+ hours,Very fast response, moderate lifespan, used in portable devices.
Brushed: Portable NPWT devices, basic suction units, cost-sensitive instruments.
Brushless: Oxygen concentrators, IVD analyzers, shockwave therapy, lab automation.
Coreless: Handheld aesthetic devices, small portable diagnostic tools.
Brushless motors offer longer life, lower noise, and better reliability, especially for continuous-duty medical equipment.
Yes, but power requirements, speed control, and space constraints need to be considered.
Yes, coreless motors have higher costs due to precision manufacturing but are preferred when weight and fast response are critical.
Brushless motors are recommended for long continuous operation because of their extended lifespan and low maintenance.
BODENFLO offers customization for all motor types, including voltage, speed control, and integrated driver options.
Choosing the right flow rate is not about “bigger is better.”
In medical devices, selecting low-flow or high-flow diaphragm pumps depends on the required volume, cycle time, and the precision of control. Oversized pumps increase cost and noise, while undersized pumps compromise performance.
| Feature | Low-Flow Pumps | High-Flow Pumps |
|---|---|---|
| Flow Range | 0.2 – 5 L/min | 10 – 80 L/min |
| Key Strength | Precision, stable microflow | Fast evacuation, large volume supply |
| Typical Vacuum | Up to -75 kPa | Up to -100 kPa |
| Size & Noise | Compact, very quiet | Larger, higher power, but optimized for low noise |
| Typical Applications | IVD, biochemical analyzers, dental, NPWT | Oxygen concentrators, lab automation, shockwave therapy |
| Guidance Point | Key Recommendation |
|---|---|
| Application Precision | Choose low-flow pumps for instruments that need small, precise volumes such as IVD, biochemical analysis, or portable NPWT. |
| Volume Demand | Choose high-flow pumps for devices that deliver or evacuate large volumes quickly, such as oxygen concentrators or rehabilitation systems. |
| Early Consultation | Consult early: BODENFLO’s engineering team can help calculate exact flow and vacuum parameters during the design stage. |
| Noise Requirements | Lower flow pumps are naturally quieter; high-flow pumps may require brushless or multi-head designs for low-noise operation. |
| Power & Duty Cycle | For 24/7 continuous operation, brushless high-flow pumps with efficient cooling are recommended. |
| System Volume Match | Avoid oversizing: Correctly matched pumps reduce cost, noise, and extend device lifespan. |
BODENFLO micro diaphragm pumps have been successfully integrated into various medical devices worldwide. Below are three representative cases that demonstrate how our pumps help OEM partners solve specific challenges and achieve reliable results.
Challenge: The customer needed a quiet and compact pump to power a pneumatic compression device for lymphedema treatment, requiring smooth pressure cycles and 24-hour reliability.

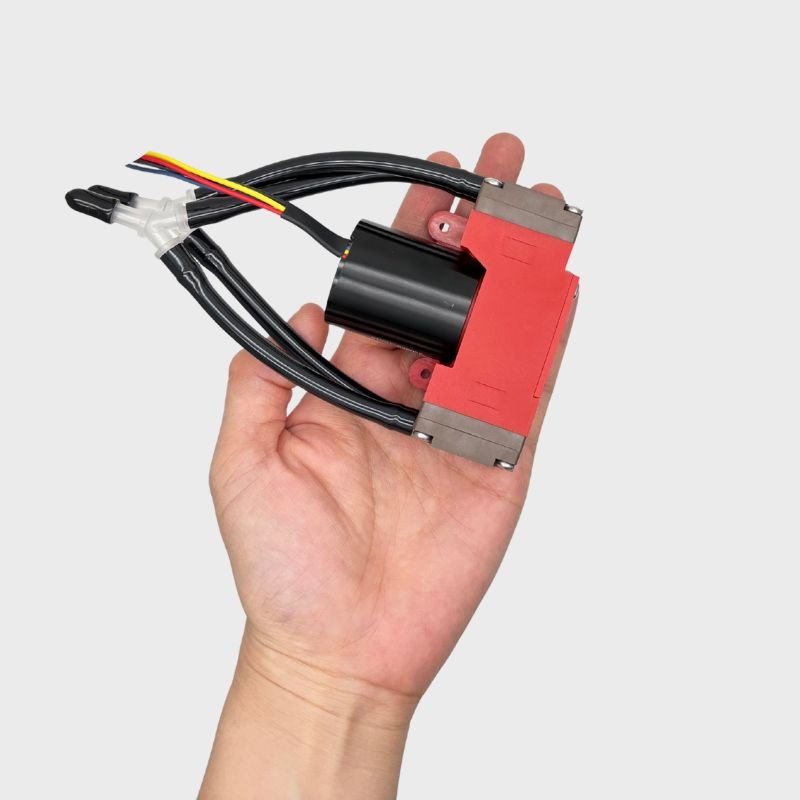

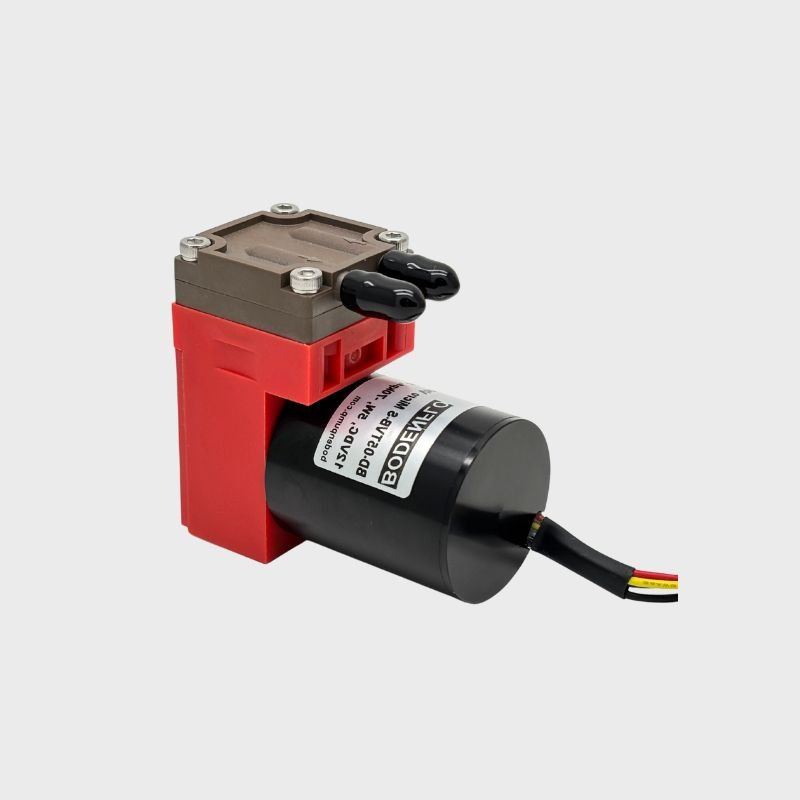

Solution: BODENFLO supplied a BD-05TVB dual-head brushless pump with stable pressure output and low vibration.
Result: Improved patient comfort, consistent therapy pressure, and significant reduction in maintenance downtime.
Challenge: A rehabilitation device manufacturer sought a pump capable of fast, controlled bursts of compressed air with minimal noise for use in clinical environments.

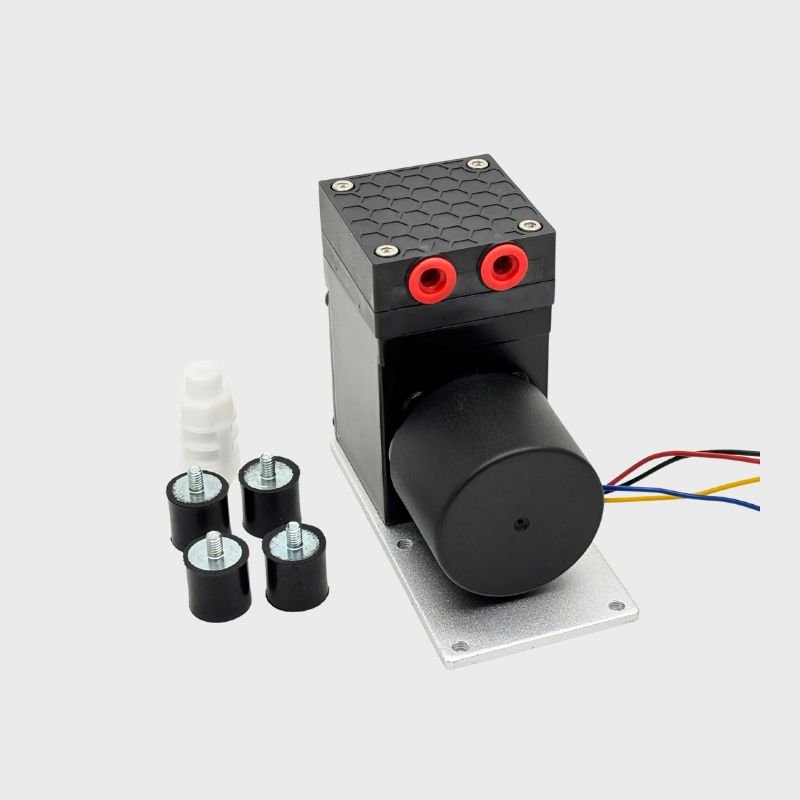

Solution: BD-05T0910L brushless pump, designed for adjustable pressure and quiet operation.
Result: Achieved accurate therapy pulses and allowed the device to meet strict noise standards.
Challenge: Required a portable, low-noise pump that can create negative pressure for ED vacuum therapy devices while maintaining consistent suction.

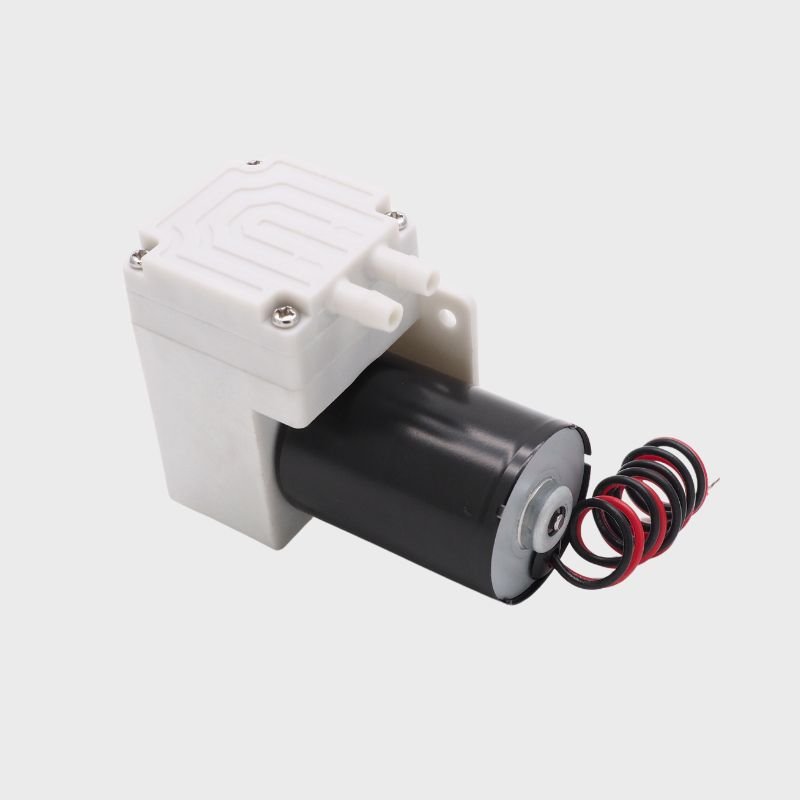

Solution: Compact BD-04VB pump with stable vacuum up to -75 kPa and brushless long-life motor.
Result: Device performance improved, and product certification passed smoothly for international markets.
Enhanced patient experience with low-noise, smooth performance
Stable vacuum and pressure output improving treatment effectiveness
Customizable solutions to meet specific flow, size, and power requirements
📩 Looking to integrate a reliable pump into your medical device? Partner with BODENFLO to replicate these proven results.
BODENFLO (Shenzhen Boden Technology Development Co., Ltd.) is a leading manufacturer of micro diaphragm pumps, vacuum pumps, liquid pumps, and miniature compressors, specializing in custom solutions for medical, laboratory, and industrial applications.
BODENFLO (Shenzhen Boden Technology) has over 15 years of expertise in developing high-performance miniature pumps. Our ISO9001:2015 certified 1,500 m² facility operates multiple automated production lines to ensure quality and capacity. We supply medical OEM clients worldwide, including Europe, North America, South Korea, Australia, and other regions with demanding device standards.
We provide oil-free, maintenance-free micro diaphragm pumps for precision medical applications. Our capabilities include customized flow ranges from 0.1–80 L/min, vacuum up to -98 kPa, multi-head configurations, and multiple motor options. All products meet CE, RoHS, and ISO requirements, with engineering support, rapid prototyping, and low-MOQ flexibility to accelerate product development.
BODENFLO offers a stable supply chain and short delivery times while supporting customers with tailored OEM solutions for NPWT, IVD, rehabilitation, dental, and home-care devices. Our pumps are proven in the field for quiet operation, durability, and compliance with international medical standards, making us a trusted partner for innovative device manufacturers.
This section answers common questions from medical device OEMs about BODENFLO pumps, covering certification, customization, lead times, lifespan, maintenance, applications, and technical support.
Yes. All BODENFLO micro diaphragm pumps are manufactured in an ISO9001:2015 certified facility and meet CE and RoHS compliance standards, ensuring safety and reliability for medical and laboratory equipment.
Absolutely. We offer parametric customization of flow (0.5–80 L/min), vacuum (-40 to -98 kPa), multi-head configurations, and motor types (brushed, brushless, coreless) to meet unique OEM design needs.
Standard samples are usually available within 7–10 working days. For customized solutions, prototypes typically take 3–4 weeks, while bulk production lead times depend on order size and complexity.
Brushless models can reach 5,000–10,000+ hours under continuous 24/7 operation. Brushed versions are more suitable for intermittent use, typically lasting 500–2,000 hours.
No. All BODENFLO pumps are oil-free and maintenance-free by design. There is no need for lubrication, and periodic replacement is rarely required during their service life.
Our pumps are widely used in NPWT wound therapy, IVD and biochemical analyzers, oxygen concentrators, rehabilitation therapy devices, dental systems, and aesthetic/beauty equipment.
Yes. Our engineering team provides technical support for mechanical layout, electrical matching, and performance testing to ensure smooth integration of the pump into your system.
Yes. We can provide datasheets, 3D drawings, compliance certificates, and test reports (flow, vacuum, noise, and life cycle) to support your engineering and certification process.
Our pumps support multiple DC voltages (3V–36V) and can be configured for battery-driven portable devices or AC/DC power supply systems.
Yes. We accept low-MOQ orders for prototyping and pilot production runs, allowing OEMs to test the pump performance before committing to full-scale manufacturing.
At BODENFLO, We turn complex Into Simple! Follow the following 3 steps to start today!
Tell us as specific as possible of your needs, provide the parameter, reference picture and share your idea.
We will work on the best solution according to your requirements, the specific quote will be provided within 1-8 hours.
We will start production after getting your approval and deposit, and we will handle the shipment.
Contact us to get a free quote and more expertise about custom micro diaphrgam/piston pump. Your project will meet a right solution with BODENFLO.
We will contact you within 8 hours, please pay attention to the email with the suffix “@bodenpump.com”.
