Why Are Some Micro Air Pumps Large but Low-Power, While Others Are Small but High-Power?

Engineers are often puzzled when comparing micro pumps. A large pump is rated at only 10W, while a much smaller one boasts 30W. This isn't an error; it's a critical engineering trade-off.

The answer lies in the design goal. Large, low-power pumps are built for efficiency and extreme longevity. Small, high-power pumps are built for maximum performance in the smallest space. Choosing the right one depends entirely on your application's top priority.

This misunderstanding between a pump's size and its power rating can lead to costly mistakes. I've seen clients choose a "powerful" 30W pump for a quiet medical device only to find it's loud and hot, while a 10W pump would have performed better. The relationship between size and power is not linear. Let's explore the engineering behind this so you can choose the right pump every time.

What Does Pump Power Really Mean?

You see a high wattage number and assume it means high performance. This common mistake leads to selecting pumps that are inefficient for the task, draining batteries and generating excess heat.

Power (Wattage) is the electrical input energy the motor consumes, not the pneumatic output performance (flow and pressure). A highly efficient pump can produce better results with less power.

Think of it this way: power is only one part of the equation.

• Electrical Input Power¹: This is how many Watts the pump draws from your power supply or battery.
• Pneumatic Output Performance²: This is the useful work the pump actually does—the flow rate and pressure it delivers.

A pump's efficiency is the magic link between these two. An inefficient pump might use 30W of power but waste half of it as heat and noise, delivering only 15W worth of performance. A highly efficient pump might use only 15W but turn nearly all of it into useful airflow. This is why a lower-power pump can sometimes be the "better" choice.

What's the Goal of a Large, Low-Power Pump?

Your device must run continuously for years without failure. But you know that high-performance parts often burn out quickly, leading to costly maintenance and customer complaints.

These pumps are designed for endurance and efficiency. They use large diaphragms and slow-moving, efficient motors. This design reduces stress, heat, and wear, making them perfect for continuous-duty applications where reliability is everything.

The core philosophy here is "low stress, long life³." Think of a large truck engine that runs at low RPMs for a million miles versus a tiny race car engine that screams at high RPMs but needs constant service. The pump works on the same principle. Large components moving slowly are under less stress and generate less waste heat. They often use ultra-efficient brushless motors⁴, which have no parts to wear out, allowing for lifespans exceeding 10,000 hours. They are the workhorses for applications like medical aspirators and gas analyzers that are always on.

Why Would You Ever Choose a Small, High-Power Pump?

Your new device must be portable and lightweight. Every gram and millimeter is critical, but you still need powerful performance, forcing what seems like an impossible compromise.

You choose this pump for maximum power density. It's for applications where performance in a minimal space is the number one priority, such as in portable devices or robotics requiring rapid actuation.

This design philosophy is about achieving the most work from the smallest package. Here, the goal isn't a 10,000-hour continuous lifespan, but delivering a very high flow rate⁵ or pressure for short bursts. The secret is a high-speed motor⁶, often a coreless or high-end brushed model, that drives small diaphragms very quickly.

This high input power generates impressive performance but often at the cost of lower efficiency and a shorter operational life. They are perfect for intermittent tasks like taking a quick air sample or powering a beauty skin care device.

How Does Motor Technology Dictate the Outcome?

You see terms like "brushed," "coreless," and "brushless," but it's not clear what they mean for performance. Choosing the wrong motor type can doom your device's reliability from the start.

Motor choice is fundamental to a pump's character. High-end brushless motors offer the longest life for large, low-power pumps. High-speed coreless motors provide incredible power density for small, high-performance pumps.

The motor is the heart of the pump, and its technology defines the pump's capabilities, lifespan, and cost. At BODENFLO, we use a range of motor types⁷ to precisely match the pump to the job.

A Guide to Micro Pump Motors

What is the Special Challenge of Battery-Powered Devices?

Your portable device needs to be small and last all day on a charge. But small pumps are power-hungry, and low-power pumps are too big. You seem to be stuck in an impossible situation.

The solution lies in motor efficiency. Advanced coreless or brushless motors can deliver high performance from a compact size while consuming minimal power, breaking the traditional trade-off and extending battery life.

This is the ultimate engineering challenge. For battery-powered devices, you need the best of both worlds: small size and low power consumption. This forces the entire design focus onto pump efficiency⁸. An inefficient pump will quickly drain the battery, mostly by turning precious energy into waste heat. A highly efficient pump, however, converts more electrical input into useful pneumatic work. This means you can use a smaller battery or get a much longer runtime from the same battery. For portable applications, choosing a pump with a high-efficiency motor⁹ isn't just a feature; it's the key to a successful product.

Case Study: How Did We Solve a Portable Therapy Device Challenge?

A client's new portable medical device was noisy and overheating. Their initial pump choice, focused only on small size and high power, was threatening the project's viability and patient comfort.

We guided them to a slightly larger but vastly more efficient pump. It used a better motor to deliver the required performance with less power, which dramatically reduced noise and heat, saving the project.

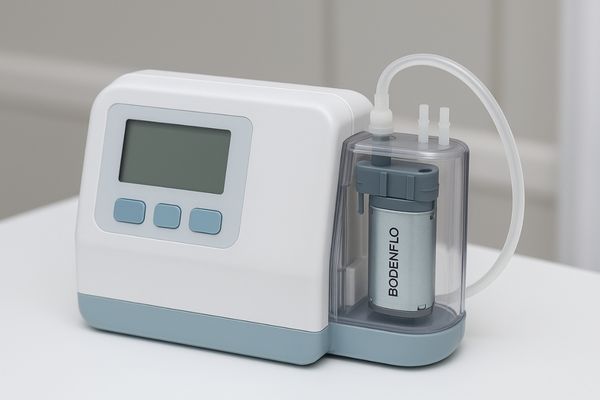

A European medical device company approached us about their portable negative pressure wound therapy¹⁰ (NPWT) unit.

• The Problem: They chose a very compact, 30W pump to save space. But during testing, the device became hot to the touch, was unacceptably loud, and the battery life was poor. The pump was powerful, but highly inefficient.
• Our Analysis: We determined the pump was turning too much of its 30W input into waste heat and noise, not airflow.
• The Solution: We recommended a BODENFLO pump with a high-efficiency coreless motor¹¹, rated at only 18W. It was a few millimeters larger, but its efficiency was nearly double that of their original choice.
• The Result: The device ran cool and quiet. Most importantly, the battery life increased by over 40% because the pump was no longer wasting energy. The client was able to launch a successful product that met all patient comfort and clinical performance requirements.

How Do I Choose the Right Pump for My Application?

You understand the theory, but now you face a catalog of pumps. How do you translate your project's list of needs into the right pump choice?

Analyze your single most important priority. If it's continuous operation, start with large, low-power pumps. If it's battery life, focus on motor efficiency above all else.

I guide customers through this decision by asking them to rank their priorities. It's rare for an application to get everything, so you must make a strategic choice.

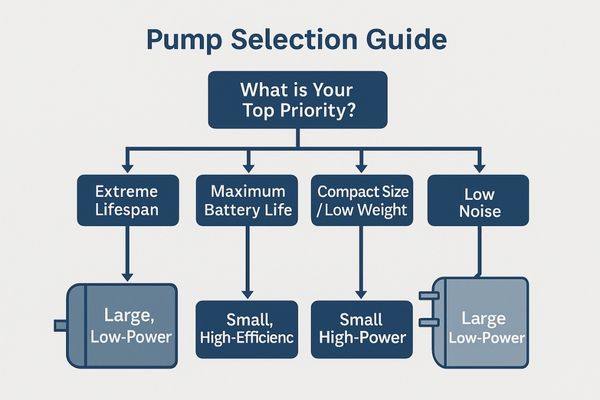

Your Application Decision Matrix

Start with your "must-have" feature. If you need a device to last 12 hours on a battery, you immediately know that pump efficiency, not just raw power or size, is your most critical specification.

Conclusion

Pump selection is a strategic engineering decision, not a numbers game. By understanding the trade-offs between size, input power, efficiency, and lifespan, you can find the perfect pump for any application.
