How can a micro air pump make your bubbler system more precise and durable?

Are your water level sensors failing in harsh environments? This leads to bad data, system failures, and expensive maintenance. A reliable bubbler system, powered by the right micro air pump, solves this.

A micro air pump is the heart of any high-quality water level bubbler. It provides a steady, controlled stream of air into a submerged tube. The backpressure measured is directly proportional to the water depth, ensuring precise, non-contact readings that prevent clogging and sensor corrosion.

This non-contact measurement method is brilliantly simple yet incredibly powerful. However, the accuracy and durability of your entire bubble gauge depend on the quality of the micro air pump. At BODENFLO, we specialize in engineering these critical components. Let’s explore how a water level bubbler works and why choosing the right pump is the key to its success.

What is a water level bubbler, and how does this bubble gauge system work?

Are you tired of submersible sensors that get clogged or corrode? Constant failures in wastewater or murky conditions result in unreliable data and costly replacements. A water level bubbler is the solution.

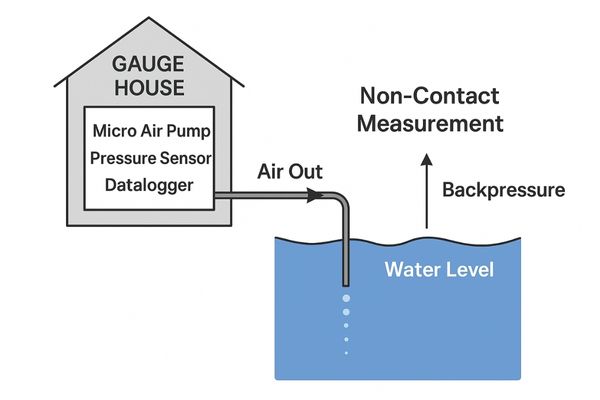

A bubbler system, also known as a bubble gauge, uses a micro air pump to push air through a tube submerged in liquid. A sensor measures the backpressure required to release the bubbles, which defines the water level. This non-contact design makes it ideal for harsh environments.

I've seen so many engineers frustrated with traditional sensors. The second a submersible sensor touches corrosive liquid or heavy sediment, its lifespan is compromised. A bubble gauge completely avoids this problem. The only component in the water is an inexpensive tube. All sensitive electronics—the micro air pump and pressure sensor—are kept safe and dry in an enclosure. This separation is the genius of the design and the reason for its incredible durability. Let's define the differences.

Submersible Sensor¹ vs. Bubble Gauge System²

This makes the bubbler system the professional's choice for any challenging level measurement application.

What role does the micro air pump play in a bubbler system?

Does your bubbler system suffer from noisy or fluctuating readings? An unstable airflow will corrupt your data. The micro air pump is the one component that guarantees the stability your bubble gauge needs.

A micro air pump is the engine of the bubbler system. It generates a controlled, low-noise airflow to create a consistent stream of bubbles from the submerged tube. The resulting backpressure provides the sensor with a clean, stable signal to accurately define the water level.

Think of the micro air pump as the system's heartbeat. A cheap or poorly made pump will deliver an erratic airflow, causing the backpressure to jump around. This “noise” makes it impossible for the pressure sensor to get a reliable reading. From my experience, when a bubble gauge fails, the pump is the first component to inspect. A high-quality diaphragm pump³ provides the smooth, steady pulse of air needed for this application, ensuring the bubble gauge is both accurate and dependable.

The Pump's Core Functions in a Bubbler System

• Controlled Pressure: The pump must generate stable pressure to overcome the water column height.
• Steady Airflow: It provides a constant, low volume of air (typically 0.2–1 L/min) so readings don't fluctuate.
• System Engine: Its continuous, reliable operation keeps the bubble gauge online and providing accurate data 24/7.

What are the key requirements for a micro air pump in a bubble gauge?

Thinking of using just any small pump for your bubble gauge? This is a common mistake that leads to system failure. A professional water level bubbler has very specific demands for pressure, lifespan, and resilience.

The perfect micro air pump for a bubbler system must provide a stable, low flow rate (0.2–1 L/min) and sufficient pressure (≥100 kPa). It also requires a long operational lifespan, resistance to humidity and temperature extremes, and a compact size for easy integration.

When we design pumps for environmental monitoring⁴, we know that performance in the lab is meaningless if the pump can't survive in the field. A pump has to perform flawlessly inside a hot, humid enclosure year-round. This is why we focus so heavily on material science and motor quality. The pump for your bubble gauge must run continuously for months or years without any drop in performance. This is a question of endurance, not just power.

Essential Micro Air Pump Checklist for a Bubbler

Meeting these requirements is essential for building a professional-grade water level bubbler.

How does the BODENFLO BD-05TR5L micro air pump meet these bubbler system demands?

It's hard to find a micro air pump that checks every box for a bubbler system. Many have high flow but low pressure, or they simply are not built to last. The BD-05TR5L was engineered specifically for these challenges.

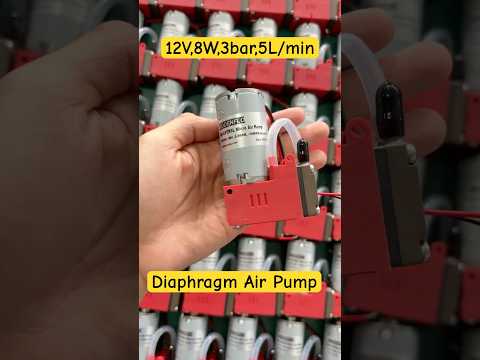

The BODENFLO BD-05TR5L delivers up to 3 bar of pressure with a flow rate of 5 L/min, which can be easily regulated for precise control. Built with durable PPS, PTFE, and EPDM materials, it operates reliably from -20°C to 45°C, making it the ideal compact and efficient heart for your bubbler system.

We designed the BD-05TR5L to be a problem-solver for instrument engineers building water level bubblers. We knew they needed pressure, extreme durability, and a small footprint. We selected premium materials like a PPS pump head and a PTFE piston cup for their superior resistance to heat, chemicals, and wear. The 8W brushed DC motor strikes a perfect balance between power and efficiency, which is critical for remote, battery-powered bubbler systems. The goal wasn't just to meet a spec sheet, but to create a micro air pump⁶ you can install and forget.

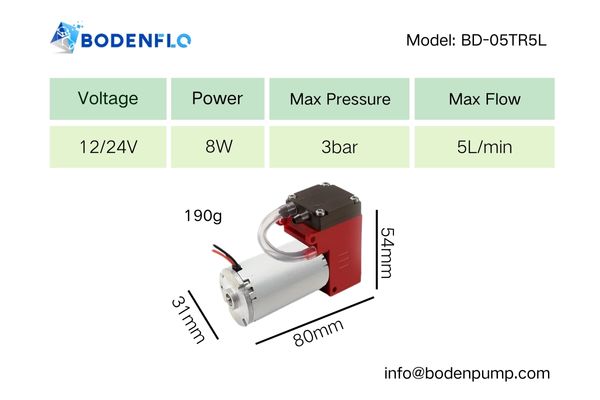

BD-05TR5L Quick Specs for Bubbler Systems

• Flow Rate & Pressure: Max 5 L/min flow and 2-3 bar pressure provide power and fine control.
• Material Durability⁷: Uses PPS, PTFE, and EPDM for superior corrosion and wear resistance.
• Environmental Range: Operates consistently in temperatures from -20°C to 45°C.
• Motor Efficiency: The 8W brushed DC motor is ideal for portable and battery-powered systems.
• Size & Weight: At only 80×31×54 mm and 190g, it’s perfect for compact bubble gauge designs.

This micro air pump is a compact workhorse built for the demands of any water level bubbler.

How do you integrate a micro air pump into your water level bubbler system?

Do you have the right pump but need to ensure a flawless setup? A poor integration can compromise the performance of even the best micro air pump. Proper setup for a bubbler system is straightforward.

To integrate the micro air pump, use a flow restrictor to fine-tune the airflow, connect a pressure sensor to the air line, and house everything in a waterproof enclosure. A stable power supply is also critical to prevent performance issues.

I always share a few key tips with our clients to guarantee a successful bubbler system integration. First, control the pump's powerful airflow. Use a flow restrictor⁸ or PWM signal to dial it down to the gentle 0.3-0.5 L/min flow rate that is ideal for a bubble gauge. Second, manage condensation. In humid air, temperature swings can cause moisture in the air line. A simple water trap or a low point in the tubing can prevent water from being drawn back into the pump. Finally, for bubbler systems requiring 24/7 operation⁹ over several years, we recommend our brushless motor versions for the ultimate maintenance-free lifespan.

Professional Bubbler System Integration Tips

1. Control the Airflow:
   • Action: Install a precision flow restrictor or use a PWM controller on the motor.
   • Goal: Achieve a stable, low airflow for a smooth stream of bubbles and accurate data.
2. Protect from the Environment:
   • Action: Mount the micro air pump and electronics inside an IP67-rated waterproof housing¹⁰.
   • Goal: Shield components from rain, dust, and humidity for long-term field operation.
3. Ensure Stable Power:
   • Action: Use a regulated power supply that provides clean, consistent voltage.
   • Goal: Prevent pump speed fluctuations that introduce errors into the bubble gauge readings.

Following these tips will help you build a robust and highly reliable water level bubbler.

Conclusion

Our micro diaphragm pumps provide the precision, durability, and compact power needed to build a superior water level bubbler, making them the preferred choice for any modern bubble gauge system.

Partner with BODENFLO for reliable micro pump solutions that meet the highest standards of performance and longevity in harsh environments.
📩 Contact us today: info@bodenpump.com
