How Different Gases Affect Micro Diaphragm Vacuum Pump Performance in Gas Sampling Systems?

Your gas sampling system works perfectly with ambient air, but the moment you switch to CO₂ or VOCs, your flow rates drop and your readings become unstable? This is a common and frustrating problem.

The issue is that different gases have unique physical properties. A vacuum pump calibrated for air will perform differently when pumping denser, more viscous, or corrosive gases, leading to significant errors in your sampling system's accuracy and reliability.

Let's start by addressing the core issue. I often see engineers fall into a common trap: they design and calibrate their entire gas sampling system assuming the default gas is "air." They run all their tests, confirm the flow rate, and finalize the design. Then, the system is deployed to measure sulfur dioxide (SO₂) or volatile organic compounds (VOCs), and suddenly nothing works as expected. The flow is too low, the vacuum level won't stabilize, and the sensor readings are inaccurate. The reason is simple: a vacuum pump is not just pumping "air"—it is pumping a specific gas with unique properties. Let's explore what those properties are and how they impact your entire system.

Why Does Gas Type Matter in Micro Diaphragm Vacuum Pump Applications?

You might assume that if a pump can move air, it can move any gas. But this assumption is the root cause of many system failures in gas analysis.

The physical and chemical properties of gases vary tremendously. Treating them all like air leads to unexpected and significant deviations in flow rate, vacuum stability, and sensor response time, making your sampling system unreliable.

The core misconception we must overcome is that "air is the baseline for everything." In a gas sampling context, this is wrong. Air is just one specific mixture of gases (mostly Nitrogen and Oxygen). When your application involves sampling for CO₂, VOCs, or industrial emissions, you are dealing with a completely different medium. This directly translates to performance issues within your system:

• Flow Rate Deviations¹: Your system, calibrated for 1 L/min of air, might only pull 0.8 L/min of a denser gas.
• Vacuum Instability²: A heavier gas puts more load on the pump, potentially causing it to struggle to reach or maintain the target vacuum level.
• Variable Response Times: The time it takes for the sampled gas to travel from the probe to the sensor will change, affecting the timeliness of your measurements.
  The fundamental takeaway is this: A vacuum pump is not pumping ‘air’—it is pumping a specific gas with unique properties that you must account for in your design.

What Gas Properties Influence Micro Diaphragm Vacuum Pump Performance?

You know different gases cause different results, but what's happening at the physical level to cause this? It comes down to four key properties.

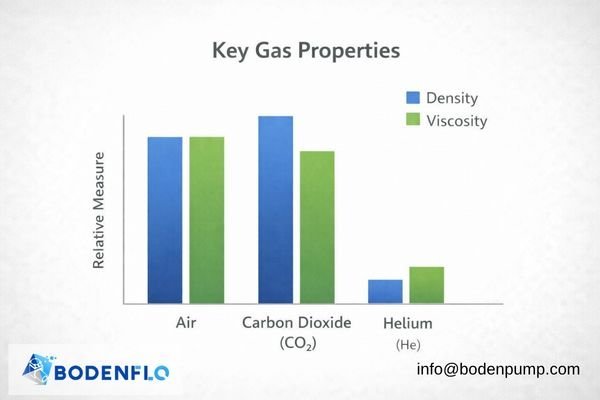

The performance of your vacuum pump is directly influenced by the gas's density, viscosity, compressibility, and humidity. Each of these properties affects how easily the gas moves and how much work the pump must do to create flow and vacuum.

To design a robust system, you have to think like a physicist for a moment. Instead of seeing a generic "gas," you need to see a collection of molecules with specific characteristics. Here’s a breakdown of the properties that matter most and why:

Gas Property3	How It Affects the Pump	Practical Consequence
Density	Higher density means more mass per unit volume. The pump's motor must work harder to move this heavier gas.	Pumping a dense gas like CO₂ will result in a lower flow rate compared to pumping a light gas like Helium with the same pump.
Viscosity4	This is the gas's internal friction or resistance to flow. High-viscosity gases "stick" more to the inside of tubing and pump heads.	Pumping a viscous gas reduces the pump's efficiency, as more energy is lost to overcoming flow resistance.
Compressibility	This property describes how much a gas's volume can be reduced under pressure.	Gases that are less compressible can be evacuated more quickly, allowing the pump to reach its target vacuum level faster.
Humidity5	Water vapor in the gas can condense into liquid water if the temperature drops inside the pump or tubing (due to the pressure drop).	Liquid water can block small orifices, cause performance fluctuations, and potentially lead to corrosion inside the pump head.

Understanding these four factors is the first step to diagnosing performance issues and selecting the right pump for your specific gas mixture.

How Do Different Gases Affect Flow Rate and Vacuum Level?

You understand the theory, but what does this look like in your actual engineering tests? The performance drop can be surprisingly large.

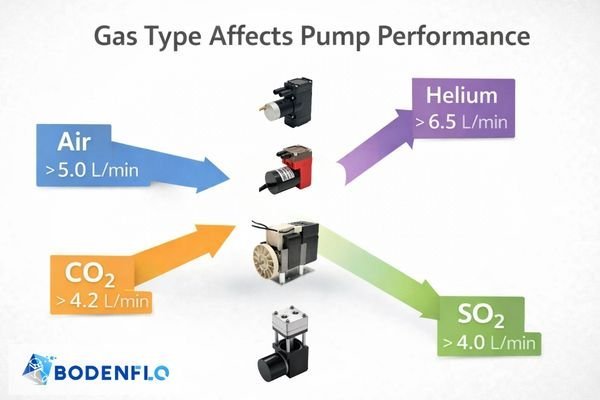

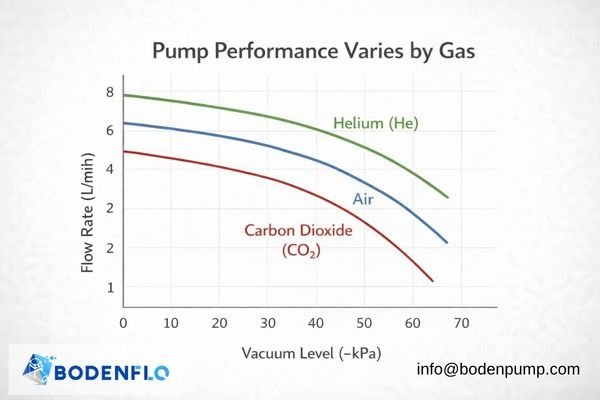

The same exact pump will produce different flow rate and vacuum level measurements when tested with different gases. Pumping a gas that is denser or more viscous than air will almost always result in a lower flow rate and a longer time to reach the target vacuum.

In our labs at BODENFLO, we run these tests all the time. An OEM client will specify they need a pump that delivers 5 L/min for their new gas analyzer. My first question is always, "5 L/min of what gas?" The difference is not trivial. Let's look at a practical comparison. Imagine you have a micro diaphragm pump⁶ rated for 5 L/min of air at atmospheric pressure. Here’s what you might observe when you switch gases, keeping all other system parameters identical:

Gas Type	Key Property (vs. Air)	Expected Performance Impact
Air (Reference)	Baseline	100% of rated flow (e.g., 5.0 L/min)
Carbon Dioxide (CO₂)7	~50% Denser	Flow rate may drop by 10-20% (e.g., to 4.0-4.5 L/min)
VOCs (e.g., Benzene)	Denser & More Viscous	Flow rate drops significantly; potential material reaction.
Helium (He)	Much less dense	Flow rate may increase substantially (e.g., to 6.0+ L/min)

This is a critical insight. If your system requires a minimum of 4.5 L/min of CO₂ to function correctly, choosing a pump rated for 5.0 L/min of air might not give you enough of a performance margin. You might actually need a pump rated for 6.0 L/min of air to reliably achieve your target flow with CO₂. You must account for the gas properties in your initial component selection.

How to Select a Micro Diaphragm Vacuum Pump for Different Gases?

You're convinced that gas type is a critical variable. So, how do you choose the right pump to ensure your system is accurate and reliable?

A successful selection process involves a systematic check of gas compatibility, performance margins, and finding a pump that matches your application's unique demands for power, lifespan, and chemical resistance. To make this easier, I've created a selection guide that maps our specialized gas sampling pumps to their ideal applications.

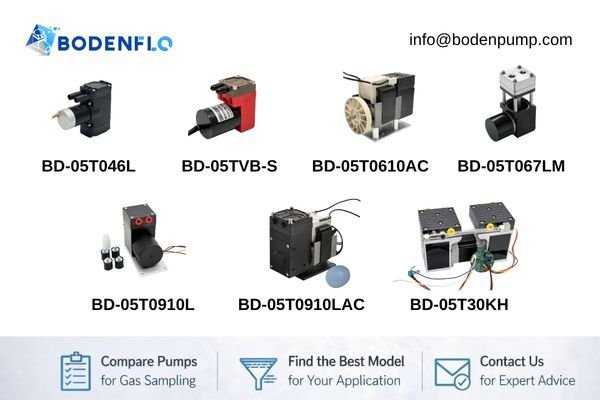

BODENFLO Gas Sampling Pump Selection Guide

Use this table to quickly identify a starting point for your design. Remember to always consider adding a 20-30% performance margin for dense or viscous gases.

Model	Key Feature	Performance (Flow / Vacuum)	Motor & Lifespan	Application Focus (Resistance & Use Case)
BD-05T046L	Ultra-Compact & Lightweight (98g)	6 L/min -63 kPa	Coreless (6,000h)	Resistance: Standard (EPDM) Best For: Low-power portable and handheld devices.
BD-05TVB-S	Long-Life & High Stability	4.6 L/min -70 kPa	Brushless (10,000h)	Resistance: High (Custom PTFE/FKM) Best For: Precision analytical instruments, medical devices.
BD-05T0610AC	AC Power & High Pressure (2.5 Bar)	7.5 L/min -85 kPa	AC Motor (8,000h)	Resistance: High (Custom PTFE/FKM) Best For: Fixed industrial equipment, lab benchtop analyzers.
BD-05T067LM	Ultimate Corrosion Resistance	7 L/min -70 kPa	Brushless (8,000h)	Resistance: Ultimate (316SS Head, PTFE) Best For: Harsh chemical & acid gas sampling (CEMS).
BD-05T0910L	High Flow DC Pump	10 L/min -85 kPa	Brushless (8,000h)	Resistance: High (Custom PTFE/FKM) Best For: Fast sample purging, high-flow analysis, drones.
BD-05T0910LAC	High Flow AC Power	10 L/min -80 kPa	AC Motor (10,000h)	Resistance: High (Custom PTFE/FKM) Best For: Industrial high-flow applications, process monitoring.
BD-05T30KH	Extreme High Flow	50 L/min -80 kPa	Brushless (8,000h)	Resistance: High (Custom PTFE/FKM) Best For: Rapid chamber evacuation, high-volume transfer.

This table serves as a strong starting point. The final selection often involves a deeper conversation about your system's specific pressure points, duty cycle, and control strategy.

Why Do Gas Sampling Systems Show Inconsistent Performance with Different Gases?

You've noticed the pump performance changes, but why does your entire analytical reading go haywire? It's because the pump is just one part of a larger, interconnected system.

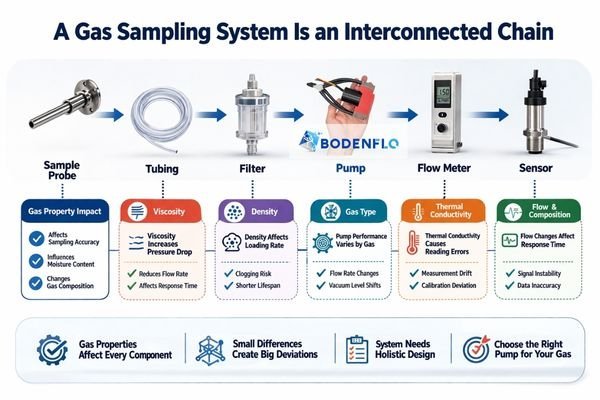

The inconsistency that frustrates users—"Why is my system unstable after calibration?"—is because the gas type affects the entire sampling path, not just the pump. The issue is a result of the "gas + system" interaction as a whole.

When a customer reports inaccurate readings after switching gases, they often suspect the sensor or the pump. But the problem is usually more complex. The change in gas properties creates a domino effect across the entire system:

• Flow Meter Errors: Many thermal mass flow meters are calibrated for air. When a different gas with a different thermal conductivity is introduced, the flow meter gives an incorrect reading unless a conversion factor is applied.
• Tubing Resistance Changes: The viscosity of the gas affects the pressure drop across the length of your sample tubing. A more viscous gas will create more backpressure, further reducing the flow rate generated by the pump.
• Filter Loading: Gas density can affect how efficiently a filter works and how quickly it loads up.
  The key insight is this: The problem is not just the pump. The problem is that the entire system's fluid dynamics change with the gas. A robust design anticipates this and accounts for it, rather than just blaming a single component.

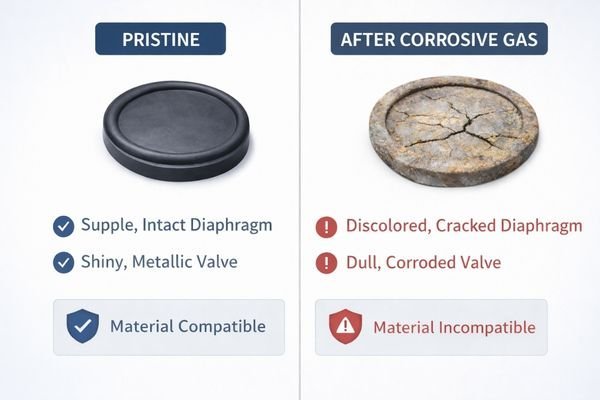

How Does Gas Composition Affect Pump Materials and Reliability?

Performance drops are a problem, but material degradation is a catastrophic failure waiting to happen. How does the gas you're pumping affect the pump's lifespan?

The chemical composition of a gas is just as important as its physical properties. Corrosive gases like sulfur oxides (SOx), nitrogen oxides (NOx), or VOCs can aggressively attack the pump’s internal components, especially the diaphragm and valves, leading to premature aging and failure.

This is where BODENFLO’s expertise in materials science becomes crucial. We don't just sell pumps; we provide solutions engineered to survive their intended chemical environment. A standard pump with EPDM seals might last for thousands of hours pumping clean air, but it could fail in less than 100 hours when sampling for ozone or certain industrial solvents. Choosing the right "wetted materials⁸"—the parts of the pump that come into direct contact with the gas—is essential for long-term reliability.

Common Wetted Materials and Their Uses:

• EPDM: The standard for most non-corrosive applications. Excellent for air and water vapor, but has poor resistance to oils and many solvents.
• FKM (Viton®): A great upgrade for applications involving petroleum oils, fuels, and some acids. Offers better temperature and chemical resistance⁹ than EPDM.
• FFKM (Kalrez®): Offers the broadest chemical resistance, almost like PTFE, but with the sealing properties of an elastomer. Ideal for aggressive and high-temperature environments.
• PTFE (Teflon®): Virtually inert to almost all chemicals. It is often used as a coating on diaphragms or for the pump head itself in our highest-end corrosion-resistant models, making it the top choice for aggressive VOC sampling.

When a client tells me they are building a VOC analyzer, I immediately steer them away from standard EPDM pumps and toward our models with FKM or PTFE wetted parts. This prevents a field failure six months down the line and protects the reputation of their instrument.

Real Applications: Gas Sampling and Environmental Monitoring Systems

Where do these challenges appear most often? Let's look at some real-world examples to see how gas properties cause problems in specific applications.

From portable analyzers to fixed industrial stacks, any application that measures specific gases is prone to these issues. Recognizing the unique challenge of each scenario is key to designing a reliable instrument.

Here are some common applications I work on and the specific gas-related problem each one faces:

• Environmental Air Monitoring: These devices sample ambient air, which is a mix of gases. The problem is that the concentration of pollutants like NOx and SO₂ can vary, slightly changing the overall density and corrosiveness of the gas being pumped.
• VOC Detection Equipment¹⁰: This is the most demanding application for material compatibility. The organic solvents being measured are often highly corrosive, and a standard EPDM diaphragm will quickly fail. The problem here is rapid material failure.
• Portable Gas Analyzers: These battery-powered devices need maximum efficiency. Pumping a dense gas requires more power, which can drain the battery faster than anticipated. The problem here is reduced operational time.
• Industrial Emissions Monitoring (CEMS)¹¹: The gas from a smokestack is hot, wet, and full of corrosive compounds. The challenge is a combination of all problems: high temperature, condensation risk, and extreme chemical attack.

In every case, a "one-size-fits-all" approach to pump selection is doomed to fail.

How to Select a Micro Diaphragm Vacuum Pump for Different Gases?

You're convinced that gas type is a critical variable. So, how do you choose the right pump to ensure your system is accurate and reliable?

A successful selection process goes beyond just matching flow and pressure specs. It involves a systematic check of gas compatibility, performance margins, and supplier data to ensure the pump will perform reliably with your specific gas, not just with air.

When an engineer starts a project with us, I guide them through this four-step selection checklist. It helps avoid common pitfalls and ensures we select the perfect pump for their application.

1. Identify the Gas, Choose the Material: The first question is always: "What gas are you pumping?" Is it inert, corrosive, or a mixture? This determines the required wetted materials (PTFE, FKM, EPDM).
2. Account for Density and Add a Margin: Based on the gas properties, estimate the potential performance drop. We recommend selecting a pump with an air-rated flow that is at least 20-30% higher than your target flow for the actual gas. This performance margin¹² is crucial.
3. Confirm Humidity and Corrosiveness: Will the gas be wet or contain reactive compounds? This dictates whether you need a special corrosion-resistant design¹³, like our pumps with full PTFE wetted paths.
4. Demand Real Test Data: This is key. Ask your supplier for performance data on gases other than air. A supplier that has already tested their pumps with CO₂, methane, or other common gases demonstrates a deeper level of application understanding. At BODENFLO, we pride ourselves on providing this level of detailed support.

Following this checklist transforms pump selection from a guessing game into a predictable engineering process.

How to Improve Sampling Accuracy When Gas Type Varies?

You've selected the right pump. What else can you do at the system level to guarantee the most accurate and stable results?

A great pump is the foundation, but a truly robust sampling system incorporates additional control and design strategies to compensate for gas-related variations and ensure rock-solid performance.

Here are some advanced strategies we help our clients implement to achieve the highest levels of accuracy:

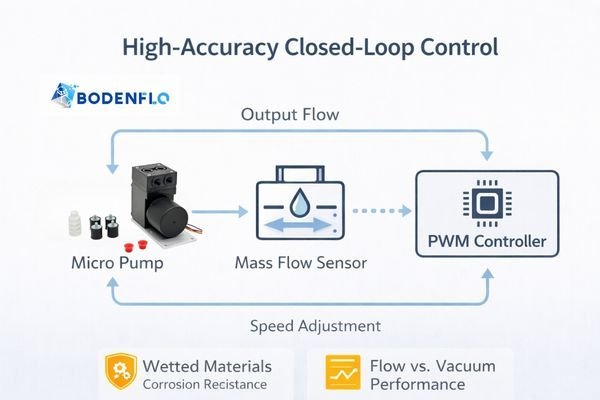

• Use Stable Flow Control¹⁴: Instead of running the pump at a fixed voltage, use a closed-loop control system. A small flow sensor can provide real-time feedback to a PWM controller, which adjusts the pump's speed to maintain a constant mass flow, regardless of the gas type.
• Implement Gas-Specific Calibration¹⁵: If your device is expected to measure several different gases, build multi-point calibration curves into your software. Allow the user to select the target gas, and the system can apply the correct calibration factor.
• Minimize System Resistance: Keep tubing as short and as wide as possible. Avoid sharp 90-degree bends. Every bit of resistance you remove makes the system less sensitive to changes in gas viscosity.
• Choose a High-Stability Pump: Start with a pump known for its stable performance. Pumps with brushless motors and high-quality bearings, like many in the BODENFLO lineup, offer more consistent output over their lifetime, providing a better foundation for your control system.

Conclusion

Gas type is the hidden variable in gas sampling that you can no longer afford to ignore. A pump's datasheet performance with air is only a baseline. Real-world accuracy and reliability depend on designing your system around the unique properties and chemical nature of the gas you are actually measuring.

Looking for a micro diaphragm vacuum pump optimized for different gas types in sampling systems? BODENFLO offers customizable solutions with PTFE, FKM, and high-stability designs for environmental and analytical applications.

📩 Contact us at info@bodenpump.com to discuss your specific gas sampling challenge.

---
