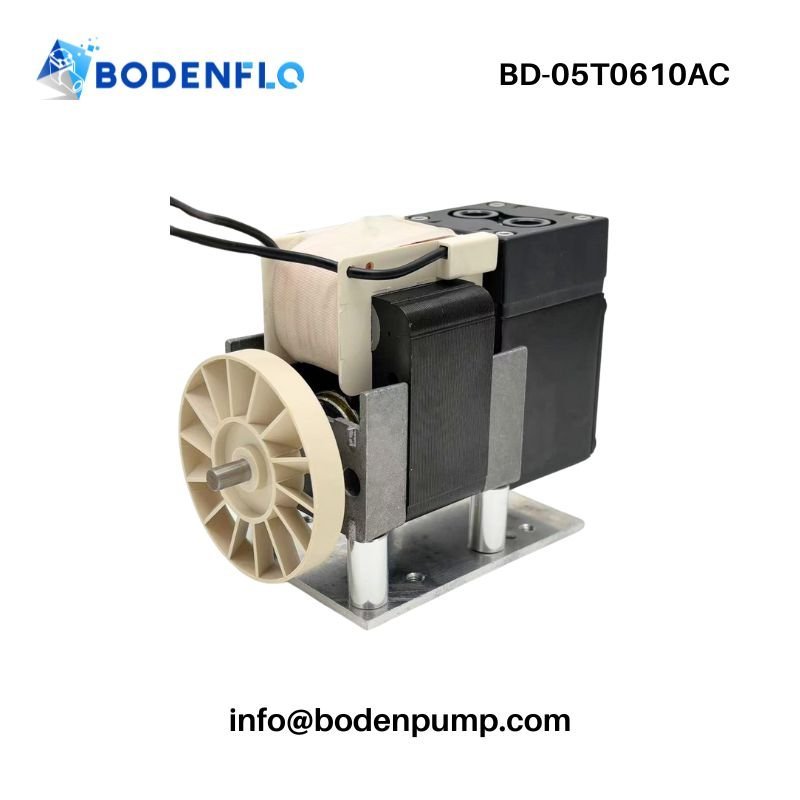

The BD-05T0610AC is an industrial-grade gas diaphragm pump driven by a 220VAC shaded pole motor, delivering stable, high flow and low vibration for precise gas sampling in demanding environments.
| Voltage | 200-220AC |
|---|---|
| Max Flow | 7.5L/min |
| Max Vacuum | –85 kPa |
| Max Pressure | 2.5 Bar |
| Motor | 220VAC/50Hz Shaded pole motor |
| Max Power | 50W |
| Weight | 1.26kg |
The BD-05T0610AC uses a shaded pole AC motor to drive a diaphragm that creates vacuum and pressure cycles, enabling stable, oil-free gas flow for accurate sampling in CEMS systems.
Designed for CEMS, it features a 220VAC/50Hz motor and a dynamically balanced pump body for high flow with low vibration, compact size, and low noise.
Made with a PPS pump head, EPDM diaphragm (customizable to FKM/PTFE), and aluminum alloy pump body, it delivers reliable, long-lasting performance in harsh environments.
✓ High flow rate: up to 7.5 L/min (float flowmeter), 6.2 L/min (electronic flowmeter)
✓ Strong vacuum: ≥ -85 kPa negative pressure
✓ Positive pressure capacity: up to 2.5 bar
✓ Robust 220VAC/50Hz shaded pole motor with imported ball bearings, ensuring >8000 hours lifetime
✓ Optimized dynamic balance design reduces vibration
✓ Compact size: 130 × 62 × 90 mm, lightweight at 1.26 kg
✓ Low noise and small volume operation
✓ High-quality EPDM diaphragm with optional FKM/PTFE for chemical resistance
✓ Professional seal design minimizes leakage for stable operation

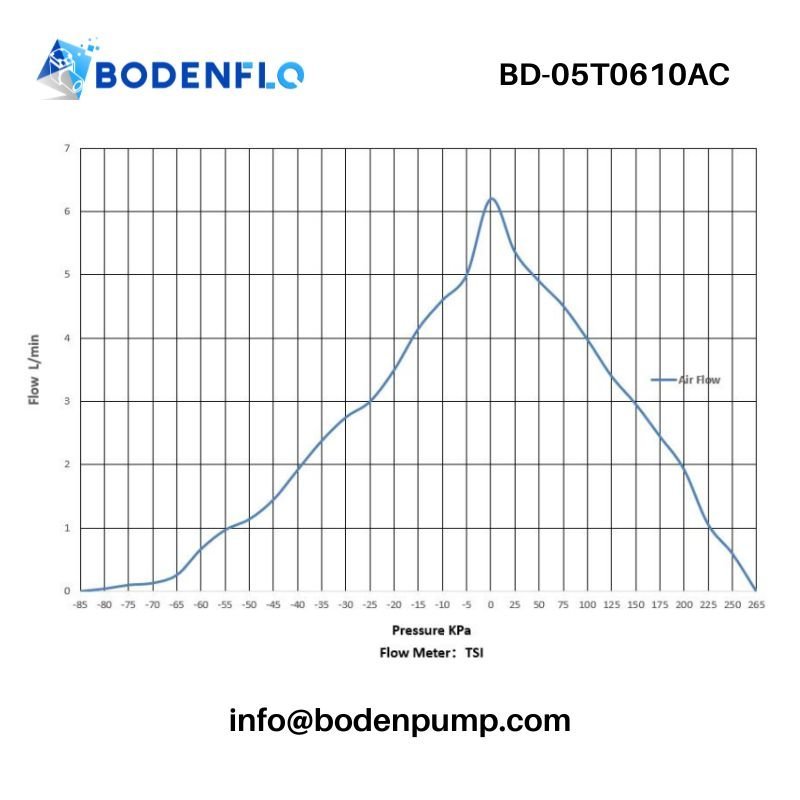

| Parameter | Value |
|---|---|
| Model | BD-05T0610AC |
| Voltage Range | 200–220 V AC |
| Max Flow Rate | 7.5 L/min (float flowmeter) / 6.2 L/min (electronic flowmeter) |
| Max Negative Pressure | ≥ –85 kPa |
| Max Positive Pressure | 2.5 bar |
| Motor Type | 220 VAC / 50 Hz Shaded Pole Motor |
| Max Power | 50 W |
| IP Rating | IP00 |
| Service Life | > 8,000 hours |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | 0 ℃ ~ 45 ℃ |

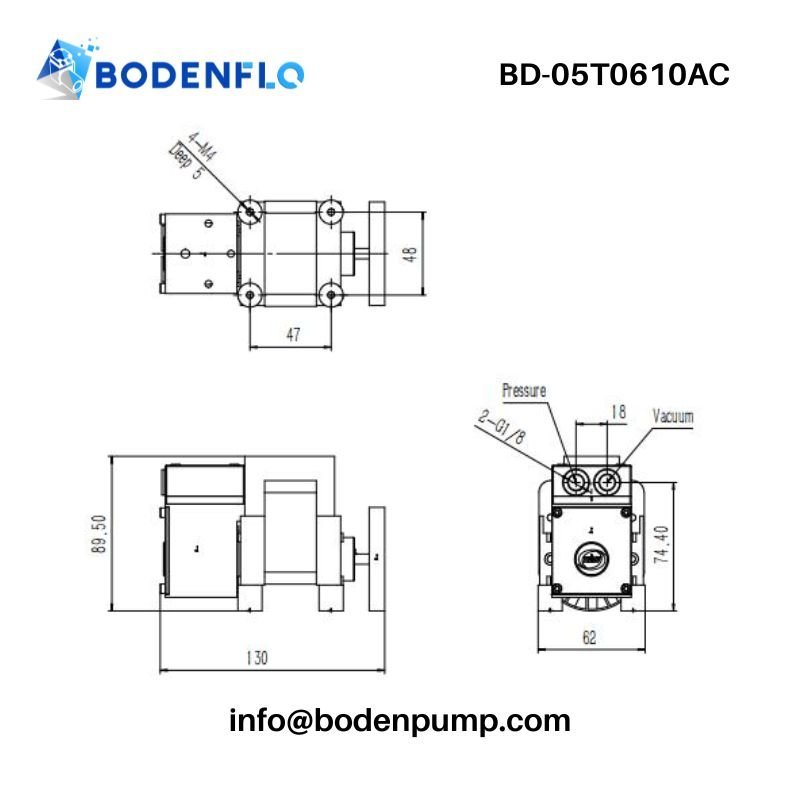

| Dimensions (L × W × H) | 130 × 62 × 90 mm |
| Weight | 1.26 kg |
| Component | Material / Feature |
|---|---|
| Pump Head | PPS engineering thermoplastic, highly resistant and durable |
| Diaphragm / Valve | EPDM standard, with FKM or PTFE options for chemical compatibility |
| Pump Body | Aluminum alloy with electrophoresis treatment for corrosion resistance and durability |
| Motor | Imported ball bearing motor ensures long lifetime and smooth operation |
| Sealing | Professional seal design guarantees low leakage and stable pressure/vacuum performance |
📌 Continuous Emission Monitoring Systems (CEMS) – Reliable gas sampling for accurate, real-time emission data monitoring
📌 Environmental Gas Analysis – Stable flow and vacuum ensure precise sampling of industrial exhaust gases
📌 Industrial Process Monitoring – Durable pump supports continuous sampling in harsh industrial environments
| Customization Aspect | Available Options / Notes |
|---|---|
| Diaphragm Materials | EPDM standard, with FKM or PTFE options for chemical resistance |
| Electrical Cable / Connector | Custom cable length and connector type for OEM integration |
| Label / Branding | Custom product labeling for OEM projects |
| Pump Configuration | BD-05T0610AC (220VAC/50Hz, large flow, low vibration, compact size) |
| Integration Support | Engineering support for CEMS and industrial analyzer systems |
Choosing the right pump supplier is more than a price comparison—it’s about securing long-term reliability, compliance, and strong technical partnership. With BODENFLO, you gain:
Proven Track Record – Over 15 years dedicated to diaphragm, piston, and compressor pumps, serving leading OEMs in medical, industrial, and environmental markets.
Certified Manufacturing – ISO9001 quality management, CE/RoHS compliance, and rigorous testing on flow, vacuum, noise, and durability.
Tailored OEM Solutions – Flexible diaphragm materials (EPDM, FKM, PTFE), customized wiring and connectors, private labeling, and specialized pump configurations.
Engineering Partnership – From prototyping to large-scale production, our team supports your R&D with technical consultation, performance optimization, and integration guidance.
Global Trust – Trusted by OEMs in Europe, the US, South Korea, and Brazil, delivering pumps that compete with top EU/US brands in both performance and cost efficiency.
“The BD-05T0610AC’s stable flow and low noise performance significantly improved our CEMS reliability.”
– Operations Manager, USA
“Its durable aluminum alloy body and chemical-resistant diaphragm make it ideal for harsh industrial environments.”
– Maintenance Supervisor, Germany
“Low vibration and compact design helped us reduce system footprint while maintaining performance.”
– Product Engineer, South Korea
For quick integration, the BD-05T0610AC is designed with simple 2-wire connection:
Red wire: Connect to AC power positive (+)
Black wire: Connect to AC power negative (–)
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T0610AC AC Gas Diaphragm Pump Download Datasheet (PDF)]
Q1: What makes the BD-05T0610AC pump ideal for CEMS applications?
Its stable –85 kPa vacuum, 7.5 L/min high flow, and AC-powered reliability make it an excellent choice for continuous emission monitoring systems.
Q2: Can this pump operate continuously?
Yes. With an imported ball-bearing shaded pole motor, the BD-05T0610AC is designed for 24/7 continuous duty with over 8,000 hours lifetime.
Q3: What diaphragm options are available for different gases?
The pump comes standard with EPDM. For chemically aggressive gases, we offer FKM or PTFE diaphragms for enhanced compatibility.
Q4: How does the pump reduce vibration and noise?
The dynamically balanced body and optimized structural design significantly reduce vibration and operating noise, ensuring smooth, stable performance.
Q5: Does BODENFLO provide technical support for OEM integration?
Yes. We provide wiring diagrams, mounting guidance, sample delivery within 1–3 working days, and direct engineering consultation for faster integration.
