AC-powered diaphragm pumps use a shaded pole motor to drive a flexible diaphragm, generating clean, oil-free vacuum or pressure for gas sampling in high-temperature and corrosive environments.
| Voltage | 200–220V |
|---|---|
| Max Flow | 6L/min |
| Max Vacuum | –70 kPa |
| Max Pressure | 1–1.5 Bar |
| Motor | 220vac/50Hz Shaded pole motor |
| Max Power | 50W |
| Weight | 1.6kg |
Diaphragm pumps work by moving a flexible diaphragm back and forth, changing the chamber volume to generate vacuum and pressure. This design ensures an oil-free, contamination-free gas path, making it ideal for precision sampling of clean or corrosive gases.

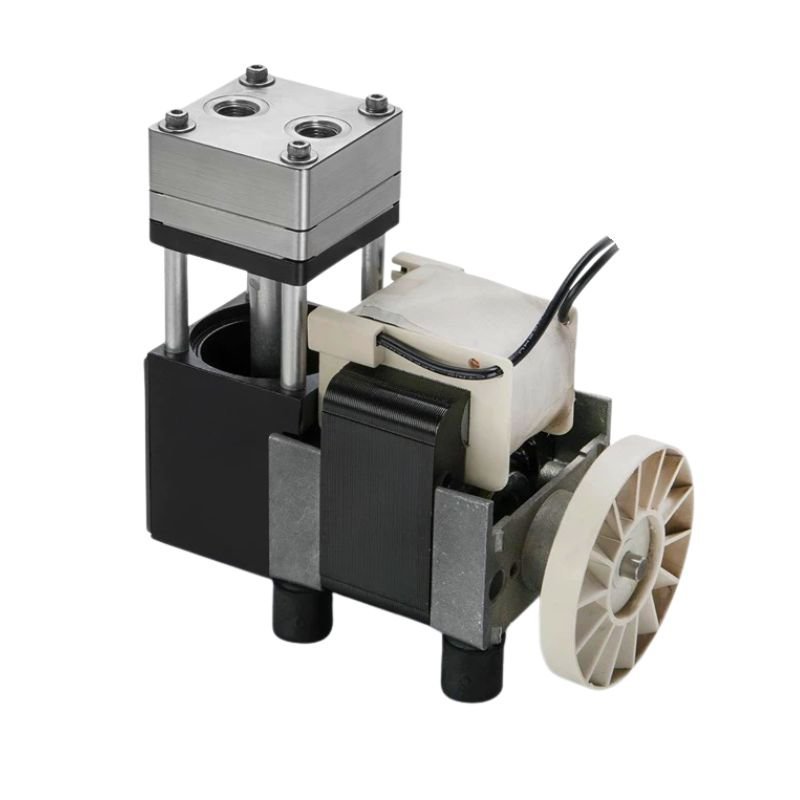

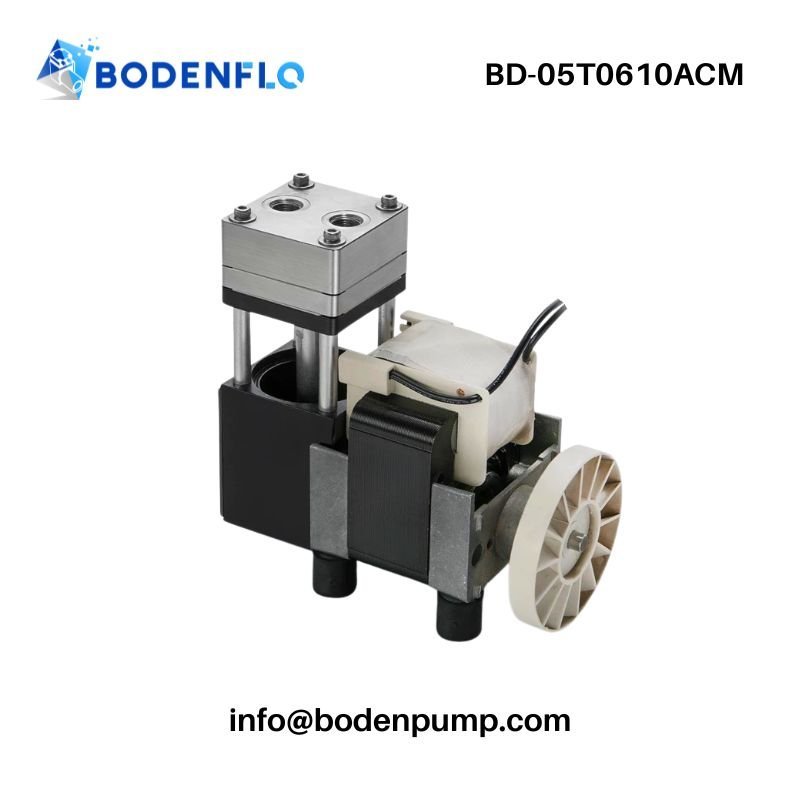

The BODENFLO BD-05T0610ACM is a high-performance 220 V AC gas diaphragm pump designed for high-temperature (up to 200 ℃), high-vacuum (≥ –70 kPa), and chemically resistant applications. Equipped with a stainless steel 316 pump head, imported PTFE diaphragm, and EPDM (custom FKM) valves, it delivers 6 L/min flow and 1–1.5 bar pressure. Its shaded pole motor with imported ball bearings ensures >8,000 hours service life, low noise, and stable performance for laboratory, medical, and environmental monitoring use.
✓ High temperature resistance – up to 200 ℃ medium temperature capability
✓ Large flow & strong vacuum – 6 L/min, ≥ –70 kPa vacuum, and up to 1.5 bar pressure
✓ AC shaded pole motor – stable operation and >8,000 hours service life with imported ball bearings
✓ Corrosion-resistant materials – stainless steel 316 head, imported PTFE diaphragm, EPDM/FKM valves
✓ Low vibration & noise – optimized pump body with dynamic balance design
✓ Low leakage rate – professional sealing design for reliable sampling results
✓ Compact & durable – aluminum alloy pump body, precision manufacturing, maintenance-free design
| Parameter | Value |
|---|---|
| Model | BD-05T0610ACM |
| Voltage Range | 200–220 V AC |
| Maximum Flow | 6 L/min |
| Max Negative Pressure | ≥ –70 kPa |
| Maximum Positive Pressure | 1–1.5 bar |
| Motor Type | 220 V AC / 50 Hz shaded pole motor |
| Max Power | 50 W |
| IP Rating | IP00 |
| Service Life | >8,000 hours |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | –20 ℃ ~ 50 ℃ |
| Max Medium Temperature | 200 ℃ |

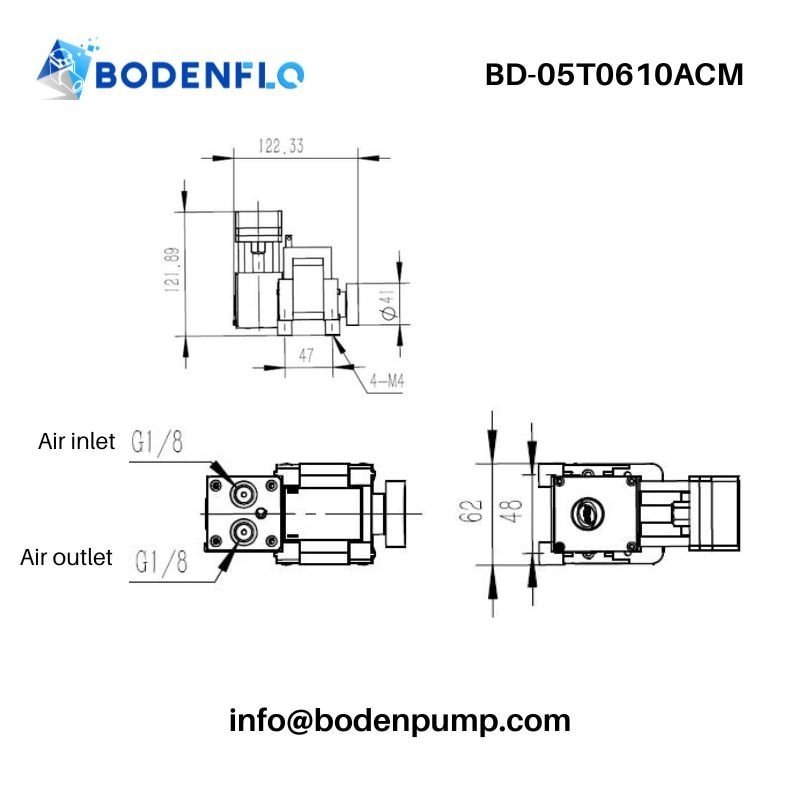

| Dimensions (L × W × H) | 122 × 62 × 122 mm |
| Weight | 1.6 kg |
| Component | Material / Performance |
|---|---|
| Pump Head | Stainless Steel 316 – corrosion and heat resistant |
| Diaphragm | Imported PTFE – chemical resistance for a wide range of gases |
| Valves | EPDM (FKM optional) – customizable for chemical compatibility |
| Pump Body | Aluminum alloy – lightweight, durable, corrosion-resistant |
| Lifetime | >8,000 hours continuous duty in specified conditions |
📌 Analytical devices – precise flow and vacuum for gas chromatography, CEMS, or chemical analysis.
📌 Gas sampling in laboratories – stable, oil-free vacuum and flow for analytical instruments.
📌 Environmental monitoring – long-term, continuous air sampling for pollutant detection.
📌 Industrial process monitoring – handles hot gases and chemically aggressive vapors.
| Customization Aspect | Available Options / Notes |
|---|---|
| Diaphragm Materials | PTFE standard, FKM optional |
| Valve Materials | EPDM standard, FKM optional |
| Motor Specifications | AC motor customization for different voltages/frequencies |
| Mounting | Bracket design and shock absorption customization |
| Branding | Custom labeling for OEM integration |
Selecting a miniature diaphragm pump supplier goes beyond specifications. It’s about securing a long-term partner who ensures reliability, compliance, and technical excellence. With BODENFLO, you benefit from:
Proven Expertise – Over 15 years of specialization in diaphragm, piston, and compressor pumps with 600+ standard models and numerous OEM customization projects.
Certified Quality – ISO9001-certified manufacturing, CE/RoHS compliance, and stringent testing for flow, vacuum, durability, and acoustic performance.
OEM-Centric Customization – Flexible options for diaphragm/valve materials (PTFE, FKM, EPDM, FFKM), electrical connectors, branding, and system integration.
Engineering Partnership – From prototyping to volume production, our engineers provide design consultation, performance optimization, and integration support.
Global OEM Trust – Widely adopted in Europe, the US, Korea, and Brazil across medical, analytical, and environmental sectors.
A Practical Alternative – While leading EU, US, and Japanese brands set high benchmarks, BODENFLO offers competitive, cost-effective solutions without compromising quality.
“The BD-05T0610ACM allowed us to sample hot, corrosive gases without frequent maintenance.”
– Laboratory Equipment Engineer, Italy
“Reliable performance for continuous 24/7 operation in environmental testing.”
– Environmental Monitoring Manager, USA
For quick integration, the BD-05T0610ACM is designed with simple 2-wire connection:
Red wire: Connect to AC power positive (+)
Black wire: Connect to AC power negative (–)
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T0610ACM 220V High Temperature Gas Diaphragm Pump Download Datasheet (PDF)]
Q1: What makes the BD-05T067LM suitable for high-temperature sampling?
It features a 316 stainless steel pump head and PTFE diaphragm, handling gases up to 240 ℃ with excellent corrosion resistance.
Q2: Can it operate continuously in demanding applications?
Yes. The brushless DC motor with imported ball bearings provides >8,000 hours of continuous duty, making it reliable for long-term gas sampling projects.
Q3: What gases can it safely handle?
The pump is designed for hot, corrosive, and reactive gases, ensuring stable performance in laboratories, analyzers, and medical systems.
Q4: How does it minimize vibration and noise?
A dynamically balanced body and precision bearings reduce pulsation, ensuring smooth, low-noise operation.
Q5: Are there other DC high-temperature diaphragm pumps available?
Yes, we also recommend:
BD-05T067LM High-Temperature Brushless Vacuum Pump – up to 240 ℃ with 316 stainless steel head.
BD-05T053LH High-Temperature Micro Air Sampling Pump – compact, oil-free pump for 150 ℃ conditions.
BD-05T054L Gas Sampling Pump High Temperature – stainless steel pump head, suitable for high-temp and corrosive gases.
Q6: Do you provide AC diaphragm sampling pumps as well?
Yes, for clients needing AC solutions, we offer:
BD-05T0610AC 220V AC Gas Diaphragm Sampling Pump – designed for CEMS and environmental analyzers with stable high-flow performance.
