The BD-05T1040DU is a high-performance double head diaphragm pump powered by a high-end brushed DC motor, delivering up to 60 L/min airflow or –98 kPa vacuum. Designed for industrial reliability, it provides clean, oil-free air for applications such as medical disinfection, cleaning systems, and gas transfer.
| Voltage | 24V |
|---|---|
| Max Flow | 40 L/min(series) / 60 L/min(parallel) |
| Max Vacuum | –85 kPa(parallel) / –98 kPa(series) |
| Max Pressure | 2Bar |
| Motor | DC High-End Brushed |
| Max Power | 100W |
| Weight | 3.32kg |
Industrial diaphragm pumps use a DC motor to drive dual flexible diaphragms through an eccentric mechanism, producing clean, oil-free airflow or vacuum for demanding applications.

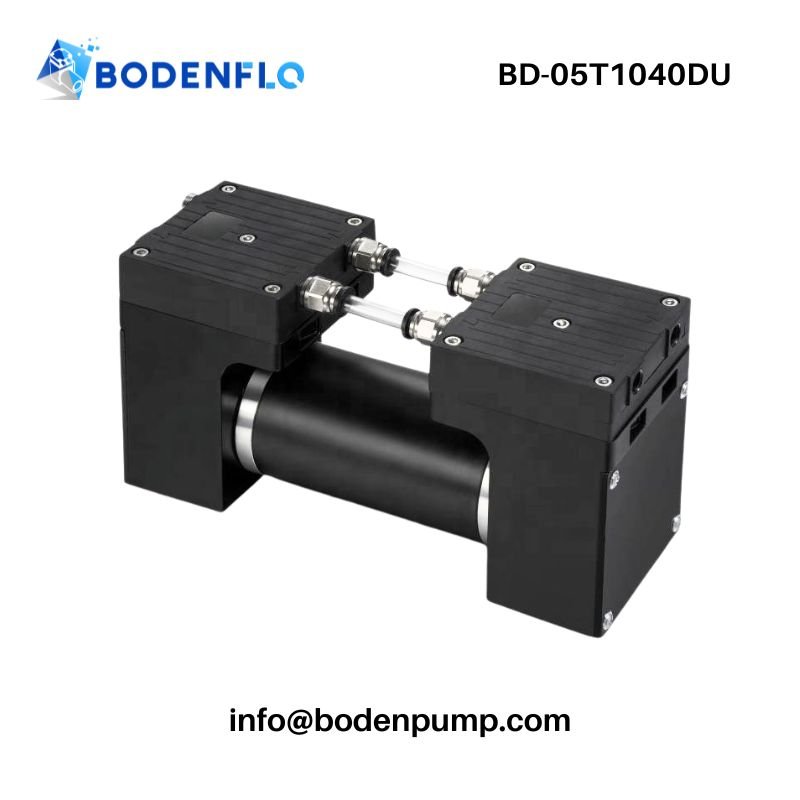

The BODENFLO BD-05T1040DU is a high-performance double head air pump designed for high-flow and high-vacuum industrial tasks. Featuring an advanced high-end brushed DC motor, aluminum pump head, and precision dynamic balancing, it achieves exceptional suction, stable pressure output, and long operational life.
With a maximum flow of 60 L/min (parallel mode) or vacuum up to –98 kPa (series mode), the BD-05T1040DU is ideal for medical disinfection, cleaning equipment, and gas collection & transfer where reliability and performance are critical.
✓ High flow & strong vacuum – 60 L/min at –85 kPa (parallel) or 40 L/min at –98 kPa (series)
✓ Low vibration, low noise – Dynamically balanced design reduces mechanical noise and vibration for smoother operation
✓ Long service life – High-efficiency 100 W brushed DC motor with imported ball bearings ensures 8,000-hour lifespan
✓ Corrosion resistance – EPDM diaphragm and valve (PTFE/FKM optional) handle various gases safely
✓ Oil-free & maintenance-free – Clean airflow with zero oil contamination, no daily servicing required
✓ Robust construction – Aluminum alloy pump head with NPT1/4 connector and electrophoresis-treated body for durability
datasheets, spec sheets, and product pages:
| Parameter | Value |
|---|---|
| Model | BD-05T1040DU |
| Voltage Range | 24 V DC |
| Parallel Connection | 60 L/min, –85 kPa |
| Series Connection | 40 L/min, –98 kPa |
| Max Positive Pressure | 2 bar |
| Motor Type | High-end brushed DC motor |
| Max Power | 100 W |
| IP Rating | IP20 |
| Service Life | >8,000 hours continuous duty |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | –10 ℃ ~ 45 ℃ |

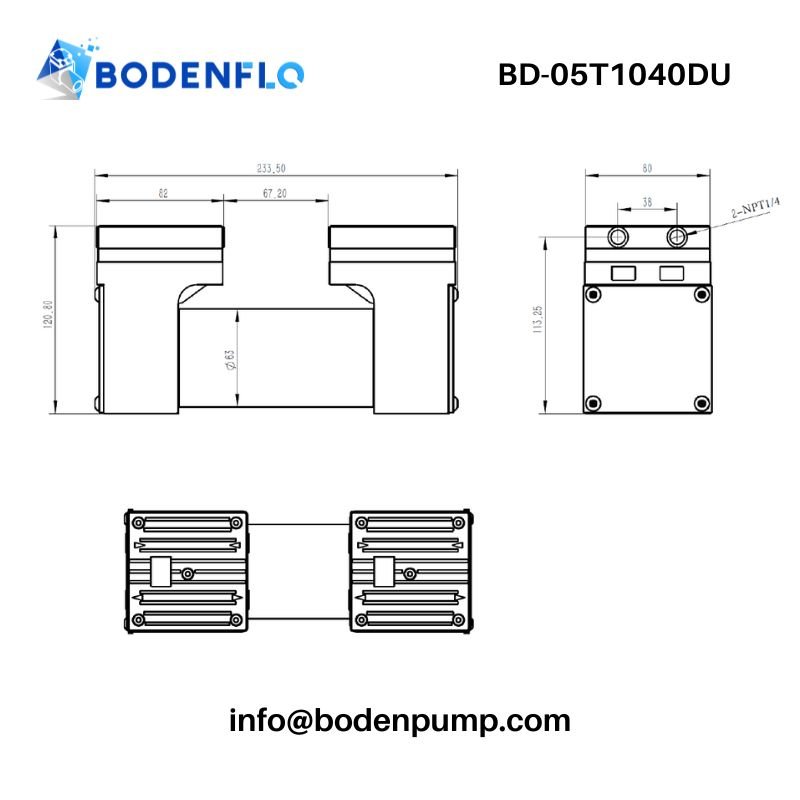

| Dimensions (L×W×H) | 231 × 81 × 120 mm |
| Weight | 3.32 kg |
| Component | Material / Performance |
|---|---|
| Pump Head | Aluminum alloy, NPT1/4 |
| Diaphragm/Valve | EPDM standard (PTFE/FKM optional) |
| Pump Body | Aluminum alloy with electrophoresis coating |
| Lifetime | >8,000 hours continuous duty |
📌 Medical disinfection systems – Delivers strong, stable vacuum and airflow for sterilization equipment.
📌 Cleaning equipment – Provides high-flow suction for industrial cleaning and drying systems.
📌Gas collection & transfer – Efficiently handles various gases in laboratory, industrial, or environmental setups.
| Customization Aspect | Available Options / Notes |
|---|---|
| Diaphragm Materials | EPDM standard, PTFE/FKM optional |
| Connector Type | Custom fittings or ports available |
| Voltage | 12 V and 24 V versions possible |
| Label / Branding | OEM labeling for private branding |
| Mounting Options | Customized brackets or dampers for integration |
| Cable / Connector | Custom cable length and type |
Selecting a diaphragm pump supplier is not only about flow rates and vacuum levels—it’s about choosing a partner who can deliver consistent performance, customization, and long-term value. BODENFLO offers:
Deep Expertise – Over 15 years dedicated to miniature diaphragm and piston pumps, with 600+ proven models and extensive OEM case studies worldwide.
Certified Quality – ISO9001, CE, and RoHS certified production backed by rigorous QC testing for flow, pressure, noise, and durability.
Tailored OEM Solutions – Diaphragm options in EPDM, PTFE, or FKM; custom cable and connector designs; private labeling; and multi-head configurations.
Engineering Partnership – CAD drawings, 3D models, prototyping, and consultation to reduce integration risks and accelerate your product launch.
Global Recognition – Trusted by OEMs across Europe, the US, Korea, and South America for medical, analytical, and industrial applications.
Cost-Effective Advantage – A reliable, lower-cost alternative to premium EU, US, and Japanese brands without compromising on performance.
“The BD-05T1040DU helped us achieve –98 kPa in our disinfection unit with consistent performance over thousands of hours.”
– Engineering Manager, USA“Its quiet operation and strong suction make it perfect for our cleaning system integration.”
– Product Engineer, South Korea

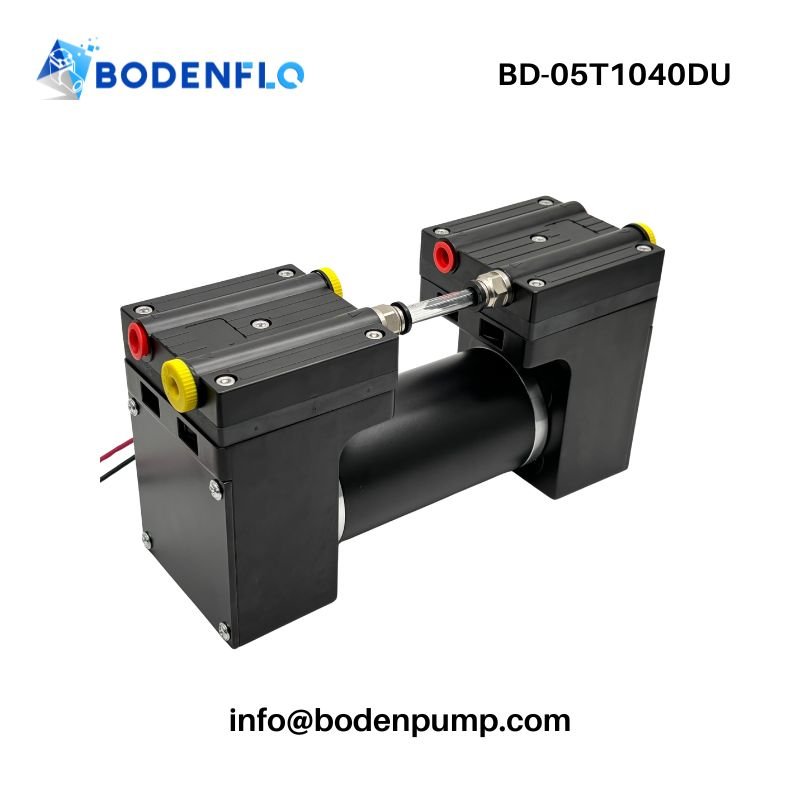

For quick integration, the BD-05T1040DU is designed with simple 2-wire connection:
Red wire: Connect to DC power positive (+)
Black wire: Connect to DC power negative (–)
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T1040DU Double Head Air Pump Download Datasheet (PDF)]
Q1｜Parallel vs. Series – How to Choose?
Parallel Mode: Both pump heads work in parallel, prioritizing high flow (typical 60 L/min) with moderate vacuum (around –85 kPa). Best for large-volume gas exchange or rapid purging.
Series Mode: Pump heads are connected in series, prioritizing deep vacuum (up to –98 kPa) with lower flow (around 40 L/min). Best for high-vacuum suction and leak detection.
Rule of thumb: Use series for throttled/high-resistance systems; use parallel for large-volume/low-resistance systems.
Q2｜How to switch between parallel and series quickly?
Install two 3-way solenoid valves or a dedicated “parallel/series” switching valve. Add check valves near each pump head to prevent backflow. During switching, reduce speed or stop the pump for 1–2 seconds to minimize pressure shocks and diaphragm stress.
Q3｜How does performance change with system back pressure?

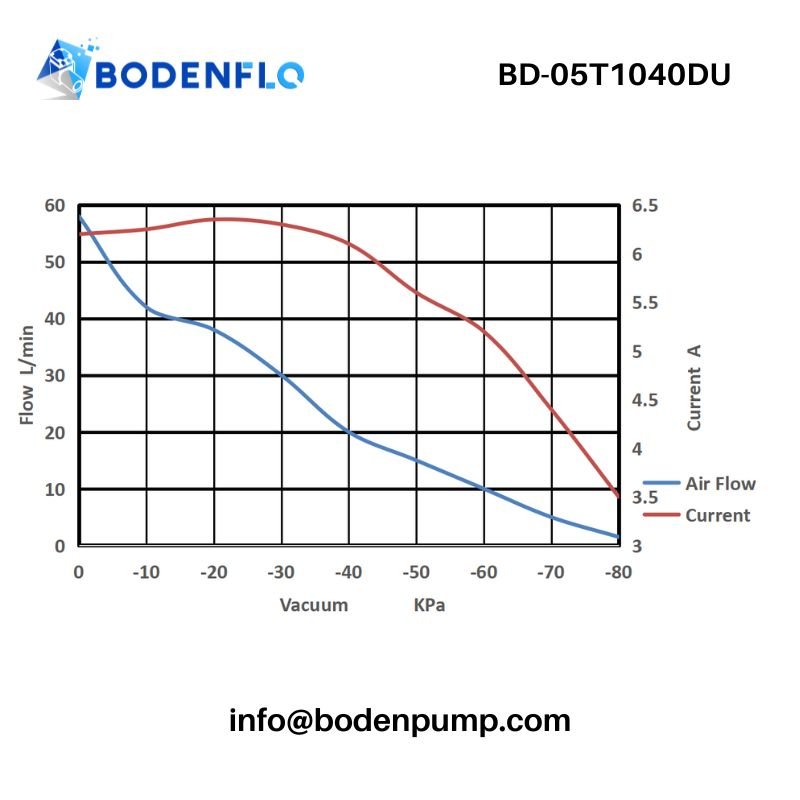

The P–Q curve is relatively steep: as differential pressure rises, flow decreases, but vacuum/pressure stability is maintained. In low-resistance systems, flow is maximized but vacuum drops. Always ensure at least 20% safety margin at the target operating point.
Q4｜How is continuous operation and heat management ensured?
The motor and pump body are designed for >8,000 hours continuous duty at ambient –10 to 45 ℃. Recommendations:
Keep ≥20 mm clearance for natural cooling.
Use an aluminum baseplate or forced-air cooling in heavy-load applications.
Align airflow direction with cooling fins to avoid heat recirculation.
Q5｜Can the pump handle humid or condensate-laden gases?
It tolerates low-humidity gases. For moisture-rich gases, install a condensate trap/separator and 5 μm filter at the inlet. Ensure the medium and pump body temperatures are balanced to prevent condensation. Continuous water hammering will shorten diaphragm life.
Q6｜How to select diaphragm/valve materials for corrosive gases?
EPDM (standard): Alcohols, aldehydes, some polar media.
FKM: Hydrocarbons, aromatics, solvent oils.
PTFE: Strong corrosives, mixed acids/bases, aggressive solvents.
For complex media, provide MSDS or chemical list for compatibility evaluation.
Q7｜How is pulsation controlled? Do I need a damper?
The dual-head design already reduces pulsation. For higher stability/noise reduction, add a pneumatic accumulator (5–10× stroke volume) or microporous silencer at the outlet. Use flexible tubing + vibration isolators to reduce structural resonance.
Q8｜What about electrical and EMI/noise control?
For 24 VDC supply, reserve 3–4× rated current for startup.
Use twisted/shielded wires, add LC filters & TVS diodes at input.
Ensure proper grounding and separation from weak signal lines.
For speed control, use voltage regulation or PWM >20 kHz (outside audible range).
Q9｜Installation direction & NPT connection precautions?
Installation orientation is flexible; best to keep pump head horizontal, piping downward to avoid condensate accumulation.
Ports: NPT 1/4 – use PTFE tape, tighten “hand-tight + 1–2 turns.” Avoid over-torque to prevent cracking.
Mount with anti-vibration pads; tighten bolts to secure without deforming the housing.
Q10｜Noise levels & on-site optimization?
Noise varies with mounting and piping resonance. Optimize by:
Using ≥300 mm flexible tubing on inlet/outlet.
Adding damping mats inside thin enclosures.
Installing silencers or flow dampers.
For reliable data, use 1 m A-weighted sound measurement under actual installation conditions.
Q11｜How do altitude and environment affect performance?
At higher altitude, air density drops—flow and cooling capacity decrease by ~5% per 1,000 m. In dusty/corrosive environments, add filters/protection and shorten maintenance cycles.
Q12｜How to verify leakage and system tightness?
Use pressure decay or tracer gas (helium/leak detector) testing. For most analytical/sampling applications, aim for leak rates ≤10⁻³ mbar·L/s (or equivalent pressure drop/time).
Q13｜What is the maintenance strategy and replacement cycle?
The pump is oil-free and lubrication-free. Typical life: 8,000 h with clean media. For harsh gases/high load, inspect diaphragms, valves, and bearings every 3,000–5,000 h or annually. Keep OEM service kits available to minimize downtime.
Q14｜Compliance and restricted uses?
The pump complies with RoHS/CE (certificates upon request). Not certified for oxygen-rich, explosive, or ATEX environments. For medical devices, final system compliance (e.g., MDR, UL) must be handled by the device manufacturer.
Q15｜Can the pump be used for both suction and pressure?
Yes. It operates within –98 kPa vacuum and ~2 bar positive pressure. For dual-function systems, use a solenoid valve matrix with safety relief valves to prevent overpressure or misoperation.
Looking for a double head vacuum pump that combines 60 L/min high flow, –98 kPa deep vacuum, and 8,000-hour reliability?
