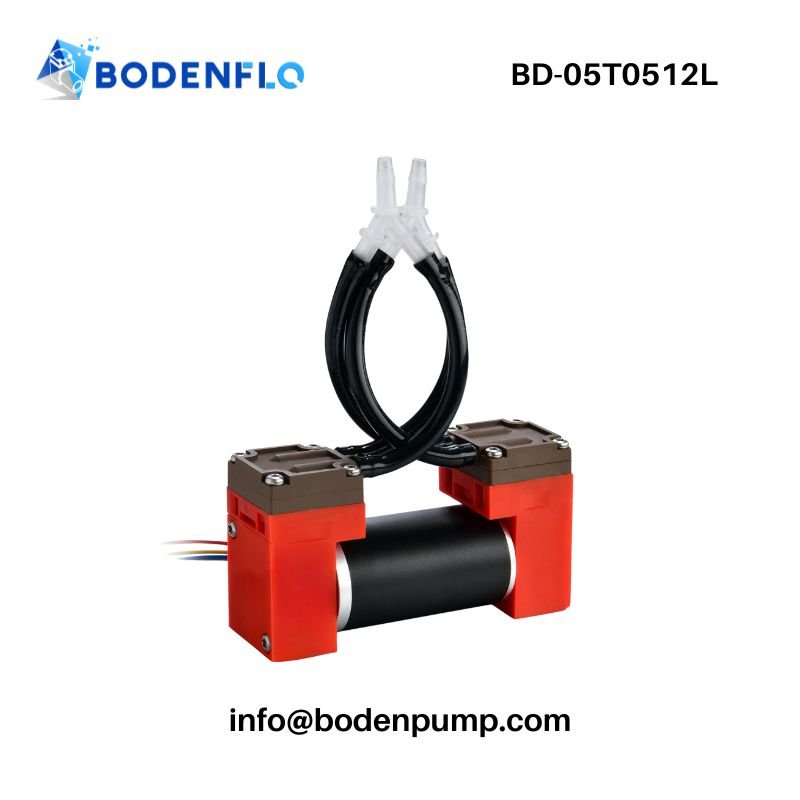

Overview of BD-05T0512L Vacuum Pump
Key Features of Dual-Head Vacuum Pump
✓ Compact size (103×32×55 mm) with powerful gas flow up to 12 L/min
✓ High vacuum performance: –72 kPa negative pressure
✓ Positive pressure capability: up to 1.5 bar
✓ Advanced brushless DC motor for long service life (8,000–10,000 hours)
✓ Stable flow performance with low noise and vibration
✓ Low power consumption: only 11 W
✓ Clean, oil-free operation – no contamination of sampled gases
✓ EPDM diaphragm (FKM optional) for chemical resistance and gas compatibility
✓ IP54 protection – suitable for harsh environments
✓ Customizable for OEM integration

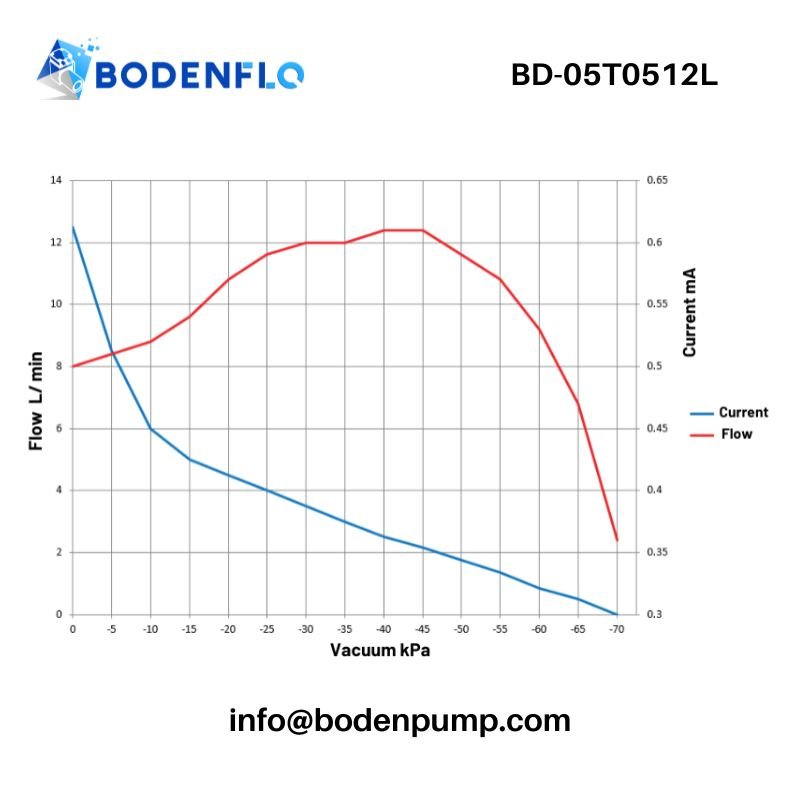

Technical Data – Gas Diaphragm Pump BD-05T0512L
| Parameter |
Value |
| Model |
BD-05T0512L |
| Voltage Range |
12 V / 24 V |
| Max Flow Rate |
12 L/min |
| Max Negative Pressure |
–72 kPa |
| Max Positive Pressure |
1–1.5 bar |
| Motor Type |
High-end brushless DC motor |
| Max Power |
11 W |
| Waterproof Level |
IP54 |

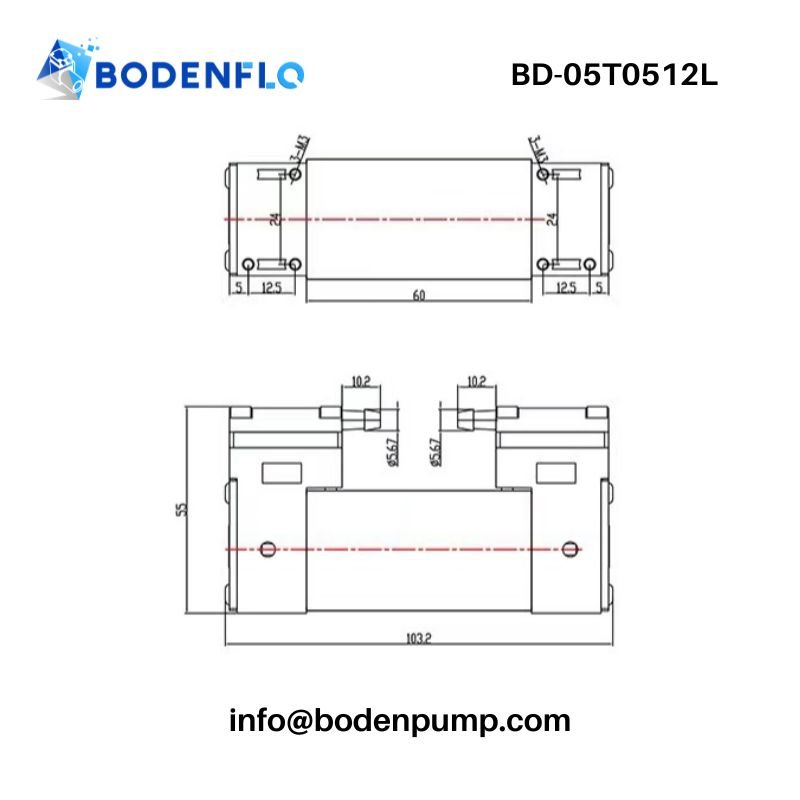

| Dimensions |
103 × 32 × 55 mm |
| Weight |
262 g |
| Operating Temperature |
–20 ℃ ~ +45 ℃ |
| Storage Temperature |
–40 ℃ ~ +60 ℃ |
Material Construction – Gas Diaphragm Pump
| Component |
Material / Properties |
| Pump Head |
PPS – High strength, chemical resistant |
| Diaphragm/Valve |
EPDM standard (optional FKM for customization) |
| Pump Body |
Nylon – Lightweight and impact-resistant |
| Motor Housing |
IP54 sealed for dust and water protection |
Applications – DC Diaphragm Air Pump
📌 VOC analyzers & CEMS – Provides reliable, clean gas flow for VOC detectors, stack gas monitoring, and emissions analysis.
📌 Laboratory & scientific instruments – Ensures stable sampling for gas chromatography and particle counters.
📌 Air sampling systems – Ideal for portable and stationary environmental monitors that need consistent vacuum performance.
📌 Automation & sensor devices – Powers vacuum-based gripping and suction in compact industrial applications.
📌 Microfluidics & gas control systems – Supports low-pulsation flows for precise control in analytical circuits.
📌 Medical and bio-diagnostic devices – Delivers accurate vacuum and gas movement in non-invasive, sample-safe systems.
OEM Customization Options
| Customization Aspect |
Options / Notes |
| Diaphragm Material |
EPDM (standard) / FKM (for corrosive media) |
| Electrical Connector |
Custom cable length / terminal type |
| Pump Label & Branding |
Custom labeling for OEM clients |
| Pump Configuration |
Dual-head (parallel or series); consult for best setup |
| Operating Voltage |
12 V or 24 V options available for flexible integration |
Why Choose BODENFLO – Your Trusted Partner for High-Performance Diaphragm Pumps
Selecting a miniature pump supplier is not just about comparing technical parameters—it’s about choosing a partner who ensures long-term reliability, engineering depth, and global OEM support. With BODENFLO, you benefit from:
🔹 Specialized Expertise – Over 15 years focused on diaphragm, piston, and compressor pumps, with more than 300 standard models and numerous customized solutions for medical, laboratory, and industrial markets.
🔹 Certified Quality – ISO9001-certified production, CE/RoHS compliance, and rigorous QC testing on flow, vacuum, noise, and durability to meet strict global standards.
🔹 OEM Customization – Flexible solutions including EPDM/FKM/PTFE diaphragms, dual-head or series/parallel configurations, tailored connectors, and private labeling for seamless integration.
🔹 Fast Engineering Support – Rapid prototyping and responsive technical consultation help OEMs shorten development cycles and accelerate time-to-market.
🔹 Global Trust – BODENFLO pumps are integrated by OEMs across Europe, the United States, Brazil, South Korea, and beyond, powering gas analyzers, medical equipment, portable devices, and automation systems.
🔹 Competitive Value – Delivering equivalent or superior performance to leading EU/US brands, while maintaining cost-effective pricing that strengthens your competitiveness.
Customer Feedback – BD-05T0512L Pump
“Our automation line required a compact yet powerful vacuum source. The BD-05T0512L provided stable suction and strong negative pressure, ensuring reliable performance for robotic handling and pneumatic control.”
– Automation Project Engineer, Germany
“In our portable medical diagnostic equipment, the BD-05T0512L runs quietly and delivers consistent airflow. Its brushless motor design ensures long service life, which is critical for patient-facing devices.”
– Biomedical Engineer, South Korea
“We integrated the BD-05T0512L into our air sampling system. Its high flow and oil-free design improved detection accuracy while maintaining contamination-free operation.”
– Environmental Monitoring Specialist, Finland
Installation & Wiring Guide
For quick integration, the BD-05T0512L is designed with simple 4-wire connection:
- Red wire: Connect to DC power positive (+)
- Black wire: Connect to DC power negative (–)
- Blue wire: PWM 0-5V, 15-25K. (connected to red wire positive full speed)
- Yellow wire: FG, 1Pulse/Cycle, 0 to 5V TTL pulses
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
Downloads – Datasheet for Micro Pump
[BD-05T0512L Specification –Download Datasheet (PDF)]
Frequently Asked Questions (FAQ)
Q1: Can the BD-05T0512L be used for both vacuum and pressure applications?
Yes. This pump supports dual-mode operation, delivering vacuum up to –72 kPa and positive pressure up to 1.5 bar, making it suitable for systems requiring both suction and compression.
Q2: How quiet is the BD-05T0512L during operation?
60dB, the brushless DC motor and optimized diaphragm design ensure low noise and vibration, which makes it ideal for medical and laboratory instruments where quiet operation is essential.
Q3: What type of maintenance is required for this pump?
The BD-05T0512L is oil-free and designed to be maintenance-free. Unlike oil-lubricated pumps, it requires no regular servicing, which reduces downtime and operational costs.
Q4: Can the BD-05T0512L be integrated into portable or battery-powered devices?
Yes. With compact dimensions (103 × 32 × 55 mm), lightweight construction (262 g), and low power consumption (11 W), it integrates easily into portable analyzers, detectors, and wearable medical devices.
Q5: Why should OEM clients choose BODENFLO instead of other suppliers?
BODENFLO is not just a pump manufacturer—we are a solution partner. With over 15 years of OEM experience, 300+ standard pump models, and strong customization capabilities, we help clients reduce development risks and accelerate time-to-market.
Q6: What kind of support can I expect after purchasing from BODENFLO?
Our support doesn’t stop at delivery. We provide fast technical response within 24 hours, OEM integration guidance, and after-sales assistance for troubleshooting. Long-term OEM clients also benefit from continuous improvement programs to optimize performance.
