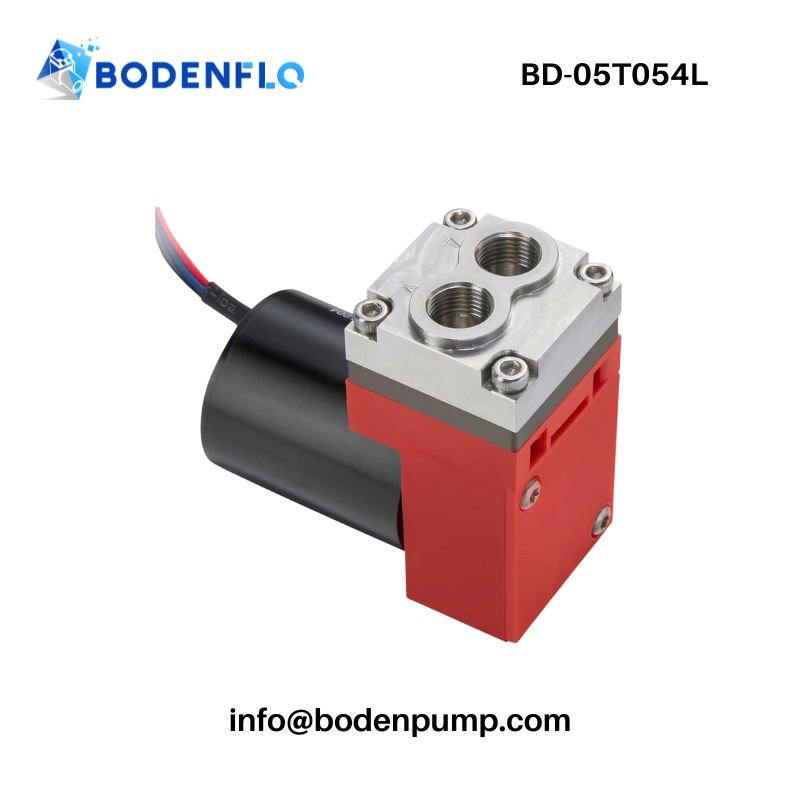

BD-05T054L is a high-temperature resistant micro diaphragm pump that uses a brushless DC motor to drive gas through a flexible FKM diaphragm. Designed for harsh environments, it delivers stable, oil-free flow or vacuum in compact gas analysis systems.
| Voltage | 12/24V |
|---|---|
| Max Flow | 4L/min |
| Max Vacuum | –60 kPa |
| Max Pressure | 1Bar |
| Motor | High-end DC brushless motor |
| Max Power | 5 W |
| Weight | 168g |
The BODENFLO BD-05T054L use a brushless DC motor to drive a flexible diaphragm, creating stable, oil-free gas flow or vacuum. Its stainless steel pump head and imported FKM diaphragm ensure corrosion resistance and low leakage.
With a maximum negative pressure of –60 kPa and a flow rate up to 4 L/min, it is built to withstand demanding operating conditions such as those found in CEMS (Continuous Emission Monitoring Systems) and industrial gas analysis.
Equipped with a high-end DC brushless motor and professional sealing system, the BD-05T054L ensures long operating life, low leakage, and reliable performance under elevated temperatures up to 120 ℃.
✓ High temperature resistance up to 120 ℃ – suitable for hot gas sampling
✓ Durable stainless steel pump head for corrosion and heat resistance
✓ High-end brushless DC motor: low noise, long service life >8000 hours
✓ Stable gas flow, low pulsation – ideal for analytical accuracy
✓ FKM diaphragm and valve – excellent chemical resistance
✓ Compact & lightweight: only 168 g
✓ Professional seal design – minimizes leakage
✓ Maintenance-free, oil-free, clean gas path
| Parameter | Value |
|---|---|
| Model | BD-05T054L |
| Voltage Range | 12 V / 24 V DC |
| Max Flow Rate | 4 L/min |
| Max Negative Pressure | –60 kPa |
| Max Positive Pressure | 1 Bar |
| Motor Type | High-end DC Brushless Motor |
| Max Power Consumption | 5 W |
| IP Rating | IP54 |
| Service Life | >8000 hours |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Environment | –20 ℃ ~ 45 ℃ |
| Medium Temperature Range | –10 ℃ ~ 120 ℃ |

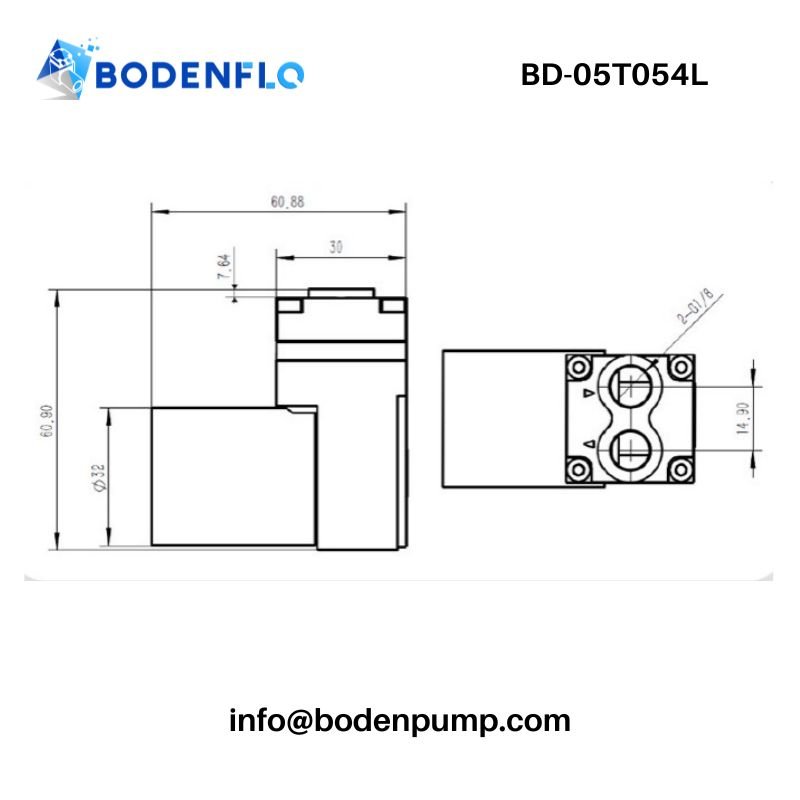

| Dimensions (L×W×H) | 61 × 32 × 61 mm |
| Weight | 168 g |
| Component | Material / Performance |
|---|---|
| Pump Head | Stainless Steel – corrosion & heat resistant |
| Diaphragm / Valve | Imported FKM – high chemical compatibility |
| Pump Body | Imported Nylon – lightweight, durable |
| Motor Bearings | High-precision ball bearings |
| Sealing Design | Industrial-grade, low leakage |
📌 CEMS (Continuous Emission Monitoring Systems) – Reliable vacuum source for continuous hot gas sampling in industrial exhaust analysis.
📌 Gas Analytical Instruments – Delivers stable flow and vacuum for precise gas composition monitoring.
📌 High-Temperature Gas Sampling – Ideal for applications with demanding heat and chemical conditions, such as flue gas analysis or combustion process control.
📌 Lab and R&D Use – Suitable for laboratory-scale systems requiring compact, heat-resistant sampling pumps.
| Customization Aspect | Available Options / Notes |
|---|---|
| Diaphragm Materials | FKM (standard); EPDM (on request) |
| Cable/Connector Type | Custom wiring, terminal, or connector integration |
| Branding/Label | Custom label with client’s logo and specifications |
| Pump Configuration | Custom mounting brackets, feet, or dual-head design |
Selecting the right high flow miniature pump supplier is about more than specifications—it’s about long-term reliability, engineering depth, and OEM-focused service. With BODENFLO, you gain a partner that supports your project from design to mass production:
Specialized Expertise – 15+ years dedicated to micro diaphragm, piston, and compressor pumps with 300+ proven models.
Certified Manufacturing – ISO9001 factory with CE/RoHS compliance and full QC traceability.
Flexible OEM Solutions – Options for EPDM, FKM, PTFE diaphragms, dual-head/series/parallel setups, connectors, and private labeling.
Fast Engineering Support – Rapid prototyping, parameter optimization, and integration guidance for OEM projects.
Trusted Worldwide – BODENFLO pumps are deployed in medical devices, gas analyzers, environmental monitors, and automation systems across Europe, the US, and Asia.
Cost-Effective Value – Equivalent performance to EU/US brands with competitive pricing that strengthens your product’s market position
“We use the BD-05T054L for high-temperature gas sampling in our CEMS system. It handles 100+℃ gas streams with excellent stability.”
– Technical Director, Finland
“The corrosion-resistant FKM diaphragm and stainless steel head were key. Performance has been consistent in our emission analyzer.”
– Procurement Manager, Italy
“This pump helped us reduce equipment maintenance. We’ve had units running over 8,000 hours in field conditions.”
– Service Engineer, Canada
For quick integration, the BD-05T054L is designed with simple 2-wire connection:
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T054L Stainless Steel Gas Sampling Pump Download Datasheet (PDF)]
Q1: Can BODENFLO pumps operate continuously?
Yes. Our brushless diaphragm pumps are designed for 24/7 continuous duty, making them ideal for medical, lab, and environmental monitoring devices.
Q2:What are the advantages of using a stainless steel pump head?
Stainless steel pump heads provide excellent corrosion resistance, allowing the pump to handle harsh gases and chemicals. They also offer high temperature durability (up to 120 ℃), making them suitable for hot gas sampling such as CEMS and flue gas analysis. Additionally, stainless steel construction ensures low leakage, long service life, and mechanical robustness, which are critical for industrial and analytical applications.
Q3: Do you offer both brushed and brushless pump options?
Yes. We provide brushed versions for cost-sensitive projects and brushless versions for long-life, low-noise, high-end applications.
Q4: Can these pumps handle liquids as well as gases?
Our diaphragm pumps are primarily designed for air and gas. They can tolerate small amounts of moisture, but for liquid circulation we recommend our dedicated micro liquid pump series.
Q5: How quickly can I receive samples?
Samples are typically shipped within 1–3 working days via DHL, FedEx, or UPS. Bulk orders are shipped by sea, air, or rail depending on customer needs.
Q6: What certifications and quality assurances do you provide?
BODENFLO pumps comply with CE and RoHS standards, and our factory is ISO9001-certified. Full inspection reports and conformity certificates are available for OEM clients.
