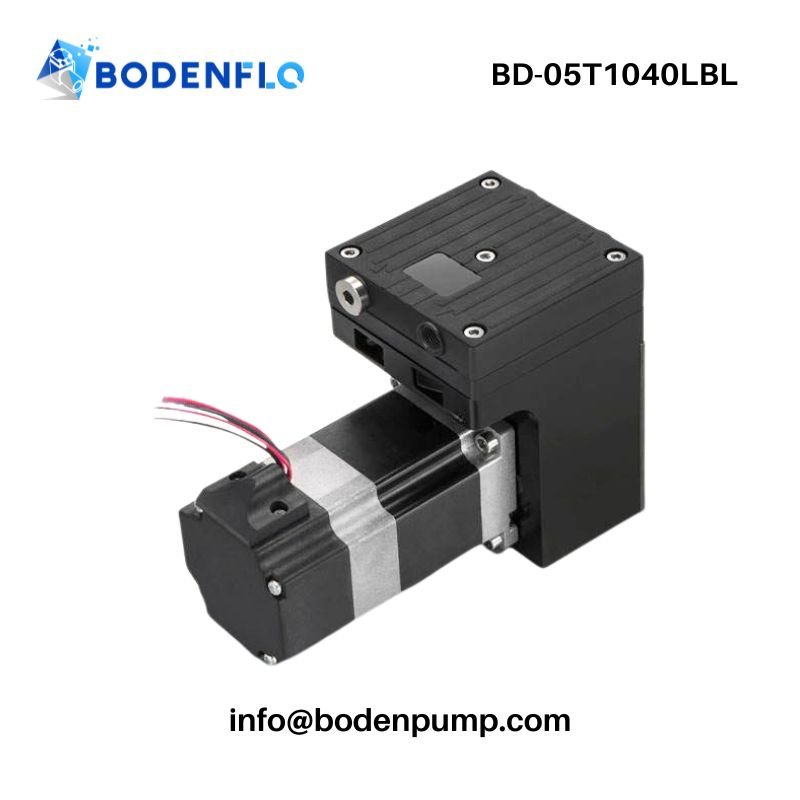

The BD-05T1040LBL is a high-flow single-head brushless diaphragm pump for industrial use. Operating on 12V/24V, it delivers 45 L/min airflow, –85 kPa vacuum, and 1 bar pressure.
| Voltage | 12/24V |
|---|---|
| Max Flow | 40L/min |
| Max Vacuum | –85 kPa |
| Max Pressure | 1Bar |
| Motor | High-end brushless DC motor |
| Max Power | 50W |
| Weight | 1.79kg |
The BD-05T1040LBL is a high-flow, precision-engineered diaphragm pump designed for demanding industrial environments requiring strong suction, stable delivery, and consistent long-term performance. Built with a high-end brushless DC motor, imported PPS pump head, and aluminum alloy electrophoresis-treated body, this model delivers 40 L/min airflow with up to –85 kPa vacuum while maintaining low noise and smooth operation.
Engineered for reliability, chemical compatibility, and high-purity gas handling, the BD-05T1040LBL is an excellent choice for laboratories, automated systems, leak-detection equipment, and industrial vacuum applications.
✓ High flow & strong suction – Provides a stable 40 L/min airflow with reliable –85 kPa vacuum performance using 10×8 mm tubing
✓ Low noise & smooth operation – Brushless motor and balanced diaphragm system reduce vibration for quieter, more stable performance
✓ Long service life – High-efficiency 50 W brushless motor delivers extended operating lifespan for continuous-duty industrial use
✓ Corrosion-resistant flow path – Imported PPS pump head with EPDM diaphragm (FKM/PTFE optional) ensures compatibility with corrosive and high-purity gases
✓ Low absorption design – Internal structure minimizes gas absorption, maintaining measurement accuracy for laboratory and VOC applications
✓ Robust aluminum housing – Electrophoresis-treated aluminum alloy body provides excellent strength and durability in demanding environments

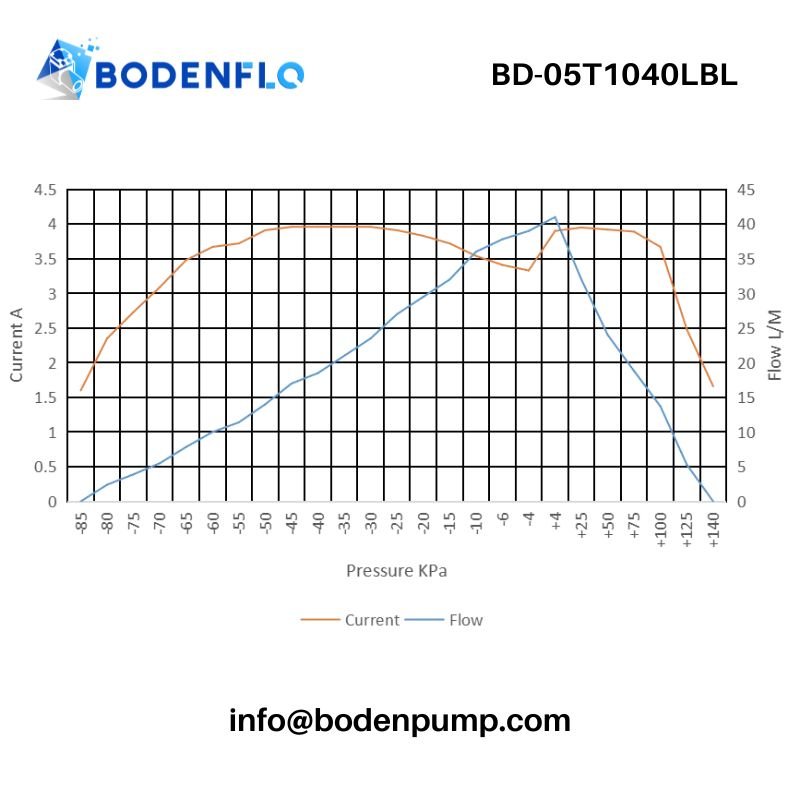

| Parameter | Value |
|---|---|
| Model | BD-05T1040LBL |
| Voltage Range | 12 / 24 V DC |
| Maximum Flow | 40 L/min |
| Max Negative Pressure | –85 kPa |
| Max Positive Pressure | 1 bar |
| Motor Type | High-end brushless DC motor |
| Max Power | 50 W |
| IP Rating | IP20 |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | –10 ℃ ~ 45 ℃ |

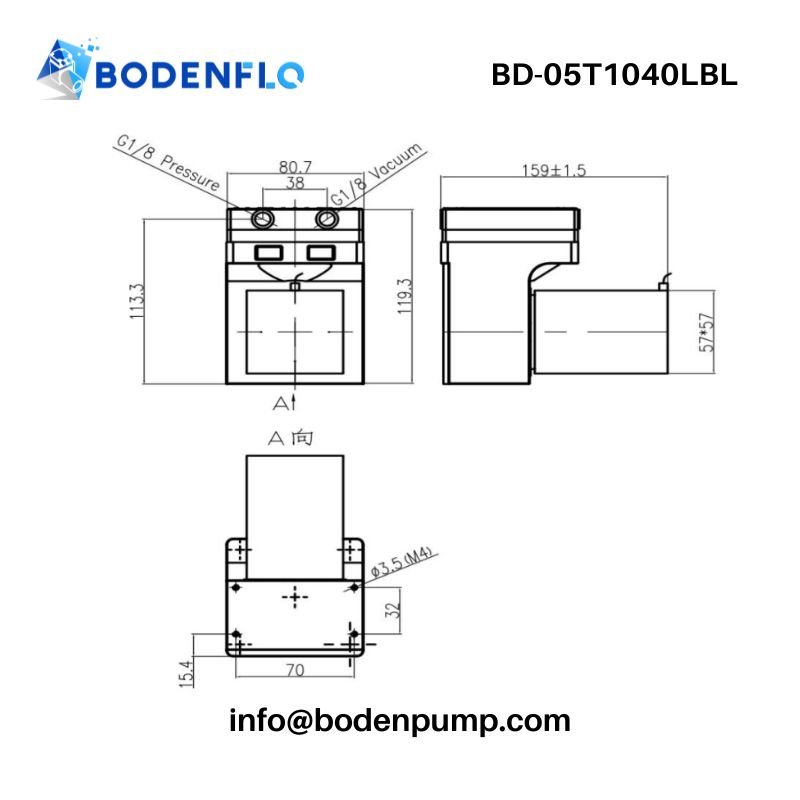

| Dimensions (L×W×H) | 163 × 120 × 80 mm |
| Weight | 1.79 kg |
| Component | Material / Performance |
|---|---|
| Pump Head | Imported PPS – high corrosion resistance |
| Diaphragm / Valve | EPDM (FKM/PTFE optional) |
| Pump Body | Aluminum alloy with electrophoretic treatment |
📌 Leak Detector Systems – Reliable vacuum source for precision leakage measurement.
📌 Laboratory Analysis Instruments – Stable flow delivery for analytical sampling.
📌 Chemical Vacuum Equipment – Supports corrosive and reactive gas handling.
📌 VOC Online Analysis – Suitable for continuous environmental or factory monitoring.
📌 Vacuum Suction Crane / Pick-and-Place Systems – Strong vacuum for automation lifting systems.
📌 Automation Industry – Consistent performance for industrial integration.
| Customization Aspect | Available Options |
|---|---|
| Diaphragm Materials | EPDM, FKM, PTFE |
| Voltage | 12 V / 24 V DC |
| Connector Type | Based on the model provided by the customer |
| Label / Branding | OEM logo, private branding |
| Mounting Options | Customized brackets, dampers |
| Cable / Connector | Custom lengths and connector types |
Selecting a diaphragm pump supplier is not only about flow rates and vacuum levels—it’s about choosing a partner who can deliver consistent performance, customization, and long-term value. BODENFLO offers:
Cost-Effective Advantage – A reliable, lower-cost alternative to premium EU, US, and Japanese brands without compromising on performance.
Deep Expertise – Over 15 years dedicated to miniature diaphragm and piston pumps, with 600+ proven models and extensive OEM case studies worldwide.
Certified Quality – ISO9001, CE, and RoHS certified production backed by rigorous QC testing for flow, pressure, noise, and durability.
Tailored OEM Solutions – Diaphragm options in EPDM, PTFE, or FKM; custom cable and connector designs; private labeling; and multi-head configurations.
Engineering Partnership – CAD drawings, 3D models, prototyping, and consultation to reduce integration risks and accelerate your product launch.
Global Recognition – Trusted by OEMs across Europe, the US, Korea, and South America for medical, analytical, and industrial applications.
“The BD-05T1040LBL provided the stable 40 L/min flow we needed for our VOC analysis platform, with extremely low noise during long-term operation.”
– R&D Manager, Germany
“We tested it in our laboratory extraction unit, and the corrosion-resistant PPS head performed flawlessly with special gas media.”
– Lab Equipment Engineer, Japan
The BD-05T1040LBL series uses a 7-wire BLDC control interface, allowing precise speed control, PWM regulation, and FG feedback for system monitoring. This wiring structure provides OEM engineers with full flexibility in designing stable, controllable high-flow vacuum/pressure systems.
Power Supply Wiring
These two wires supply power to the BLDC motor driver:
Thick Red – Power +
DC power positive input
Thick Black – Power –
DC power negative input
Ensure your power source matches the required voltage (12 V or 24 V DC) and can support the motor’s peak current.
Control Signal Wiring
These wires are used for speed control, system monitoring, and reference voltage.
Yellow – SP (Analog Speed Control Input)
Accepts analog voltage input for proportional speed regulation.
Thin Black – GND (Signal Ground)
Common ground reference for SP, PWM, and FG signals.
White – PWM (PWM Speed Control Input)
Supports 1 kHz–10 kHz PWM input; motor begins rotating when the duty cycle exceeds 10%.
Blue – FG (Speed Feedback Output)
Provides square-wave feedback; a 4-pole BLDC motor outputs 12 pulses per revolution, enabling closed-loop monitoring.
Thin Red – 5V Output
5 V reference output for an external potentiometer (VR) speed control circuit.
Speed Control Options
The pump supports two control methods:
Analog speed control (VR / Potentiometer): 1 kΩ–30 kΩ
PWM speed control: 1 kHz–10 kHz, duty cycle >10% for startup
Both control modes allow precise airflow and vacuum adjustment to match system requirements.
[BD-05T040LBL Wire Connection Guide Download (PDF)
[BD-05T1040LBL High Flow Diaphragm Pump Download Datasheet (PDF)]
Q1｜What tubing size is required to achieve the full 45 L/min flow rate?
To reach the rated 40 L/min, the pump must be paired with 10×8 mm tubing.
Using smaller internal diameters restricts airflow and reduces overall system performance. For long piping routes, increase tube diameter or shorten tube length to minimize pressure loss.
Q2｜Can this pump handle corrosive or special gas media?
Yes — the BD-05T1040LBL supports multiple diaphragm/valve options:
For complex gas mixtures, providing an MSDS helps ensure accurate material compatibility.
Q3｜How should the pump be cooled during continuous operation?
The brushless motor is designed for reliable performance from –10 to 45 ℃.
For high-load or continuous-duty operation:
Q4｜Can the BD-05T1040LBL work with humid or condensate-rich gases?
It is suitable for low-humidity gases. For systems containing condensation:
Q5｜Can the pump be used for both vacuum and positive pressure?
Yes — it supports:
