The BD-05T1045L is a high-vacuum, four-head micro diaphragm pump delivering 45 L/min flow and –99 kPa suction. Built with PPS pump heads, EPDM diaphragms, and a 100 W brushed motor, it offers stable, oil-free performance for gas analysis, automation, and medical equipment. OEM customization available.
| Voltage | 24V |
|---|---|
| Max Flow | 45L/min |
| Max Vacuum | –99 kPa |
| Max Pressure | 2Bar |
| Motor | High-end brushed motor |
| Max Power | 100W |
| Weight | 4.7kg |
The BD-05T1045L is a high-vacuum, four-head diaphragm pump engineered for industrial and laboratory applications requiring strong suction, stable flow, and oil-free operation. Featuring a high-end brushed motor, imported PPS pump heads, and a robust nylon body, this pump delivers 45 L/min airflow with up to –99 kPa vacuum and 2 bar positive pressure, while maintaining low leakage, low noise, and efficient operation.
Ideal for demanding applications in gas analysis, vacuum lifting, medical devices, and automated equipment, the BD-05T1045L provides reliable, long-term performance with minimal maintenance.
✓ High vacuum & stable flow – Quad-head design ensures consistent –99 kPa vacuum and 45 L/min airflow.
✓ Low power consumption – Optimized high-end brushed motor delivers 100 W power with energy-efficient operation.
✓ Oil-free & low leakage – Internal oil-free construction reduces contamination risk and maintains high-purity gas handling.
✓ Corrosion-resistant & durable – Imported PPS pump heads and EPDM diaphragms ensure compatibility with corrosive media.
✓ Low vibration & quiet operation – Balanced diaphragm system reduces noise for sensitive laboratory and industrial environments.
✓ Easy installation – Threaded connectors and compact design allow quick integration into existing systems.

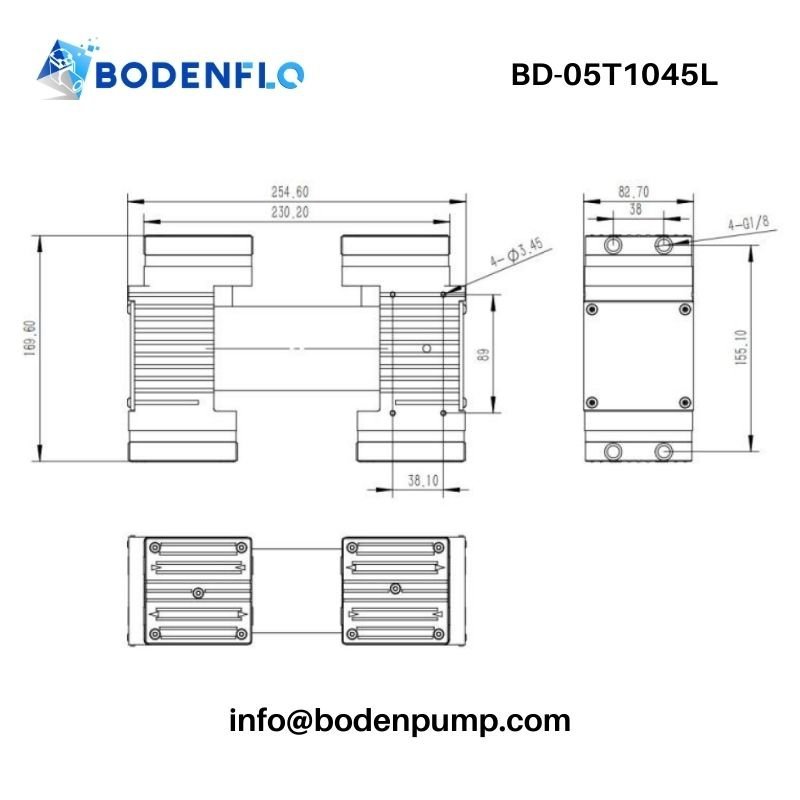

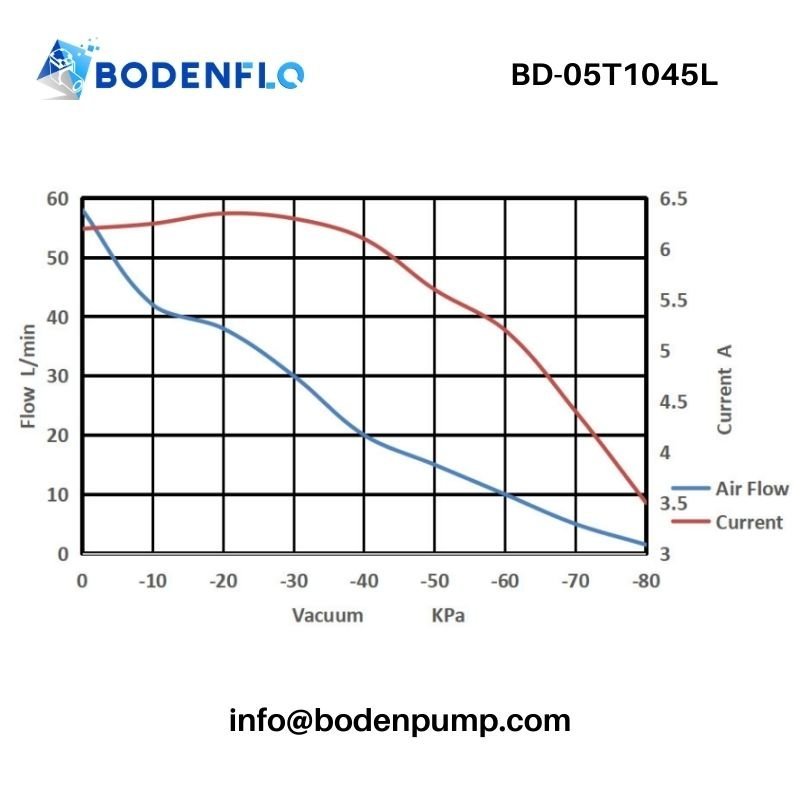

| Parameter | Value |
|---|---|
| Model | BD-05T1045L |
| Voltage Range | 24 V DC |
| Maximum Flow | 45 L/min |
| Max Negative Pressure | –99 kPa |
| Max Positive Pressure | 2 bar |
| Motor Type | High-end brushed motor |
| Max Power | 100 W |
| Waterproof Level | IP20 |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | 0 ℃ ~ 45 ℃ |
| Net Weight | 4.7 kg |
| Component | Material / Performance |
|---|---|
| Pump Head | Imported PPS – high corrosion resistance |
| Diaphragm / Valve | Imported EPDM |
| Pump Body | Nylon – durable, lightweight, and chemical-resistant |
📌 Gas Analysis Equipment – Provides stable vacuum for accurate sampling and measurement.
📌 Vacuum Lifters – Ensures strong suction for automated lifting and pick-and-place systems.
📌 Medical Vacuum Equipment – Suitable for oil-free operation in medical suction and rehabilitation devices.
📌 Automation Equipment – Reliable vacuum source for industrial automation and laboratory integration.
| Aspect | Options |
|---|---|
| Diaphragm Material | EPDM (standard), FKM, PTFE |
| Voltage | 24 V DC |
| Connector Type | Threaded, flanged, or custom |
| Label / Branding | Based on the model provided by the customer |
| Mounting | Custom brackets and dampers |
| Cable / Connector | Custom lengths and types |
Selecting a diaphragm pump supplier is not only about flow rates and vacuum levels—it’s about choosing a partner who can deliver consistent performance, customization, and long-term value. BODENFLO offers:
Cost-Effective Advantage – A reliable, lower-cost alternative to premium EU, US, and Japanese brands without compromising on performance.
Deep Expertise – Over 15 years dedicated to miniature diaphragm and piston pumps, with 600+ proven models and extensive OEM case studies worldwide.
Certified Quality – ISO9001, CE, and RoHS certified production backed by rigorous QC testing for flow, pressure, noise, and durability.
Tailored OEM Solutions – Diaphragm options in EPDM, PTFE, or FKM; custom cable and connector designs; private labeling; and multi-head configurations.
Engineering Partnership – CAD drawings, 3D models, prototyping, and consultation to reduce integration risks and accelerate your product launch.
Global Recognition – Trusted by OEMs across Europe, the US, Korea, and South America for medical, analytical, and industrial applications.
“The BD-05T1045L delivered a stable –99 kPa vacuum with 45 L/min flow for our gas analysis system, operating quietly over long testing periods.”
– R&D Manager, UK
“We integrated the four-head diaphragm pump into our vacuum lifter system, and the corrosion-resistant PPS heads handled challenging gas media without any issues.”
– Automation Engineer, USA
The BD-05T1045L is designed for easy integration into industrial and laboratory systems with a straightforward 2-wire configuration:
This simple wiring structure allows quick installation into compact equipment, ensuring fast setup without additional control modules or complex circuitry.
[BD-05T1045L High Vacuum Diaphragm Pump Download Datasheet (PDF)]
Q1｜What tubing size is required to achieve the full 45 L/min flow rate?
To reach the rated 45 L/min, the pump should be paired with 8×6 mm tubing.
Using smaller internal diameters restricts airflow and reduces overall system performance. For long piping routes, increase tube diameter or shorten tube length to minimize pressure loss.
Q2｜Can this micro pump handle corrosive or special gas media?
Yes — the BD-05T1045L supports multiple diaphragm/valve options:
EPDM (standard): polar gases such as alcohols and aldehydes
FKM: hydrocarbons, aromatics, solvent vapors
PTFE: strong acids/bases, highly reactive or high-purity gases
For complex gas mixtures, providing an MSDS helps ensure accurate material compatibility.
Q3｜How should the four head diaphragm pump be cooled during continuous operation?
The high-end brushed motor is designed for reliable performance at 0–45 ℃. For high-load or continuous-duty operation:
Keep ≥20 mm clearance around the pump for natural convection cooling
Use a metal baseplate to dissipate heat
Avoid sealing the pump in an airtight enclosure
Proper heat management prolongs diaphragm and motor lifespan.
Q4｜Can the BD-05T1045L work with humid or condensate-rich gases?
The pump is suitable for low-humidity gases. For systems with condensation:
Install a condensate trap or moisture separator
Add a 5 μm inlet filter
Prevent large temperature differences that cause internal condensation
Continuous moisture or water droplets can reduce diaphragm longevity.
Q5｜Can the mini pump be used for both vacuum and positive pressure?
Yes — the BD-05T1045L supports:
Vacuum up to –99 kPa
Pressure up to 2 bar
For dual-mode systems, use solenoid valves and safety relief valves to prevent overpressure and ensure safe operation.
