The BD-05T60WB is a brushless micro diaphragm liquid pump engineered for OEM equipment requiring compact size, stable flow control, and long service life. With oil-free operation, strong chemical compatibility, and low pulsation output, it is well suited for precision liquid handling in analytical, medical, and industrial systems.
| Voltage | 12V / 24V |
|---|---|
| Max Flow | 280 mL/min |
| Maximum Suction Lift | 4 mWg |
| Maximum Lift | 60 mWg (intermittent) |
| Motor | Brushless motor |
| Max Power | 4W |
| Weight | 134g |

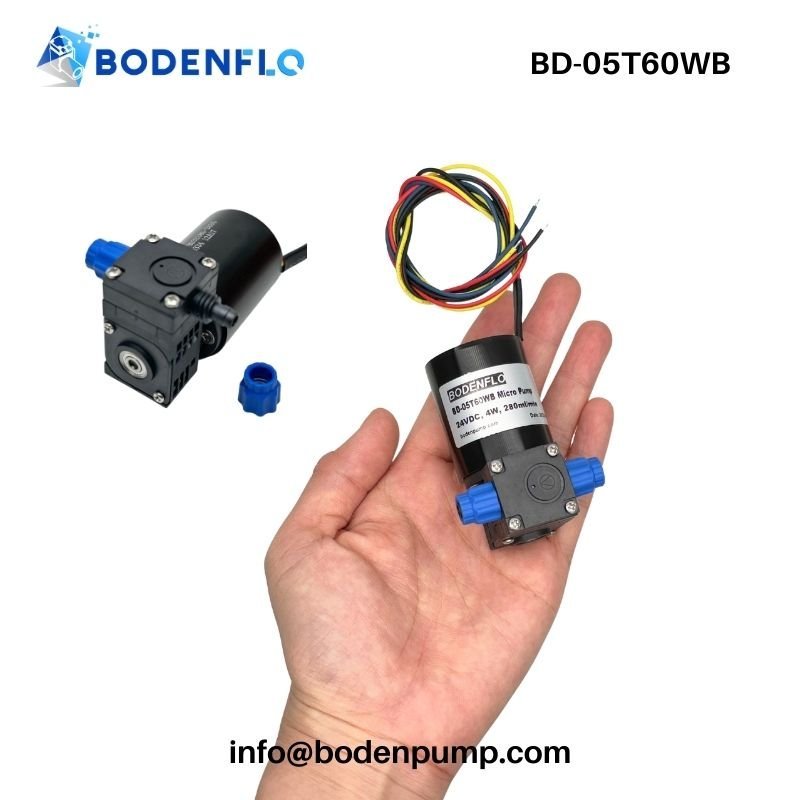

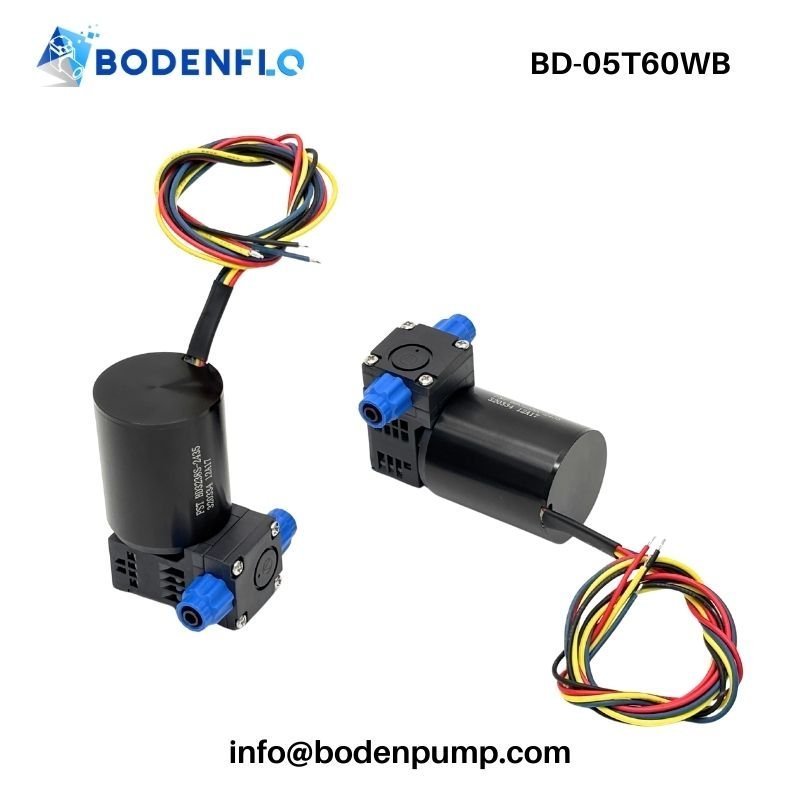

The BD-05T60WB is a compact, brushless micro diaphragm liquid pump designed for precise, low-pulsation liquid handling in OEM and analytical equipment. A brushless DC motor drives an elastic diaphragm to create alternating suction and discharge, delivering stable flow while fully isolating the liquid from mechanical parts. This oil-free design ensures clean operation, low leakage risk, and suitability for continuous duty.
With a PPS pump head, EPDM/PTFE diaphragm, and PA66 housing, the pump provides up to 280 mL/min water flow with low noise and vibration. Its ultra-small footprint makes it well suited for inkjet systems, IVD devices, and laboratory instruments where space and reliability are critical.
✓ Stable flow, low pulsation – Optimized diaphragm motion ensures smooth liquid delivery for precision systems
✓ Brushless motor design – Supports long service life and continuous operation with low electrical noise
✓ Ultra-compact structure – Simplifies integration into dense equipment layouts
✓ Chemical-resistant materials – PPS head with EPDM or PTFE diaphragm supports a wide range of liquids
✓ Low vibration & low leakage – Diaphragm isolation reduces mechanical transmission and sealing risk
✓ Cost-efficient OEM solution – China-based manufacturing with stable quality and supply capability

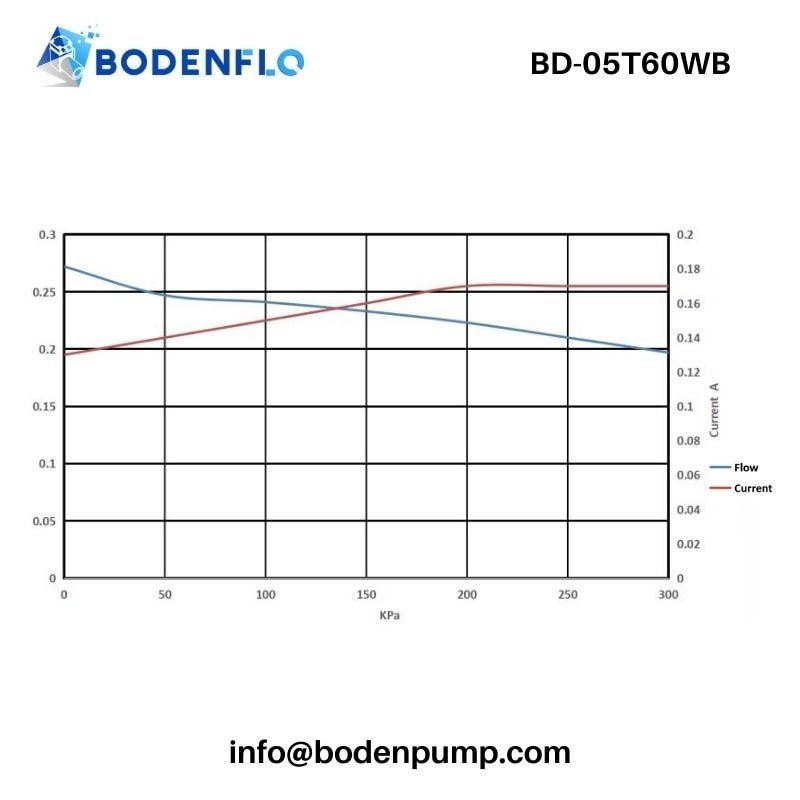

| Parameter | Value |
|---|---|
| Model | BD-05T60WB |
| Voltage Range | 12 / 24 V DC |
| Maximum Flow | 280 mL/min (electronic flow meter) |
| Maximum Suction Lift | 4 mWg |
| Maximum Lift | 60 mWg (intermittent) |
| Test Medium | Water |
| Motor Type | Brushless motor |
| Max Power | 4 W |
| Waterproof Level | IP40 |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | –20 ℃ ~ 45 ℃ |

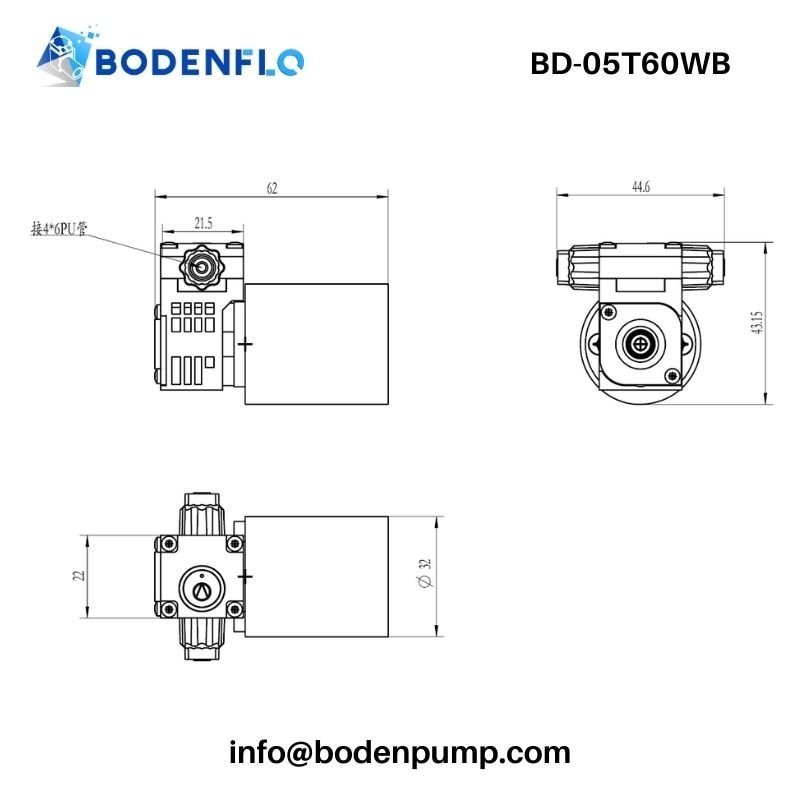

| Dimensions (L×W×H) | 62 × 32 × 44.6 mm |
| Weight | 134 g |
| Component | Material / Performance |
|---|---|
| Pump Head | PPS – corrosion-resistant, durable |
| Diaphragm | EPDM / PTFE (customized for media compatibility) |
| Valve | EPDM / FKM (highly fluorinated option available) |
| Pump Body | High-strength PA66 – lightweight and robust |
📌 Inkjet Printing Systems – Delivers stable, low-pulsation ink transfer to maintain consistent droplet formation and print accuracy during continuous operation.
📌 Liquid Sampling Systems – Enables precise and repeatable liquid extraction with controlled flow, supporting reliable sampling in analytical and monitoring equipment.
📌 IVD & Diagnostic Equipment – Oil-free diaphragm structure ensures clean liquid handling, reducing contamination risk in sensitive medical and diagnostic processes.
📌 Waste Liquid Transfer – Provides dependable discharge of chemical or biological waste fluids with corrosion-resistant wetted materials.
📌 Laboratory Liquid Analysis – Low pulsation flow minimizes measurement fluctuation, improving test repeatability and data stability.
📌 Cooling & Circulation Modules – Compact form factor supports localized liquid circulation in confined cooling or thermal management systems.
| Customization Aspect | Available Options |
|---|---|
| Diaphragm Materials | EPDM, PTFE |
| Valve Materials | EPDM, FKM |
| Pump Head Material | PPS |
| Voltage Options | 12 V DC / 24 V DC |
| Connector & Cable | Custom connectors, cable lengths, and wiring layouts |
| Label / Branding | Customized labeling based on customer-specified model |
| Mounting Solutions | Custom brackets or vibration-damping solutions |
Selecting a diaphragm pump supplier is not only about flow rates and vacuum levels—it’s about choosing a partner who can deliver consistent performance, customization, and long-term value. BODENFLO offers:
“The compact size and oil-free design made integration straightforward for our IVD analyzer, with reliable performance during long-term testing.”
– Diagnostic Device Manufacturer, Japan
“We selected this pump for liquid sampling due to its chemical resistance and quiet operation. It has met our expectations in continuous-duty use.”
– Laboratory Instrument Integrator, USA
Wire Definition & Control Functions
| Wire Color | Signal Name | Function Description | Control / Electrical Notes |
|---|---|---|---|
| Red | Power + | DC power supply positive | Connect to rated DC voltage |
| Black | Power − | DC power supply negative | Power ground |
| Blue | PWM Speed Control | PWM speed regulation input | Frequency: 15–25 kHz Amplitude: 5 V Duty Cycle: 0–100% Also supports: 0–5 V analog voltage control |
| Yellow | FG (Speed Feedback) | Speed feedback output | Signal type: 0–5 V TTL square wave Resolution: 1 pulse per cycle |
Full-Speed Operation (No External Control)
| Connection | Wiring Method |
|---|---|
| Power + | Red + Blue connected together to positive supply |
| Power − | Black to negative (GND) |
| FG | Yellow not connected |
This wiring allows the pump to run at 100% speed without PWM or voltage control input, simplifying integration in basic OEM systems.
[BD-05T60WB Micro Diaphragm Liquid Pump Download Datasheet (PDF)]
Q1｜Why is a diaphragm pump suitable for precision liquid dosing?
The diaphragm mechanism generates controlled displacement with minimal backflow, resulting in stable flow and reduced pulsation compared to rotary micro pumps.
Q2｜How does a brushless motor improve reliability in liquid pumps?
Brushless motors eliminate mechanical commutation wear, offering longer lifespan, stable torque output, and improved suitability for continuous-duty applications.
Q3｜What factors affect diaphragm pump chemical compatibility?
Compatibility depends on diaphragm and valve materials. EPDM provides general resistance, while PTFE supports aggressive or high-purity liquids with minimal absorption.
Q4｜Can the pump handle intermittent dry running?
Short intermittent dry running is acceptable, but continuous dry operation is not recommended as liquid is required to dissipate heat and maintain diaphragm durability.
Q5｜What integration points should OEM engineers consider?
Key factors include inlet filtration, vibration isolation, tubing elasticity, and adequate thermal dissipation to ensure long-term stable operation.
Q6｜Is there a brushed motor version of the BD-05T60WB?
Yes. A brushed DC motor version is available for cost-sensitive or simpler control applications:
👉 BD-05T60W Brushed Micro Liquid Pump
🔗 https://bodenpump.com/product/micro-liquid-pump-bd-05t60w/
