Miniature rotary vane pumps generate smooth, oil-free vacuum or airflow by rotating self-lubricating graphite vanes inside a sealed chamber—ideal for compact analytical and gas sampling instruments.
| Voltage | 0-6V |
|---|---|
| Max Flow | 1-6L/min |
| Max Vacuum | –12 kPa |
| Max Pressure | +12 kPa |
| Motor | Coreless dc motor |
| Max Power | 3 W |
| Weight | 118 g |

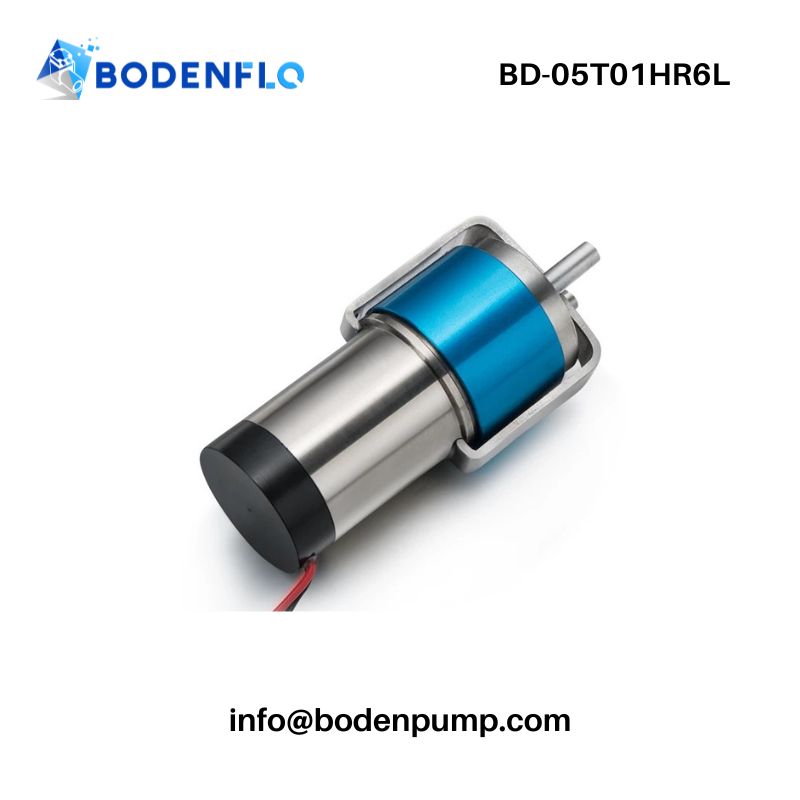

The BODENFLO BD-05T01HR6L is a miniature rotary vane vacuum pump designed for portable gas sampling, VOC analyzers, and analytical instruments. It adopts a rotary vane mechanism, where self-lubricating graphite vanes rotate inside a circular chamber to create continuous, smooth, oil-free airflow—ideal for precision gas handling.
Driven by a high-efficiency coreless DC motor, this pump ensures low vibration, low noise, and stable output. Compared to diaphragm pumps, the rotary vane structure delivers pulsation-free flow, making it better suited for sensitive gas analysis equipment.
With a compact size of 64×26×30 mm and a weight of only 118 g, the BD-05T01HR6L offers easy integration into compact systems. Its 304 stainless steel housing ensures excellent durability and gas tightness, while the internal components are optimized for >8,000 hours of service life in clean air environments.
✓ Rotary vane working principle – continuous, smooth flow with no pulsation
✓ Oil-free operation – clean and maintenance-free for sample integrity
✓ Low noise, low vibration – stable operation suitable for analytical devices
✓ Compact and durable – stainless steel housing, 64×26×30 mm, 118 g
✓ High-performance motor – coreless DC motor with >8,000 hours service life
✓ Bidirectional flow – supports positive and negative rotation
✓ High gas tightness – protects against contamination and leakage
✓ Excellent price-performance ratio – cost-effective solution for OEM integration

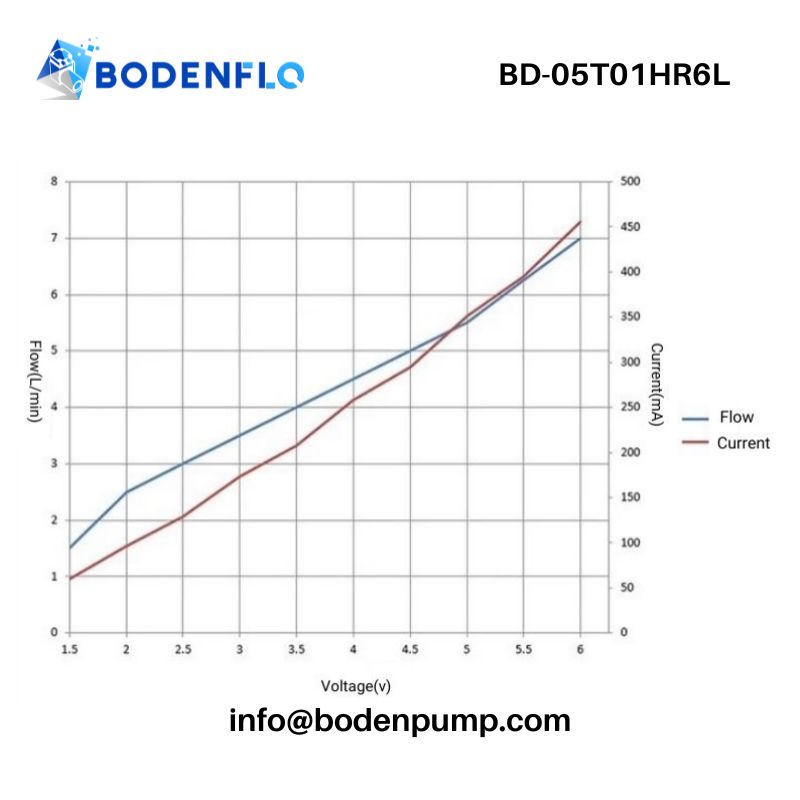

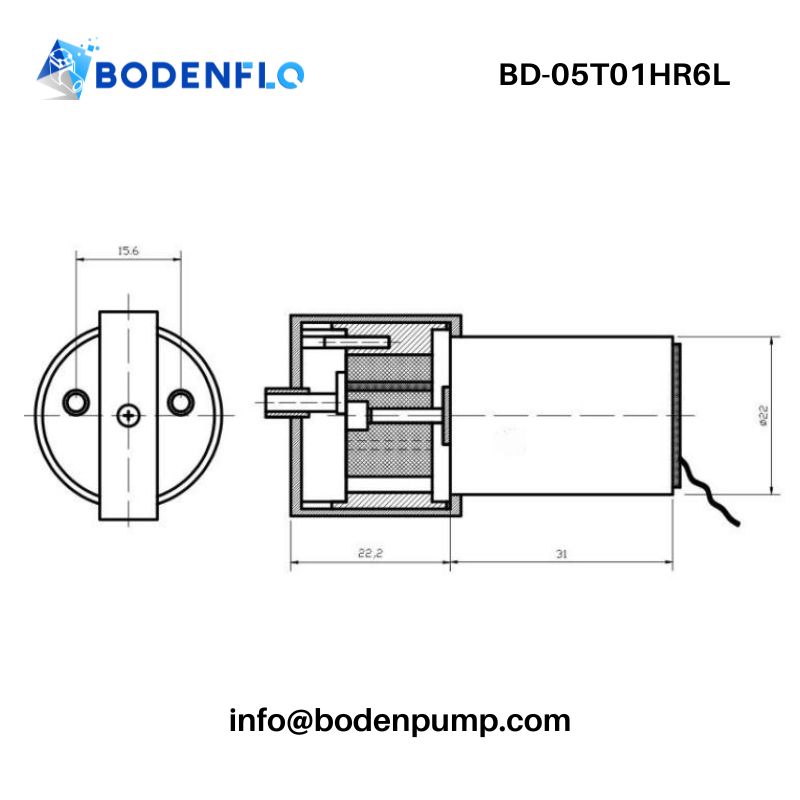

| Parameter | Value |
|---|---|
| Model | BD-05T01HR6L |
| Voltage Range | 0 – 6 V DC |
| Maximum Flow Rate | 1 – 6 L/min |
| Maximum Vacuum Pressure | –12 kPa |
| Maximum Positive Pressure | +12 kPa |
| Motor Type | Coreless DC Motor |
| Max Power | 3 W |
| Protection Class | IP20 |
| Service Life | >8,000 hours |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | 0 ℃ ~ 45 ℃ |
| Pump Head Material | 304 Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Vane Material | Graphite |
| Dimensions | 64 × 26 × 30 mm |
| Weight | 118 g |
| Component | Material / Performance |
|---|---|
| Pump Head | 304 Stainless Steel |
| Pump Housing | 304 Stainless Steel |
| Vanes | Graphite – low wear, self-lubricating |
| Motor | Coreless DC motor |
| Lifetime | >8,000 hours in clean gas environments |
📌 Air Particle Counters & Cleanroom Monitoring
Provides stable, pulsation-free airflow for air particle counters used in cleanroom classification, semiconductor production, and pharmaceutical manufacturing. The oil-free rotary vane mechanism prevents secondary contamination, ensuring compliance with ISO Class 1–9 and GMP cleanroom standards.
📌 VOC Online Analyzers & Gas Monitoring Systems
Delivers smooth, low-vibration flow for VOC (Volatile Organic Compounds) online analyzers in environmental monitoring, industrial safety, and chemical process control. High gas tightness ensures no sample leakage or dilution, preserving data accuracy.
📌 Medical & Laboratory Analytical Instruments
Ideal for integration into anesthesia monitoring systems, respiratory analysis equipment, and automated laboratory instruments. The stainless steel housing and oil-free design ensure clean airflow and long service life, even in 24/7 clinical environments.

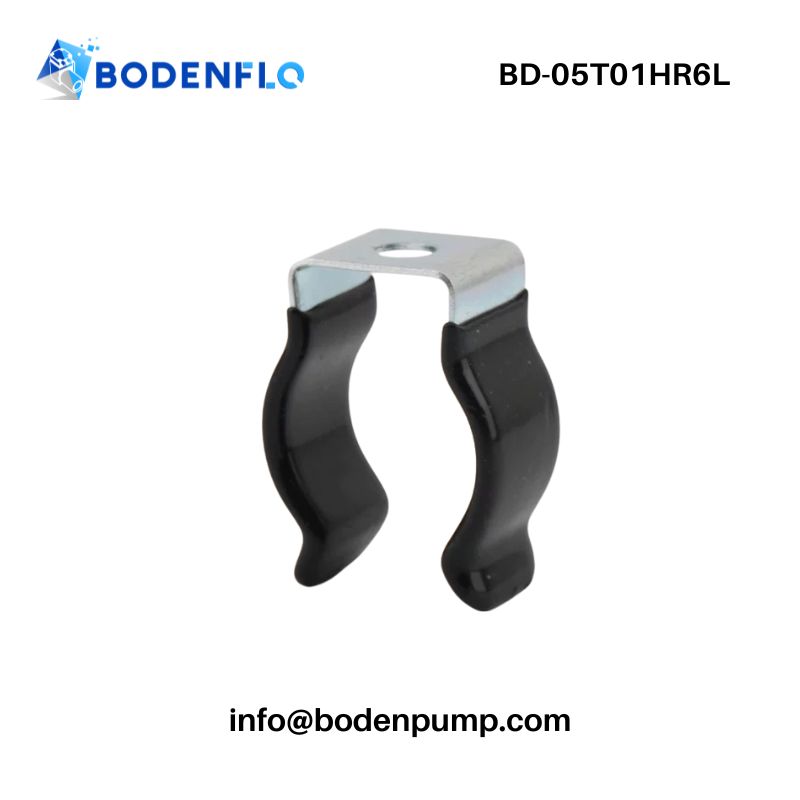

| Customization Aspect | Available Options / Notes |
|---|---|
| Flow Direction | Supports reversible motor rotation |
| Electrical Cable / Connector | Custom wire length and connectors for OEM integration |
| Branding & Labeling | Custom logo and part number labeling |
| Housing & Mounting | Optional mounting brackets available |
| Performance Adjustment | Flow, pressure, and motor parameters can be tuned per project |
When sourcing a miniature rotary vane vacuum pump, performance is only part of the equation—reliability, engineering expertise, and customization support are equally critical.
✓ Proven Expertise – Over 15 years specializing in miniature rotary vane pumps, diaphragm pumps, micro vacuum pumps, micro air pumps, mini compressors, and micro piston pumps, plus accessories such as valves, connectors, and mounting solutions.
✓ Certified Quality – ISO9001-certified manufacturing with strict QC processes and complete traceability for medical, laboratory, and environmental monitoring applications.
✓ Tailored OEM Solutions – Custom vane and diaphragm materials (graphite, EPDM, FKM, PTFE), specialized wiring harnesses, performance tuning, and branding options to meet your exact specifications.
✓ Fast Prototyping – Rapid sample delivery and application engineering support to help shorten development cycles.
✓ Global Track Record – Trusted OEM supplier to manufacturers of air particle counters, VOC analyzers, and precision medical instruments worldwide.
“We use the BD-05T01HR6L in our field gas analyzer. It’s silent, reliable, and performs better than diaphragm models we’ve tried.”
— Lead Mechanical Engineer, Sweden
“The rotary vane principle provides exactly the stable flow we needed for our lab instrument.”
— Product Developer, USA
For quick integration, the BD-05T01HR6L is designed with simple 2-wire connection:
Red wire: Connect to DC power positive (+)
Black wire: Connect to DC power negative (–)
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T01HR6L Mini Rotary Vane Vacuum Pump 6V Download (PDF)]
Q1: What is the BD-05T01HR6L primarily used for?
A: It is ideal for gas sampling, environmental monitoring, and laboratory analysis instruments requiring stable, clean vacuum or airflow.
Q2: Can this pump be mounted in any direction?
A: Yes, the pump can be installed in horizontal or vertical orientations due to its oil-free design and balanced rotary structure.
Q3: How long does it last?
A: With its coreless motor and graphite vanes, the pump is rated for over 8,000 hours of continuous operation in clean environments.
Q4: Is the flow reversible?
A: Yes, by reversing motor polarity, the direction of airflow can be switched—suitable for gas sampling and purging.
The BODENFLO BD-05T01HR6L Mini Rotary Vane Vacuum Pump combines compact dimensions, stainless steel durability, and pulsation-free performance—making it the perfect choice for air particle counters, VOC online analyzers, and medical instruments.
With over 8,000 hours of service life, an oil-free design, and precise gas handling capabilities, this pump ensures long-term reliability and data integrity in your critical applications.
Contact BODENFLO today for samples, datasheets, or integration support, and experience the benefits of a dedicated OEM partner for your miniature pump needs.
📧 Email: info@bodenpump.com
🌐 Website: https://bodenpump.com/
We will contact you within 8 hours, please pay attention to the email with the suffix “@bodenpump.com”.
