The BD-05T067L is a powerful miniature diaphragm gas pump driven by a high-efficiency brushless DC motor. It delivers clean, oil-free air flow up to 10 L/min, strong vacuum to –85 kPa, and stable pressure up to 2.5 bar, making it ideal for precise gas handling in analyzers, environmental monitoring, and industrial gas detection systems.
| Voltage | 12/24V |
|---|---|
| Max Flow | 7L/min |
| Max Vacuum | –85 kPa |
| Max Pressure | 2.5 Bar |
| Motor | Brushless motor |
| Max Power | 20W |
| Weight | 370g |
The BODENFLO BD-05T067L mini diaphragm pump operates by driving a flexible EPDM diaphragm through a precision-balanced eccentric cam mechanism powered by a brushless DC motor. As the diaphragm moves back and forth, it creates alternating pressure and vacuum cycles, enabling continuous gas intake and exhaust without contamination. This oil-free, non-contact motion ensures clean, maintenance-free operation, even in sensitive analytical systems.
Built with a PPS pump head, EPDM diaphragm, and engineering plastic, it achieves up to 7 L/min flow, -85 kPa vacuum, and 2.5 bar pressure, making it ideal for CEMS, VOC analyzers, petrochemical gas detection, and other demanding industrial environments.
Backed by 8000-hour service life, a 20W high-torque brushless motor, and low-vibration design, the BD-05T067L ensures stable, oil-free operation across critical applications.
✓ High flow rate up to 10 L/min – Meets demanding sampling or ventilation needs
✓ Strong vacuum & pressure performance – -85 kPa vacuum, 2.5 bar pressure
✓ Low noise and low vibration – Balanced pump structure for quiet operation
✓ Long lifetime – Brushless motor with ball bearings supports 8000+ hours of duty
✓ Oil-free & clean air path – Safe for VOC and gas analysis applications
✓ Robust material construction – PPS head, EPDM/FKM/PTFE optional diaphragm

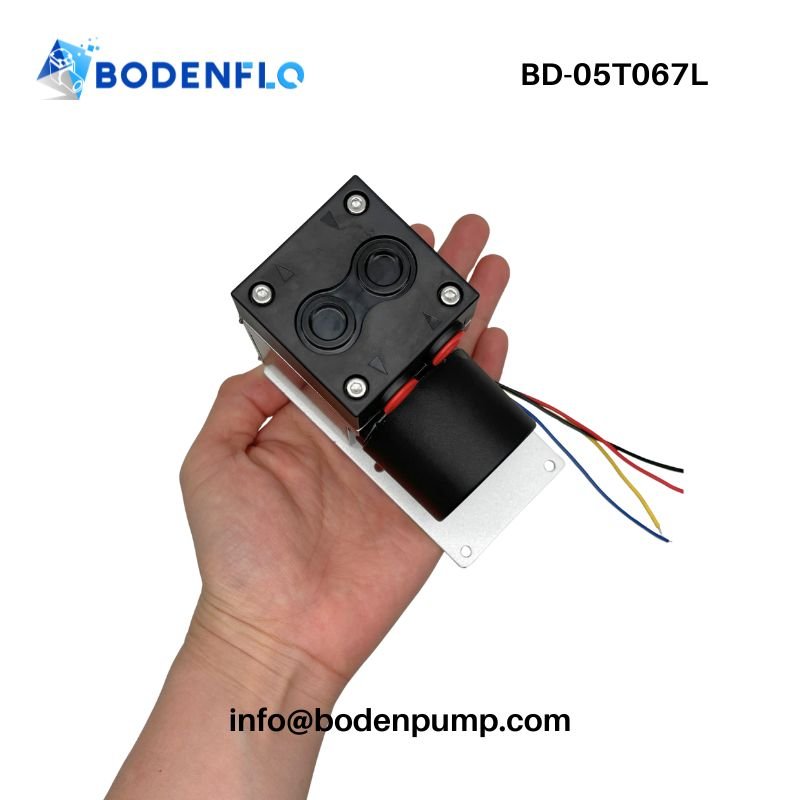

✓ Compact yet powerful – Fits into professional instruments without compromising performance
| Parameter | Value |
|---|---|
| Model | BD-05T067L |
| Voltage Range | 12 V / 24 V DC |
| Max Flow Rate | 7 L/min |
| Max Vacuum | –85 kPa |
| Max Pressure | 2.5 bar |
| Motor Type | Brushless DC (BLDC) |
| Max Power | 20 W |
| IP Rating | IP20 |
| Service Life | >8,000 hours (continuous duty) |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | 0 ℃ ~ 45 ℃ |
| Medium Temperature | –10 ℃ ~ 45 ℃ |

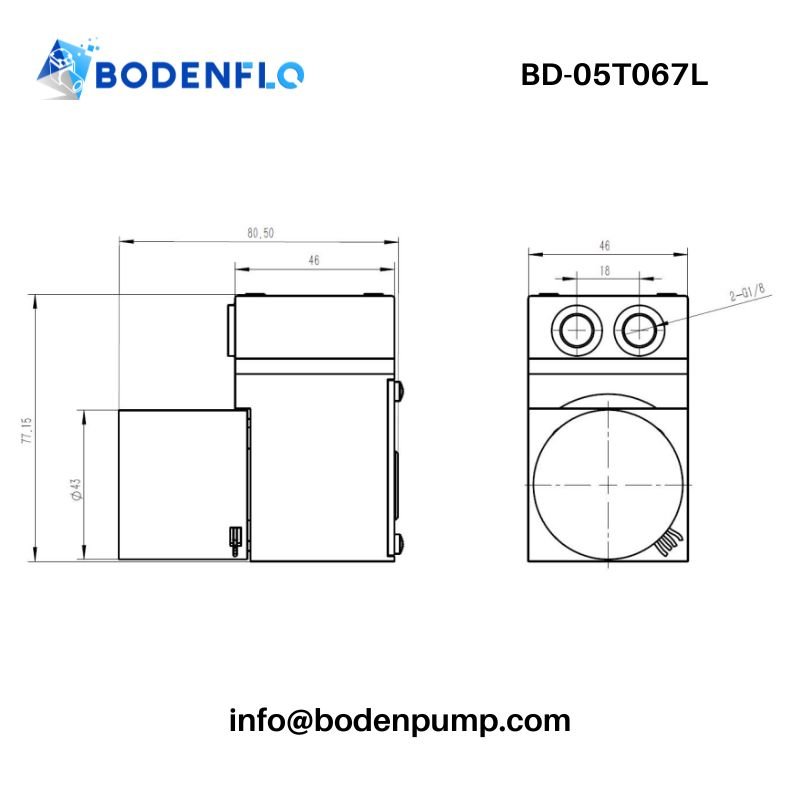

| Dimensions (L×W×H) | 80.5 × 46 × 77 mm |
| Weight | 370 g |
| Component | Material / Performance |
| Pump Head | PPS – high strength, high-temperature resistant |
| Diaphragm/Valve | EPDM (standard); FKM/PTFE available on request |
| Pump Body | Engineering plastic, durable |
| Lifetime | >8,000 hours (continuous duty) |
📌 CEMS / VOC Online Analyzers – Provides clean, stable suction for continuous emissions monitoring and VOC gas detection.
📌 Petrochemical Gas Detection – Integrates into detection equipment for hydrocarbons and industrial gases.
📌 Gas Sampling Systems – Drives precise sampling for portable and stationary analyzers.
📌 Laboratory Instruments – Ensures reliable suction in controlled chemical or physics test environments.
| Customization Aspect | Options Available |
| Diaphragm Material | EPDM (standard), FKM, PTFE (customizable) |
| Electrical Connector | Cable length and plug type customizable |
| Branding & Labels | OEM logo and labeling options available |
| Pump Configuration | Brushless motor; single-head layout |
| Integration Support | Technical support for analyzer OEMs |
Selecting a small diaphragm pump supplier is more than comparing datasheets—it’s about ensuring long-term reliability, engineering excellence, and responsive OEM support. With BODENFLO, you secure a partner committed to your success:
Proven Expertise – 15+ years specializing in diaphragm, piston, and compressor pumps, with 300+ standard models and custom-engineered solutions for analytical, medical, and industrial devices.
Certified Quality – ISO9001-certified production, CE/RoHS compliance, and rigorous testing for vacuum performance, flow stability, noise, and durability.
OEM Customization – Tailored diaphragm materials (EPDM, FKM, PTFE), wiring/connectors, private labeling, and multi-head configurations for seamless integration.
Rapid Engineering Support – Fast prototyping, technical consultation, and application-specific optimization to shorten your development cycle.
Global OEM Trust – Trusted by leading manufacturers across Europe, the US, South Korea, and Brazil in gas analysis, medical, and automation systems.
Competitive Value – Equivalent or superior performance to top EU/US brands while maintaining cost efficiency for long-term competitiveness.
“We used the BD-05T067L in our new CEMS system. Excellent stability and very low noise compared to our previous models.”
— Product Engineer, Italy
“Reliable flow and long runtime. After 7000 hours, it’s still running steadily in our VOC analyzer.”
— QA Manager, Korea
For quick integration, the BD-05T067L is designed with simple 2-wire connection:
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T067L Small Diaphragm Pump Download Datasheet (PDF)]
Q1: Can the BD-05T067L be used in continuous-duty environments?
Yes. With a brushless motor rated for over 8,000 hours, it supports 24/7 operation in analyzers, samplers, and detectors.
Q2: How does the BD-05T067L differ from brushed diaphragm pumps?
The brushless design provides longer service life, lower noise, reduced vibration, and minimal maintenance, making it ideal for high-end instruments.
Q3: Can this pump handle corrosive gases?
Yes. By selecting FKM or PTFE diaphragms, the BD-05T067L can operate in chemically aggressive environments such as VOC or petrochemical analysis.
Q4: What makes this pump suitable for sensitive sampling applications?
It features an oil-free, contamination-free air path, balanced pump structure for low pulsation, and robust PPS.
Q5: How quickly can OEMs receive samples?
Samples are typically dispatched within 1–3 working days via DHL or FedEx. Custom integration support is available on request.
