| Voltage | 6/12/24V |
|---|---|
| Max Flow | 110 mL/min (water), 3 L/min (gas) |
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Motor | DC Brushless Motor |
| Max Power | 5 W |
| Weight | 280 g |

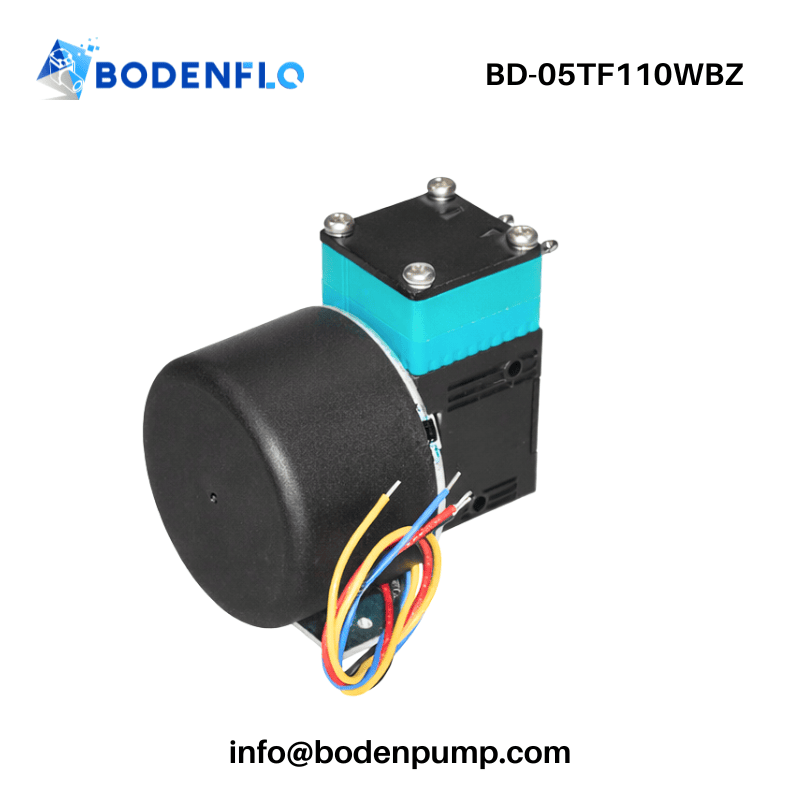

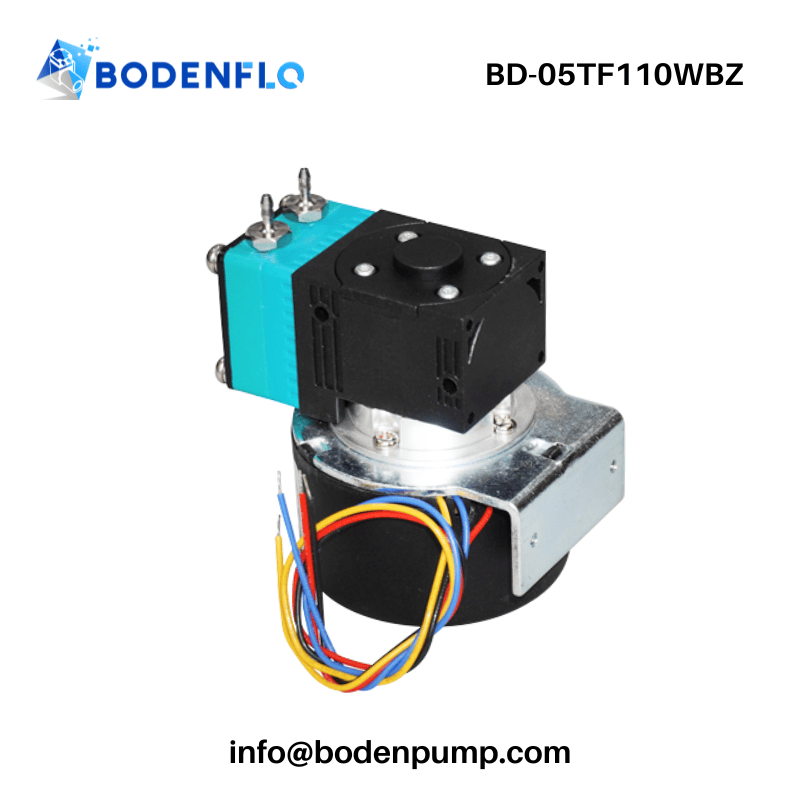

The BODENFLO BD-05TF110WBZ is a compact small liquid pump designed for stable and controlled fluid transfer in precision OEM equipment. Built with a diaphragm pumping structure, it supports both liquid and gas handling while maintaining reliable sealing and oil-free operation.
This inkjet pump is widely used in digital printing systems, biochemical analyzers, and automated liquid handling devices where consistent micro-flow and stable pressure are critical. With strong self-priming capability and a brushless motor design, it delivers extended service life and reduced maintenance, making it a reliable solution for long-term industrial and laboratory applications.
To help you quickly check if BD-05TF110WBZ will work in your system, we’ve listed the key specifications below.
Focus on flow, pressure, power, and size to see if it fits your design requirements.
| Basic Information | |
|---|---|
| Model | BD-05TF110WBZ |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6 V / 12 V / 24 V DC |
| Liquid Performance | |
| Free Water Flow | 110 mL/min (0.029 gpm) |
| Max Water Pressure | 2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Gas Performance | |
| Free Gas Flow | 3 L/min (0.106 cfm) |
| Max Gas Pressure | 1 bar (14.5 psi / 1000 mbar / 0.1 MPa) |
| Max Gas Vacuum | -60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Max Power | 5 W |
| Noise | 55 dB |
| Lifetime | 8000 h |
| Mechanical Data | |

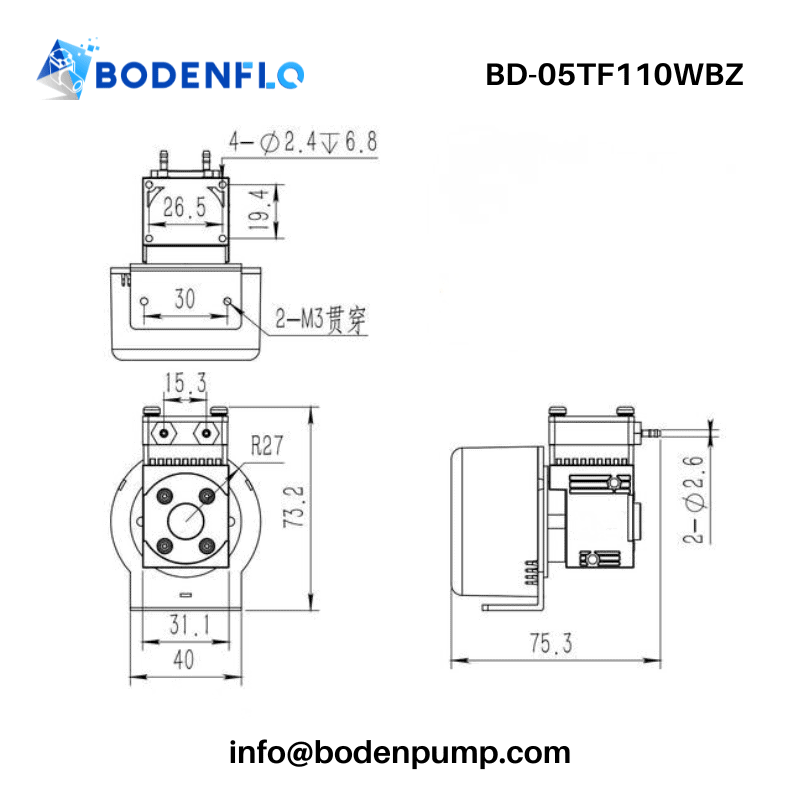

| Dimensions | 75.3 × R27 × 73.2 mm (2.96 × R1.06 × 2.88 in) |
| Weight | 280 g (0.62 lb) |
| Recommended Tubing Size | ID 1.5 mm / OD 3 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
For most OEM applications, the standard material configuration provides a practical balance of chemical compatibility, durability, and stable long-term operation.
| Component | Material / Feature |
|---|---|
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
This combination is suitable for general liquid transfer applications involving water-based or mildly corrosive media.
If the standard configuration does not fully match your medium or service life target, additional material options are available for evaluation.
If your system requires specific electrical configurations, material compatibility, or installation interfaces, selected items can be customized to better match your application.
| Customization Item | Available Options |
|---|---|
| Voltage | 6V / 12V / 24V |
| Motor Type | Brushless DC motor or cost-optimized brushed motor |
| Materials | Corrosion-resistant PPS head, PTFE diaphragm, FFPM valves |
| Wiring | Customized cable harness |
| Connector | Application-specific connectors available |
| Tubing | Pre-installed tubing or custom hose interface |
| Branding | OEM labeling and private branding |
BODENFLO also supports integrated customization, including connectors, tubing, and mounting brackets, allowing the pump to be delivered as a ready-to-install module.
This reduces assembly time, simplifies system integration, and helps OEM customers accelerate product development.
The BD-05TF110WBZ is suitable for OEM systems that require stable liquid transfer, compact integration, and reliable long-term operation.
Used for stable ink transfer and circulation in inkjet printing systems.
Supports accurate reagent delivery in automated laboratory instruments.
Provides reliable suction and discharge cycles for laboratory cleaning processes.
Suitable for liquid sampling and reagent dosing in analytical devices.
Its compact structure supports portable sampling and micro-fluid transfer systems.
Delivers stable liquid transfer for automated cleaning and disinfection functions.
In many OEM projects, the real challenge is not just selecting a pump, but making sure it can be integrated, tested, and supplied smoothly over time. BODENFLO supports customers not only with pump products, but also with the engineering, customization, and project support needed to move development forward.
The following feedback reflects how customers use BD-05TF110WBZ in real OEM equipment and what they value most in actual applications.
Application: Automated reagent dosing system
Feedback: Stable liquid flow and reliable priming performance. It works very well in our automated reagent dosing system.
Application: Digital printing platform
Feedback: The pump integrates smoothly into our digital printing platform and maintains consistent ink transfer during long operation cycles.
Application: Compact liquid sampling system
Feedback: Its compact size and stable operation made it a practical option for our OEM project.
[BD-05TF110WBZ Small Liquid Pump Datasheet (PDF)]
Flow instability is common in systems such as inkjet printers or analytical instruments. It is often caused by back pressure changes, air leakage in tubing, or particles affecting valve sealing.
Proper tubing layout, good sealing, and pumps with stable diaphragm structures help maintain consistent liquid transfer.
Startup priming issues usually occur when the pump must draw liquid from a lower reservoir or through narrow tubing. Air trapped in the line or insufficient suction capability can prevent stable flow from forming.
Selecting pumps with strong suction performance and reliable check valves helps ensure faster and more reliable priming.
Pump lifespan is often influenced by continuous high-load operation, aggressive liquids, particle contamination, and motor wear.
Using appropriate inlet filtration and selecting pumps with durable diaphragms and long-life motors helps extend the overall service life of the system.
Reducing maintenance usually requires oil-free pumping structures and long-life motors.
The BODENFLO BD-05TF110WBZ small liquid pump combines a brushless motor with a diaphragm design, delivering stable 110 mL/min flow and long service life, helping OEM devices operate reliably with fewer service intervals.
Some projects require similar flow and pressure performance but different motor control options.
For applications close to this model, BODENFLO also provides the BD-05TF110W series, offering comparable hydraulic performance with a brushed motor option for stable long-term operation.
Ink pump selection depends on viscosity, flow stability, and system pressure requirements. For most inkjet systems, diaphragm pumps are preferred due to stable, oil-free operation.
For further guidance, refer to:
Choosing the right pump ensures stable ink delivery and long-term reliability.
If you are developing digital printing systems, analytical instruments, or automated liquid handling equipment, BODENFLO provides reliable micro liquid pump solutions tailored for OEM integration.
